Angular Modern House Plan with 3 Upstairs Bedrooms

Plan 85208MS

  • 2,402

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A sumptuous L-shaped great room/dining room/kitchen layout graces the main floor of this striking home, while a sprawling layout marks the upper floor.
  • Upstairs are three large bedrooms, the utility closet, and most notably the large master suite complete with his/hers sinks, separate tub and shower, and large U-shaped walk-in closet.
  • Outside, this home offers a striking yet balanced exterior that is sure to impress.
  • Related Plan: Get an alternate exterior with house plan 85287MS.
  • BUILDING RESTRICTION: This plan may not be built in Clark County, Washington

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

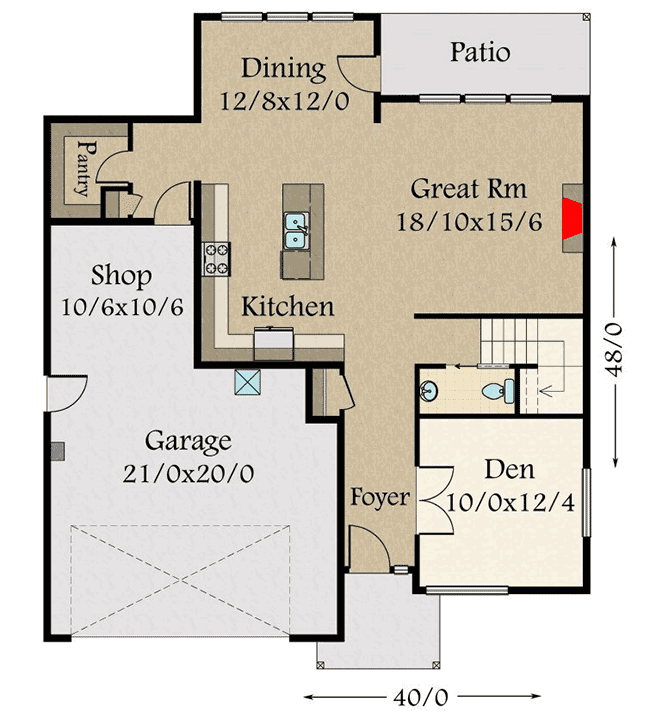

Angular Modern House Plan with 3 Upstairs Bedrooms - 85208MS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

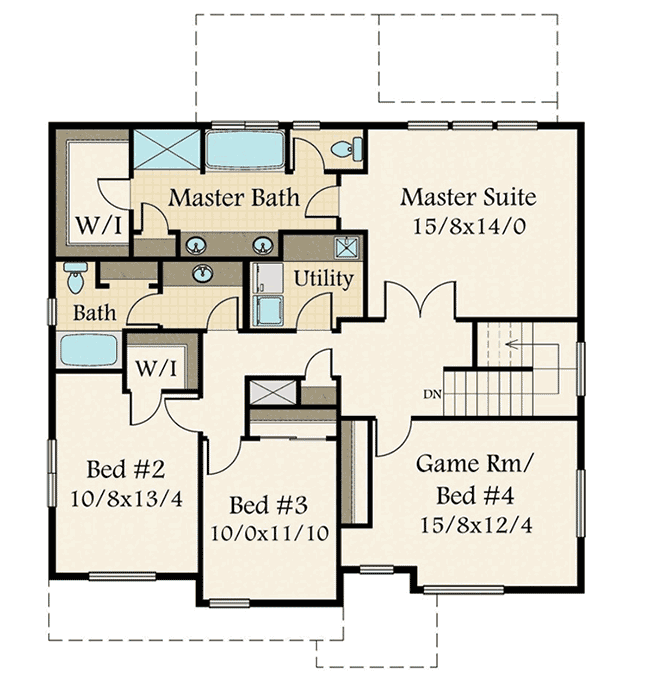

Angular Modern House Plan with 3 Upstairs Bedrooms - 85208MS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,402 sq. ft.
  • 1st Floor: 1,056 sq. ft.
  • 2nd Floor: 1,346 sq. ft.
  • Workshop: 110 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Architectural Style

Special features

Plan Collections

Angular Modern House Plan with 3 Upstairs Bedrooms

  • 2,402

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,417
  • 6 Sets $1,681
  • PDF - Unlimited Build $2,217
  • CAD - Single-Build $2,402
  • CAD - Unlimited Build $3,202
  • View all purchase option online

About This Plan

  • A sumptuous L-shaped great room/dining room/kitchen layout graces the main floor of this striking home, while a sprawling layout marks the upper floor.
  • Upstairs are three large bedrooms, the utility closet, and most notably the large master suite complete with his/hers sinks, separate tub and shower, and large U-shaped walk-in closet.
  • Outside, this home offers a striking yet balanced exterior that is sure to impress.
  • Related Plan: Get an alternate exterior with house plan 85287MS.
  • BUILDING RESTRICTION: This plan may not be built in Clark County, Washington
