Plan 92078VS
Appealing Carriage House Apartment Under 1200 Square Feet
Heated S.F.
1,150
Beds
1
Baths
1.5
Stories
2
Cars
4
Floor Plan

Plan 92078VS

Main Level
slide image 0
2nd Floor
slide image 1

Plan 92078VS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

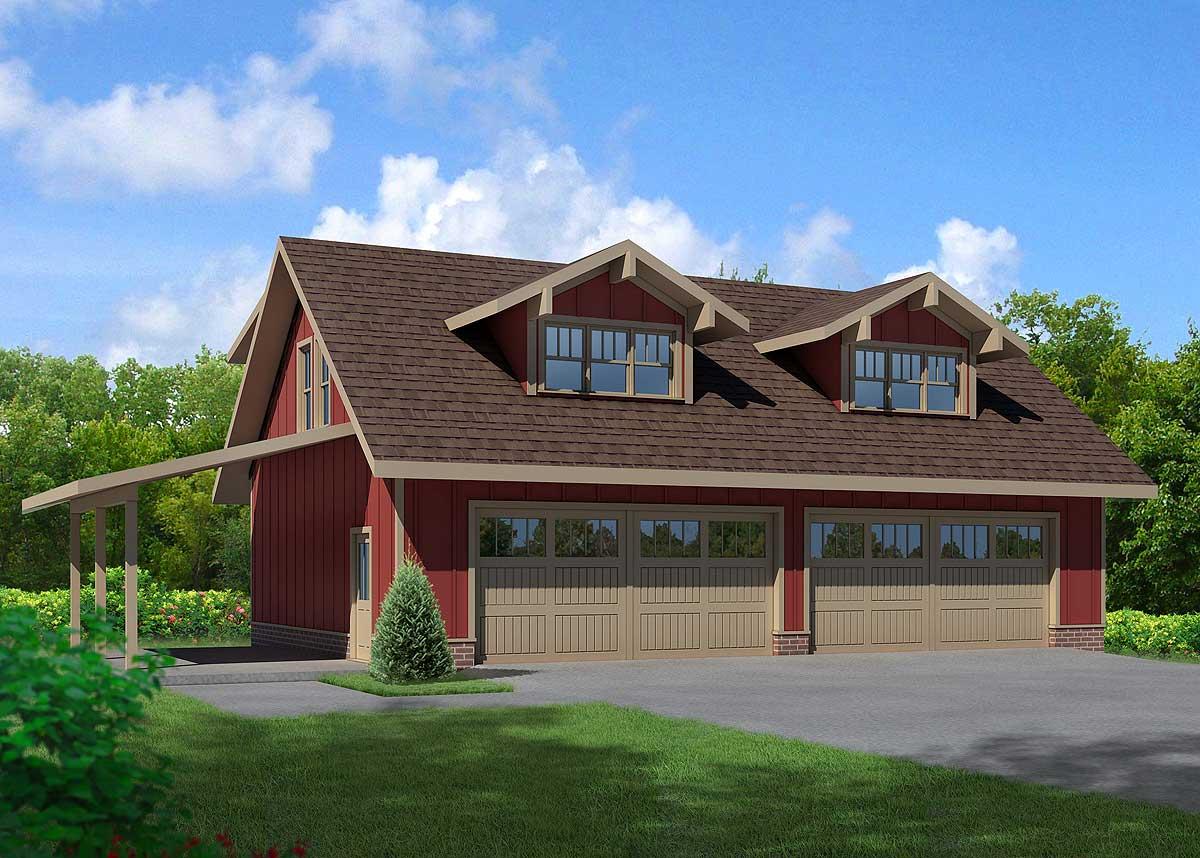

  • Four cars fit nicely on the ground level of this appealing 1,150 square foot carriage house apartment.
  • The washer/dryer and a half bath are also on this level.
  • Upstairs you get a large living space that is open to the dining room and kitchen.
  • Two dormer windows bring in light and a big deck lies on the backside.
  • The plan works well as guest quarters or for rental income or as an in-law suite.
What's Included

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,150 sq. ft.

2nd Floor

1,150 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

30' 0"

Max Ridge Height

23' 11"

Garage

Type

Detached

Area

1380 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Traditional

Special Features

In-Law Suite

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,150 sq. ft.

2nd Floor

1,150 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

30' 0"

Max Ridge Height

23' 11"

Garage

Type

Detached

Area

1380 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Traditional

Special Features

In-Law Suite

Master Suite - 2nd Floor

Plan Collections

ADU
