Plan 72895DA

Appealing Ranch House Plan

Appealing Ranch House Plan

Plan 72895DA

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A huge vaulted great room and foyer are the first things you see as you step into this appealing Ranch house plan.
  • The great room overlooks the wrap-around covered front porch while the kitchen overlooks the rear covered patio.
  • Tucked away in the bedroom wing, a study nook makes a quiet spot for the kids to do homework.
  • The vaulted master suite comes with a private bathroom and a walk-in closet.
  • There's a large storage area in the two car garage for bikes or lawn equipment.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Appealing Ranch House Plan

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • A huge vaulted great room and foyer are the first things you see as you step into this appealing Ranch house plan.
  • The great room overlooks the wrap-around covered front porch while the kitchen overlooks the rear covered patio.
  • Tucked away in the bedroom wing, a study nook makes a quiet spot for the kids to do homework.
  • The vaulted master suite comes with a private bathroom and a walk-in closet.
  • There's a large storage area in the two car garage for bikes or lawn equipment.

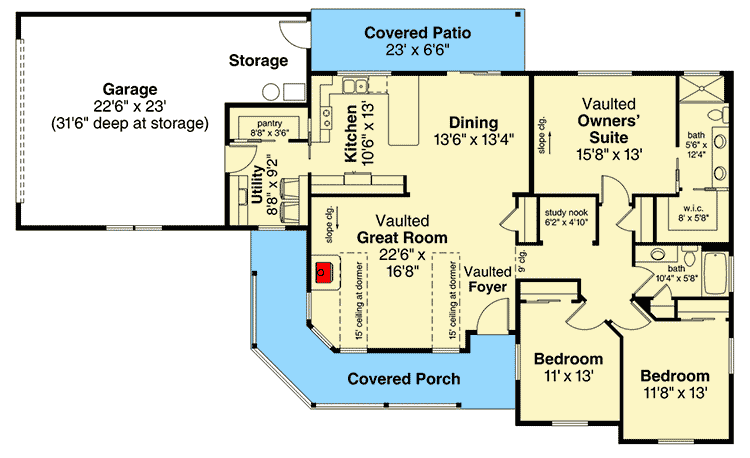

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,786 sq. ft.
  • 1st Floor: 1,786 sq. ft.
  • Covered Patio: 150 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 47' 6"
  • Max ridge height: 23' 11"

Garage

  • Type: Attached
  • Area: 645 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
