Arched Openings

Plan 72648DA

  • 2,590

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Natural light washes into the vaulted parlor through uniquely stacked windows facing the street. Openly linked gathering spaces form the core of this contemporary, cottage home plan well-suited for empty nesters or families with children. Being all on one level (excepting the bonus room over the garage), this plan easily adapts to wheelchair accessibility.
  • After passing under the gentle arch that highlights the porch, you step into a foyer. Arched openings there continue forward and to the right. A parlor and two bedrooms, each with a direct entry bathroom, fill the right wing.
  • A coat closet off the hall and a a mud hall with bench help minimize clutter.
  • In the kitchen, cabinets and counters wrap around three sides of a central work island with a flush eating counter fronting the dining area. Windows fill most of the rear walls there.
  • More windows run along the back wall of the great room, next to a corner gas fireplace. Access to a wide covered patio sits at the juncture of the great room and dining area.
  • Amenities in the owners' suite include a deep walk-in closet and a luxurious bathroom with twin vanities, a deep soaking tub, and a separately enclosed toilet and shower.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

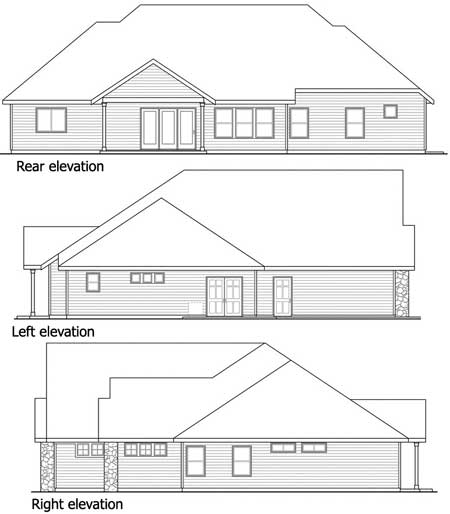

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

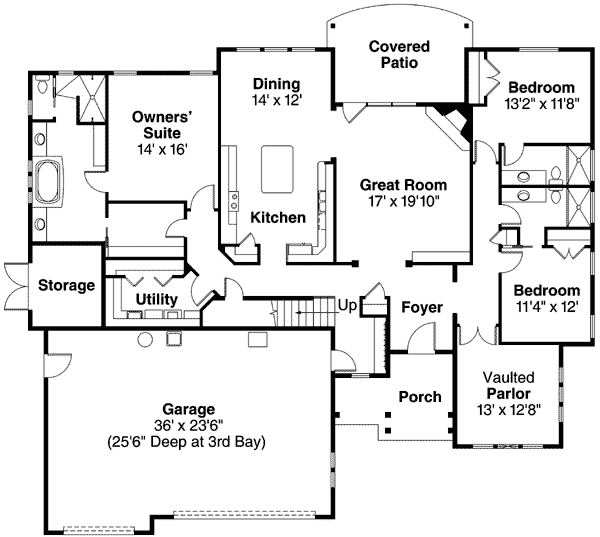

Arched Openings - 72648DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Arched Openings - 72648DA floor plan - Bonus

Arched Openings

  • 2,590

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,590 sq. ft.
  • 1st Floor: 2,590 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 65' 0"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 1014 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
