Arts and Crafts Home Plan with ADA-compatible Main Floor

Plan 31611GF

  • 1,936

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 1-2

    Cars

  • This Arts and Crafts style home plan - ideal for an infill narrow lot at only 19 feet wide - is designed with special attention made to handicap access in compliance with ADA guidelines. There's a wheelchair ramp option available in back with sliding door entry and the first floor bedroom and bathroom accommodate wheelchair needs.
  • This home is perfect for an urban neighborhood and provides 4 bedrooms with an open living space, a front porch spanning the width of the house, and a carport attached to the front porch.
  • Upstairs laundry is convenient for the three bedrooms on that floor.

Each plan set includes:

  • Cover Sheet: Shows typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

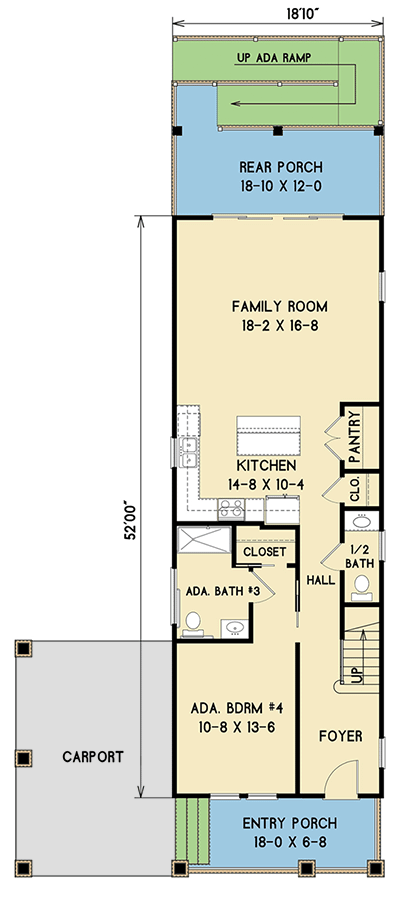

Arts and Crafts Home Plan with ADA-compatible Main Floor - 31611GF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

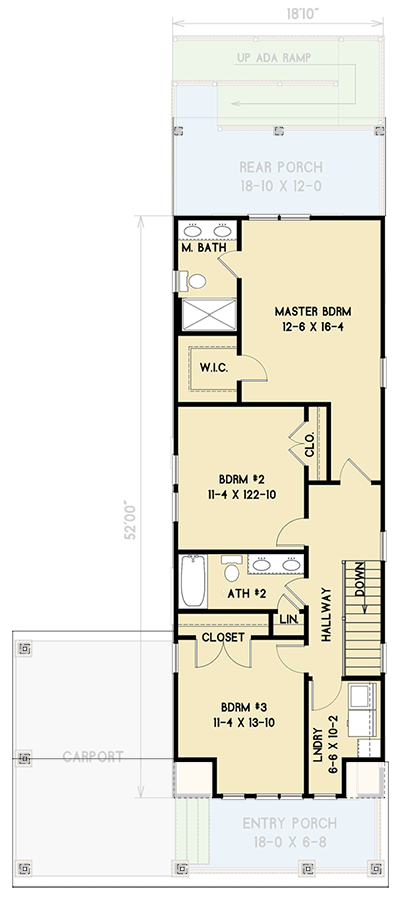

Arts and Crafts Home Plan with ADA-compatible Main Floor - 31611GF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,936 sq. ft.
  • 1st Floor: 979 sq. ft.
  • 2nd Floor: 957 sq. ft.
  • Porch, Combined: 294 sq. ft.
  • Porch, Rear: 168 sq. ft.
  • Porch, Front: 126 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 18' 10"
  • Depth: 52' 0"
  • Max ridge height: 31' 2"

Garage

  • Type: Attached, Carport
  • Area: 400 sq. ft.
  • Count: 1 or 2 Cars
  • Entry Location: Rear, Side

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Arts and Crafts Home Plan with ADA-compatible Main Floor

  • 1,936

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 1 - 2

    Car garage

Buy This Plan
  • PDF - Single-Build $935
  • 5 Sets $1,035
  • 8 Sets $1,050
  • CAD + PDF - Unlimited Build $1,510
  • View all purchase option online
