Plan 444196GDN Arts-and-Crafts Style Home Plan with Vaulted Flex Room

2,974 4-5 4 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Arts-and-Crafts Style Home Plan with Vaulted Flex Room

Plan 444196GDN

  • 2,974

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Arts-and-Crafts style home plan offers one-story living with a set of stairs taking you to bonus space over the garage giving you expansion space if needed.
  • The spacious, open kitchen with 12' ceiling includes a walk-in pantry, storage closet and central island. The kitchen opens to the dining room which is open to the great room with 14'9" coffered tray ceiling.
  • A room off the foyer can be used as a bedroom or as a home office or study if desired. It has views to the front and a 16' vaulted ceiling.
  • A large utility room with an outside access door is conveniently placed down the hall from the secondary bedrooms.
  • A well-appointed master suite enjoys rear views, porch access, a master bath with dual vanities and a huge walk-in closet with sitting bench.
  • The screened porch offers the best in year-round outdoor living with a fireplace.
  • A 3-car garage with extra storage adds space for a third automobile, workshop, or golf cart.
  • Related Plans: Get alternate versions with house plans 444022GDN and 444041GDN.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

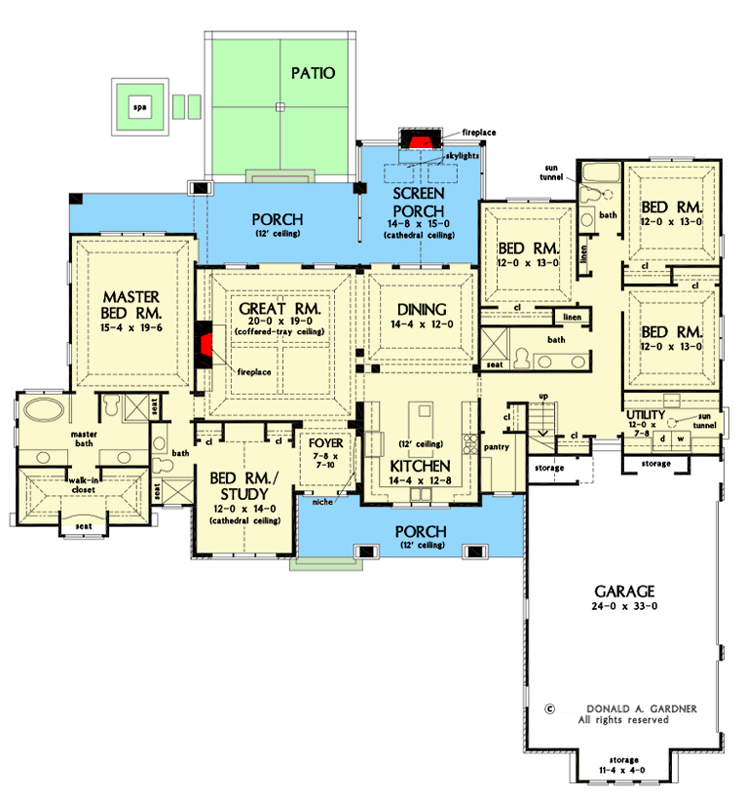

Arts-and-Crafts Style Home Plan with Vaulted Flex Room - 444196GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

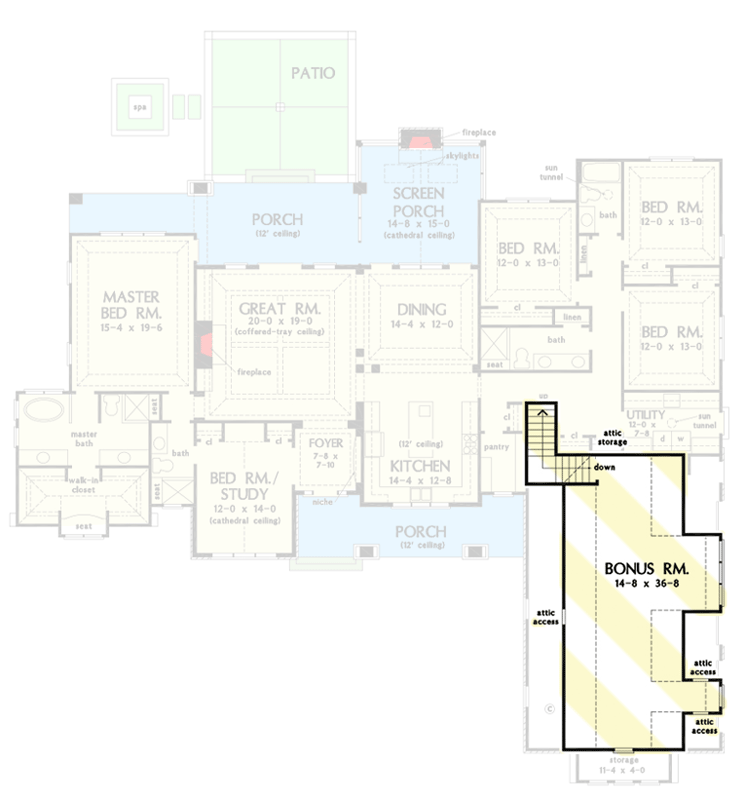

Arts-and-Crafts Style Home Plan with Vaulted Flex Room - 444196GDN floor plan - Bonus Room

Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

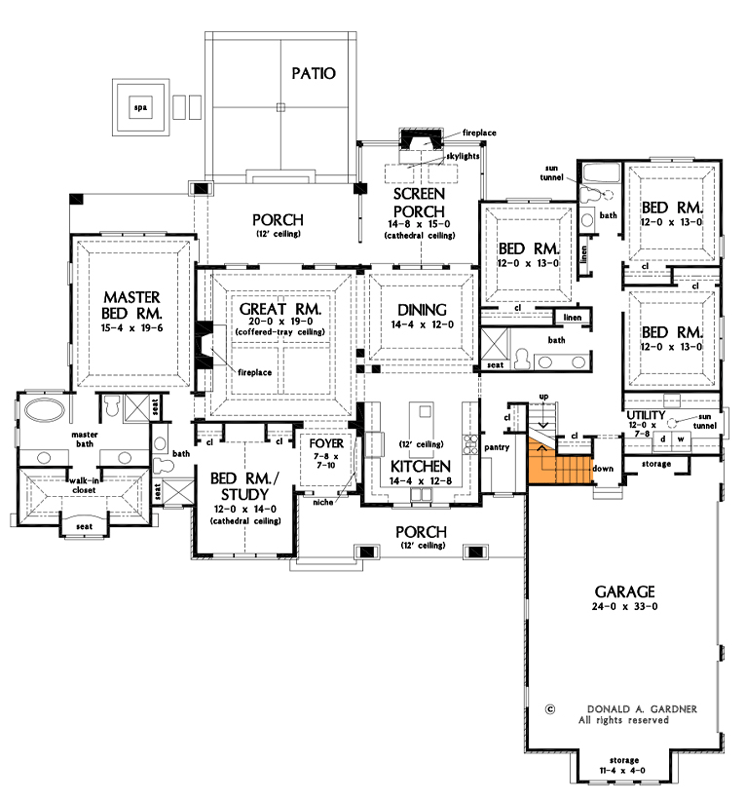

Arts-and-Crafts Style Home Plan with Vaulted Flex Room - 444196GDN floor plan - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,974 sq. ft.
  • 1st Floor: 2,974 sq. ft.
  • Screened Porch: 252 sq. ft.
  • Porch, Rear: 291 sq. ft.
  • Porch, Front: 203 sq. ft.
  • Bonus: 622 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 89' 6"
  • Depth: 82' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 968 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Arts-and-Crafts Style Home Plan with Vaulted Flex Room

  • 2,974

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,550
  • PDF - Single-Build $1,750
  • CAD Unlimited + PDF $3,075
  • View all purchase option online

About This Plan

  • This Arts-and-Crafts style home plan offers one-story living with a set of stairs taking you to bonus space over the garage giving you expansion space if needed.
  • The spacious, open kitchen with 12' ceiling includes a walk-in pantry, storage closet and central island. The kitchen opens to the dining room which is open to the great room with 14'9" coffered tray ceiling.
  • A room off the foyer can be used as a bedroom or as a home office or study if desired. It has views to the front and a 16' vaulted ceiling.
  • A large utility room with an outside access door is conveniently placed down the hall from the secondary bedrooms.
  • A well-appointed master suite enjoys rear views, porch access, a master bath with dual vanities and a huge walk-in closet with sitting bench.
  • The screened porch offers the best in year-round outdoor living with a fireplace.
  • A 3-car garage with extra storage adds space for a third automobile, workshop, or golf cart.
  • Related Plans: Get alternate versions with house plans 444022GDN and 444041GDN.
