Plan 68707VR Asymmetric Duplex House Plan with RV Parking On One Side

3,020 2 50' 5" 60' 0" 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Asymmetric Duplex House Plan with RV Parking On One Side

Plan 68707VR

  • 3,020

    Heated s.f.

  • 2

    Units

  • 50' 5"

    Width

  • 60' 0"

    Depth

  • This modern duplex house gives you asymmetrical units: a 3 bed unit with a rear-entry garage on the left and a 2-bed unit with a drive-through RV-friendly garage on the right.
  • The 3-bed unit on the left gives you 1,845 square feet of living space (426 square feet on the ground floor and 1,419 square feet on the upper floor).
  • The 2-bed unit on the right gives you 1,175 square feet of living space (99 square feet on the main floor and 1,076 square feet on the upper floor).
  • A shared 10'-deep deck spans the entire front of the second floor.d
  • Related Plan: Get an alternate version with house plan 68571VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

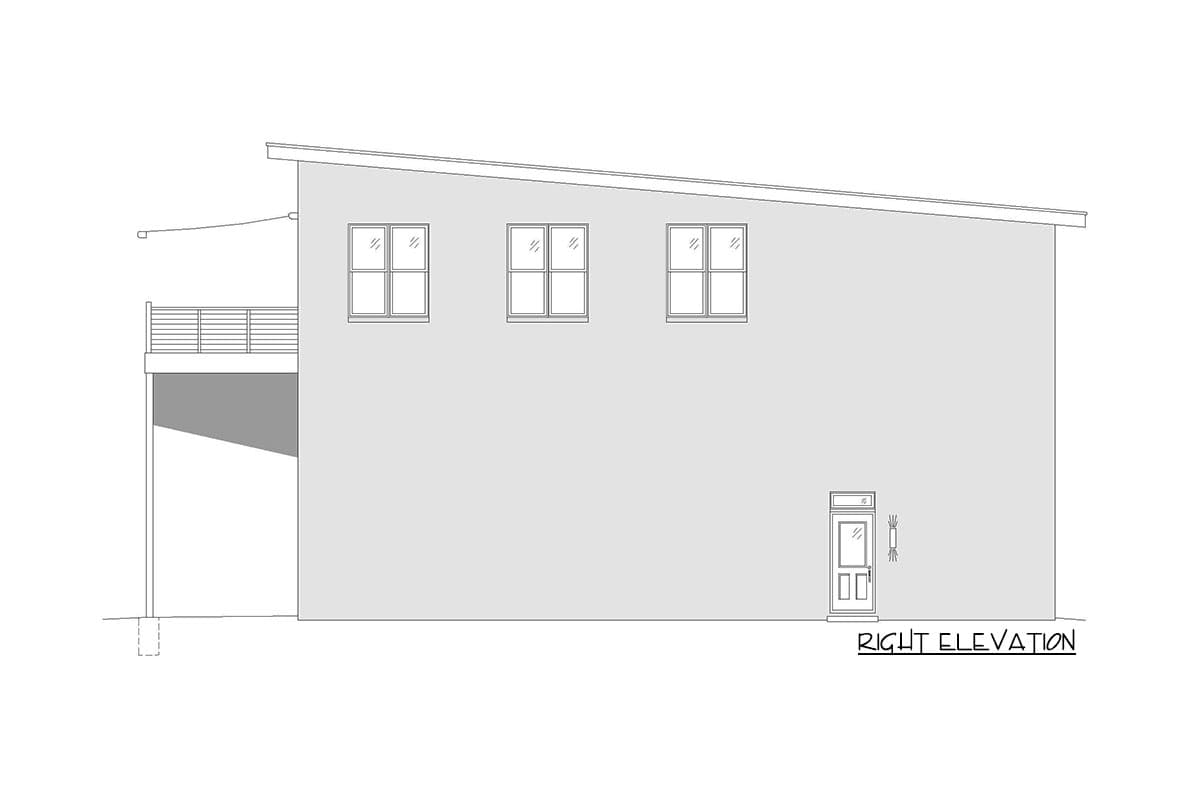

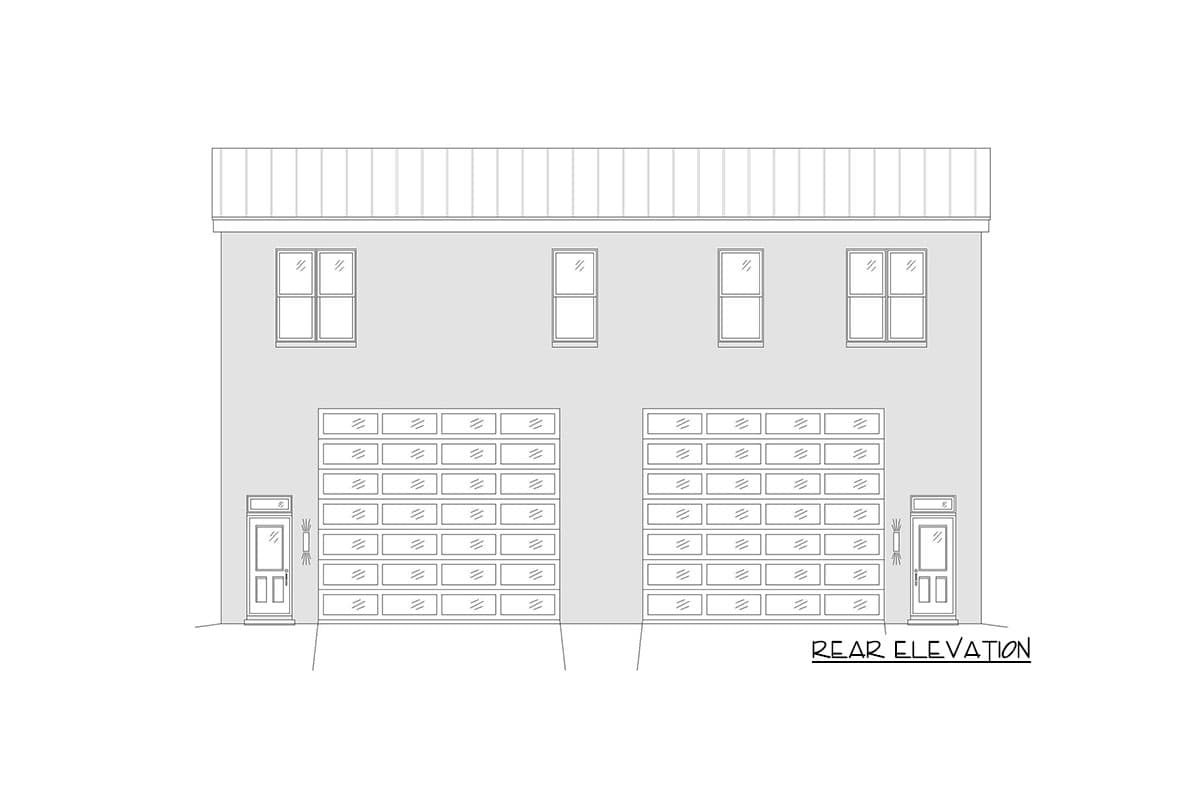

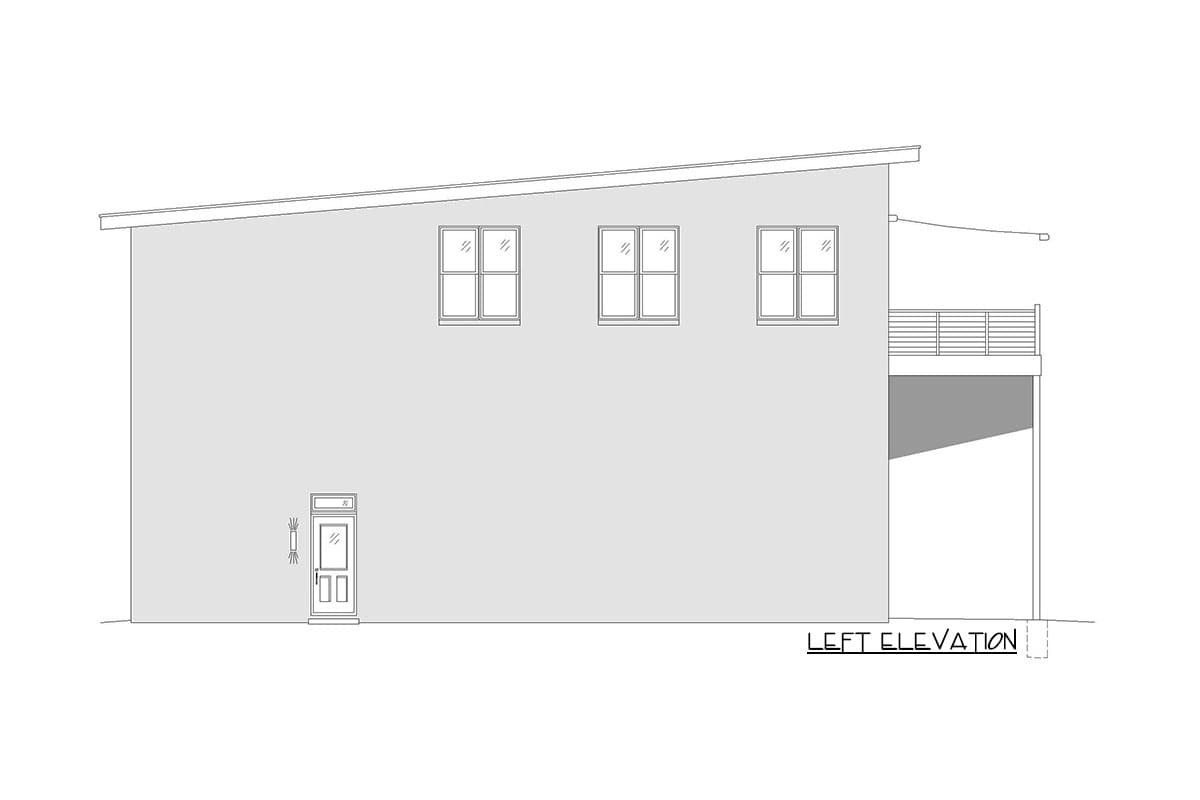

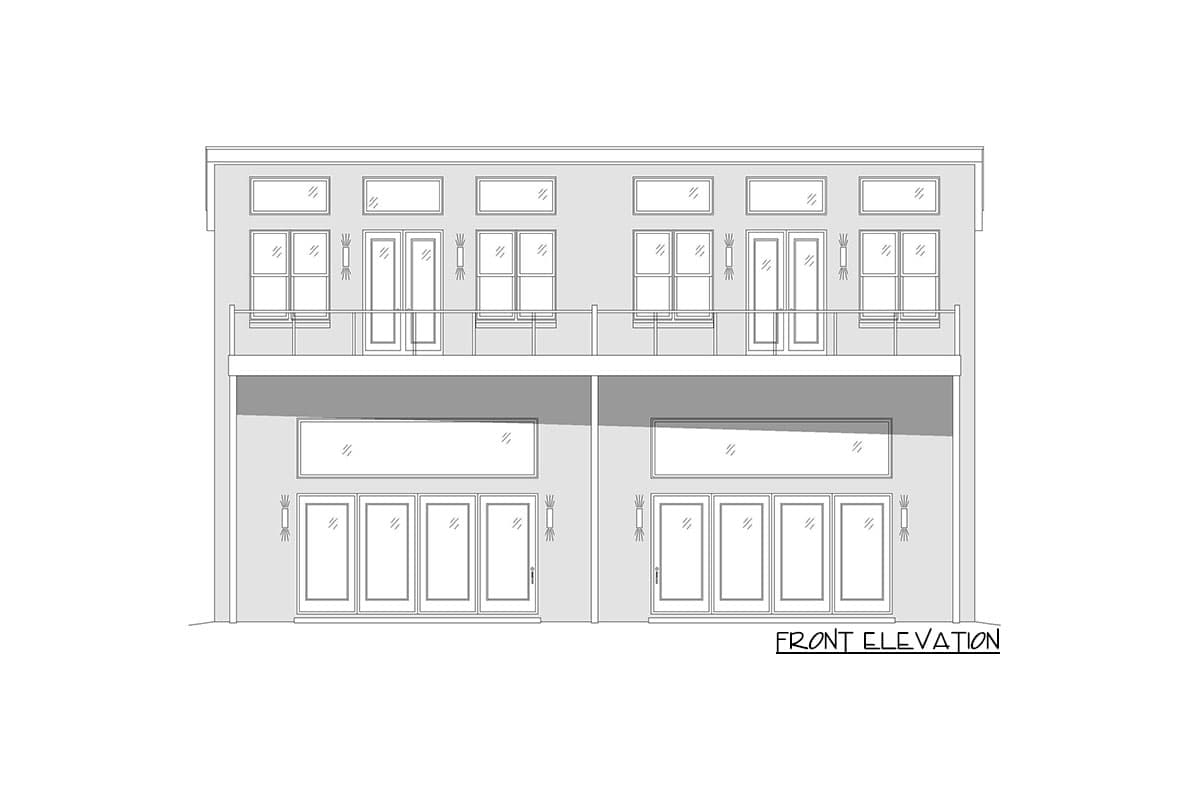

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

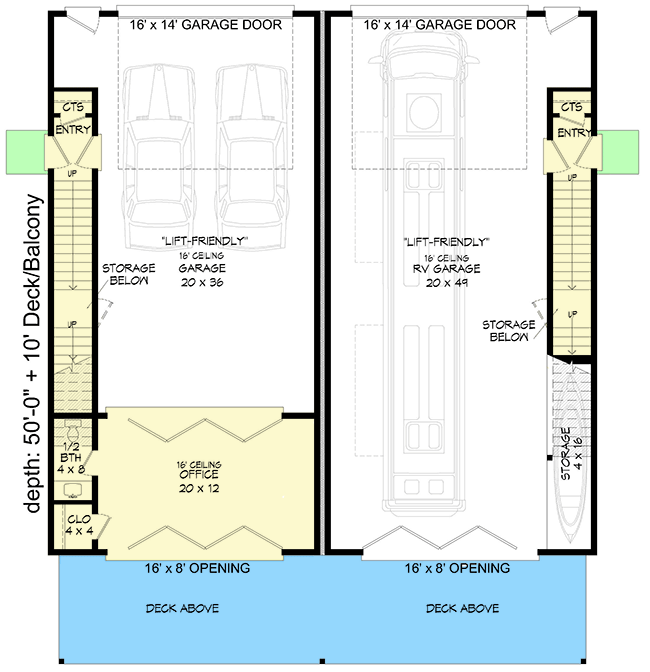

Asymmetric Duplex House Plan with RV Parking On One Side - 68707VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

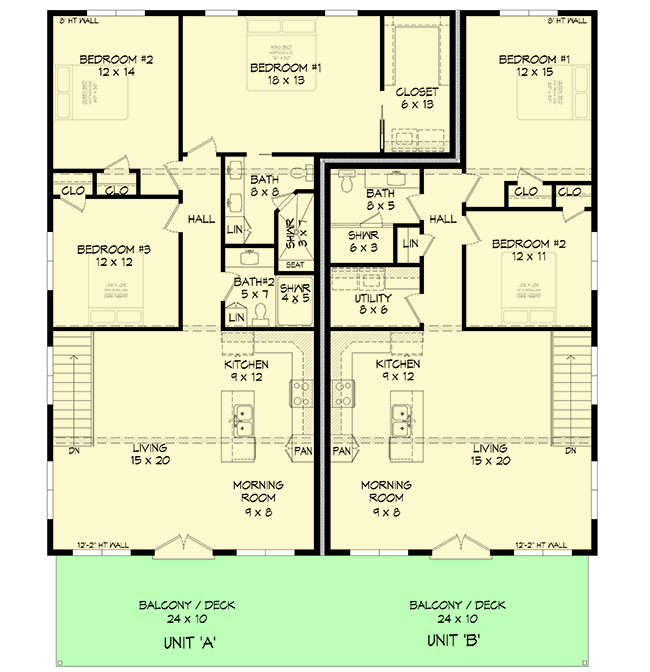

Asymmetric Duplex House Plan with RV Parking On One Side - 68707VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,020 sq. ft.
  • Lower Level: 525 sq. ft.
  • 1st Floor: 2,495 sq. ft.
  • Deck: 484 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 5"
  • Depth: 60' 0"
  • Max ridge height: 31' 1"

Garage

  • Type: RV Garage
  • Area: 1995 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 16' 0" First Floor / 12' 2"

Roof Details

  • Primary Pitch: 1 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Asymmetric Duplex House Plan with RV Parking On One Side

  • 3,020

    Heated s.f.

  • 2

    Units

  • 50' 5"

    Width

  • 60' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,975
  • 5 Sets $2,060
  • 5 Sets + PDF $2,220
  • CAD + PDF - Single-Build $2,525
  • View all purchase option online

About This Plan

  • This modern duplex house gives you asymmetrical units: a 3 bed unit with a rear-entry garage on the left and a 2-bed unit with a drive-through RV-friendly garage on the right.
  • The 3-bed unit on the left gives you 1,845 square feet of living space (426 square feet on the ground floor and 1,419 square feet on the upper floor).
  • The 2-bed unit on the right gives you 1,175 square feet of living space (99 square feet on the main floor and 1,076 square feet on the upper floor).
  • A shared 10'-deep deck spans the entire front of the second floor.d
  • Related Plan: Get an alternate version with house plan 68571VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,020 sq. ft.
  • Lower Level: 525 sq. ft.
  • 1st Floor: 2,495 sq. ft.
  • Deck: 484 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 5"
  • Depth: 60' 0"
  • Max ridge height: 31' 1"

Garage

  • Type: RV Garage
  • Area: 1995 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 16' 0" First Floor / 12' 2"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
