Plan 710323BTZ

Attractive 4-Bed House Plan with Clapboard Exterior and Front-Facing Garage

Attractive 4-Bed House Plan with Clapboard Exterior and Front-Facing Garage

Plan 710323BTZ

  • 2,110

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4-bed house plan has an attractive clapboard exterior and a 2-car front-facing garage.
  • Inside, a two-story foyer opens to a formal dining room, brightened by a box-bay window.
  • The prominent family room warms with a fireplace and leads into the bayed breakfast nook and serving-bar kitchen. A first-floor bedroom is perfect as a guest room accessing a full bath, or quiet study.
  • Upstairs, two secondary bedrooms share a full bath and optional bonus space.
  • The master suite is embellished with a tray ceiling and vaulted spa bath.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Attractive 4-Bed House Plan with Clapboard Exterior and Front-Facing Garage

  • 2,110

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,380
  • Reproducible Set $1,445
  • CAD - multi-use $2,630
  • View all purchase option online

About This Plan

  • This 4-bed house plan has an attractive clapboard exterior and a 2-car front-facing garage.
  • Inside, a two-story foyer opens to a formal dining room, brightened by a box-bay window.
  • The prominent family room warms with a fireplace and leads into the bayed breakfast nook and serving-bar kitchen. A first-floor bedroom is perfect as a guest room accessing a full bath, or quiet study.
  • Upstairs, two secondary bedrooms share a full bath and optional bonus space.
  • The master suite is embellished with a tray ceiling and vaulted spa bath.

Floor Plans

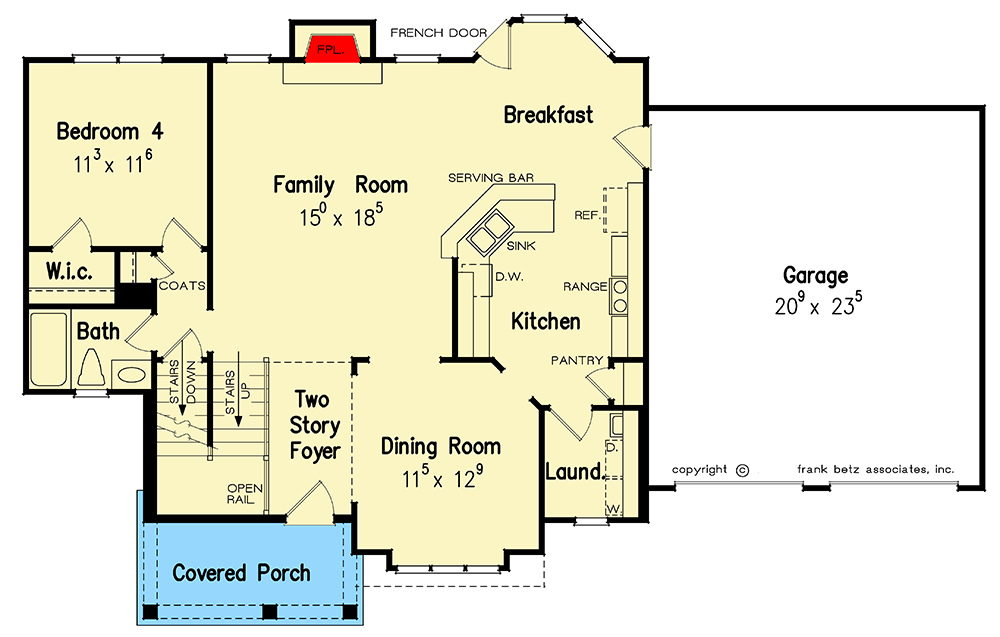

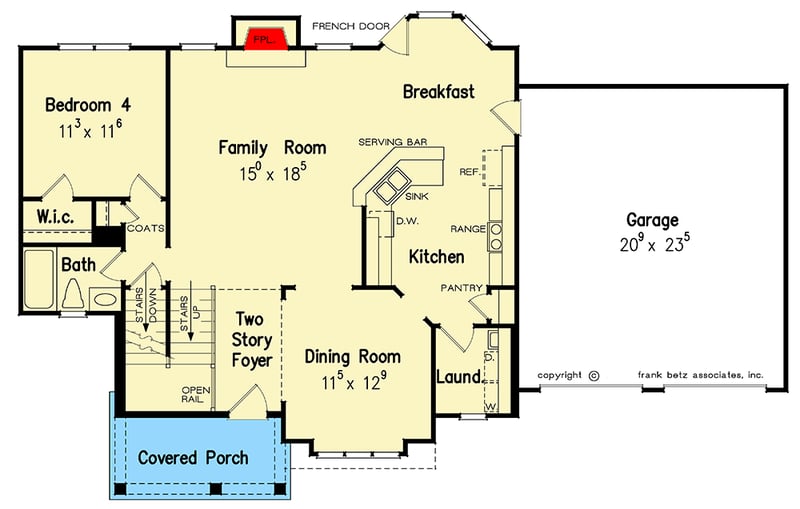

  • Main Level

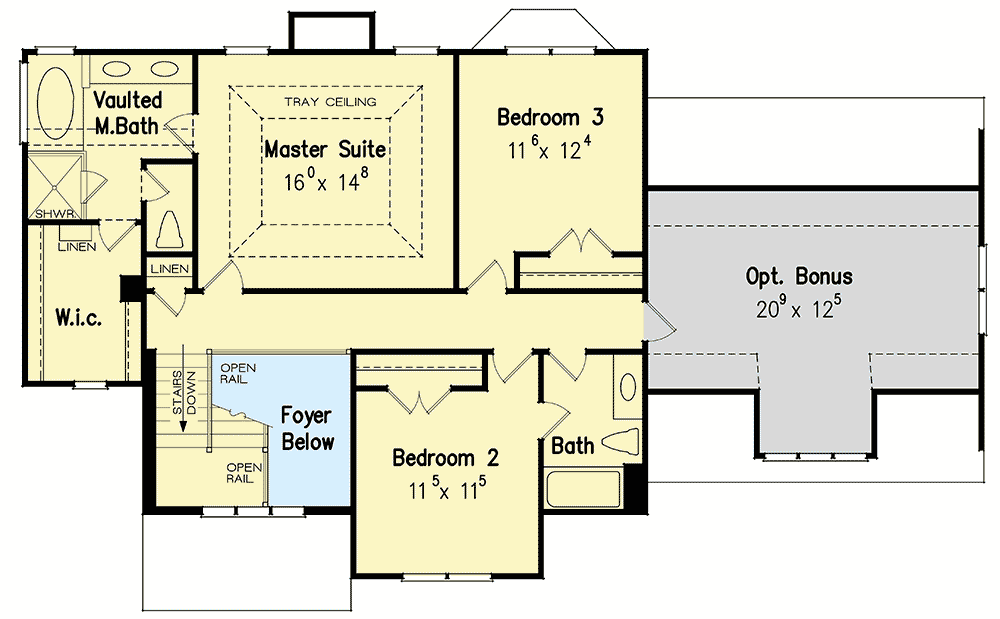

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,110 sq. ft.
  • 1st Floor: 1,119 sq. ft.
  • 2nd Floor: 991 sq. ft.
  • Bonus: 304 sq. ft.
  • Basement Unfinished: 1,119 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 37' 6"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Stick
