Plan 39091ST

Attractive Brick And Siding Facade

Heated S.F.
1,795
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39091ST

Main Level
Main Level
2nd Floor
2nd Floor

Plan 39091ST

M-F 9am-5pm EST |

1-203-761-8500

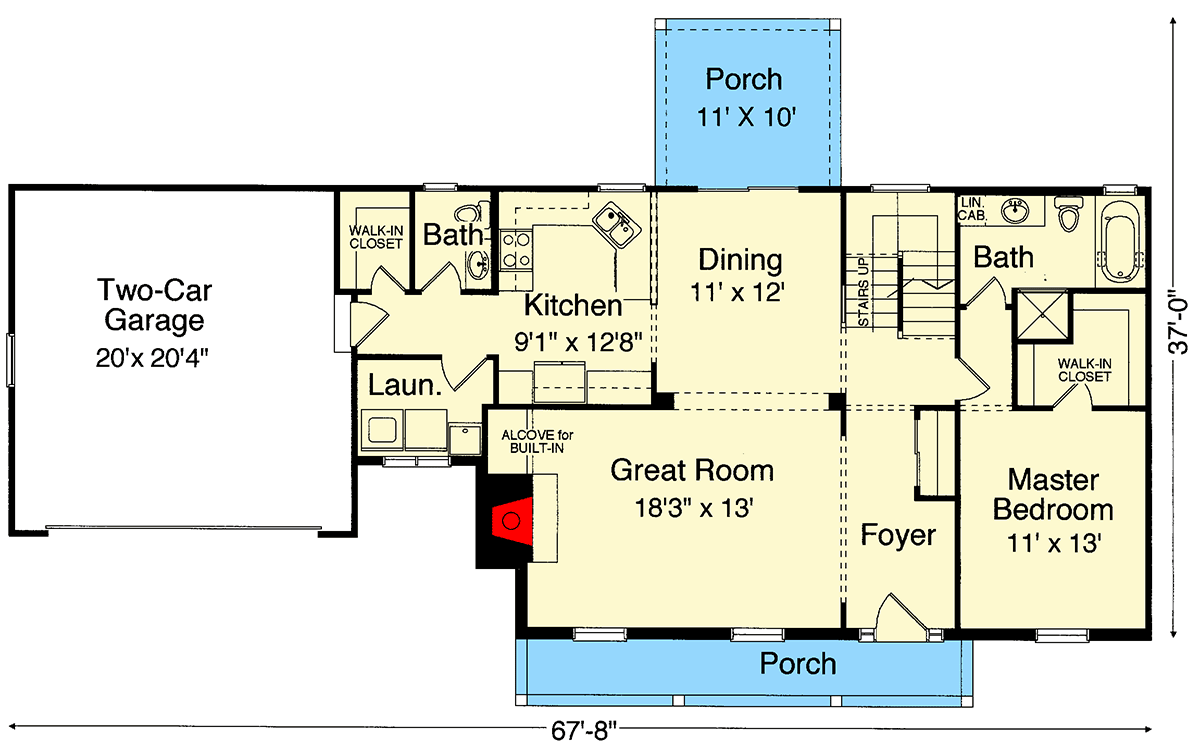

Main Level

Plan 39091ST: Attractive Brick And Siding Facade - Floor Plan - Main Level - Country

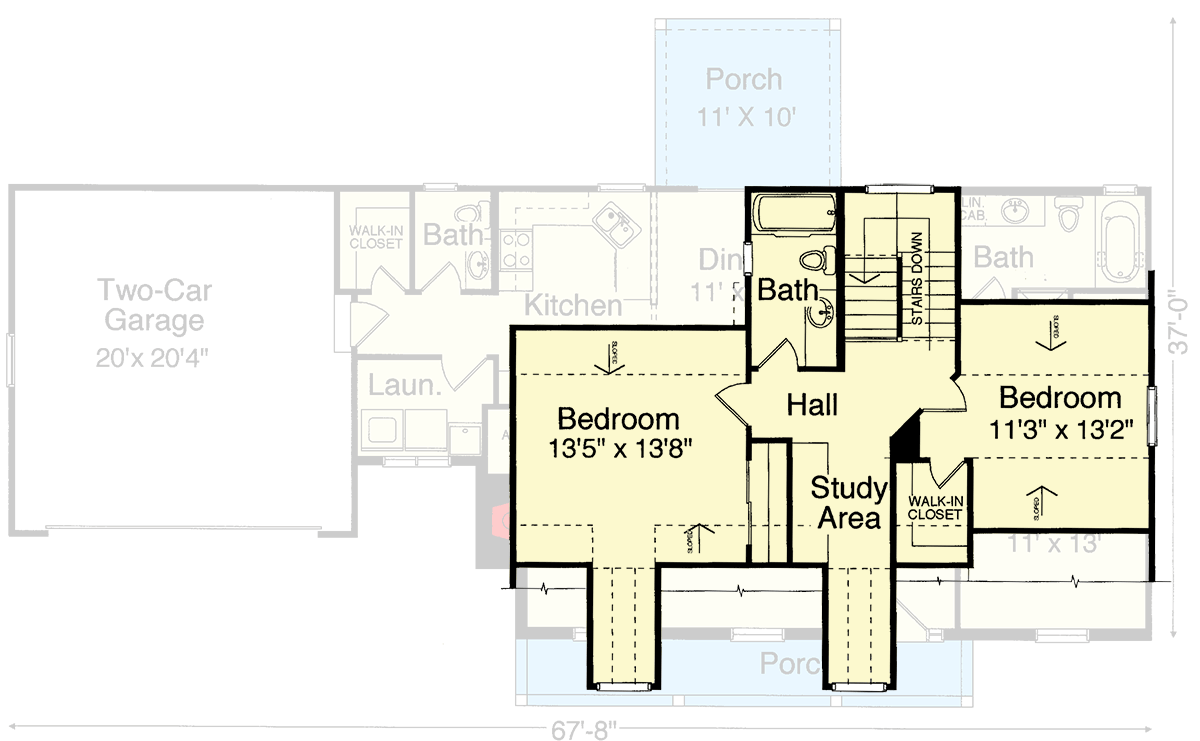

2nd Floor

Plan 39091ST: Attractive Brick And Siding Facade - Floor Plan - 2nd Floor - Country

Plan Details

  • This delightful one and a half story home showcases a brick and siding facade, dormers, and a covered porch.
  • The great room with fireplace and built-in entertainment alcove enjoys a front view and with grand openings to the foyer and dining area benefits from a visually open arrangement.
  • Access to the rear porch through the dining area expands the dining enjoyment to the outdoors.
  • The first floor master bedroom boasts of a spacious walk-in closet and a private bath with whirlpool tub and shower.
  • Split stairs to the second floor introduce a study area and two additional bedrooms.
  • This traditional house plan includes a full basement for additional living space if you decide to finish it off.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,795 sq. ft.

1st Floor

1,150 sq. ft.

2nd Floor

645 sq. ft.

Porch, Front

97 sq. ft.

Porch, Rear

103 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

67' 8"

Depth

31' 0"

Max Ridge Height

22' 9"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Closed Floor Plans
