Attractive Duplex with Covered Entry

Plan 21936DR

  • 3,218

    Heated s.f.

  • 2

    Units

  • 44' 0"

    Width

  • 47' 8"

    Depth

  • A covered entry welcomes you to both units of the attractive duplex house plan. Each unit features 676 sq. ft. of living space on the main floor and 933 sq. ft. on the second floor.
  • Both units feature an original kitchen with bar-style dinette seating.
  • There are abundant windows at the rear in both the dining and family rooms.
  • Upstairs you'll find three bedrooms. The master features a walk-in closet and dual vanities.
  • Related Plan: Get a brick exterior with duplex house plan 21486DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

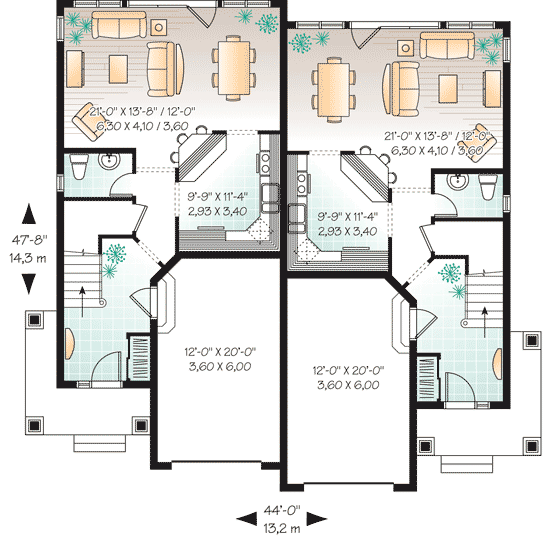

Attractive Duplex with Covered Entry - 21936DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

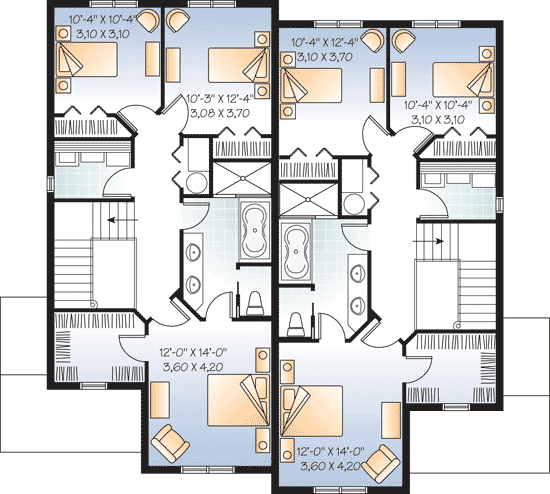

Attractive Duplex with Covered Entry - 21936DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 1,352 sq. ft.
  • 2nd Floor: 1,866 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 47' 8"
  • Max ridge height: 28' 8"

Garage

  • Type: Attached
  • Area: 514 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

Attractive Duplex with Covered Entry

  • 3,218

    Heated s.f.

  • 2

    Units

  • 44' 0"

    Width

  • 47' 8"

    Depth

Buy This Plan
  • Reproducible Set $1,720
  • PDF - Single-Build $1,720
  • 5 Sets + PDF $1,845
  • CAD - Single-Build $2,320
  • View all purchase option online

About This Plan

  • A covered entry welcomes you to both units of the attractive duplex house plan. Each unit features 676 sq. ft. of living space on the main floor and 933 sq. ft. on the second floor.
  • Both units feature an original kitchen with bar-style dinette seating.
  • There are abundant windows at the rear in both the dining and family rooms.
  • Upstairs you'll find three bedrooms. The master features a walk-in closet and dual vanities.
  • Related Plan: Get a brick exterior with duplex house plan 21486DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 1,352 sq. ft.
  • 2nd Floor: 1,866 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 47' 8"
  • Max ridge height: 28' 8"

Garage

  • Type: Attached
  • Area: 514 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 21936DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21936DR
|
Need Help? 800-854-7852
|
Plan 21936DR
