Attractive Five Bedroom Home Plan

Name: Plan 36314TX: Attractive Five Bedroom Home Plan
Brand: Architectural Designs
SKU: 36314TX
Price: 1200.0 USD
Availability: InStock

Heated S.F.

3,062

Beds

Baths

Stories

Cars

Floor Plan

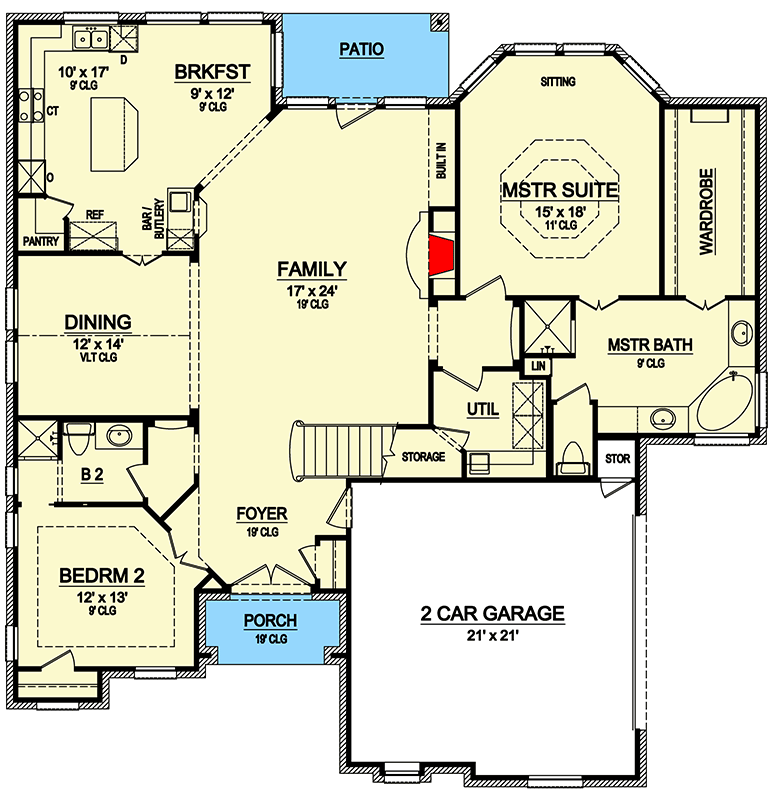

Main Level

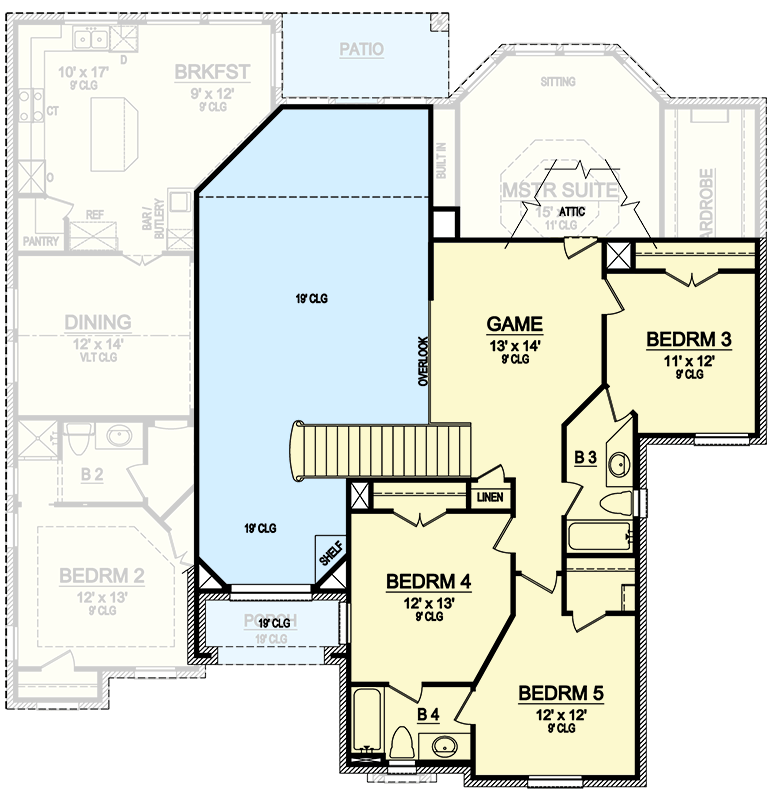

2nd Floor

Plan Details

This spacious European home plan has five bedrooms for the larger family.
The giant family room will hold everyone comfortably. It is open to above as is the foyer.
Vaulted ceilings crown the dining room that is close by the gourmet kitchen with large center island.
The master suite is also spacious with both a tray ceiling and bayed sitting area just right for a chaise lounge.
A game room on the second floor has an open rail that allows views into the family room below.
Three more bedrooms lie on this level.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
