Plan 60557ND

Attractive Four Apartment Dwelling - 2 and 3 Bedroom Units - 1012 Sq Ft and 1541 Sq Ft

Heated S.F.
6,164
Units
4
Width
Depth

Floor Plan

Plan 60557ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60557ND

M-F 9am-5pm EST |

1-203-761-8500

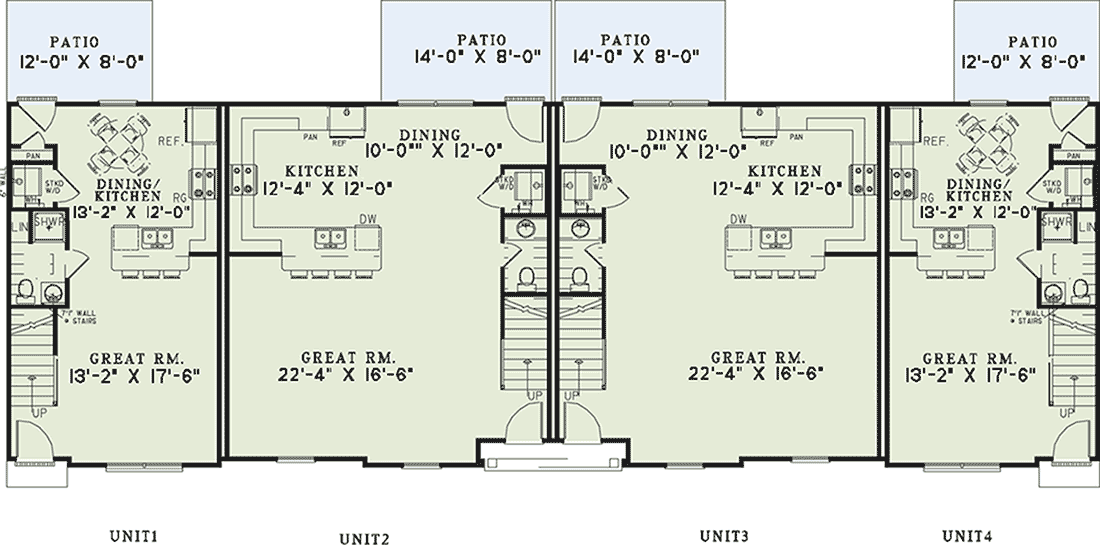

Main Level

Plan 60557ND: Attractive Four Apartment Dwelling - 2 and 3 Bedroom Units - 1012 Sq Ft and 1541 Sq Ft - Floor Plan - Main Level - Traditional

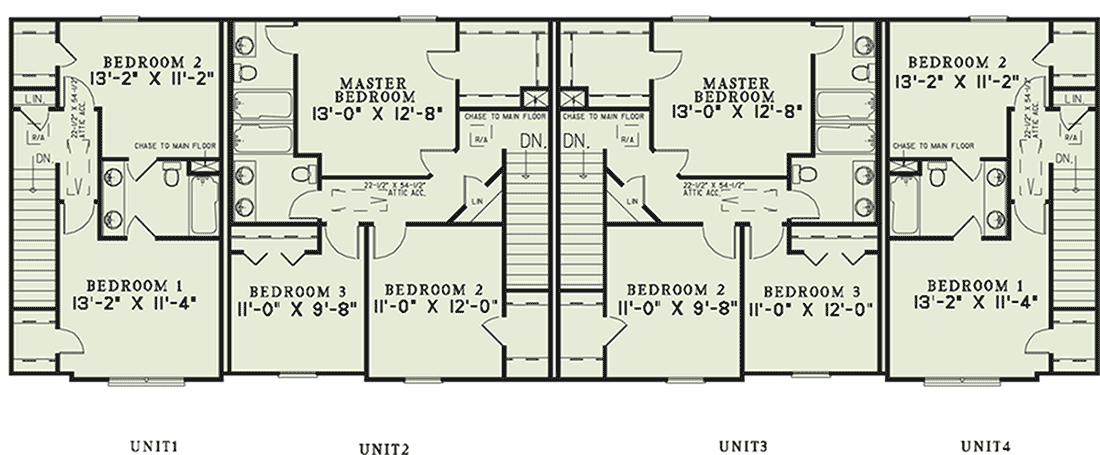

2nd Floor

Plan 60557ND: Attractive Four Apartment Dwelling - 2 and 3 Bedroom Units - 1012 Sq Ft and 1541 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Stone, stucco and decorative wooden shutters adorn the exterior of this attractive apartment complex.
  • The floor plan gives your tenants a choice of either two or three bedroom units.
  • All units come with a rear patio and half bath on the first floor.
Unit A
Heated Area
1,012Sq. Ft.
529 Sq. Ft. 1st
483 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
18'width
30'depth
29'height
Unit B
Heated Area
1,541Sq. Ft.
787 Sq. Ft. 1st
754 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
27'width
30'depth
29'height
Unit C
Heated Area
1,541Sq. Ft.
787 Sq. Ft. 1st
754 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
27'width
30'depth
29'height
Unit D
Heated Area
1,012Sq. Ft.
529 Sq. Ft. 1st
483 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
18'width
30'depth
29'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,164 sq. ft.

1st Floor

3,148 sq. ft.

2nd Floor

3,016 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Half bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 0"

Depth

30' 0"

Max Ridge Height

29' 8"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs
