Plan 60596ND

Attractive Four-Plex

Heated S.F.
4,160
Units
4
Width
Depth

Floor Plan

Plan 60596ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60596ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

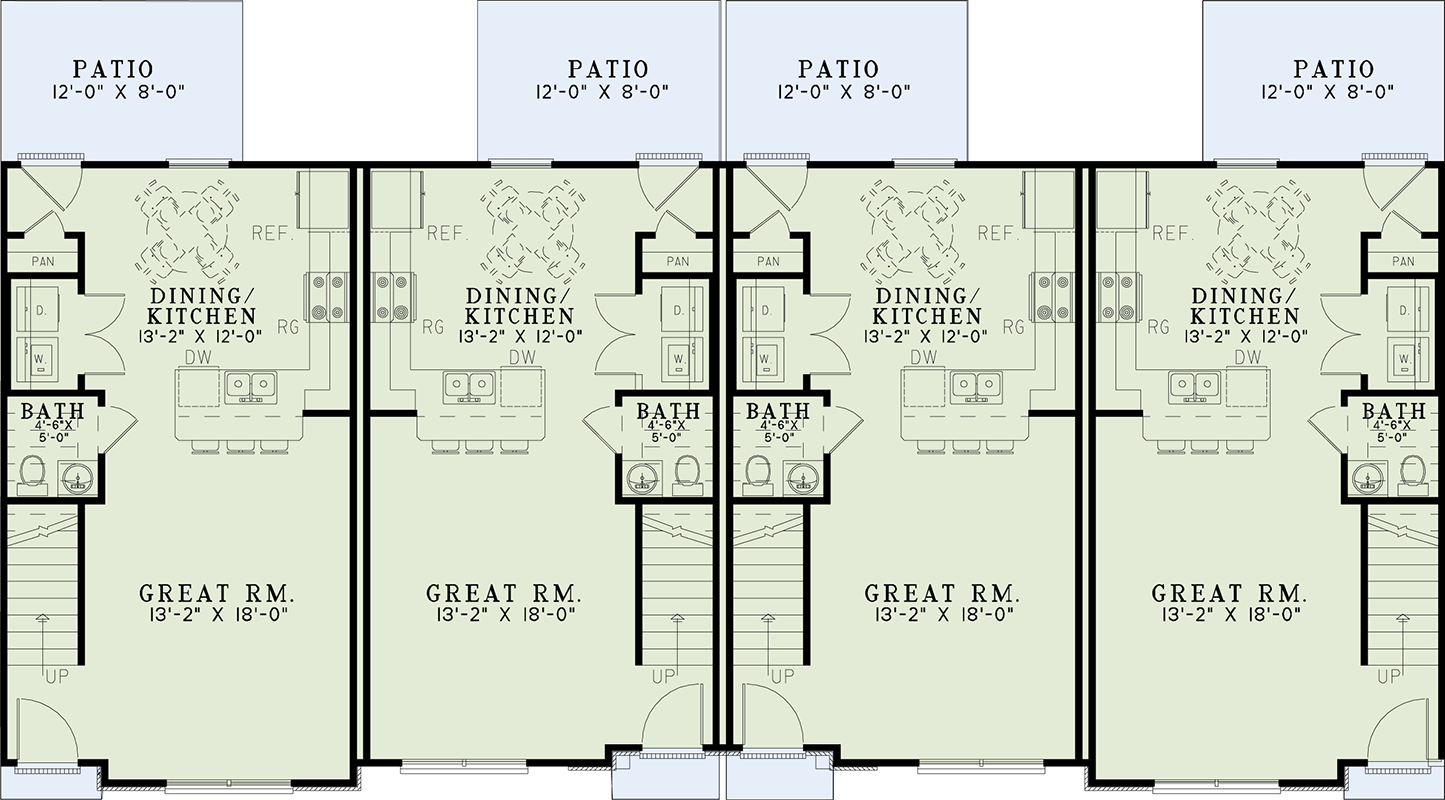

Plan 60596ND: Attractive Four-Plex - Floor Plan - Main Level - Traditional

2nd Floor

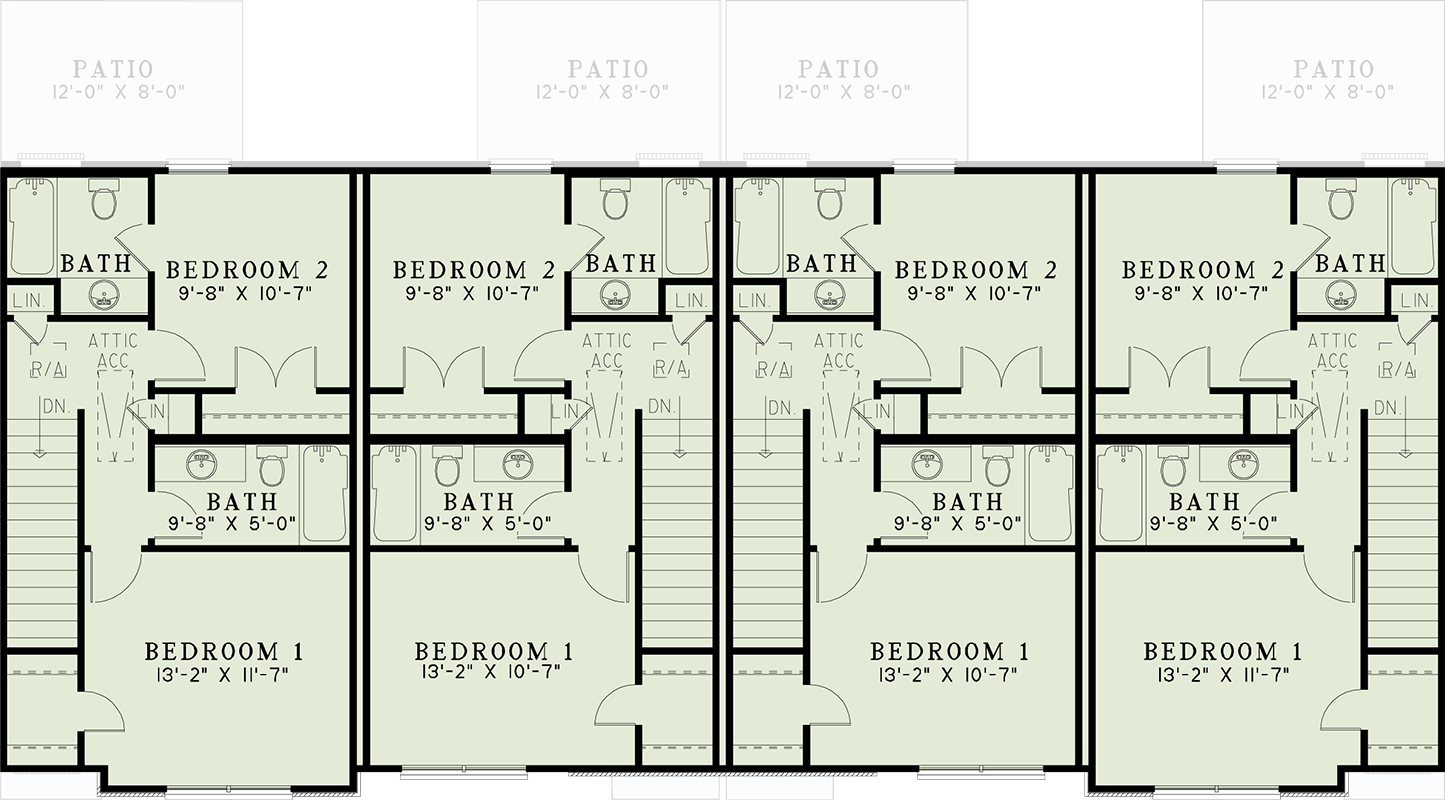

Plan 60596ND: Attractive Four-Plex - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This stone and stucco multi-family 4-plex has a great room and full bathroom and kitchen downstairs.
  • On the upper floor, each of the 2 bedrooms has a full bathroom.
  • A patio out back has room for a grill.
  • Each unit has 540 square feet on the main floor and 500 square feet on the second floor.
Unit A
Heated Area
1,040Sq. Ft.
540 Sq. Ft. 1st
500 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
17' 11"width
31'depth
30'height
Unit B
Heated Area
1,040Sq. Ft.
540 Sq. Ft. 1st
500 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
17' 11"width
31'depth
30'height
Unit C
Heated Area
1,040Sq. Ft.
540 Sq. Ft. 1st
500 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
17' 11"width
31'depth
30'height
Unit D
Heated Area
1,040Sq. Ft.
540 Sq. Ft. 1st
500 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
17' 11"width
31'depth
30'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,160 sq. ft.

1st Floor

2,160 sq. ft.

2nd Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 8"

Depth

31' 0"

Max Ridge Height

30' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

4,160 sq. ft.

1st Floor

2,160 sq. ft.

2nd Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 8"

Depth

31' 0"

Max Ridge Height

30' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs
