Attractive House Plan with Beamed, Coffered and Vaulted Ceilings

Plan 710037BTZ

  • 2,766

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

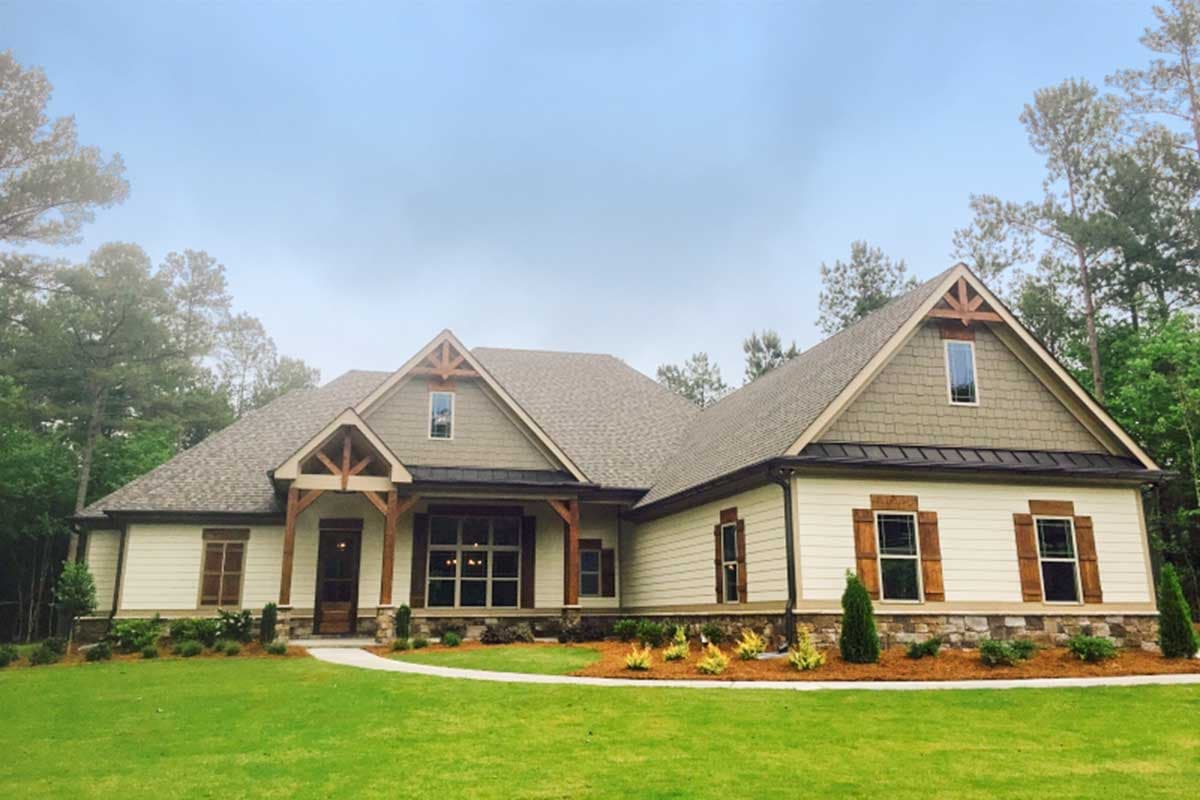

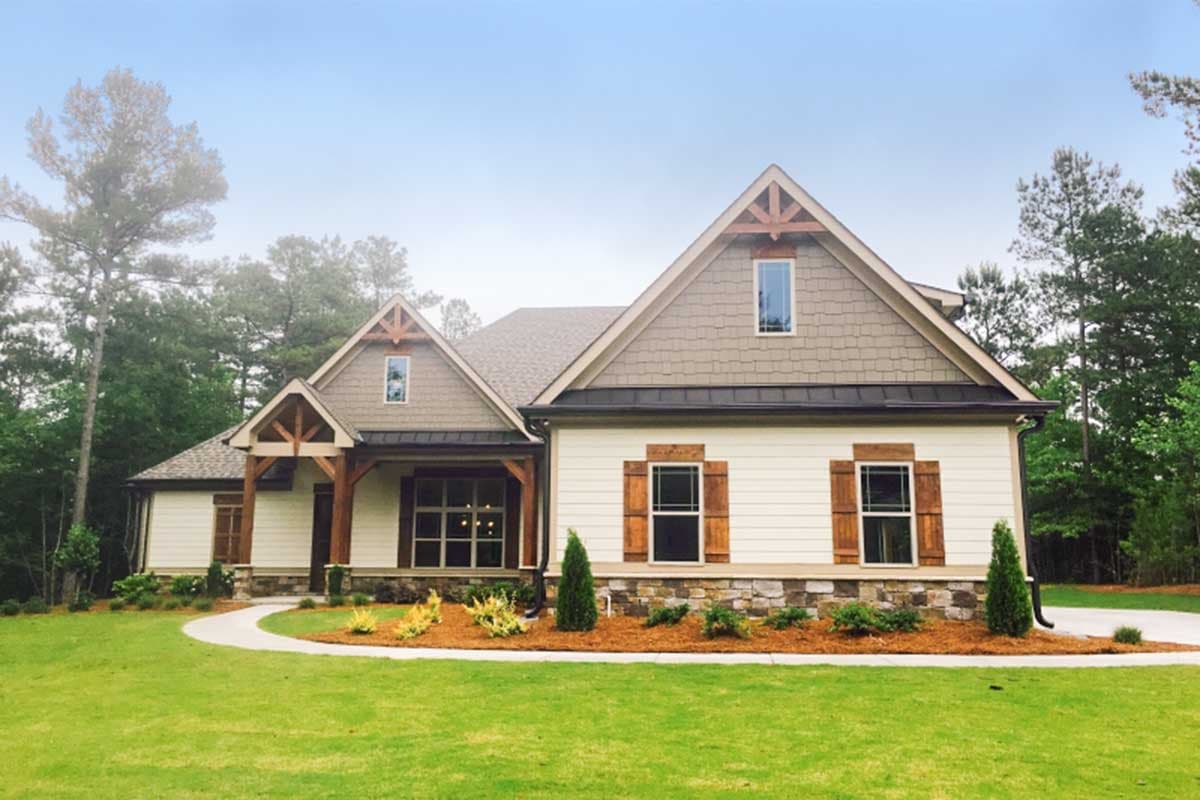

  • The elevation of this 4-bed house plan features a blend of brick, fieldstone and board-and-batten and cedar shake sidings. The main level is loaded with details such has vaulted and coffered ceilings, multiple fireplaces and covered rear porch.

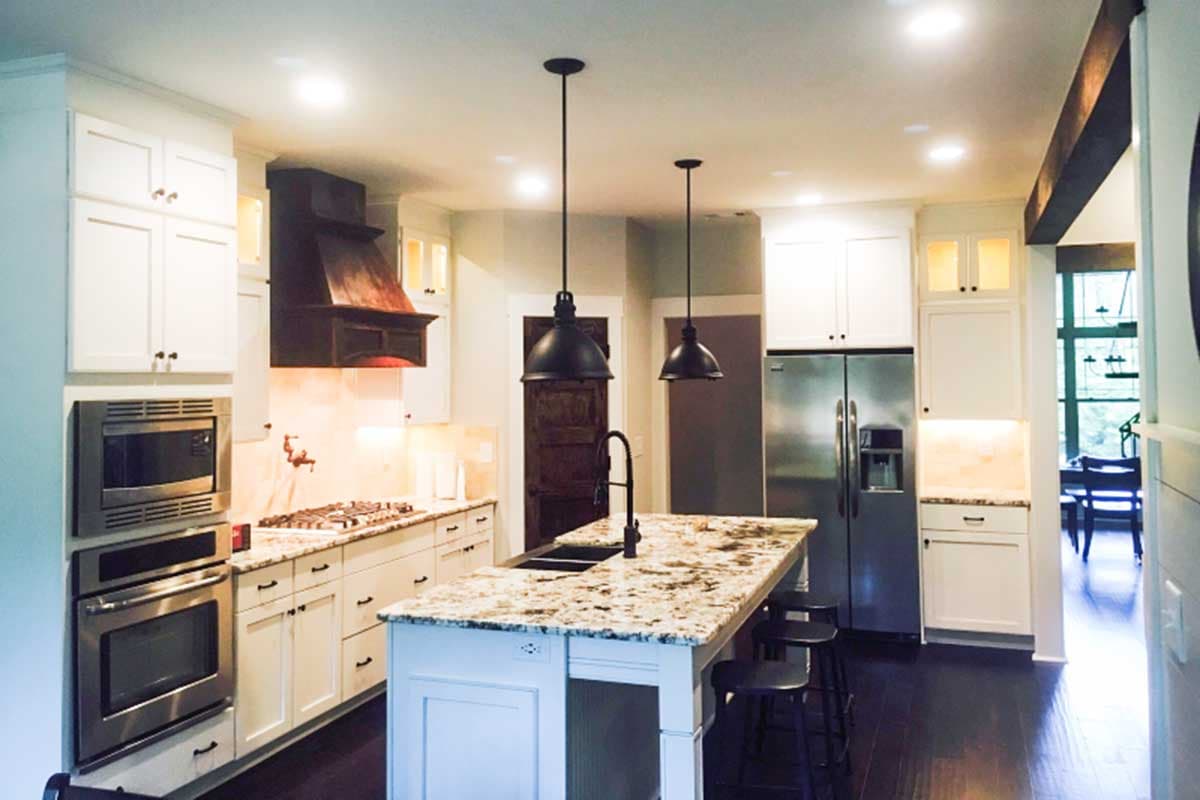

  • The grand room is centrally located and is open to the kitchen and the foyer. The chef's kitchen features a large island, corner pantry and has convenient access to the breakfast and dining rooms. The dining room has a unique beamed ceiling and perfect for a formal dinner party.
  • The keeping room has a beautiful vaulted beamed ceiling and has a fireplace on the side wall.
  • A covered rear porch gives you a nice spot to enjoy the fresh air and has an optional fireplace angled in the corner.
  • The master suite is huge and has a beamed ceiling and large windows giving you great natural light. The master bath has an angled vanity and walk-in-closet. The secondary bedrooms share a compartmentalized bath.
  • An optional second floor gives you expansion space that includes an extra bedroom and bathroom if built out as provided.

The plans include the following:

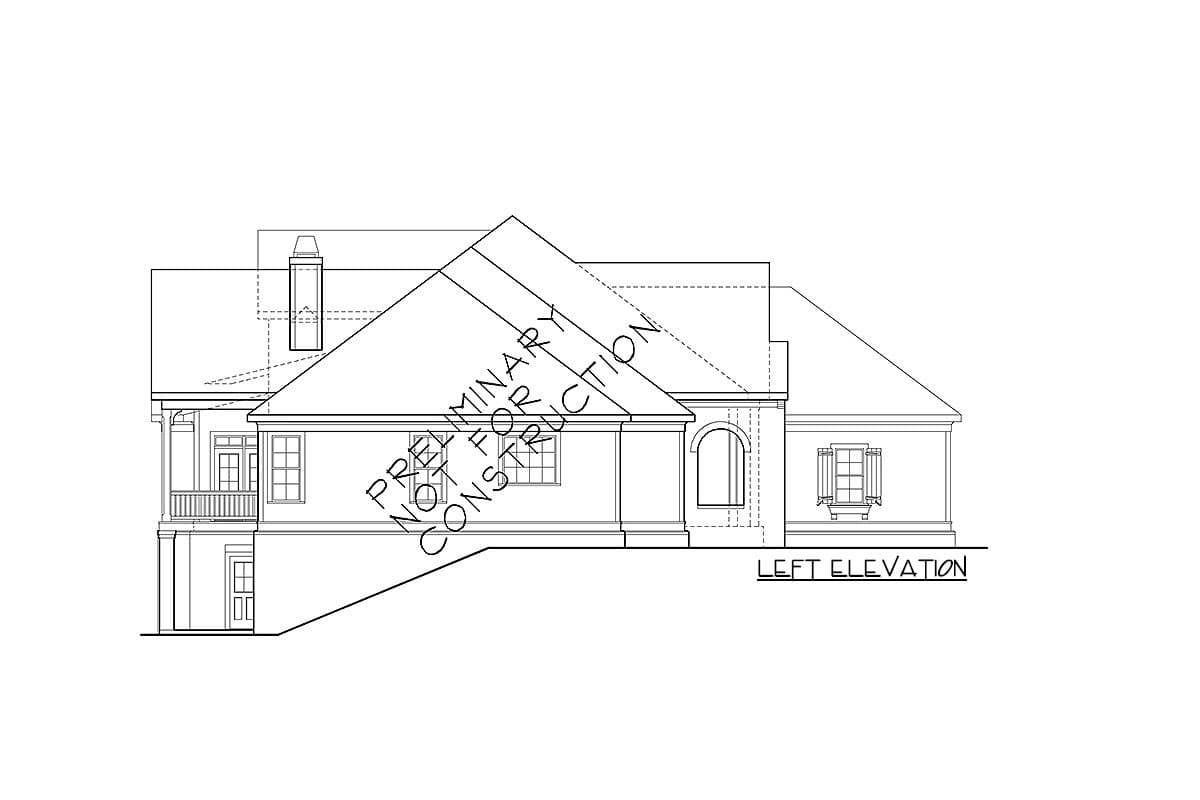

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Attractive House Plan with Beamed, Coffered and Vaulted Ceilings - 710037BTZ floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Attractive House Plan with Beamed, Coffered and Vaulted Ceilings - 710037BTZ floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,766 sq. ft.
  • 1st Floor: 2,766 sq. ft.
  • Bonus: 355 sq. ft.
  • Basement Unfinished: 2,766 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 74' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 557 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Attractive House Plan with Beamed, Coffered and Vaulted Ceilings

  • 2,766

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - Unlimited Build $1,620
  • CAD - Unlimited Build $3,090
  • View all purchase option online

About This Plan

  • The elevation of this 4-bed house plan features a blend of brick, fieldstone and board-and-batten and cedar shake sidings. The main level is loaded with details such has vaulted and coffered ceilings, multiple fireplaces and covered rear porch.
  • The grand room is centrally located and is open to the kitchen and the foyer. The chef's kitchen features a large island, corner pantry and has convenient access to the breakfast and dining rooms. The dining room has a unique beamed ceiling and perfect for a formal dinner party.
  • The keeping room has a beautiful vaulted beamed ceiling and has a fireplace on the side wall.
  • A covered rear porch gives you a nice spot to enjoy the fresh air and has an optional fireplace angled in the corner.
  • The master suite is huge and has a beamed ceiling and large windows giving you great natural light. The master bath has an angled vanity and walk-in-closet. The secondary bedrooms share a compartmentalized bath.
  • An optional second floor gives you expansion space that includes an extra bedroom and bathroom if built out as provided.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,766 sq. ft.
  • 1st Floor: 2,766 sq. ft.
  • Bonus: 355 sq. ft.
  • Basement Unfinished: 2,766 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 74' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 557 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Plan 710037BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710037BTZ
|
Need Help? 800-854-7852
|
