Plan 62652DJ

Attractive Ranch Duplex

Heated S.F.
2,836
Units
2
Width
Depth

Floor Plan

Plan 62652DJ

Main Level
Main Level

Plan 62652DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

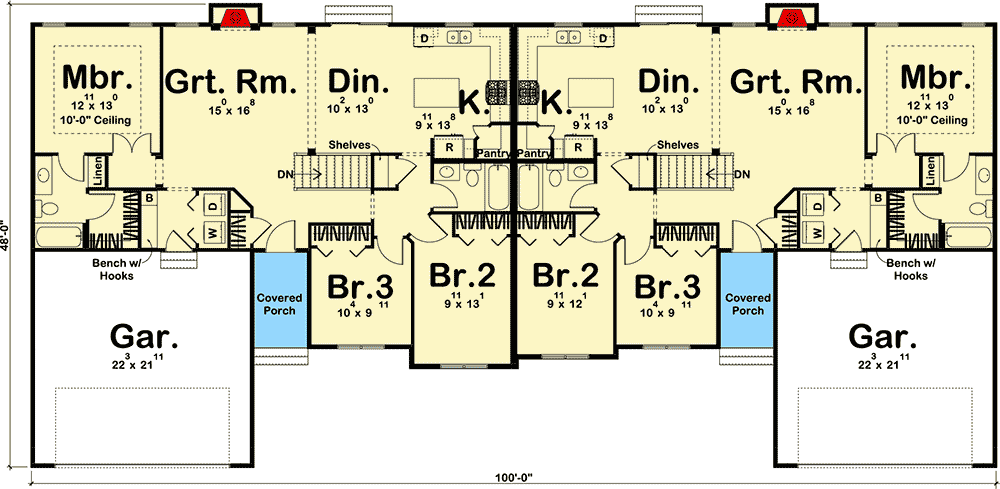

Plan 62652DJ: Attractive Ranch Duplex - Floor Plan - Main Level - Ranch

Plan Details

  • The two spacious units of this attractive duplex lie all on one floor with a fireplace in each great room.
  • Amenities include a walk-in pantry in the kitchen, a split bedroom layout and interior columns that separate the dining room from the great room.
  • Sliding glass doors in the dining room lead out to the back yard.
  • In the master suite, a lovely tray tops the ceiling giving it an elegant look.
  • Each unit comes with a 2 car garage.
Unit A
Heated Area
1,418Sq. Ft.
1418 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
514 Sq. Ft.
Dimensions
50'width
48'depth
23'height
Unfinished Areas
514 Sq. Ft. Garage
Unit B
Heated Area
1,418Sq. Ft.
1418 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
510 Sq. Ft.
Dimensions
50'width
48'depth
23'height
Unfinished Areas
510 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE
