Plan 51823HZ
Attractive Southern House Plan with Split Beds
Heated S.F.
1,817
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS

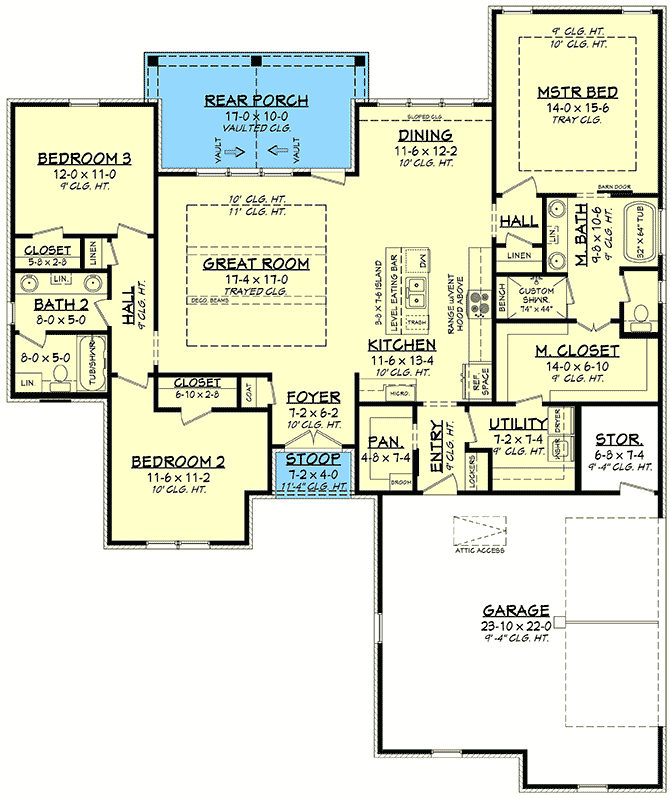

Main Level
Reverse Floor Plan
Attractive Southern House Plan with Split Beds - 51823HZ floor plan - Main Level

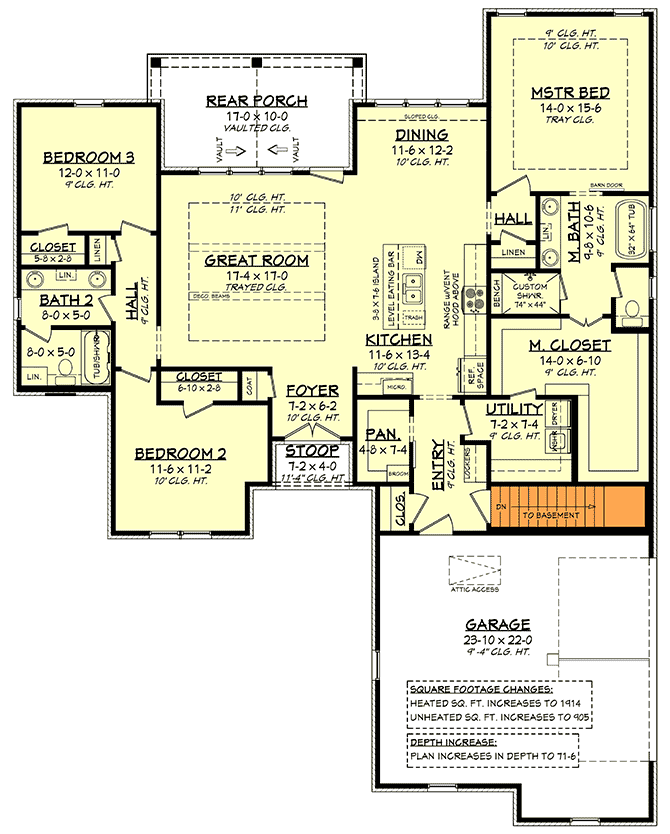

Basement Stair Location
Reverse Floor Plan
Attractive Southern House Plan with Split Beds - 51823HZ floor plan - Basement Stair Location

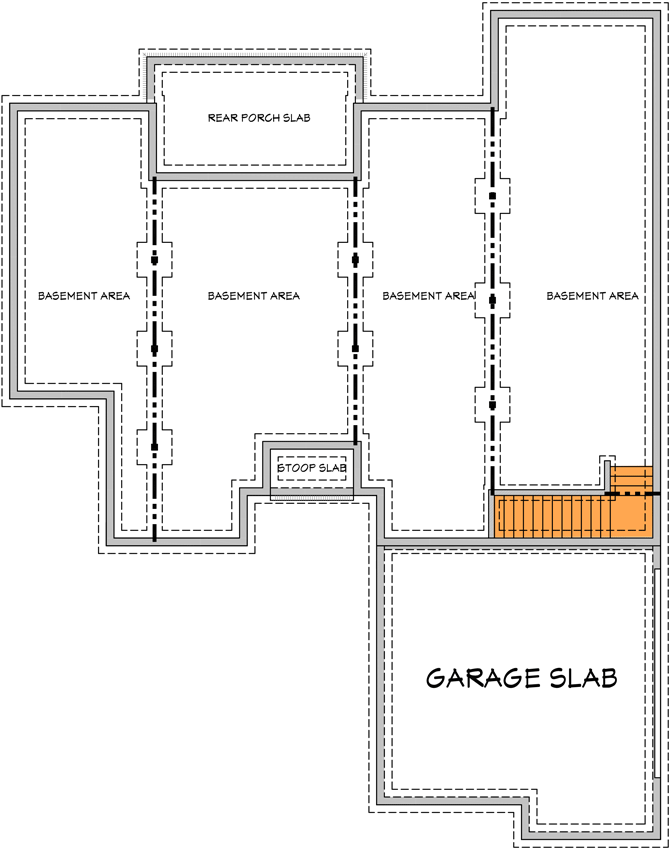

Unfinished Basement
Reverse Floor Plan
Attractive Southern House Plan with Split Beds - 51823HZ floor plan - Unfinished Basement
Plan Details
  • Brick-clad, nested gables on the front elevation of this Southern house plan grab the attention of those passing by, while the smart interior floor plan creates a comfortable environment for everyday living.
  • A tray ceiling above the great room helps to define the space within the open floor plan. The adjacent kitchen boasts a large island with an eating bar, and a rear porch offers an outdoor space for grilling or lounging.
  • The master bedroom is set apart from the secondary bedrooms for the utmost privacy, and features a 5-fixture bath and a walk-in closet that connects with the laundry room.
  • The remaining two bedrooms are generous in size and share a compartmentalized bath.
  • Additional storage space extends from either side of the double garage, keeping the clutter at bay, and the family entry includes built-in lockers in the mudroom.
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

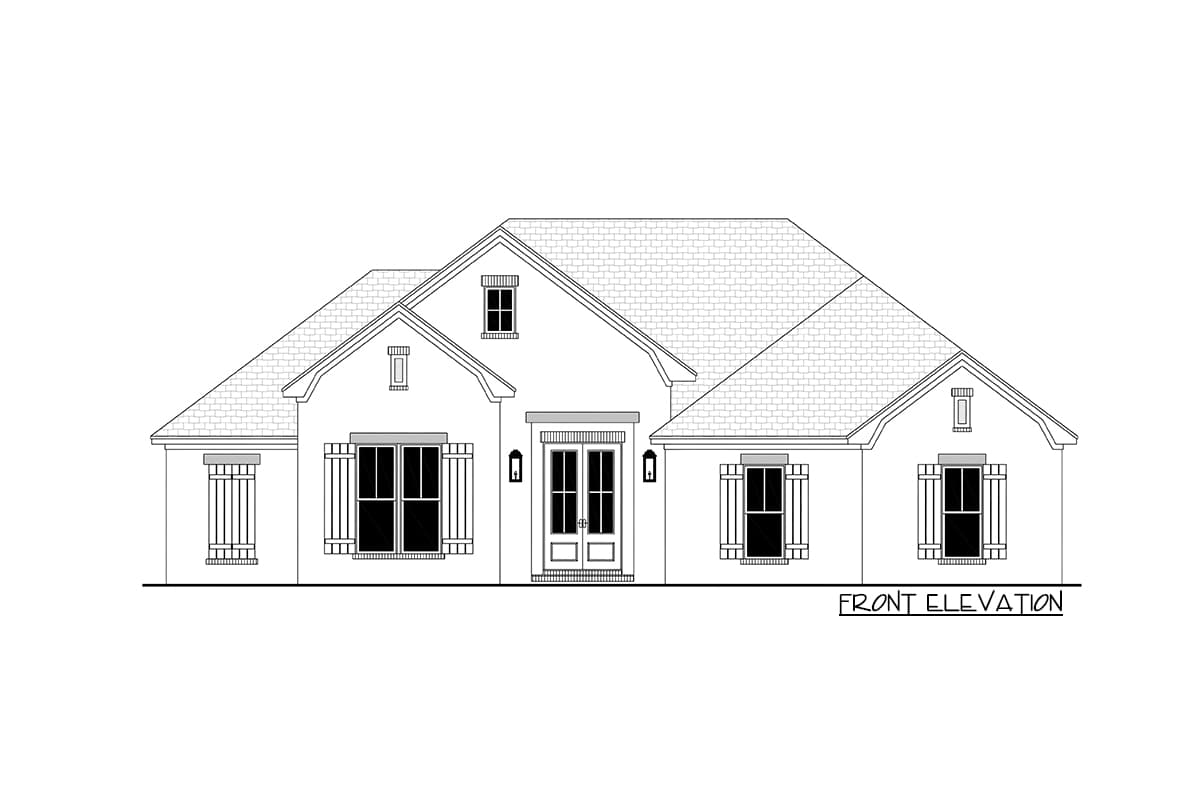

Page 4  Front and rear exterior views with notes and details, fastening details, wall section

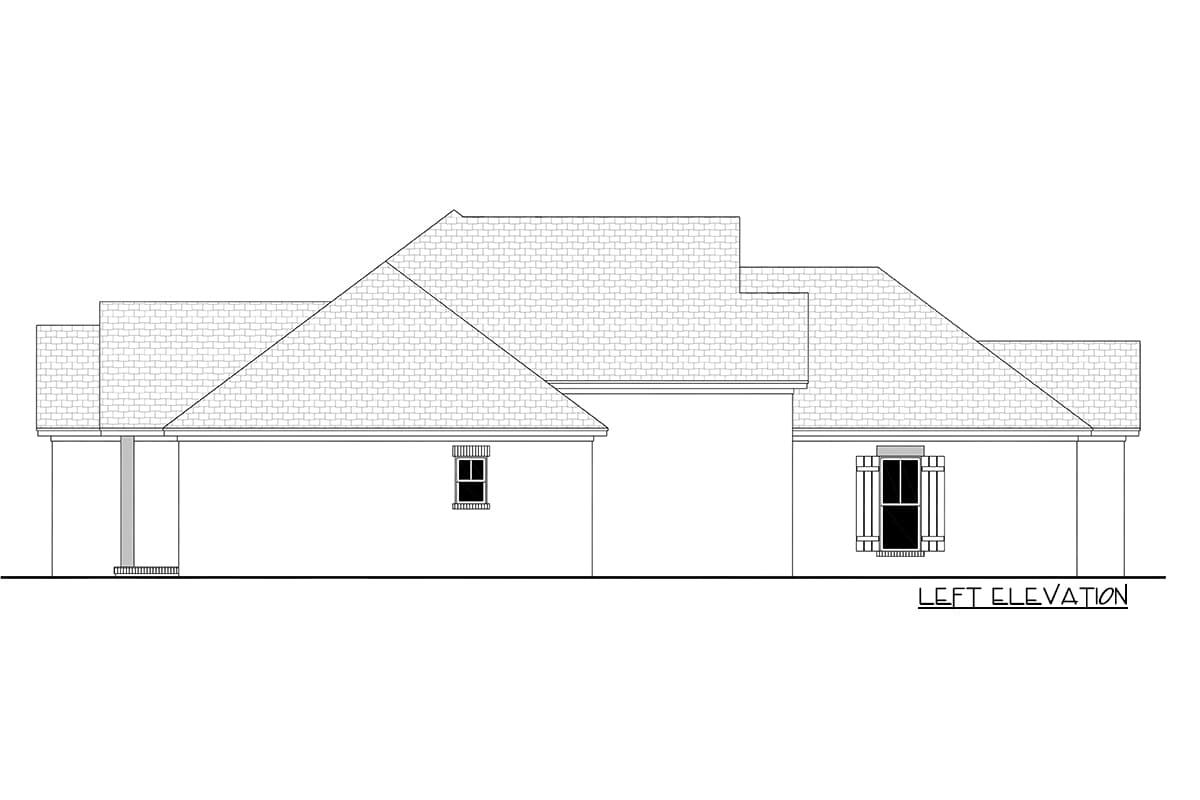

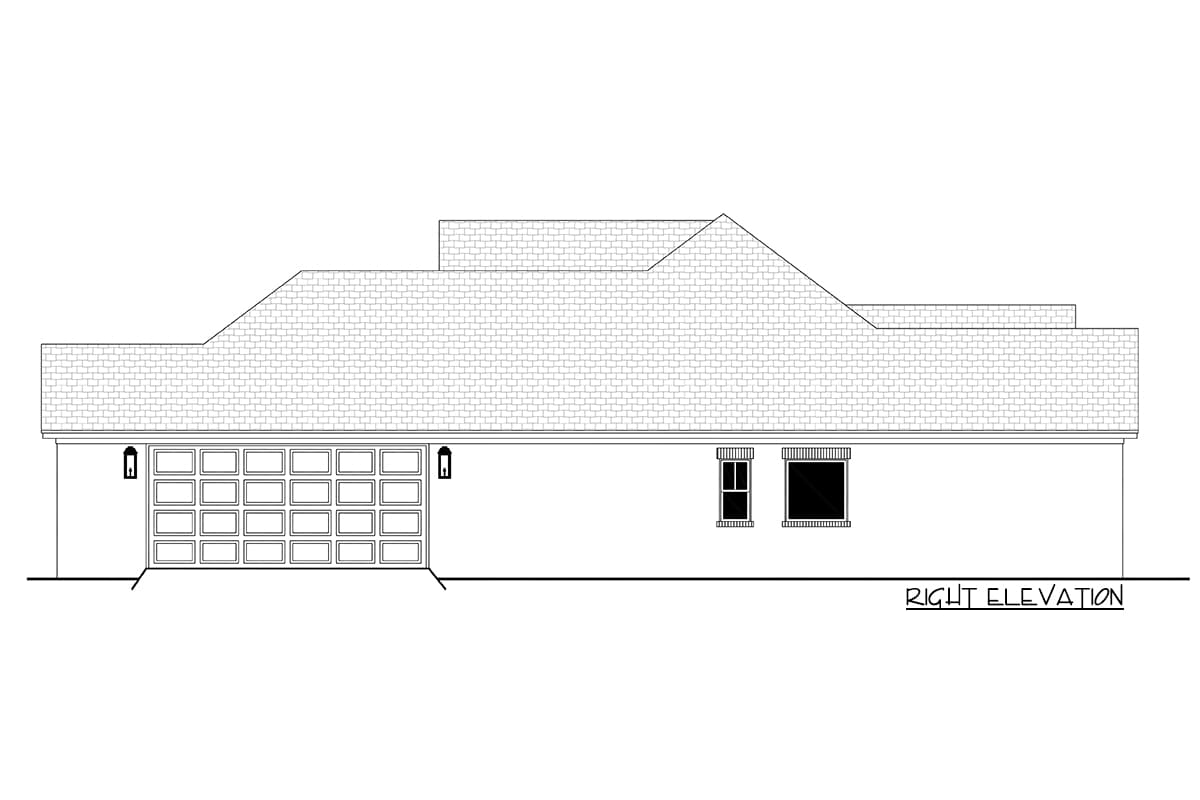

Page 5  Right and left exterior views with notes, garage wall section
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan, span charts and bracing detail
Page 8  Electrical plans & notes/ legend


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Attractive Southern House Plan with Split Beds

  • 1,817

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stair Location

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 1,817 sq. ft.
  • 1st Floor: 1,817 sq. ft.

Dimensions

  • Width: 56' 2"
  • Depth: 67' 2"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 583 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
