Plan 5991ND

Attractive Split-Bedroom Design

Pageloader

Attractive Split-Bedroom Design

Plan 5991ND

  • 2,514

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This appealing traditional home includes a columned porch in front and a spacious deck in back.
  • Set in a bay, the breakfast nook is open to the kitchen with its eating counter and laundry closet. A walk-in pantry is nearby.
  • Warmed by a fireplace, the great room and dining room separate the master suite from the family bedrooms. In the master suite, you find a spacious walk-in closet, a whirlpool tub and a separate shower.
  • The second full bath lies between bedrooms two and three on the other side of the house.
  • The upstairs room could become a fourth bedroom with an optional bath. Attic storage space completes the second floor.
  • Foundation options: slab or crawl space. Specify when ordering.
  • Related Plans: For an alternate floor plan, see house plans - 70542MK

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Attractive Split-Bedroom Design

  • 2,514

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $750
  • 5 Sets $850
  • CAD $1,545
  • View all purchase option online

About This Plan

  • This appealing traditional home includes a columned porch in front and a spacious deck in back.
  • Set in a bay, the breakfast nook is open to the kitchen with its eating counter and laundry closet. A walk-in pantry is nearby.
  • Warmed by a fireplace, the great room and dining room separate the master suite from the family bedrooms. In the master suite, you find a spacious walk-in closet, a whirlpool tub and a separate shower.
  • The second full bath lies between bedrooms two and three on the other side of the house.
  • The upstairs room could become a fourth bedroom with an optional bath. Attic storage space completes the second floor.
  • Foundation options: slab or crawl space. Specify when ordering.
  • Related Plans: For an alternate floor plan, see house plans - 70542MK

Floor Plans

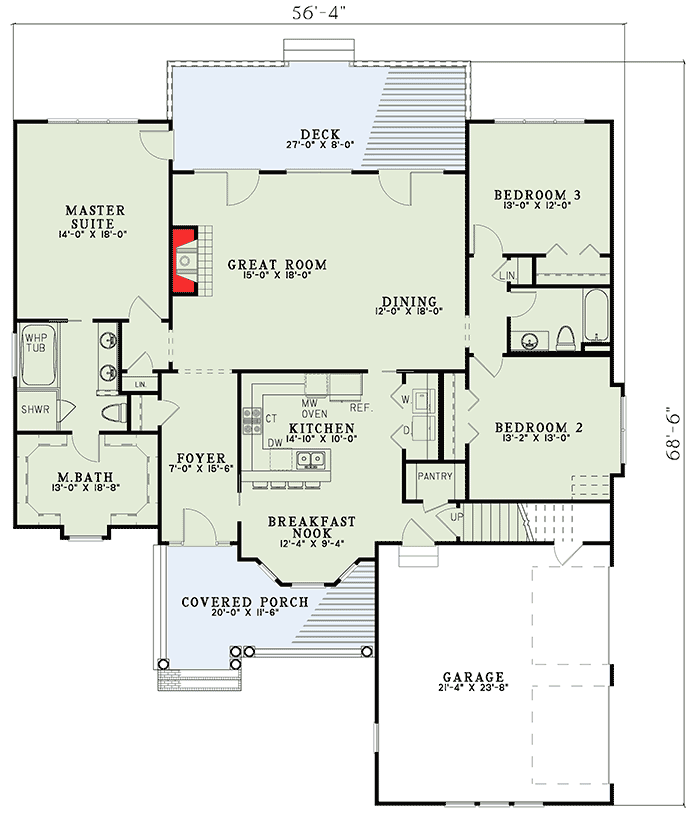

  • Main Level

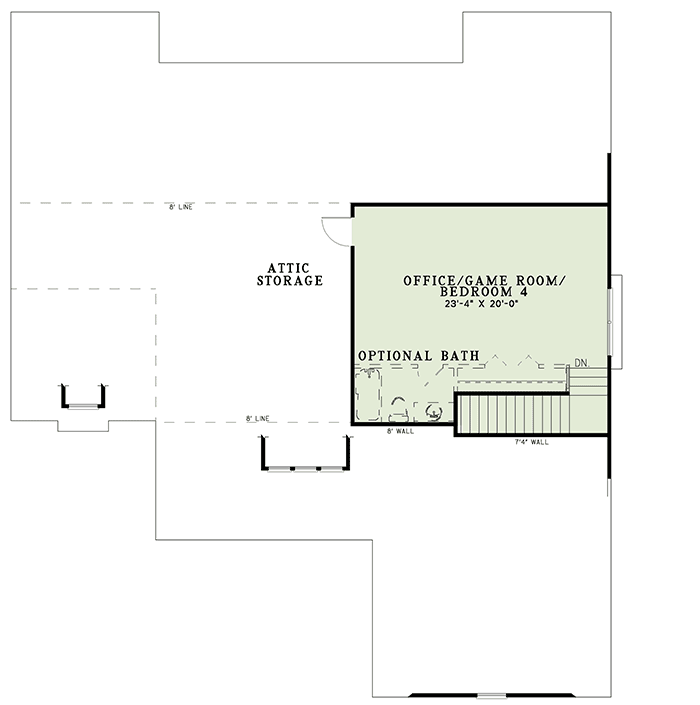

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,514 sq. ft.
  • 1st Floor: 2,071 sq. ft.
  • 2nd Floor: 443 sq. ft.
  • Porch, Front: 191 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 4"
  • Depth: 68' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 527 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
