Plan 21827DR
Attractive Stone Cottage with Side Patio
Heated S.F.
1,534
Beds
3
Baths
2
Stories
2
What's Included
Plan Details

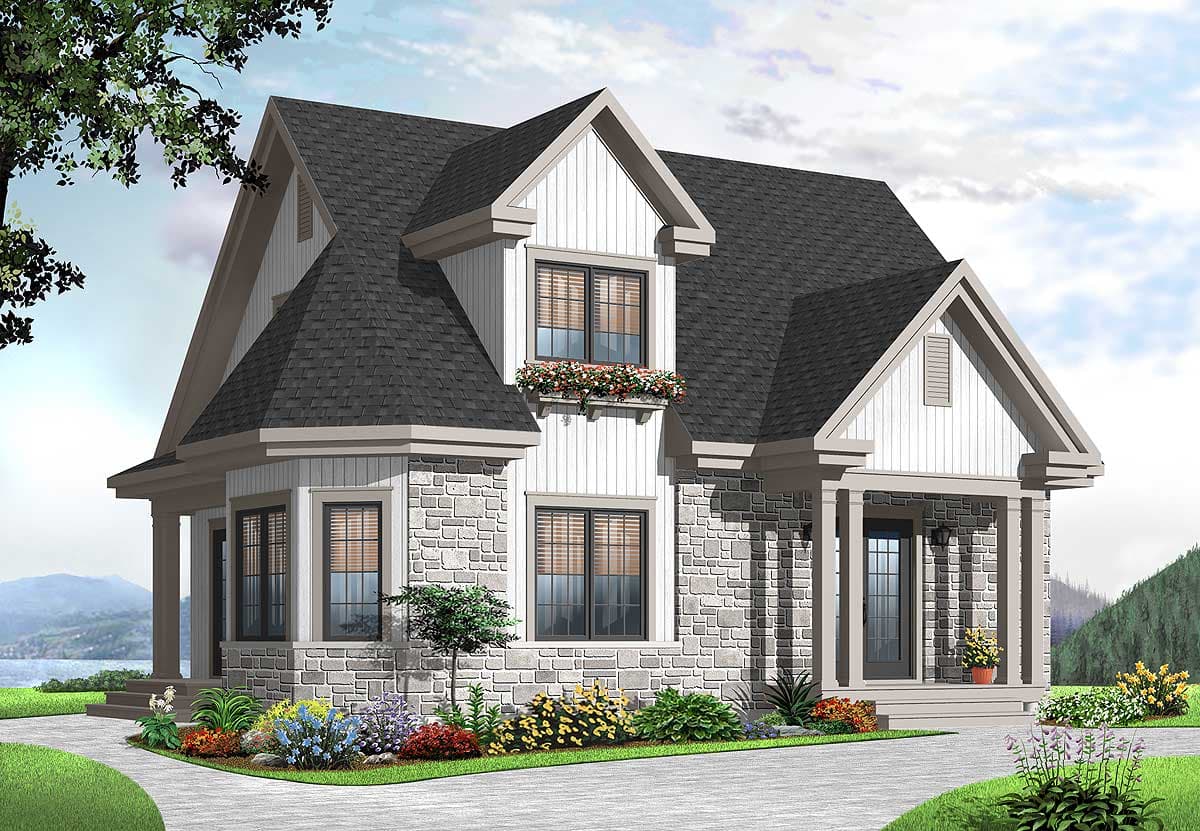

  • This attractive stone cottage house plan features a tasteful covered patio off the left side giving you entertaining and eating options from the nearby kitchen.
  • Bowed windows in the family room let in lots of light.
  • The master suite is conveniently located on the main floor. Dual vanities and a spa tub are in the master bath.
  • Upstairs, you'll find a bedroom on each side of the stair. A bathroom is centrally located and features both a tub and shower.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Attractive Stone Cottage with Side Patio

  • 1,534

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

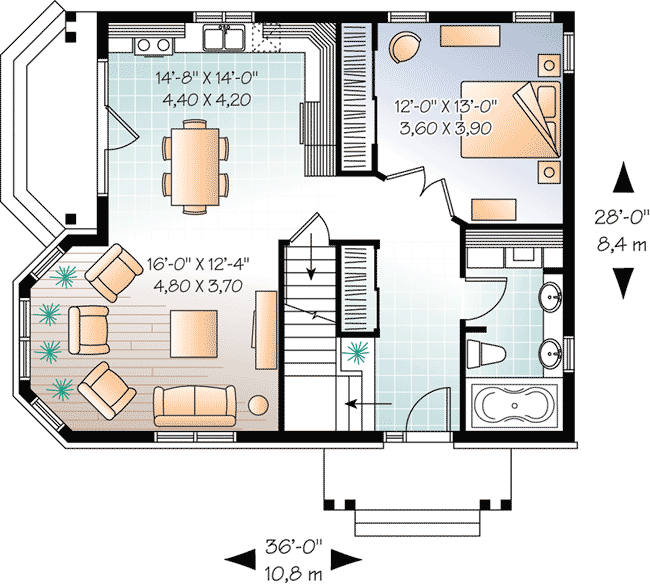

  • Main Level

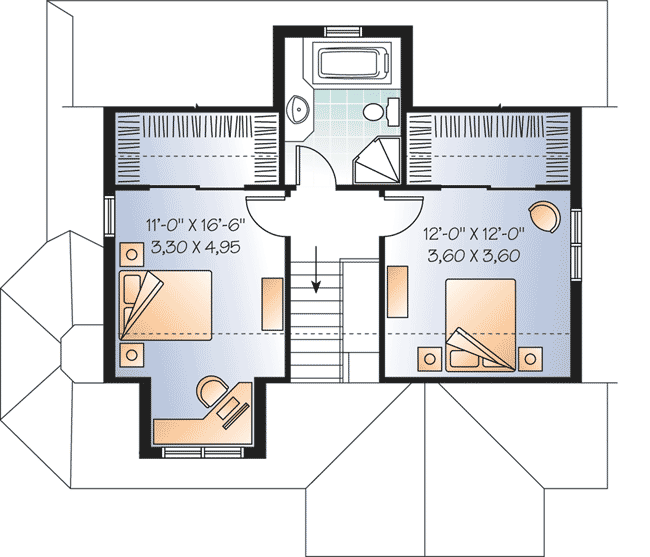

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,534 sq. ft.
  • 1st Floor: 922 sq. ft.
  • 2nd Floor: 612 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 6" Second Floor / 8' 0"
