Attractive Two-Bedroom Home Plan

Plan 80365PM

  • 1,019

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

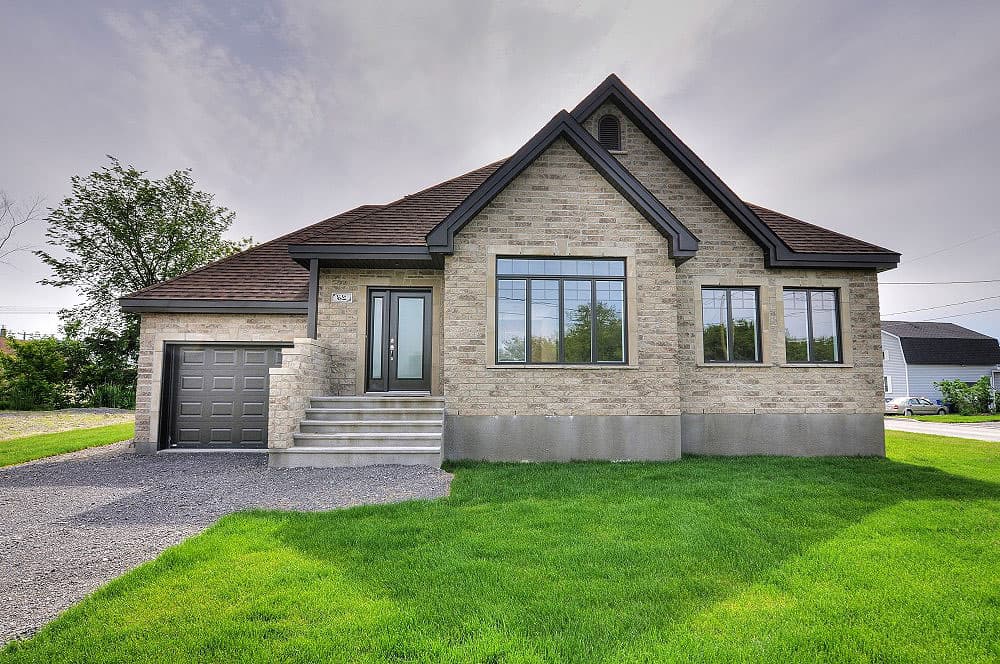

  • This bungalow stands out with its vertical brick, architectural details, decorative pillars and French corners. It measures 48 feet wide by 30 feet deep and provides 1,019 square feet of living space.
  • The house has a closed entrance hall, a living room with cathedral ceiling, a dining room, a U-shaped kitchen, a bathroom, and two bedrooms including a master bedroom with two large closets.
  • The 288 square foot one-car garage has two doors - one that provides access to the house and the other to the backyard.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

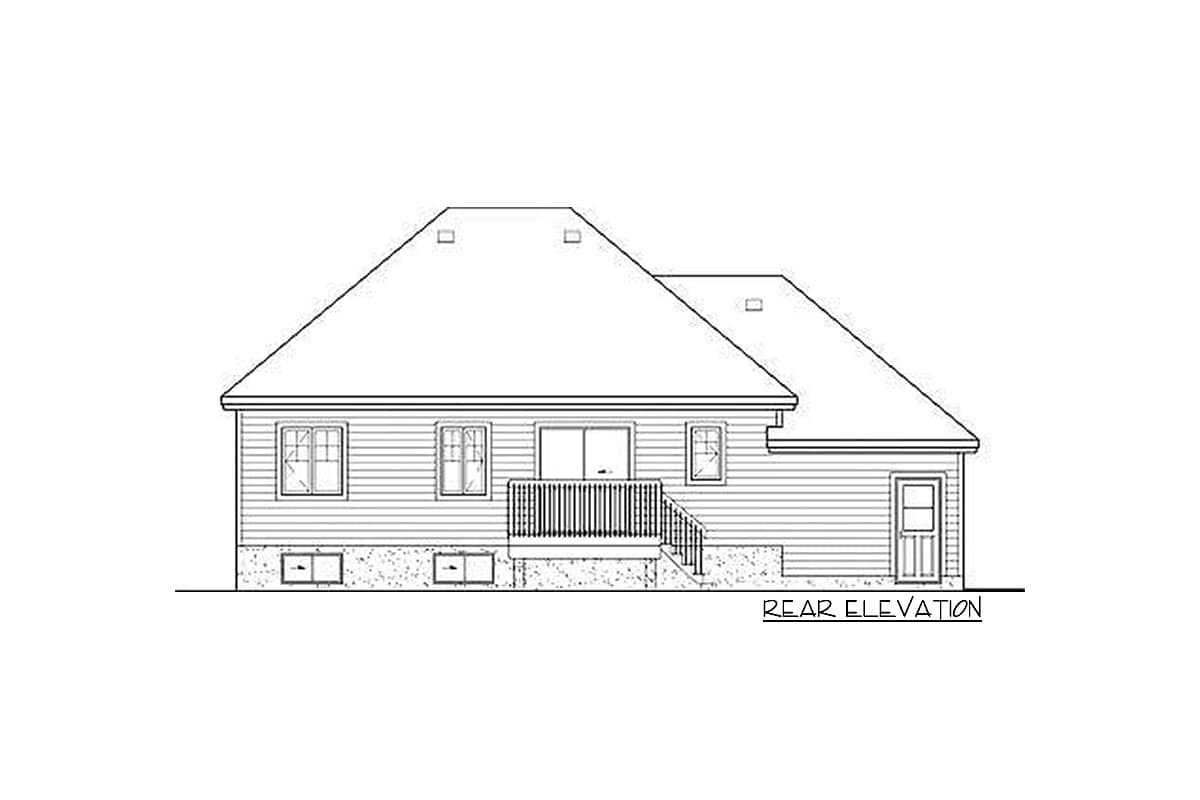

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

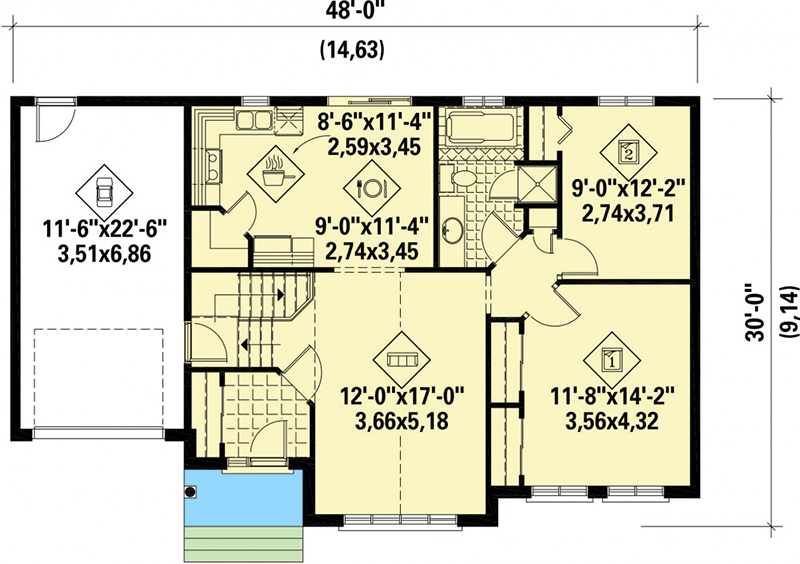

Attractive Two-Bedroom Home Plan - 80365PM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

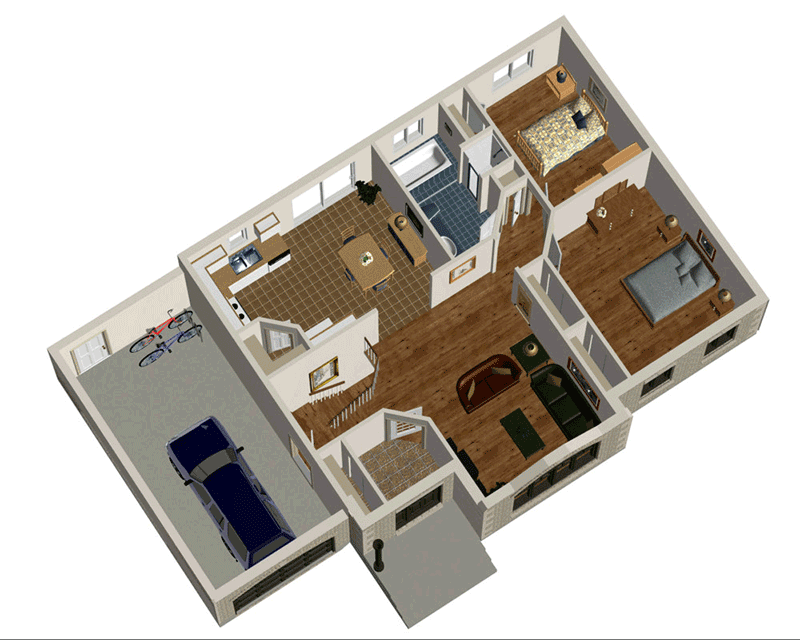

Attractive Two-Bedroom Home Plan - 80365PM floor plan - 3D Main Floor

Architectural Style

Special features

Plan Collections

Attractive Two-Bedroom Home Plan

  • 1,019

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 3D Main Floor

Plan Details

Square Footage Breakdown

  • Total: 1,019 sq. ft.
  • 1st Floor: 1,019 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 30' 0"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 288 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
