Plan 9511RW Balcony Bridge to Master Suite

3,303 4-5 4.5 - 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Balcony Bridge to Master Suite

Plan 9511RW

  • 3,303

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stone, stucco and wood impart a rustic look to this European home plan.
  • Open spaces inside make it easy to flow from room to room.
  • Columns separate the formal living room from the dining room, preserving that open layout.
  • Enjoy the views from the kitchen where you can see the breakfast nook with built-in seating and the great room with fireplace, all at the same time.
  • A dramatic balcony bridge gives privacy to the luxurious master suite and links the hall to the other three family bedrooms.
  • Sliding glass doors in the master suite open to a private covered deck.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

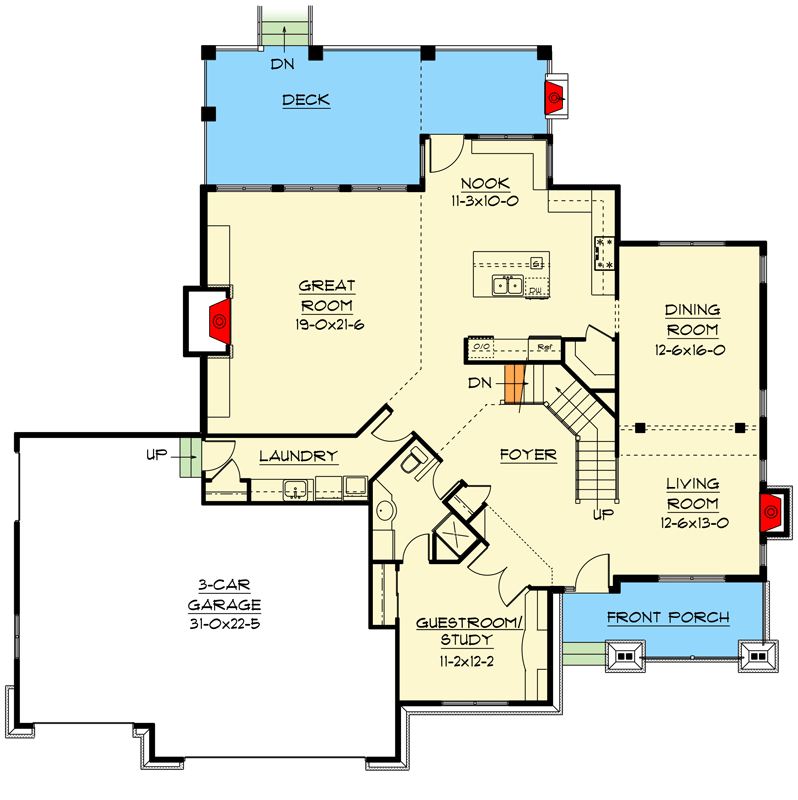

Balcony Bridge to Master Suite - 9511RW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

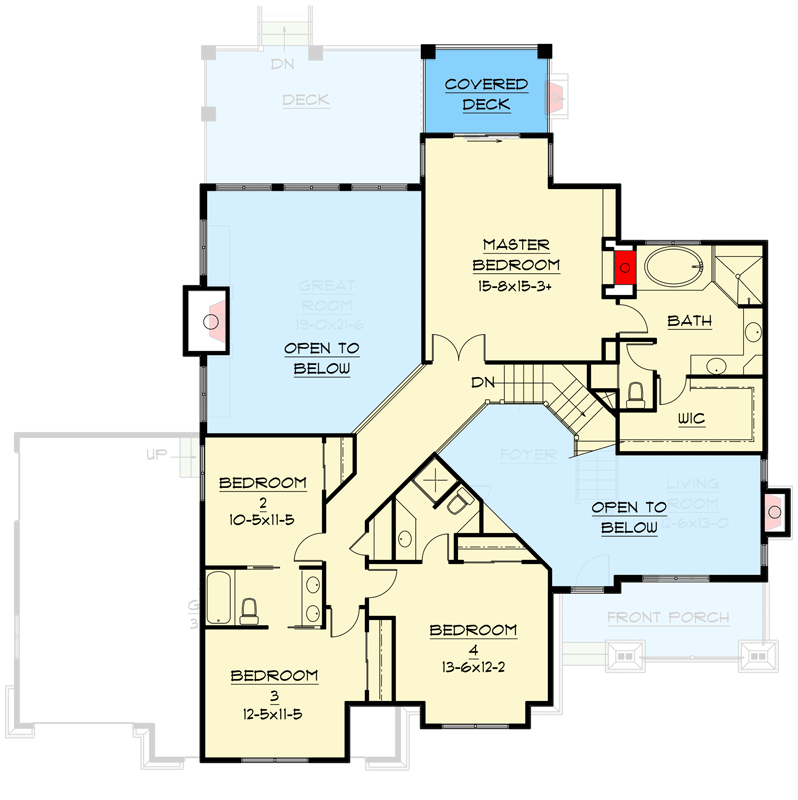

Balcony Bridge to Master Suite - 9511RW floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

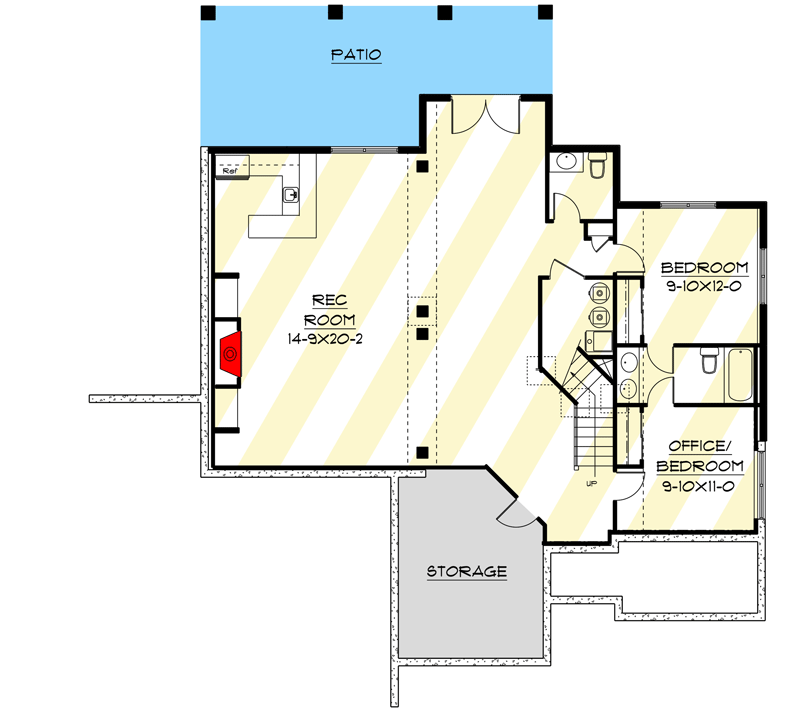

Balcony Bridge to Master Suite - 9511RW floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,303 sq. ft.
  • 1st Floor: 1,834 sq. ft.
  • 2nd Floor: 1,469 sq. ft.
  • Deck: 611 sq. ft.
  • Optional Lower Level: 1,499 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 6"
  • Depth: 63' 6"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 1640 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Balcony Bridge to Master Suite

  • 3,303

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,300
  • PDF - Unlimited Build $4,950
  • CAD + PDF - Single Build $5,000
  • CAD - Unlimited Build $7,500
  • View all purchase option online

About This Plan

  • Stone, stucco and wood impart a rustic look to this European home plan.
  • Open spaces inside make it easy to flow from room to room.
  • Columns separate the formal living room from the dining room, preserving that open layout.
  • Enjoy the views from the kitchen where you can see the breakfast nook with built-in seating and the great room with fireplace, all at the same time.
  • A dramatic balcony bridge gives privacy to the luxurious master suite and links the hall to the other three family bedrooms.
  • Sliding glass doors in the master suite open to a private covered deck.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,303 sq. ft.
  • 1st Floor: 1,834 sq. ft.
  • 2nd Floor: 1,469 sq. ft.
  • Deck: 611 sq. ft.
  • Optional Lower Level: 1,499 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 6"
  • Depth: 63' 6"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 1640 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
Plan 9511RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9511RW
|
