Plan 42448DB
Barn-Like Garage Apartment with 4 Cars and 2 Beds - 1450 Sq Ft
Heated S.F.
1,450
Beds
2
Baths
1
Stories
2
Cars
4
What's Included
Plan Details
  • This barn-like garage plan has 1,515 square feet of parking on the ground level with a 1,450 square foot 2 bed, 1 bath apartment above. Covered outdoor spaces front and back - each 12' by 47'6" - give you outdoor space to enjoy.
  • Matching 2-car bays - each with 18' by 8' overhead doors - give your vehicles access to the garage.
  • Stairs run along the right side, and there are man doors on the left, right and rear.
  • Upstairs, the bedrooms - each with walk-in closets - are on the left and share a bath with two sinks.
  • A pocket office off the kitchen gives you a quiet place to get work done.
  • The family room has views to the back and is open to the dining area which has a peninsula with seating.
  • A door on the right takes you to an open terrace (12' by 21'4") giving you a great fresh air space to enjoy.
  • Related Plan: Get an alternate rustic garage apartment with plan 42432DB.
What's Included
  • General Notes

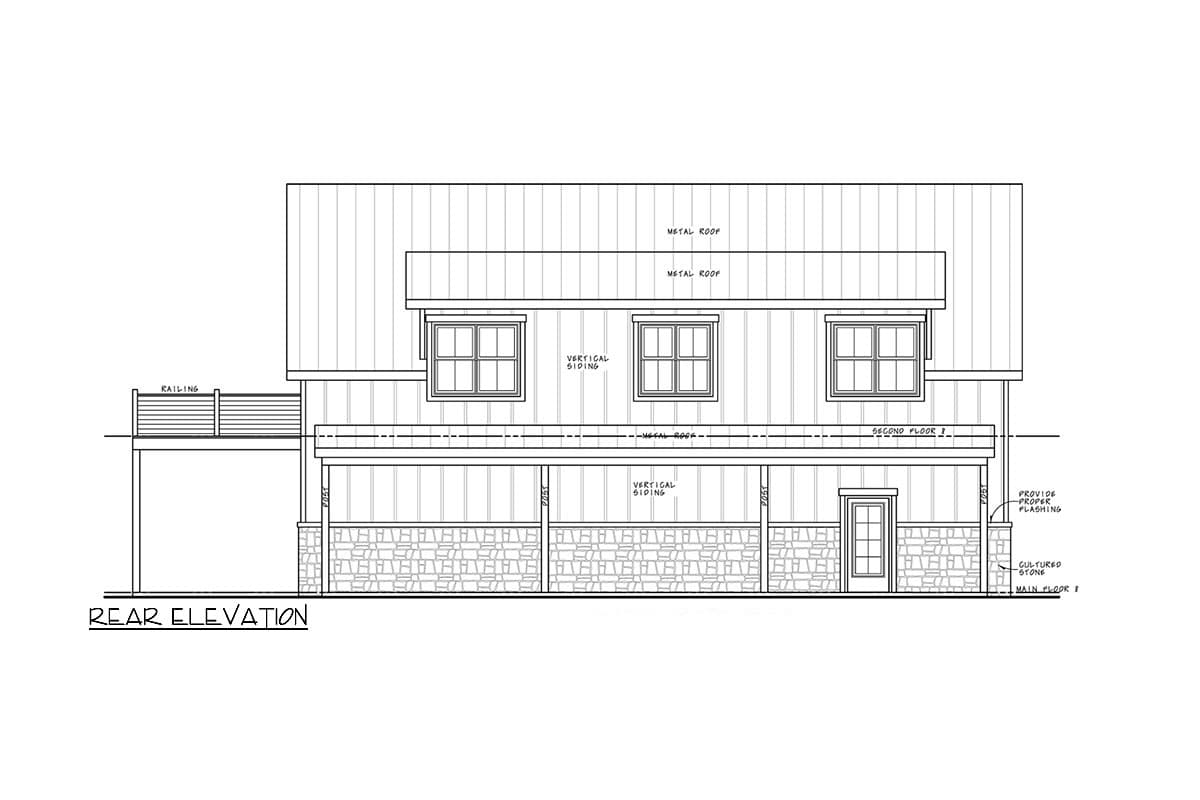

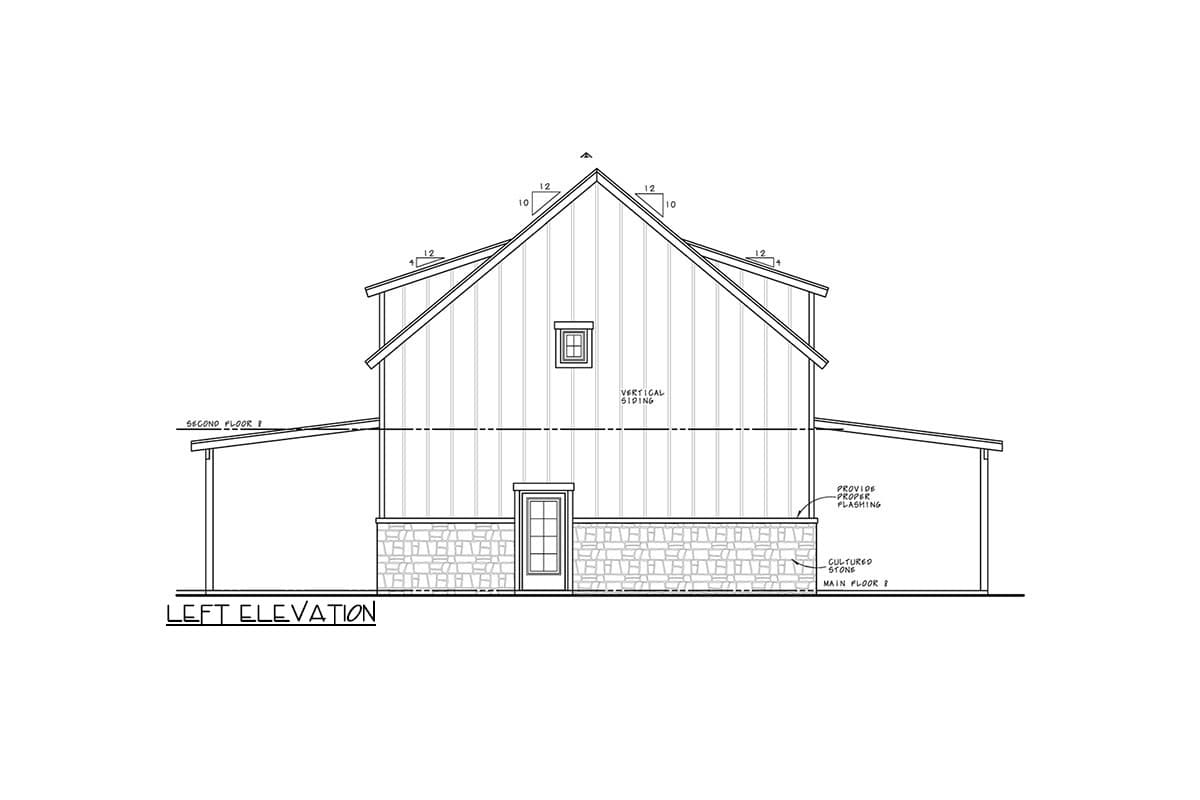

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

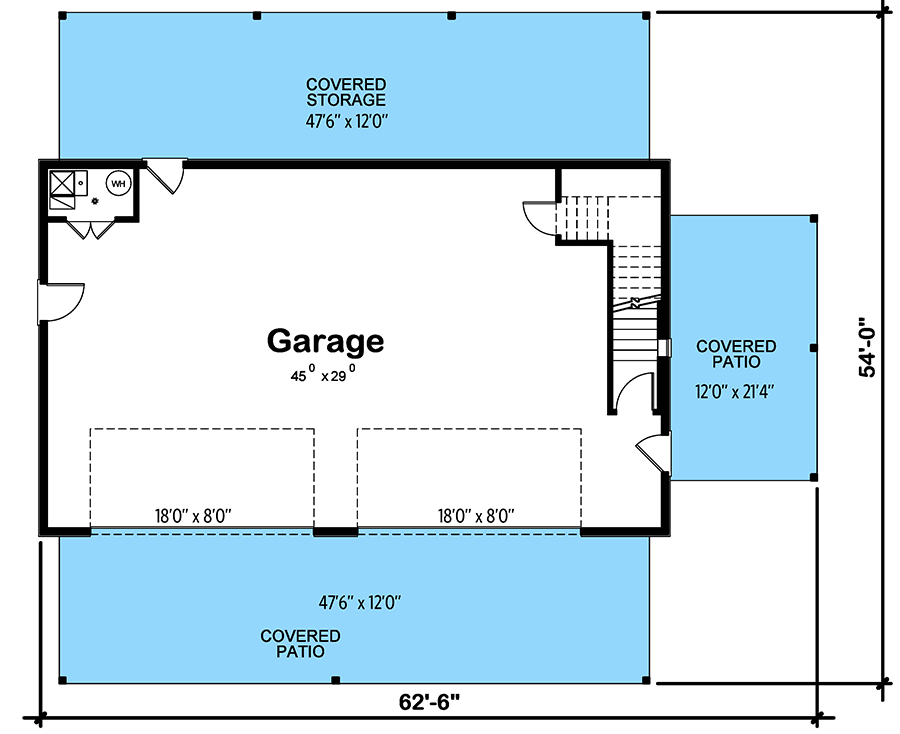

  • Main Level Floor Plan

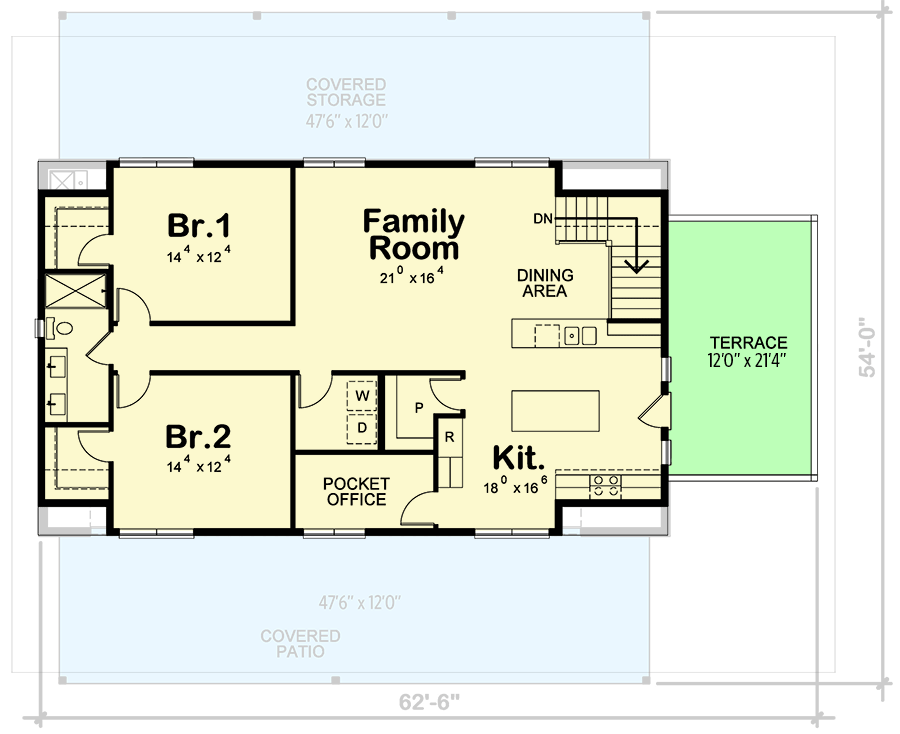

  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barn-Like Garage Apartment with 4 Cars and 2 Beds - 1450 Sq Ft

  • 1,450

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,450 sq. ft.
  • 2nd Floor: 1,450 sq. ft.

Dimensions

  • Width: 62' 6"
  • Depth: 54' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1515 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 1" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
