Plan 68550VR

Barn-Like Garage with Vaulted Workshop, Dogtrot, Side Porch and Bonus Area

Heated S.F.
1,031
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 68550VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 68550VR

M-F 9am-5pm EST |

1-203-761-8500

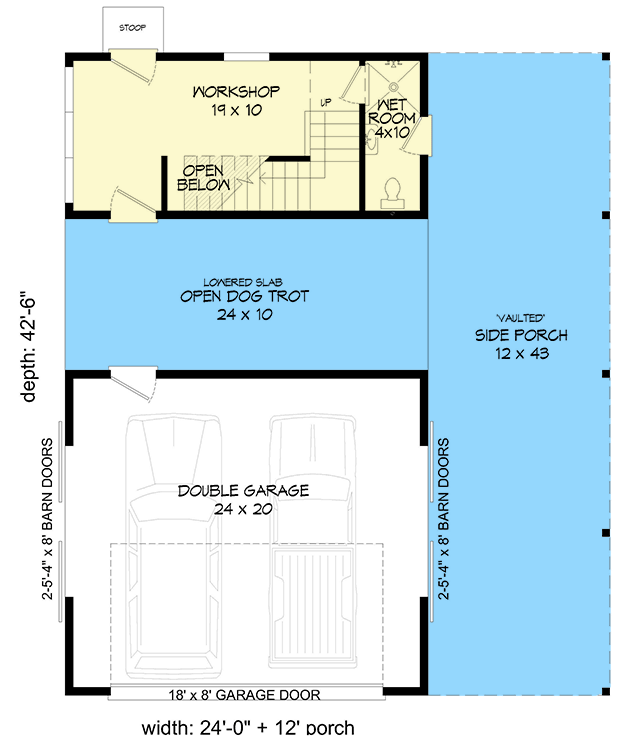

Main Level

Plan 68550VR: Barn-Like Garage with Vaulted Workshop, Dogtrot, Side Porch and Bonus Area - Floor Plan - Main Level - Barndominium, Rustic

2nd Floor

Plan 68550VR: Barn-Like Garage with Vaulted Workshop, Dogtrot, Side Porch and Bonus Area - Floor Plan - 2nd Floor - Barndominium, Rustic

Plan Details

  • This barn-like garage plan gives you parking for 2 vehicles on the ground floor (516 square feet) as well as a workshop separated by a dogtrot space. On the right, a 12'-deep porch runs the length of the entire structure.
  • Stairs take you to a bonus area above the garage that can be put to many uses.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

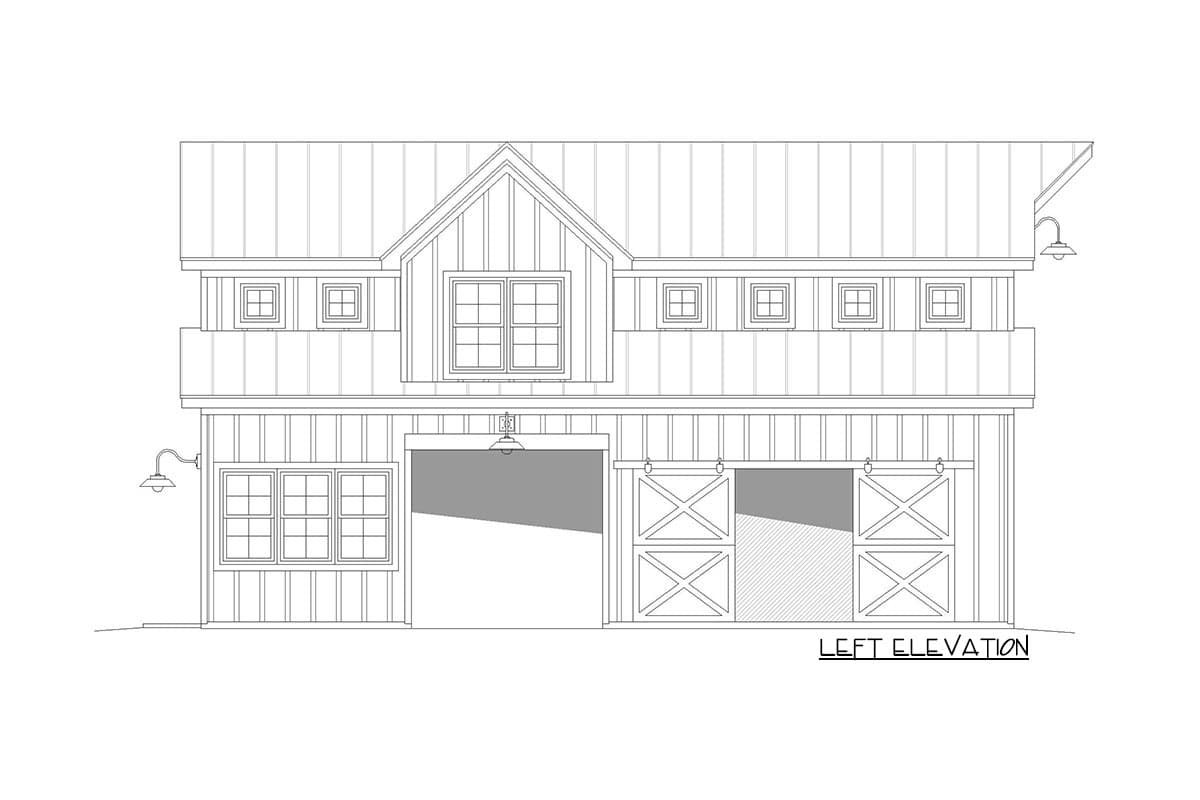

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
