Plan 360086DK Barn-style House Plan with Indoor and Outdoor Kitchens

Barn-style House Plan with Indoor and Outdoor Kitchens

Plan 360086DK

  • 1,152

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2-3

    Cars

  • Deep overhangs, timber-framed gables, and stone accents add to the immense curb appeal offered by this barn-style house plan. Use this as a permanent home, barndominium style, or as a carriage house.
  • The double garage sits front and center, framed by a carport and covered porch that includes a fireplace and outdoor kitchen.
  • The rear of the main level presents the kitchen and adjoining dining area, as well as a powder bathroom.
  • Upstairs, you will find a TV area and bedroom with a full bathroom.
  • Related Plan: Replace the finished spaces with storage with plan 360085DK.

This plan includes the following elements:

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Barn-style House Plan with Indoor and Outdoor Kitchens - 360086DK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

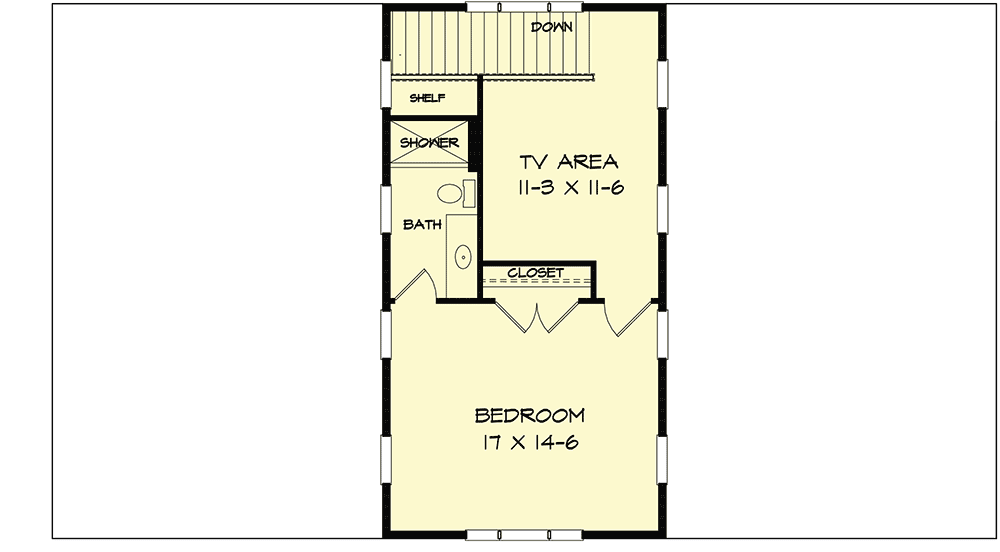

Barn-style House Plan with Indoor and Outdoor Kitchens - 360086DK floor plan - 2nd Floor

Plan details

Barn-style House Plan with Indoor and Outdoor Kitchens

  • 1,152

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • 5 Sets $800
  • 8 Sets $925
  • PDF Light $1,100
  • CAD + PDF - Single-Build $1,459
  • View all purchase option online

About This Plan

  • Deep overhangs, timber-framed gables, and stone accents add to the immense curb appeal offered by this barn-style house plan. Use this as a permanent home, barndominium style, or as a carriage house.
  • The double garage sits front and center, framed by a carport and covered porch that includes a fireplace and outdoor kitchen.
  • The rear of the main level presents the kitchen and adjoining dining area, as well as a powder bathroom.
  • Upstairs, you will find a TV area and bedroom with a full bathroom.
  • Related Plan: Replace the finished spaces with storage with plan 360085DK.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,152 sq. ft.
  • 1st Floor: 540 sq. ft.
  • 2nd Floor: 612 sq. ft.
  • Carport: 330 sq. ft.
  • Outdoor Kitchen: 510 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 10"
  • Depth: 34' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Carport, Attached
  • Area: 661 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
