Plan 444359GDN
Barndo-style House Plan Under 3000 Square Feet with Bonus Above Garage
Heated S.F.
2,875
Beds
3-4
Baths
3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

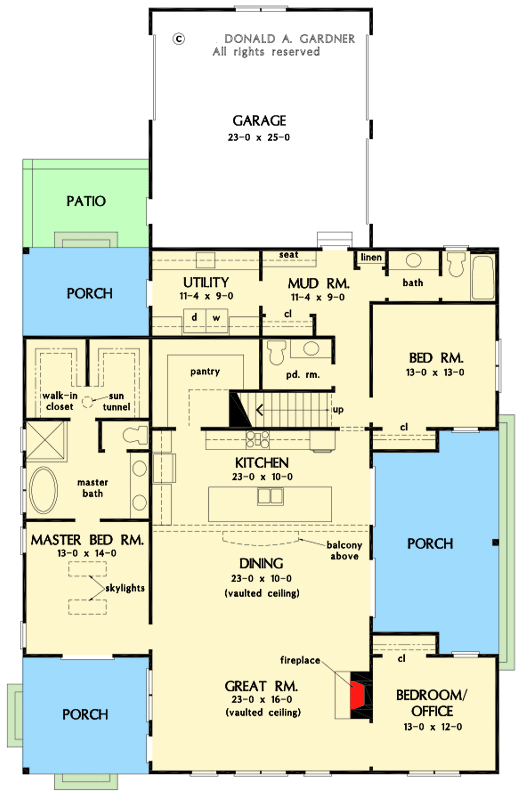

Barndo-style House Plan Under 3000 Square Feet with Bonus Above Garage - 444359GDN floor plan - Main Level
2nd Floor
Reverse Floor Plan

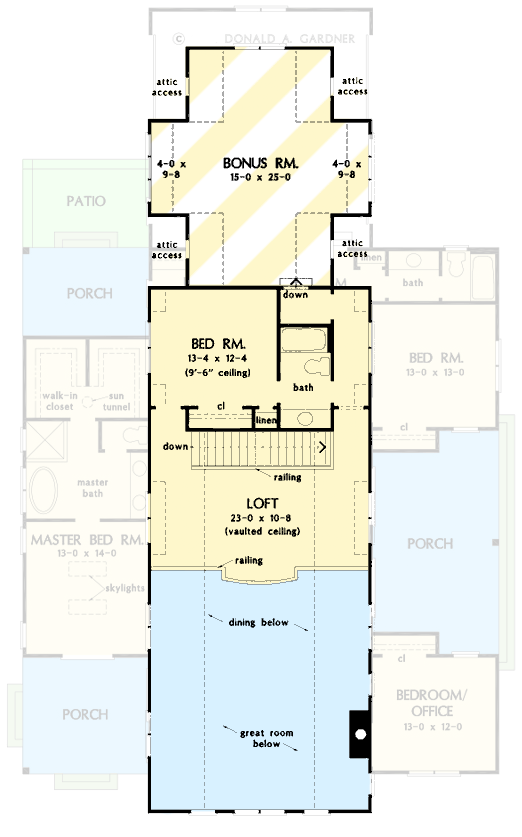

Barndo-style House Plan Under 3000 Square Feet with Bonus Above Garage - 444359GDN floor plan - 2nd Floor
Main Level - Basement Stairs Location
Reverse Floor Plan

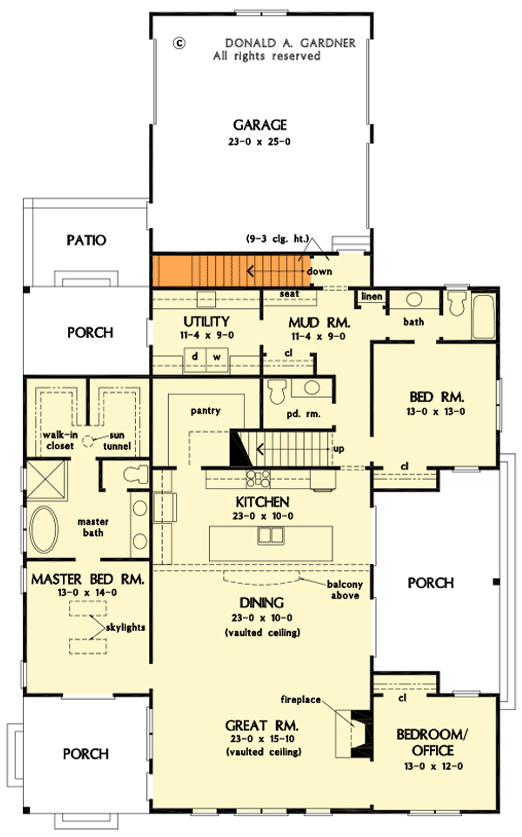

Barndo-style House Plan Under 3000 Square Feet with Bonus Above Garage - 444359GDN floor plan - Main Level - Basement Stairs Location
Plan Details
  • This barndominium-style house plan has a board-and-batten façade with decorative gable trusses and a stone chimney. Porches are positioned around the home for easy access to outdoor living.
  • Inside, the open floor plan offers an effortless flow for relaxing and dining and a vaulted great room (24' peak height).
  • The first-floor master suite features skylights, a thoughtfully designed bathroom, and a divided walk-in closet with a sun tunnel to welcome natural light. Two additional bedrooms are downstairs while a bedroom with a full bathroom is upstairs.
  • A loft overlooks the great room below and an optional bonus room awaits expansion.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
