Barndo-style with 2-Story Living/Dining Room and a Pocket Home Office Upstairs

Plan 135077GRA

  • 1,907

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Board and batten siding draws your gaze upward to the ribbed metal roof on this stunning Barndominium-style (stick-framing) house plan.
  • The left half of the rectangular footprint delivers an oversized garage with two overhead doors and two man doors that lead to the side and back yards.
  • The living space features an open concept layout with the island kitchen in the middle that freely flows into the living and dining area.
  • A corner fireplace warms the two-story living area and sliding doors invite you onto a covered porch for BBQs and outdoor enjoyment.
  • The master bedroom is conveniently located on the main level, while bedrooms 2 and 3 share the second level with a home office.
  • The exterior finish is spec'd for corrugated metal siding.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

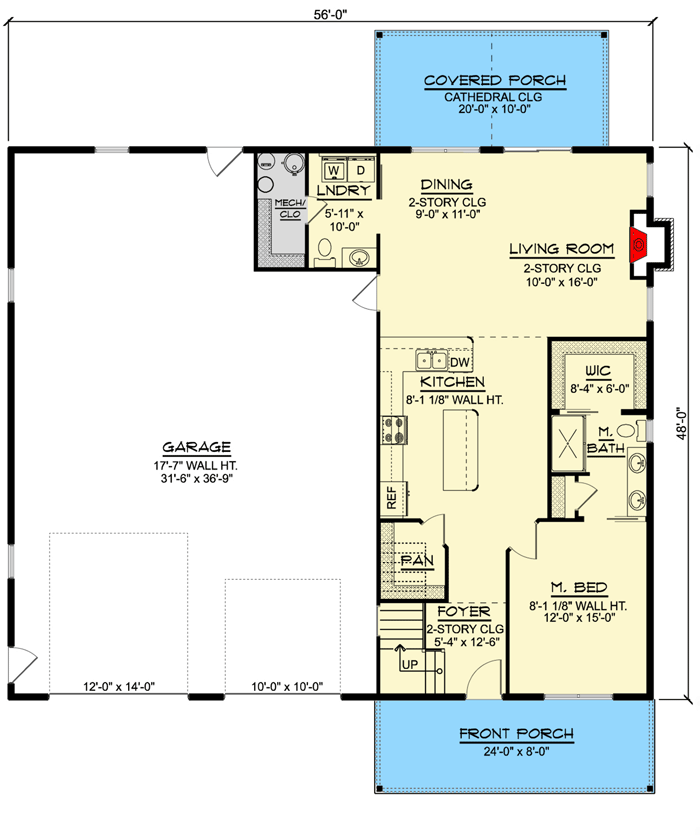

Barndo-style with 2-Story Living/Dining Room and a Pocket Home Office Upstairs - 135077GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

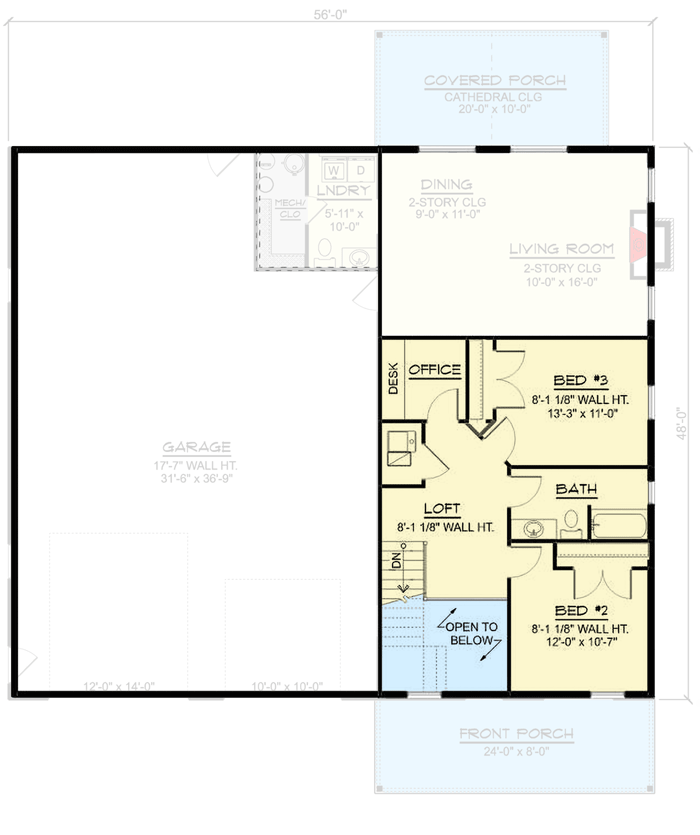

Barndo-style with 2-Story Living/Dining Room and a Pocket Home Office Upstairs - 135077GRA floor plan - 2nd Floor

Basement Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

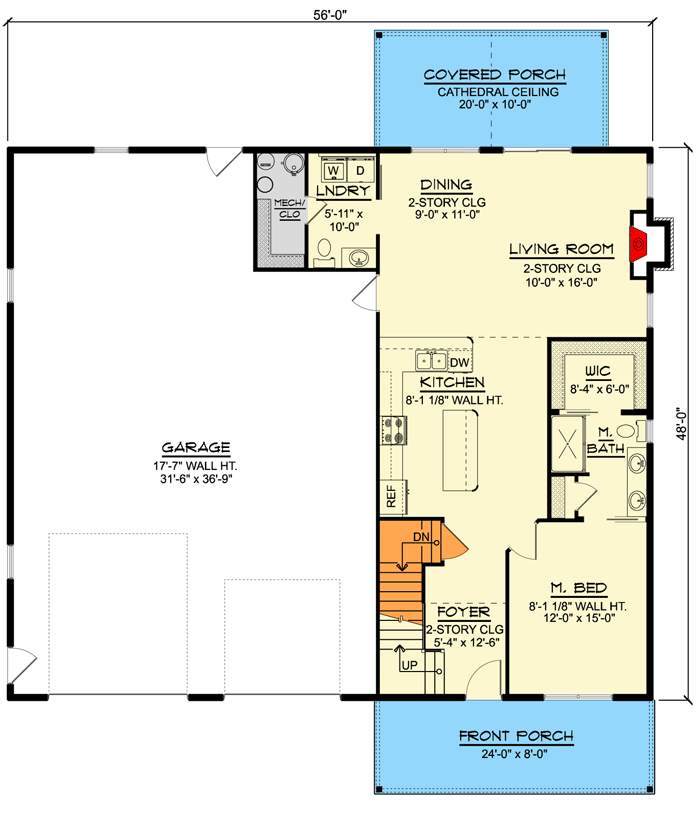

Barndo-style with 2-Story Living/Dining Room and a Pocket Home Office Upstairs - 135077GRA floor plan - Basement Option

Barndo-style with 2-Story Living/Dining Room and a Pocket Home Office Upstairs

  • 1,907

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total: 1,907 sq. ft.
  • 1st Floor: 1,267 sq. ft.
  • 2nd Floor: 640 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 66' 0"
  • Max ridge height: 26' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1421 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
