Barndo with Two 80' Wide and 8' Deep Porches

Plan 95144RW

  • 1,554

    Heated s.f.

  • 2

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • Matching shed roofs on the front and back of this barndominium - each 80'-wide and 8'-deep - give you loads of outdoor space to enjoy. Board and batten, combined with timber trusses and beefy gables give this amazing curb appeal.
  • Two bi-parting barn doors (9' by 9') slide open to give your vehicles access to the main floor with 20'-high ceilings while two doors - one on either side - let you in on foot.
  • Most of the barn area is open to above. A half bath is tucked in the corner giving you a spot to clean up after working on your projects. Stairs take you to a mezzanine that overlooks the floor below and two 4'-wide doors open to let in fresh air and give you views outside.
  • The main floor living area is open front to back and gives you a kitchen, a half bath, laundry and a large family room with fireplace.
  • Upstairs, two bedrooms share a Jack and Jill bath.

The following details are included with this house plan:
  • Cover Page

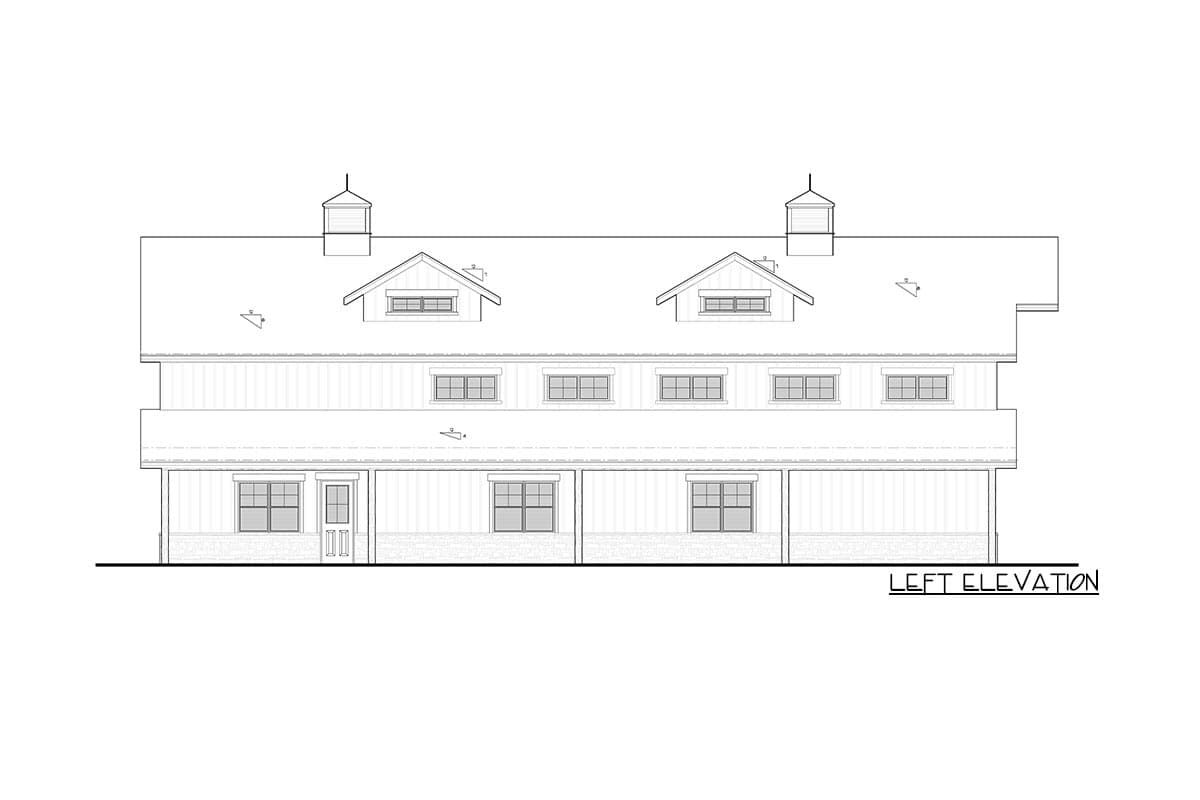

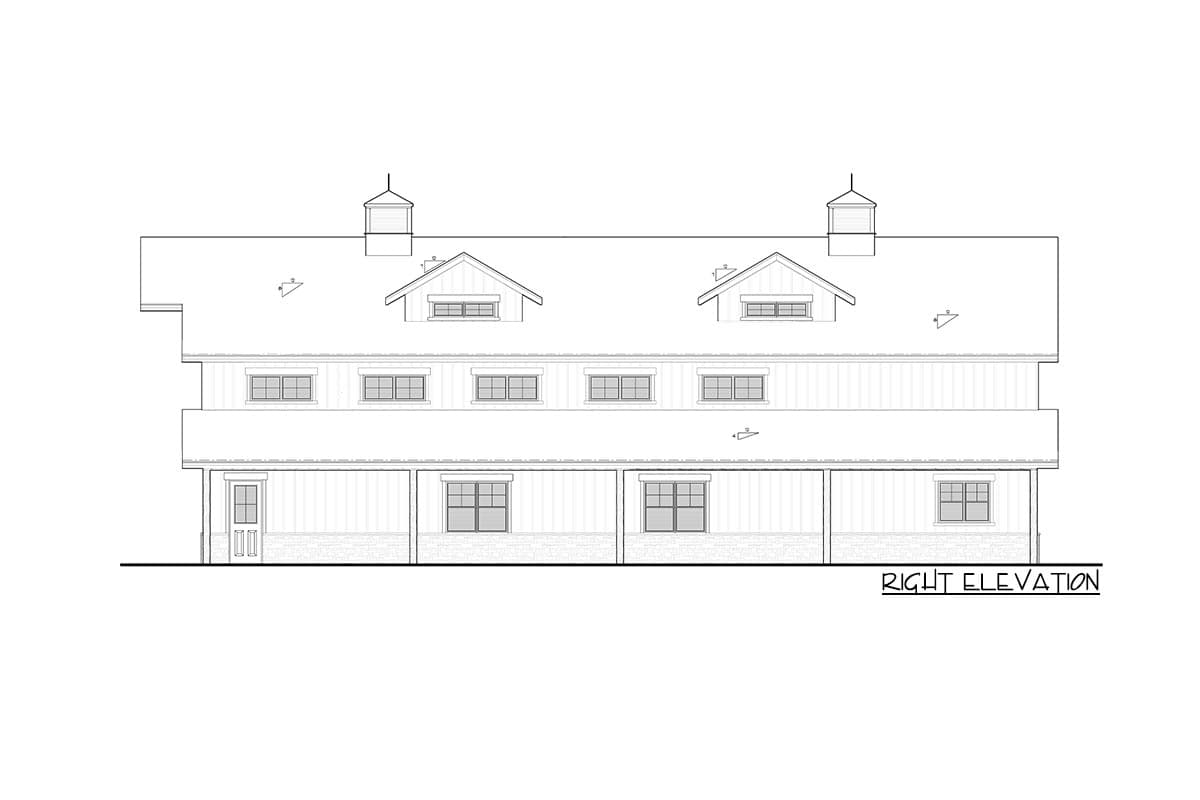

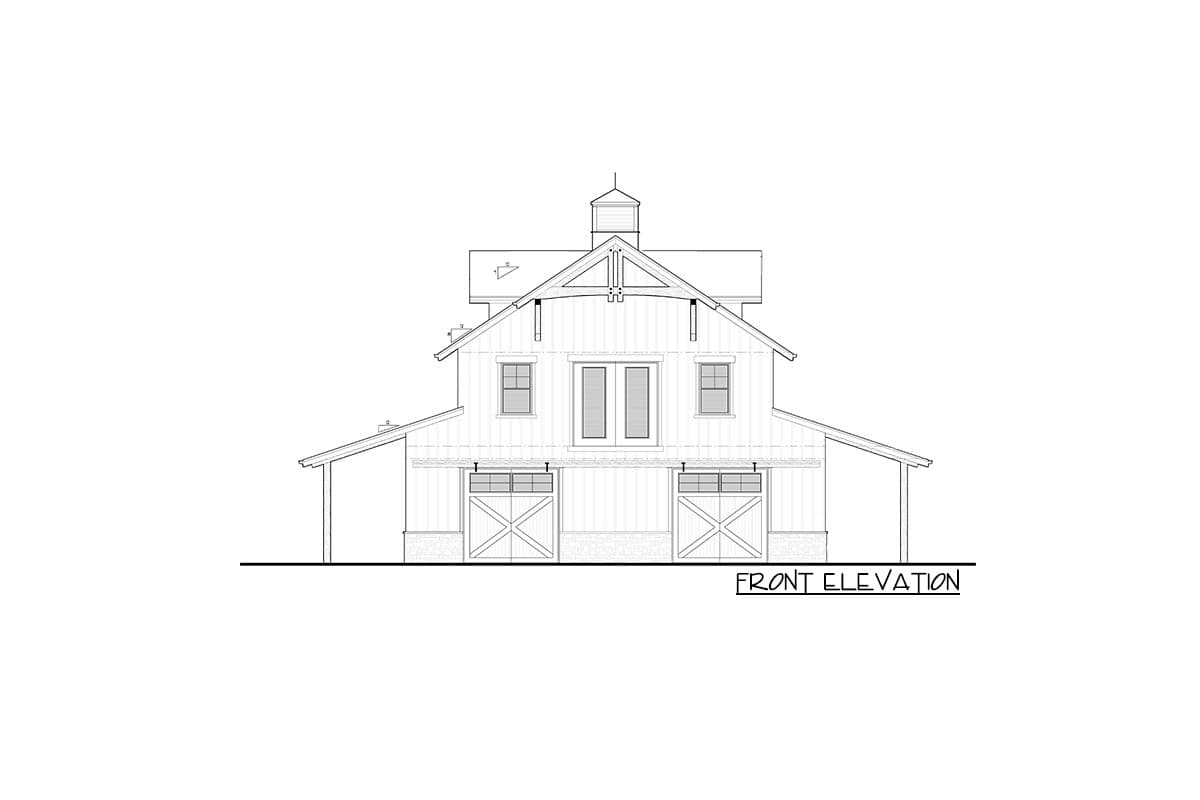

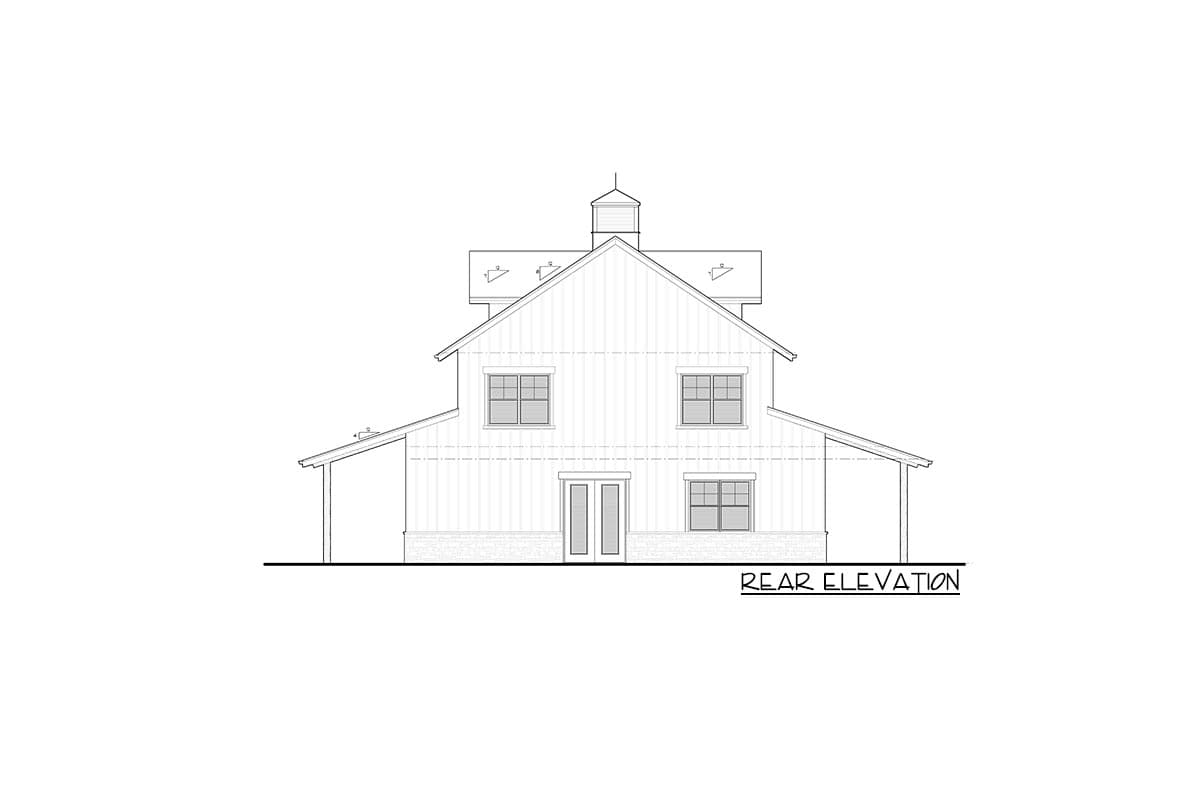

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

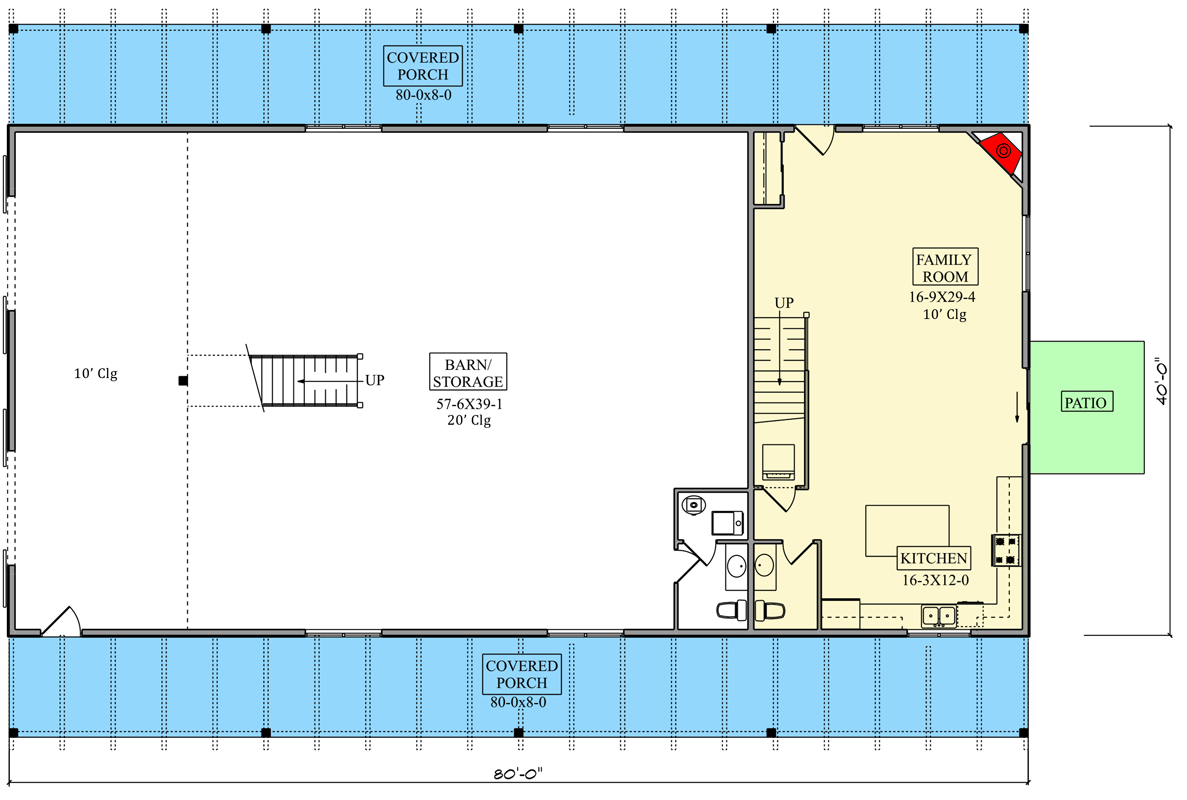

Barndo with Two 80' Wide and 8' Deep Porches - 95144RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

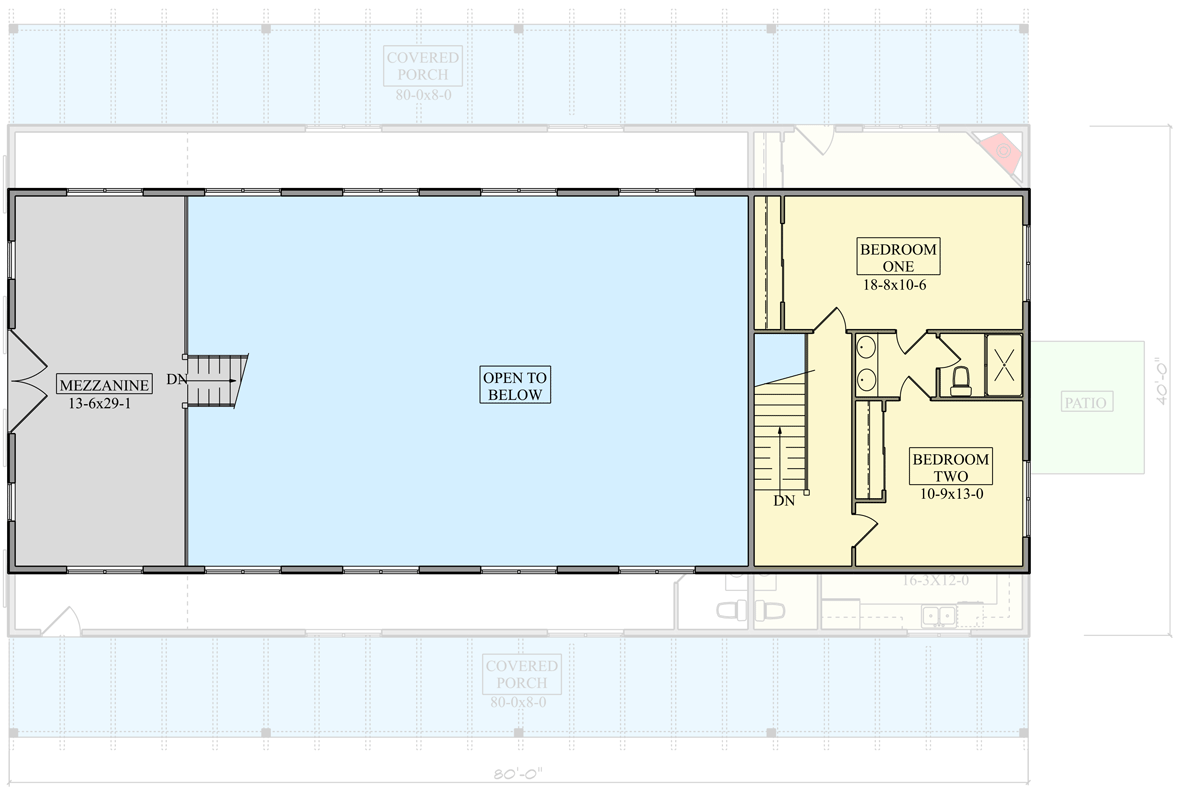

Barndo with Two 80' Wide and 8' Deep Porches - 95144RW floor plan - 2nd Floor

Barndo with Two 80' Wide and 8' Deep Porches

  • 1,554

    Heated s.f.

  • 2

    Beds

  • 2.5+

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,554 sq. ft.
  • 1st Floor: 947 sq. ft.
  • 2nd Floor: 647 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 56' 0"
  • Max ridge height: 31' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 2271 sq. ft.
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
