Plan 720077DA

Barndominium Garage Apartment with Home Office and Game Room

Heated S.F.
2,666
Beds
3
Baths
3.5
Stories
3
Cars
3

Floor Plan

Plan 720077DA

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 720077DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

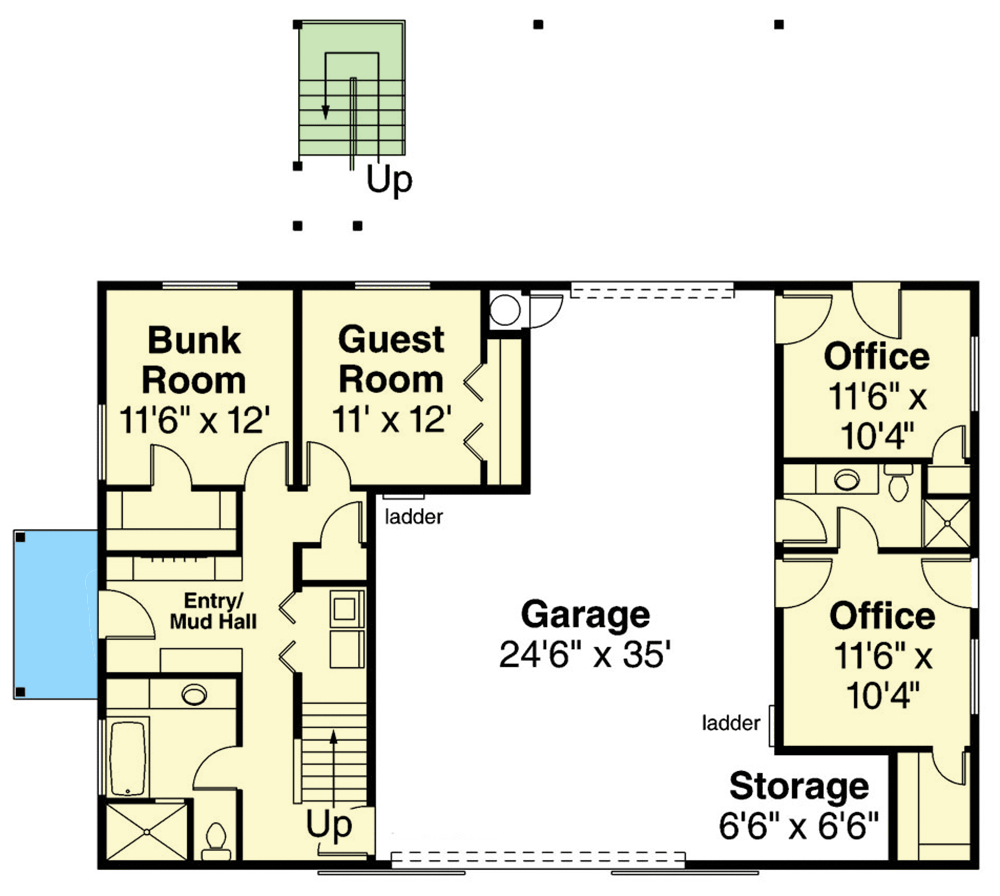

Plan 720077DA: Barndominium Garage Apartment with Home Office and Game Room - Floor Plan - Main Level - Barndominium, Carriage, Country

2nd Floor

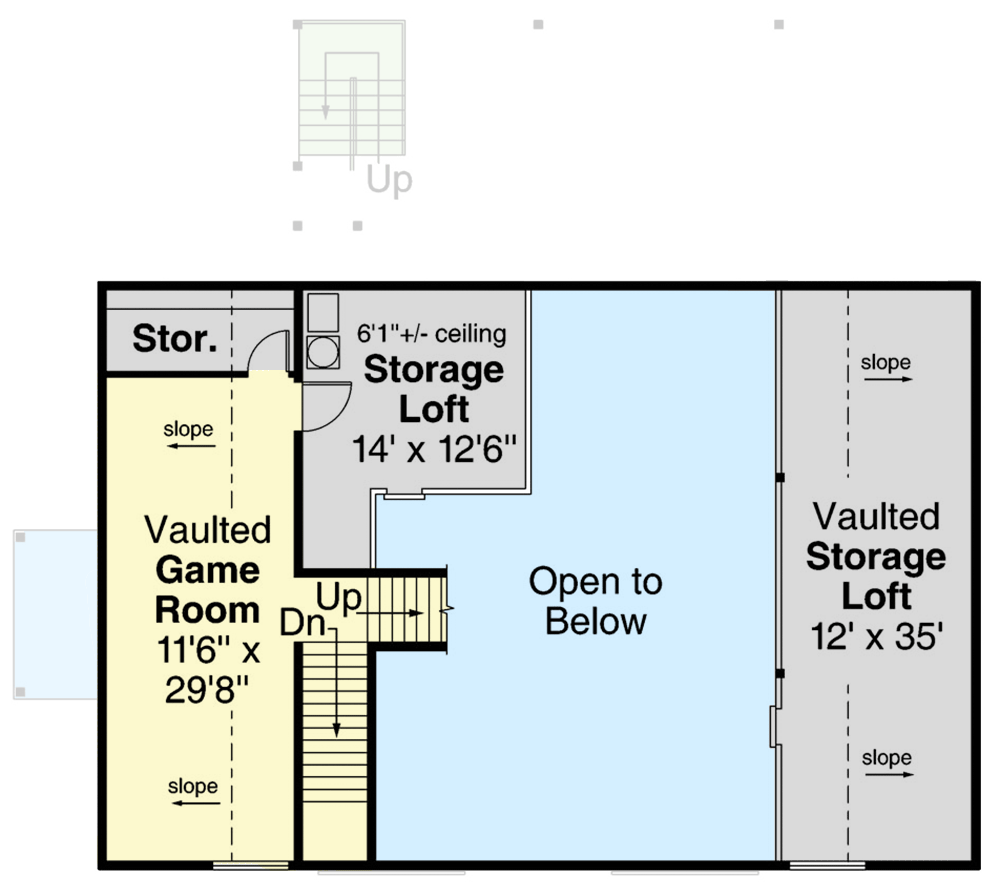

Plan 720077DA: Barndominium Garage Apartment with Home Office and Game Room - Floor Plan - 2nd Floor - Barndominium, Carriage, Country

3rd Floor

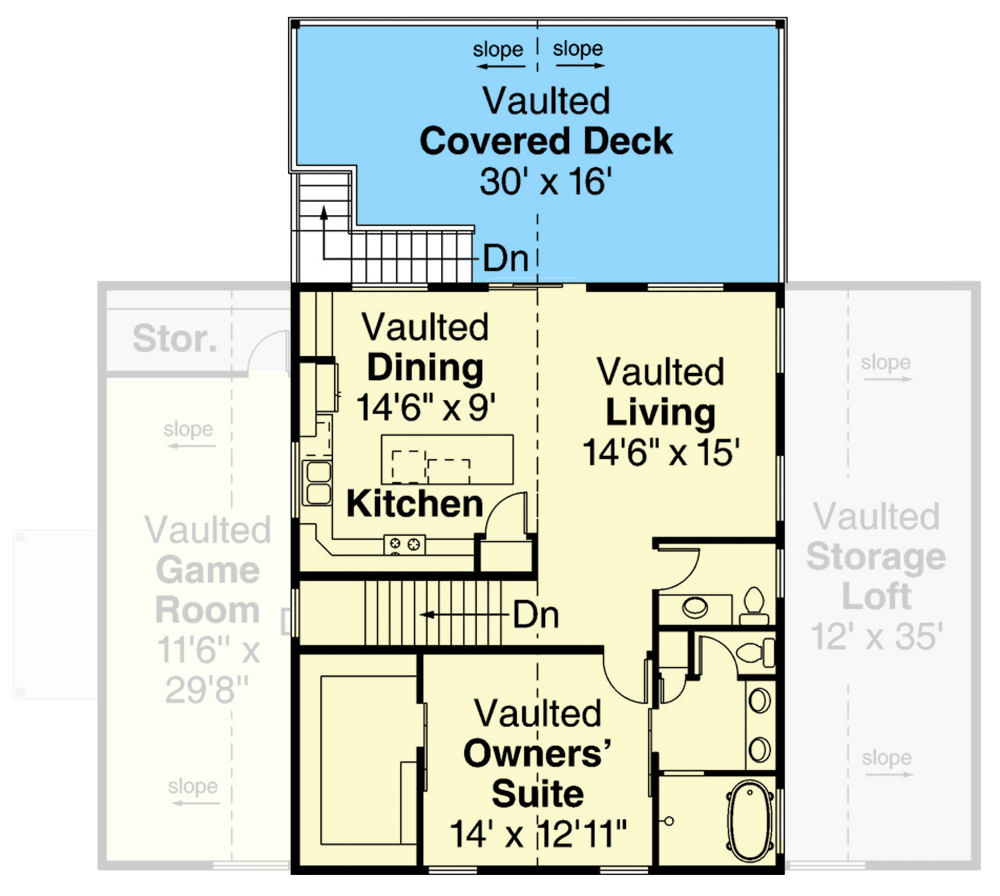

Plan 720077DA: Barndominium Garage Apartment with Home Office and Game Room - Floor Plan - 3rd Floor - Barndominium, Carriage, Country

Plan Details

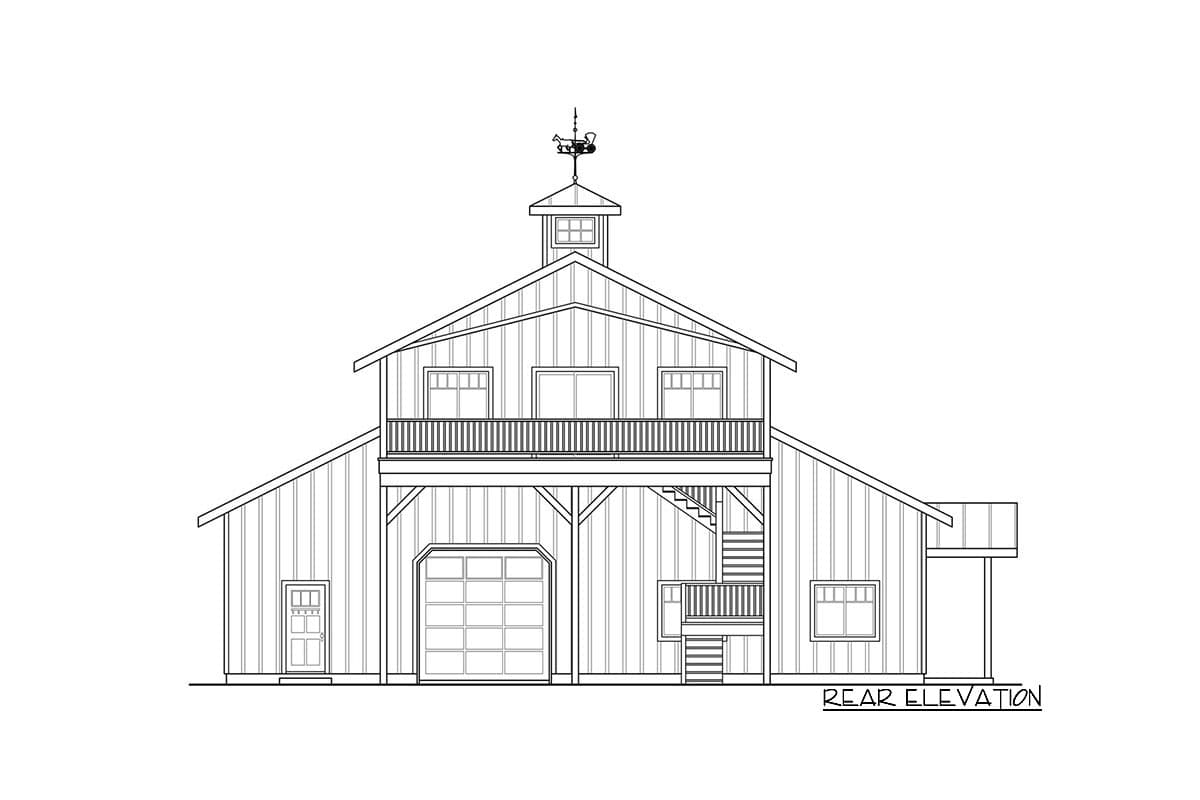

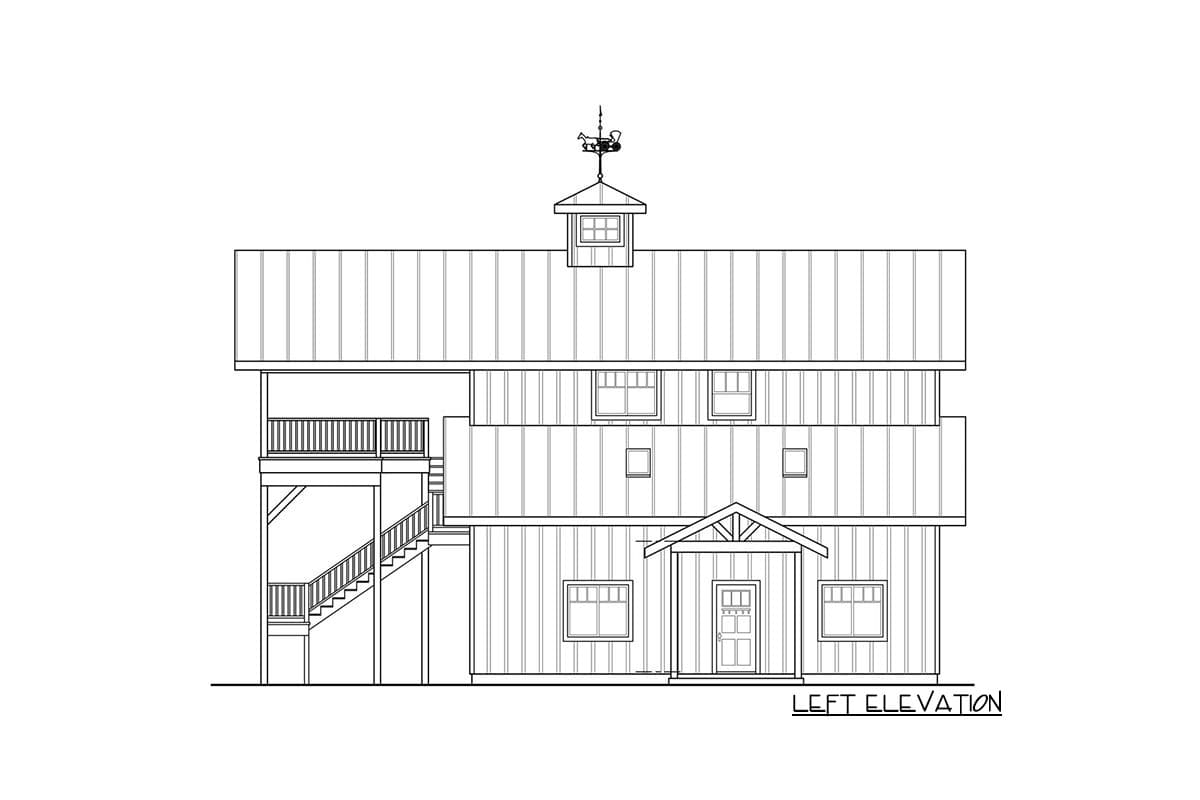

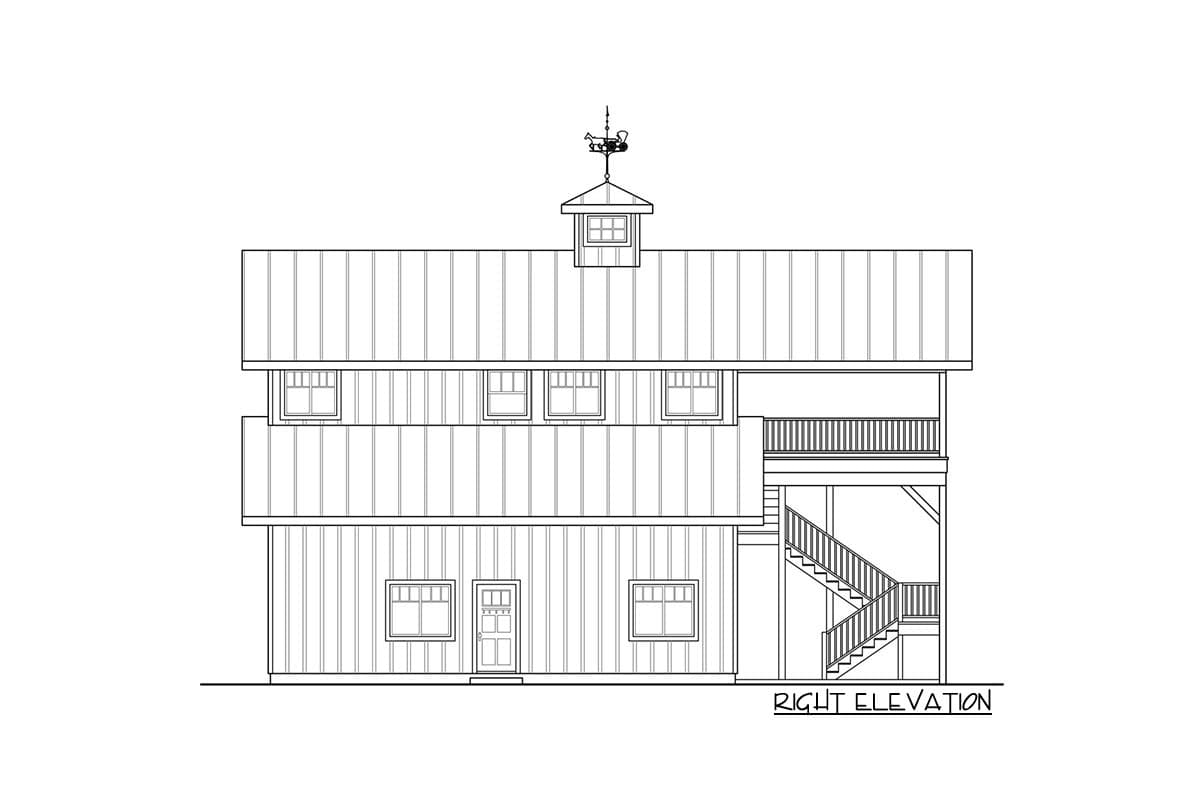

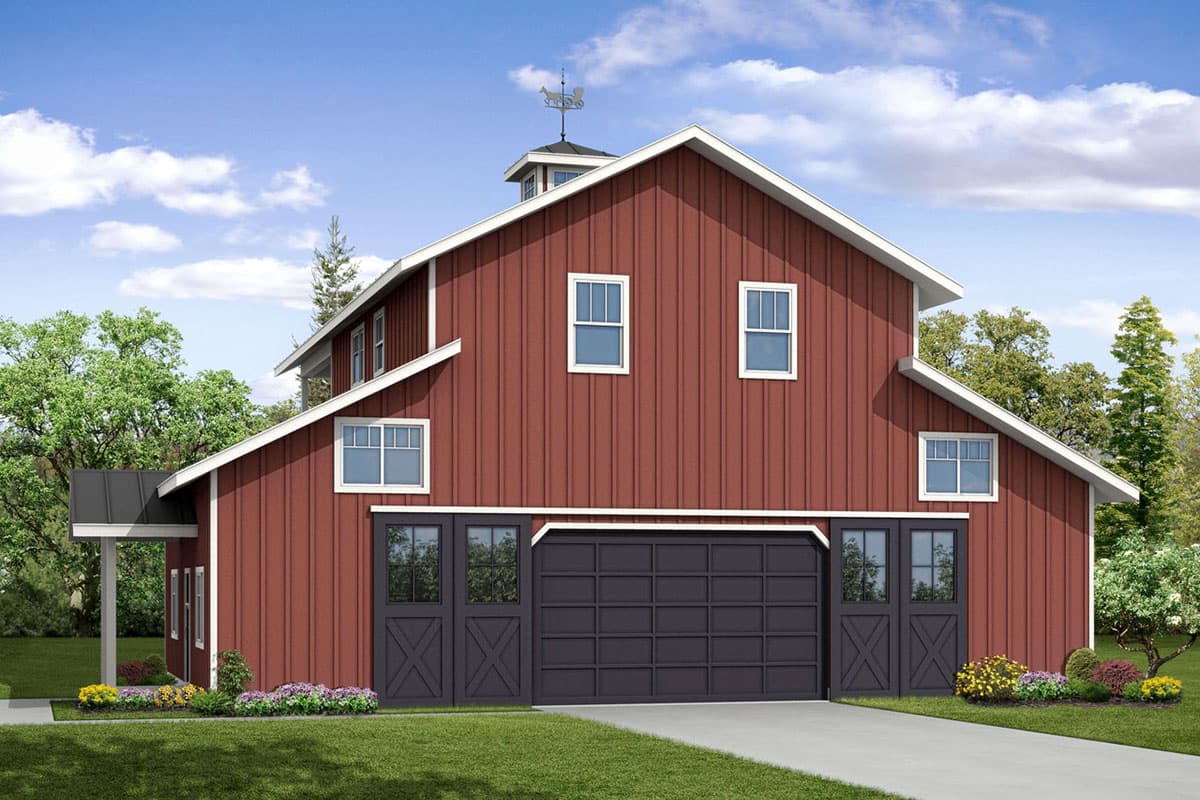

  • There is more than meets the eye in this classic barn style, 3-car garage plan. From the exterior the sliding barn doors hide the double car garage door that is 18' wide and 11' tall. Inside, you'll discover the garage is at the core of the design which is surrounded by living space and separate offices.
  • On the main level of this classic barn style three car garage, the left side is filled with a full bathroom, mud hall and two bedrooms - one that could even be used as a guest room.
  • Washer and dryer are tucked under the stairs that lead you up to the second floor that features a vaulted game room and two storage lofts.
  • The vaulted third floor gives you a single bedroom apartment. The owners' suite completely fills one side of the floor and features a generously sized walk-in closet and private bathroom with a shower room that also contains a free standing tub. A great room with full kitchen and covered deck access completes this barndominium garage apartment plan.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,666 sq. ft.

1st Floor

1,136 sq. ft.

2nd Floor

468 sq. ft.

3rd Floor

1,062 sq. ft.

Storage

616 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

52' 0"

Max Ridge Height

38' 7"

Garage

Type

Attached

Area

808 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Carriage

Country

Special Features

Game/Rec Room

Home Office

Loft

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,666 sq. ft.

1st Floor

1,136 sq. ft.

2nd Floor

468 sq. ft.

3rd Floor

1,062 sq. ft.

Storage

616 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

52' 0"

Max Ridge Height

38' 7"

Garage

Type

Attached

Area

808 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Carriage

Country

Special Features

Game/Rec Room

Home Office

Loft

Mudroom

Plan Collections

Home Office
