Barndominium House Plan with Soaring Cathedral Ceiling and Exposed Beams

Name: Plan 623082DJ: Barndominium House Plan with Soaring Cathedral Ceiling and Exposed Beams
Brand: Architectural Designs
SKU: 623082DJ
Price: 1299.78 USD
Availability: InStock

Heated S.F.

2,752

Beds

Baths

2.5

Stories

Cars

Tour

Floor Plan

Main Level

Plan Details

This barndominium house plan (designed with conventional 2x6 framing) 3-bed plan has attractive board and batten siding, a standing seam metal roof, and a large pergola. Large windows on two sides help bring the outdoors in.
Inside, the main living area is arranged in an open layout. The entire home feels massive due to its 12' wall height. The great room, dining room, and kitchen all lie under a soaring cathedral ceiling with exposed beams. The great room is warmed by a fireplace that is flanked by built-in bookshelves. A home office is located off the great room and includes a built-in desk.

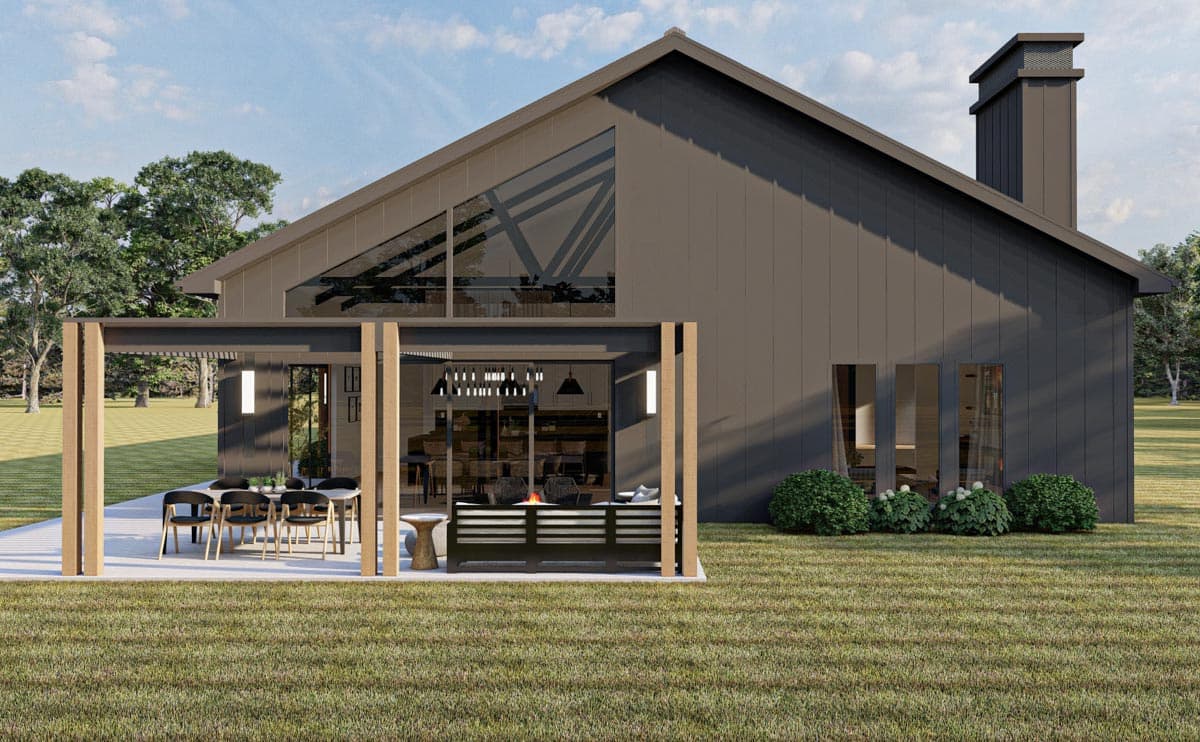

The kitchen includes a large island with a snack bar. The kitchen also includes a huge walk-in pantry with built-in shelves. The dining room leads out to the covered patio through a large sliding glass door.

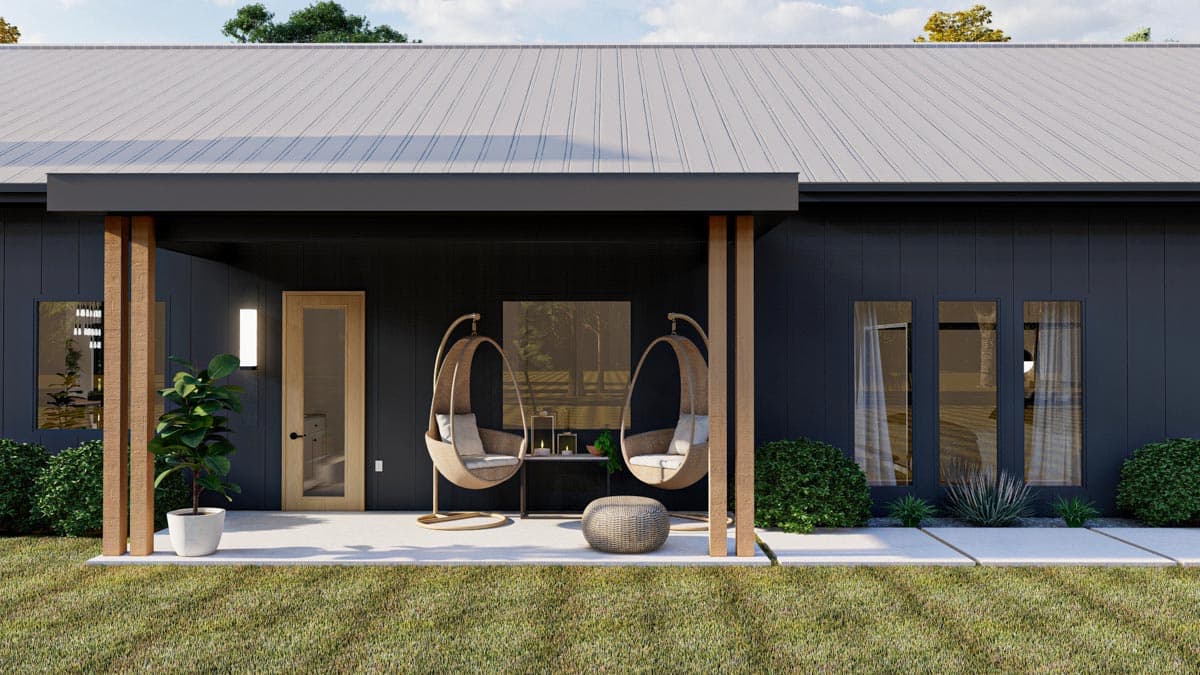

The master suite is located on the left side of the home and features a decorative trayed ceiling. The master bathroom includes a soaking tub, his/her vanities, an enclosed toilet area, and a walk-in shower. A coffee bar leads from the master suite to a private covered patio on the rear of the home.
Bedrooms 2 and 3 share a Jack and Jill bathroom and each has access to its very own walk-in closet.

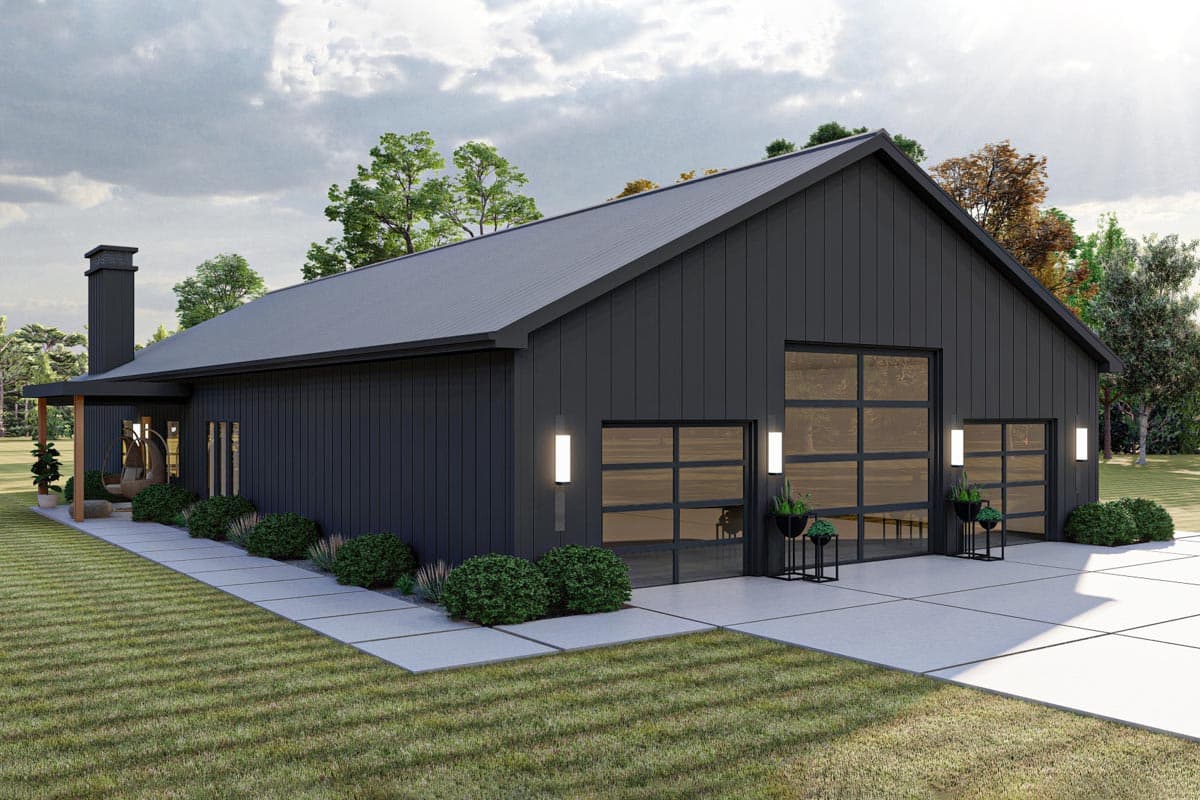

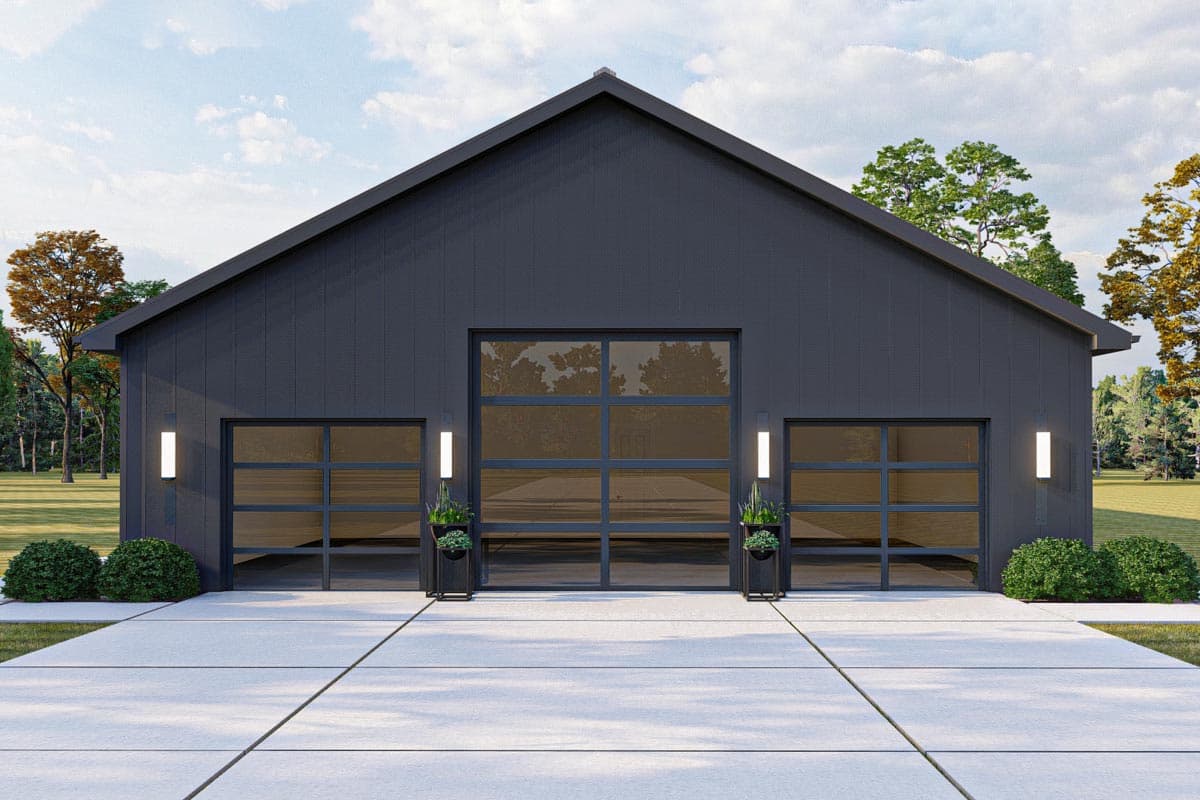

The massive 3-car garage includes a large bay with an oversized door for RVs. The garage accesses the home through a functional mud room that includes a bench and lockers.
Related Plan: Get a front-entry garage with house plan 623246DJ.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

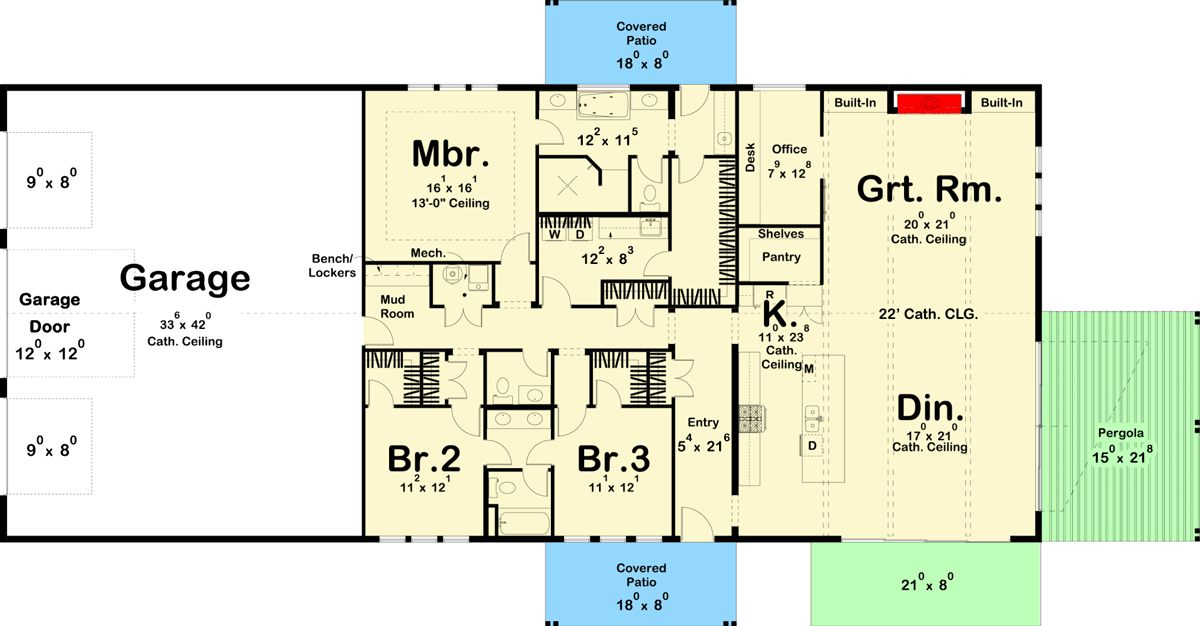

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
