Barndominium-Style Carriage House Plan with 2-Bedrooms - 1275 Sq Ft
Heated S.F.
1,275
Beds
2
Baths
3
Stories
2
Cars
3-4
Tour
Flyer
What's Included
Plan Details
  • This barndominium-style carriage house plan features a spacious layout with 1275 square feet of living space. The main floor is designed with an RV garage, perfect for storage, protection, or to be used as a workshop. Dividing the other two-car garage with a covered driveway is a powder bath and mudroom, a great space to clean up before heading upstairs to the second level. There is also access to a covered patio on both sides of the main level.
  • Upstairs, you can find the two bedrooms as well as the main living area. An open concept floor plan, featuring a large space for the great room and dining area, with a connection to the kitchen is a great area for gatherings. The kitchen is equipped with plenty of counter space, as well as a peninsula island for quick dining.
  • The two bedrooms both have their own walk in closet. The master has its own private bathroom with a separate shower, while bedroom two shares the guest bathroom. A laundry area can also be found up here, as well as access to a covered deck with cathedral ceilings.
  • Overall, this house plan offers a stylish and practical living space, with plenty of room for all of your needs.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

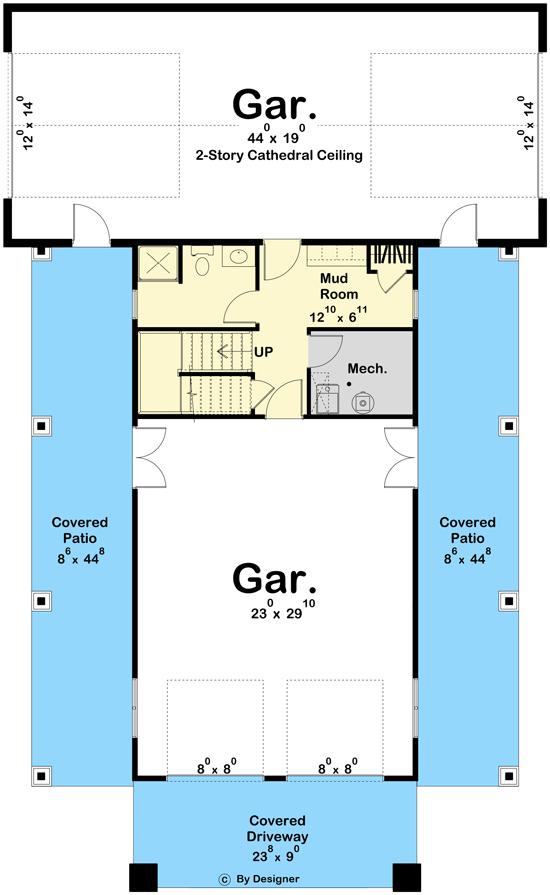

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-Style Carriage House Plan with 2-Bedrooms - 1275 Sq Ft

  • 1,275

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3 - 4

    Car garage

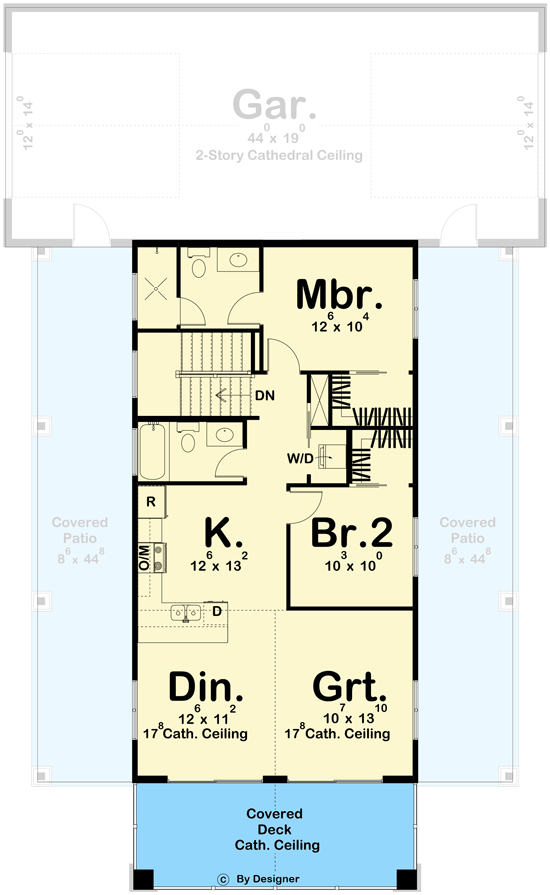

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,275 sq. ft.
  • 1st Floor: 281 sq. ft.
  • 2nd Floor: 994 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 73' 8"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Drive Under, Attached
  • Area: 1610 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 On 12; 12 on
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Barndominium-Style Carriage House Plan with 2-Bedrooms - 1275 Sq Ft

  • 1,275

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3 - 4

    Car garage

Barndominium-Style Carriage House Plan with 2-Bedrooms - 1275 Sq Ft

  • 1,275

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3 - 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,275 sq. ft.
  • 1st Floor: 281 sq. ft.
  • 2nd Floor: 994 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 73' 8"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Drive Under, Attached
  • Area: 1610 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 On 12; 12 on
  • Framing Type: Truss

    Main Level

    2nd Floor
