Barndominium-Style House Plan with 4-Car Garage - 3476 Sq Ft
Heated S.F.
3,476
Beds
4
Baths
3.5
Stories
2
Cars
4
Tour
Videos
What's Included
Plan Details
  • This barndominium-style house plan gives you 3476 square feet of heated living and 2016 square feet of garage space. A 9'-deep porch wraps around two sides and has a deeper vaulted portion on the side which serves as an outdoor living room.
  • A seamless open concept space greets you as you enter the home with a spacious home office to your left giving you a great work from home space. The heart of the home lies in the open kitchen, dining, and great room, reaching two stories in height, creating an expansive, airy atmosphere.
  • The gourmet kitchen has a large island with casual seating and a corner pantry which opens to a larger space for storage. The dining area has views to two sides and the great room has a corner fireplace.
  • The master suite has a large walk-in closet and a five-fixture bath. Laundry is located across the hall. Upstairs, three bedrooms and a loft await. Bed 3 has its own bath while Beds 2 and 4 share a Jack and Jill bath. The loft space offers versatility, whether it's used as a cozy reading nook or a play area for the family.
  • The oversized 4-car garage has 3 front-facing bays and a fourth one accessible from the side.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

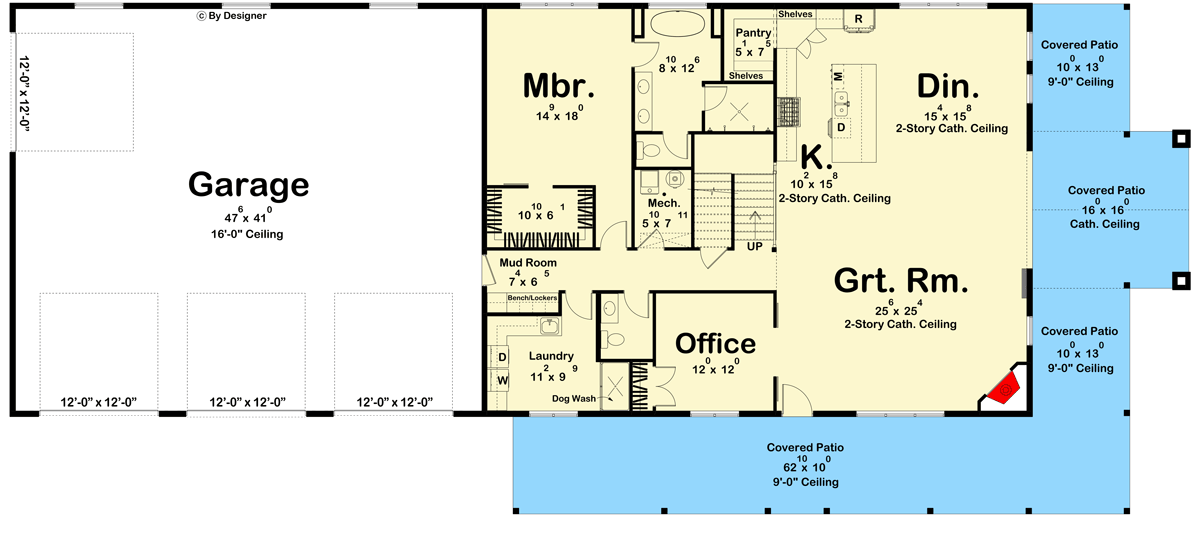

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-Style House Plan with 4-Car Garage - 3476 Sq Ft

  • 3,476

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

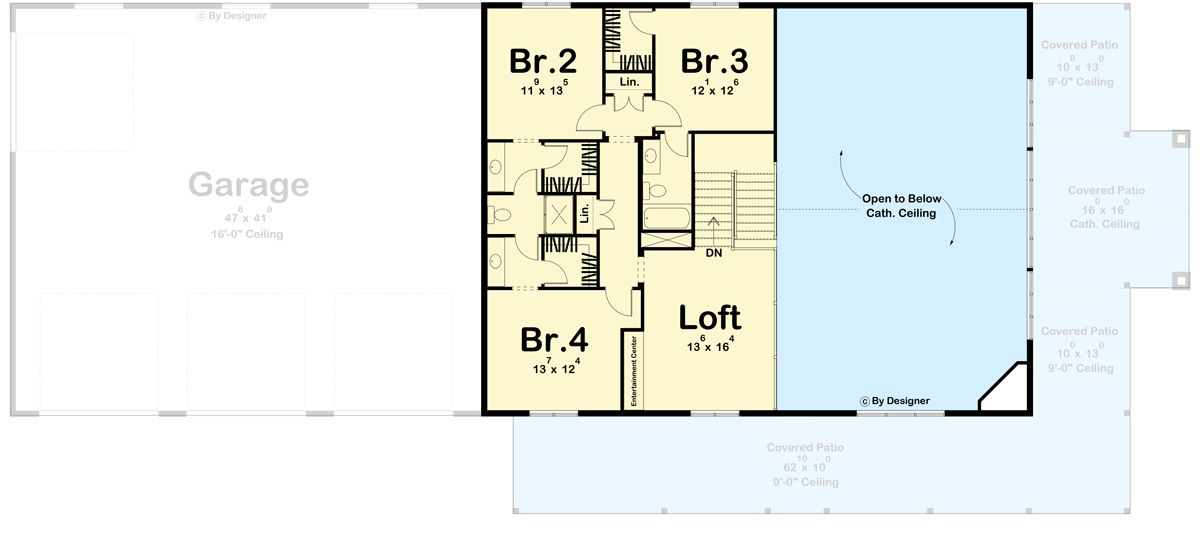

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,476 sq. ft.
  • 1st Floor: 2,310 sq. ft.
  • 2nd Floor: 1,166 sq. ft.

Dimensions

  • Width: 120' 0"
  • Depth: 52' 0"
  • Max ridge height: 30' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2016 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
