Barndominium-Style House Plan with Cathedral Ceiling Garage - 2191 Sq Ft
Heated S.F.
2,191
Beds
3
Baths
2
Stories
1
Cars
3
Tour
What's Included
Plan Details
  • This 1-story barndominium-style house plan - designed with 2x6 exterior walls - gives you 3 beds, 2.5 baths and 2,191 square feet of heated living. A 10'-deep porch wraps around three sides giving you 1,360 square feet of covered outdoor space to enjoy.
  • The front of the home is open concept and has a cathedral ceiling. The great room with fireplace has views across the porch while the dining room has direct porch access through sliding doors.
  • The master suite has a large walk-in closet that has direct access to the laundry room for your convenience. Two bedrooms nearby share a hall bath and can be alternatively used as home offices or hobby spaces according to your needs.
  • The garage has a cathedral ceiling, drive through capability and shop space as well.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-Style House Plan with Cathedral Ceiling Garage - 2191 Sq Ft

  • 2,191

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

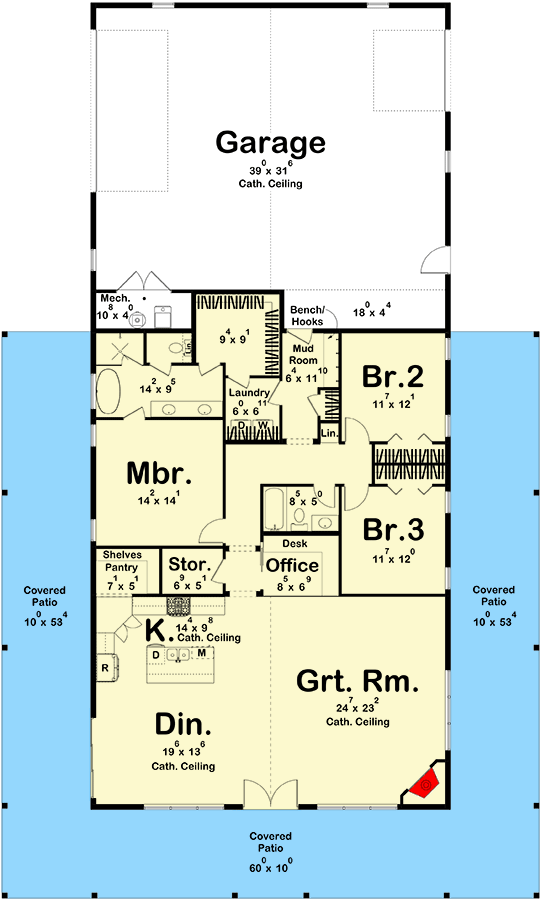

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,191 sq. ft.
  • 1st Floor: 2,191 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 100' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 1360 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
