  • This 4 bed, 3.5 bath barndominium-style house plan gives you 4075 square feet of heated living space and a 1146 square foot 4-car garage with shop. There is an additional 974 square feet of covered outdoor spaces including a porch with fireplace and another one with an outdoor kitchen.
  • Step in off the 12'-deep front porch and find yourself looking at 2-story great room with fireplace. Sliding doors in the entry open to a study which makes a great work-from-home space.
  • The master suite is is vaulted and has two walk-in closets, a wet room and two vanities and is the only bedroom on the main floor.
  • Upstairs, Beds 3 and 4 share a Jack and Jill bath while Bed 2 has a hall bath. A loft overlooks the space below and built-in desks give the kids a place to do their homework outside of their rooms. A bonus room gives you an additional 631 square feet when finished.
  • The garage has shop space in back and an access door for smaller equipment.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

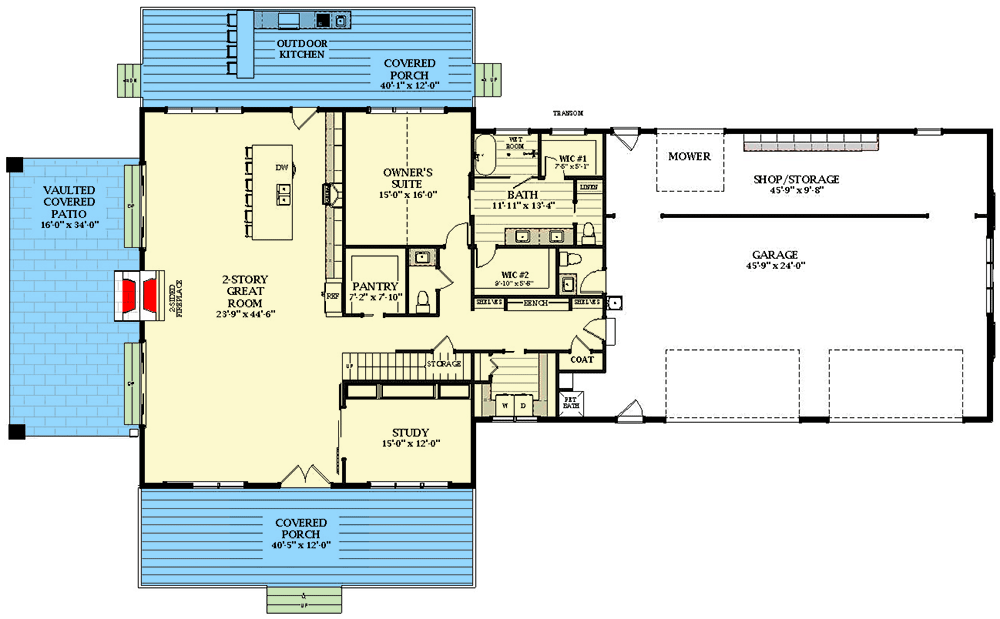

Barndominium-Style House Plan with Outdoor Fireplace and Kitchen - 4075 Sq Ft - 46508LA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

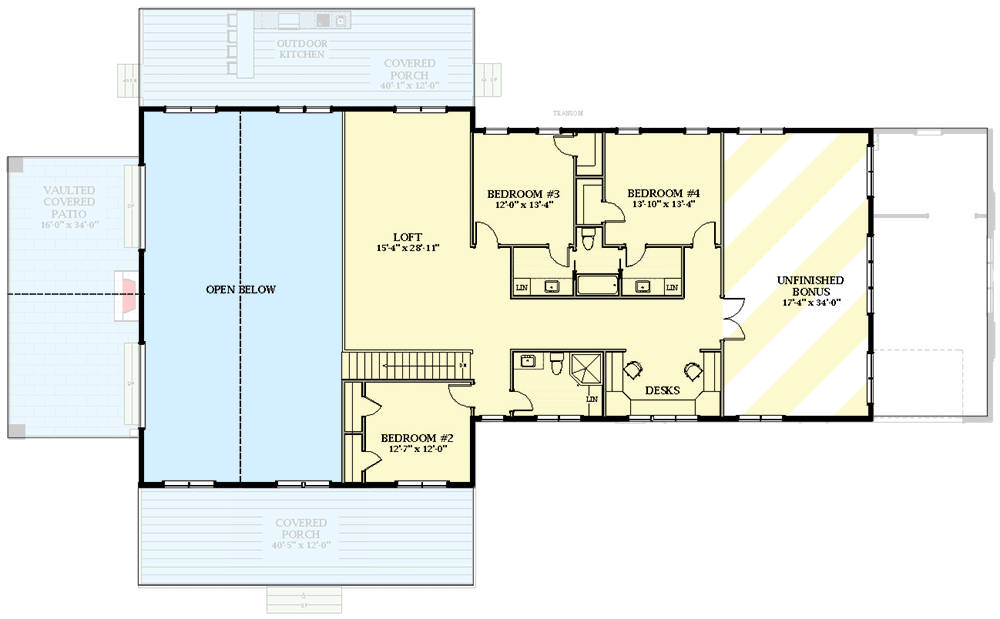

Barndominium-Style House Plan with Outdoor Fireplace and Kitchen - 4075 Sq Ft - 46508LA floor plan - 2nd Floor

Barndominium-Style House Plan with Outdoor Fireplace and Kitchen - 4075 Sq Ft

  • 4,075

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,075 sq. ft.
  • 1st Floor: 2,369 sq. ft.
  • 2nd Floor: 1,706 sq. ft.

Dimensions

  • Width: 118' 0"
  • Depth: 69' 6"
  • Max ridge height: 40' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1146 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
