Plan 270034AF Barndominium with Flexible Space Above and 2-car Garage Below

0 0 1-2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Barndominium with Flexible Space Above and 2-car Garage Below

Plan 270034AF

  • 0

    Heated s.f.

  • 0

    Beds

  • 1-2

    Stories

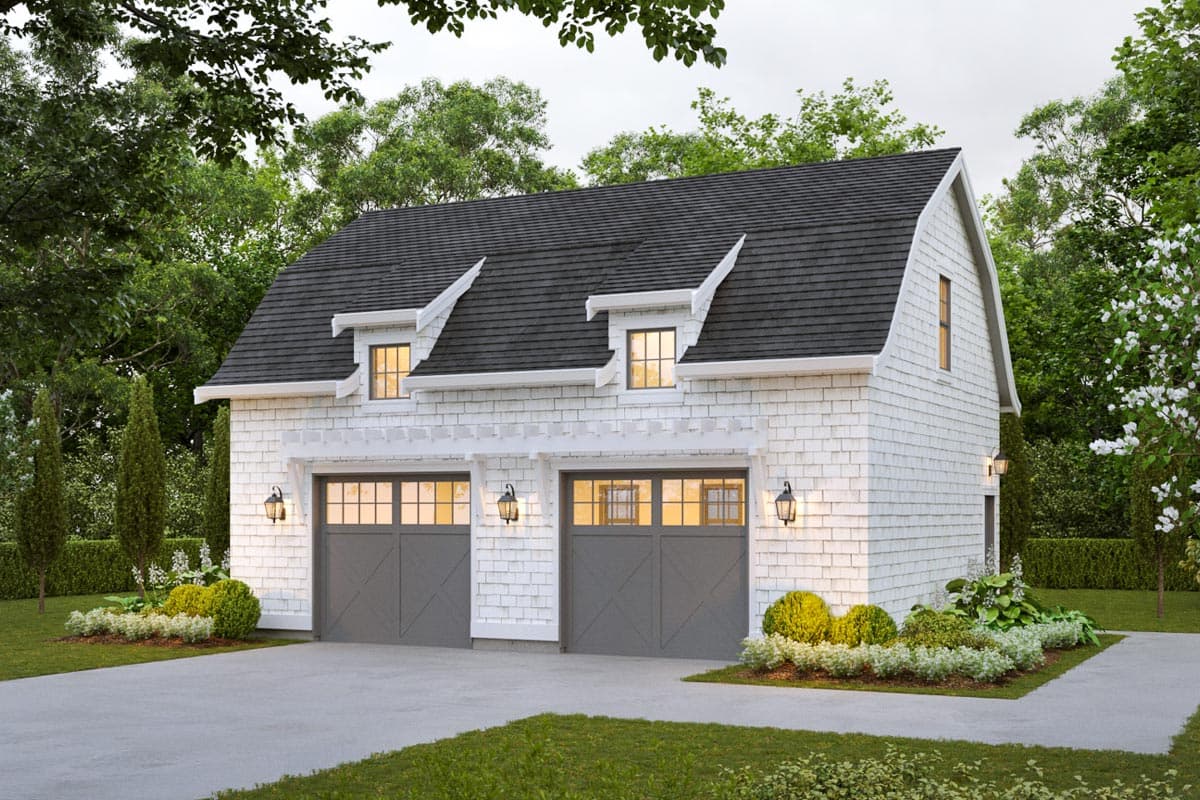

  • The rectangular design of this barndominium double garage offers a simple footprint, while the gambrel roofline and shake siding adds immense character.
  • A 520 square foot bonus room can be found upstairs and used for storage, a playroom, a media room, a man (or woman cave) or for whatever your needs are.
  • This plan is exclusive to Architectural Designs.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

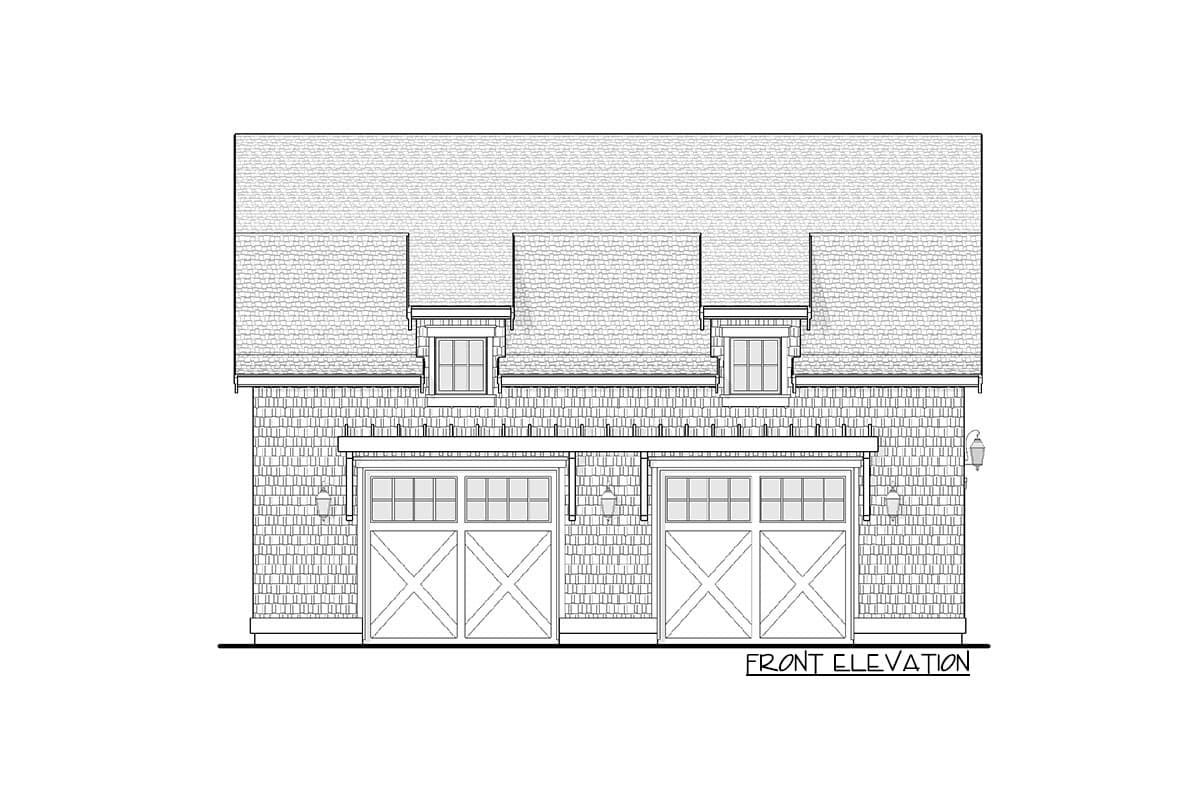

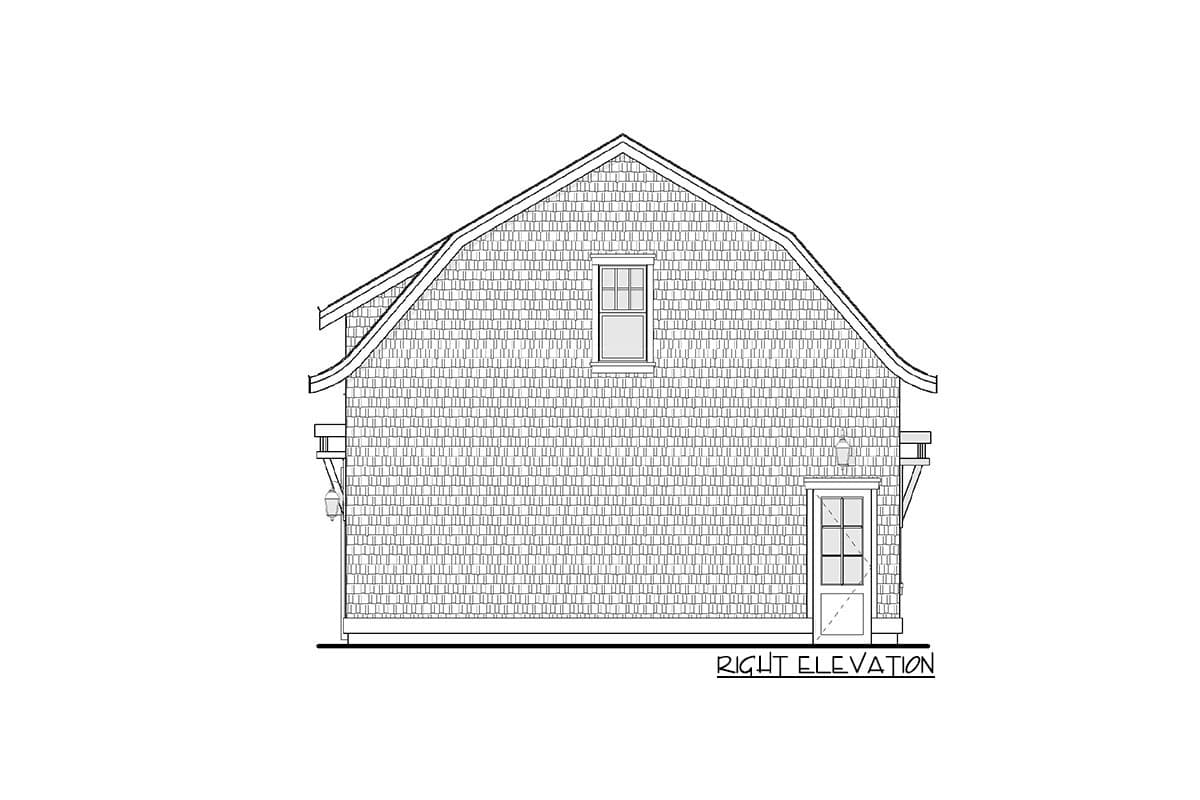

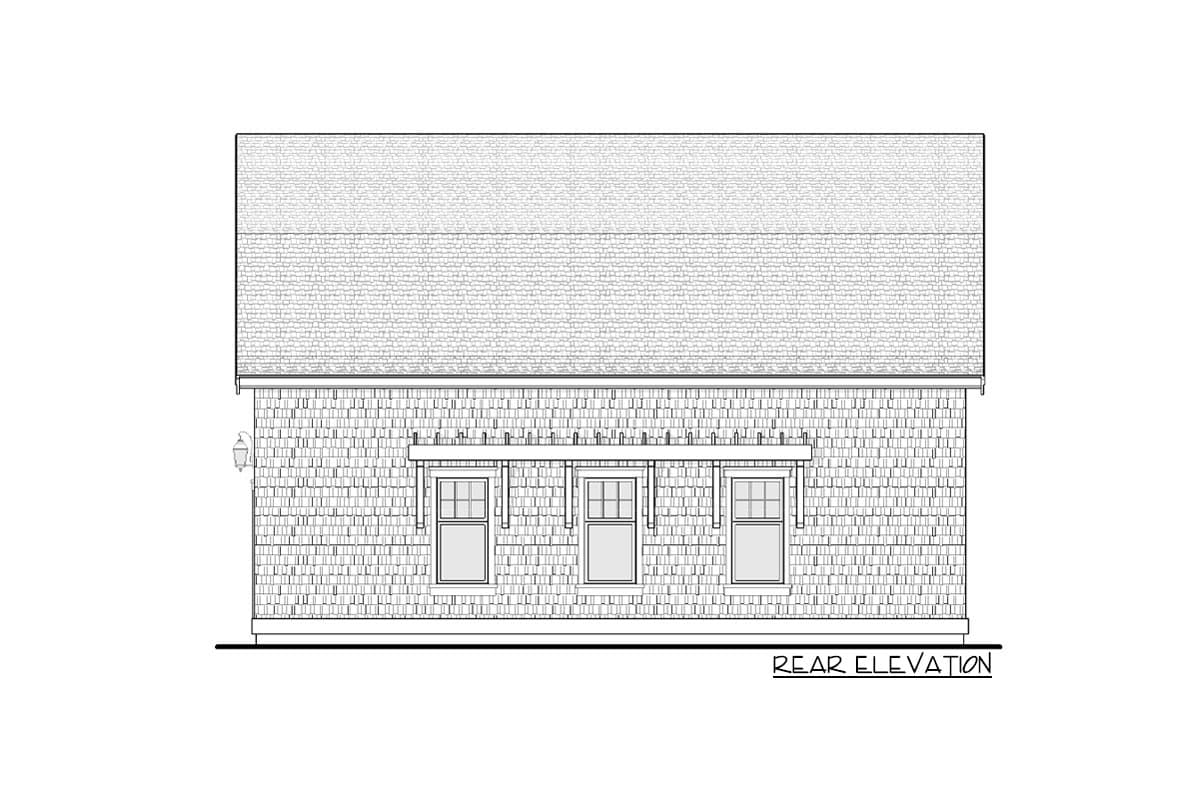

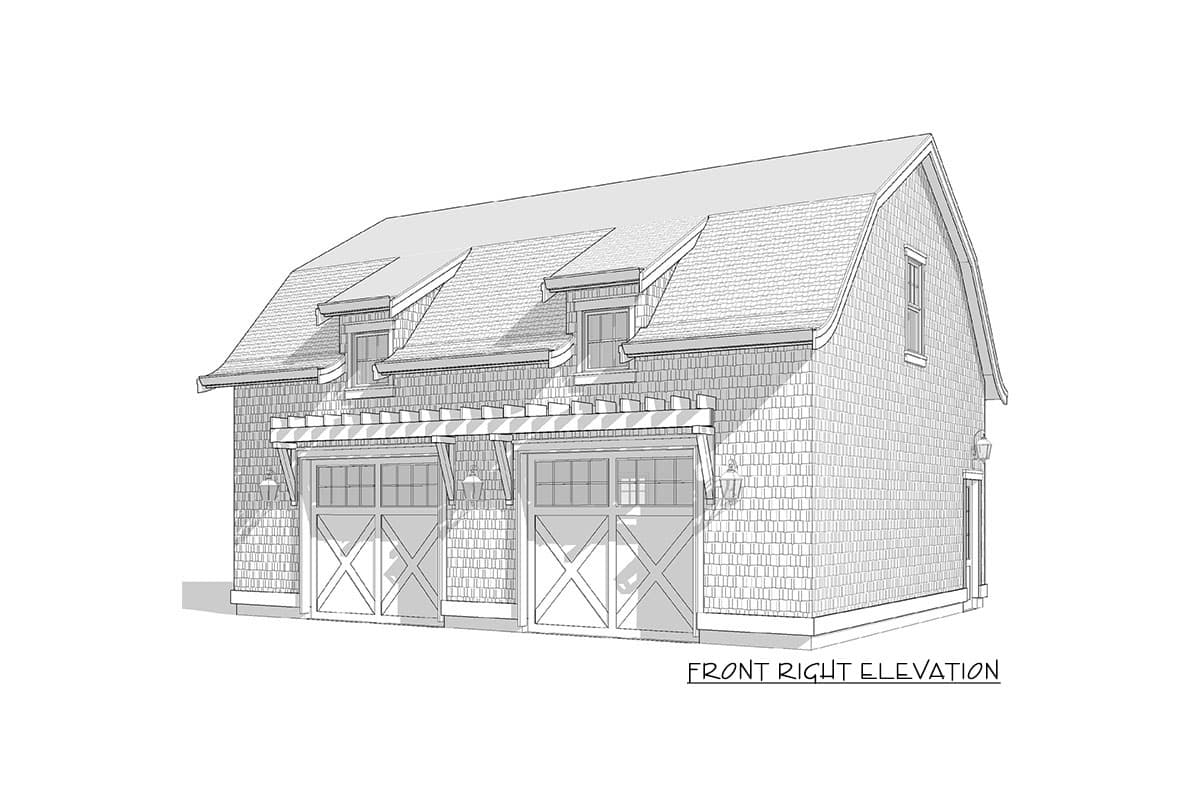

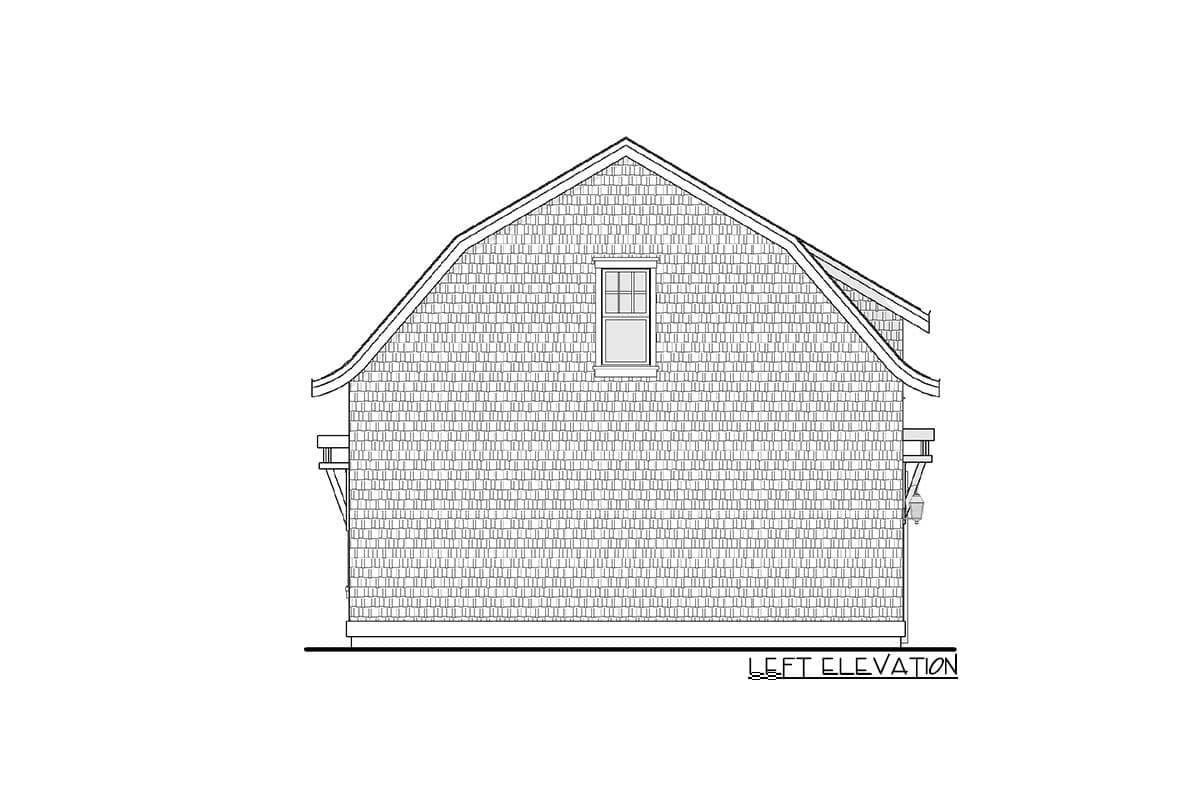

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

Floor Plan

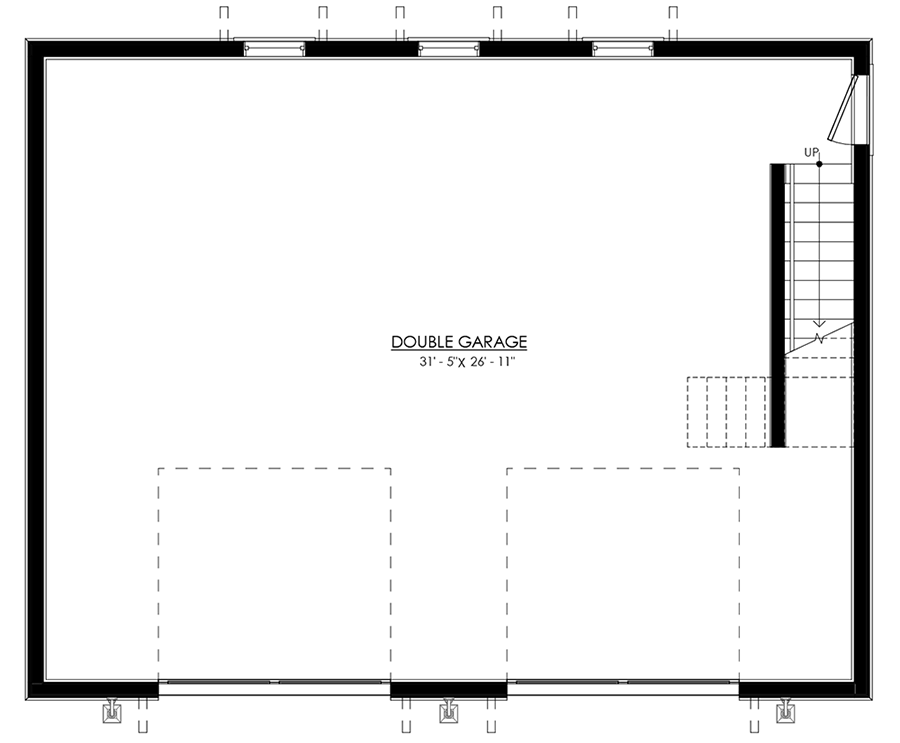

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Barndominium with Flexible Space Above and 2-car Garage Below - 270034AF floor plan - Main Level

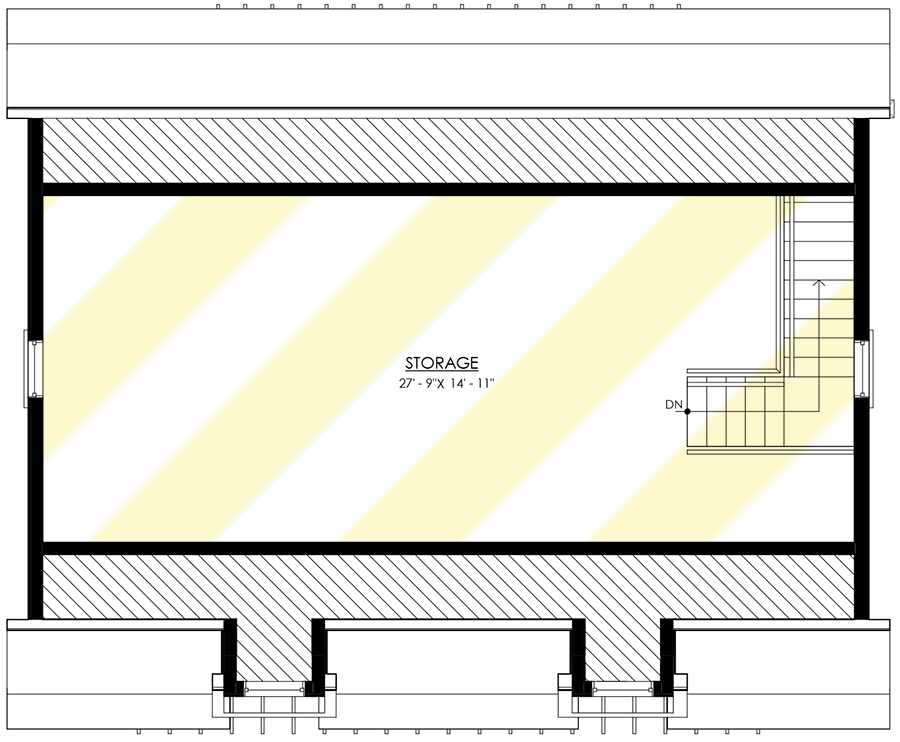

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Barndominium with Flexible Space Above and 2-car Garage Below - 270034AF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 520 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 26' 1"

Garage

  • Type: Detached
  • Area: 1008 sq. ft.
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Barndominium with Flexible Space Above and 2-car Garage Below

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • CAD Unlimited + PDF $1,995
  • View all purchase option online

About This Plan

  • The rectangular design of this barndominium double garage offers a simple footprint, while the gambrel roofline and shake siding adds immense character.
  • A 520 square foot bonus room can be found upstairs and used for storage, a playroom, a media room, a man (or woman cave) or for whatever your needs are.
  • This plan is exclusive to Architectural Designs.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 520 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 26' 1"

Garage

  • Type: Detached
  • Area: 1008 sq. ft.
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
