Barndominium with Massive Garage

Plan 62868DJ

  • 2,776

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 4

    Cars

  • This amazing barndominium combines a huge garage space with a beautiful home giving you the best of both worlds. Attached to the whopping 3,570 square foot garage is a beautiful home with a loft level and soaring ceiling.
  • Just inside the entryway, you'll notice the wide-open floor plan. The dining, kitchen, and great room lie under a soaring 26' high cathedral ceiling. The kitchen includes a snack bar and a large walk-in pantry.
  • The master bedroom is conveniently located on the main level for easy access and includes his/her vanities and a walk-in closet. Another bedroom can be found on the main floor that shares a bathroom with the main living space.
  • The upstairs loft area looks down over the main living space under the cathedral ceiling and includes 2 additional bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

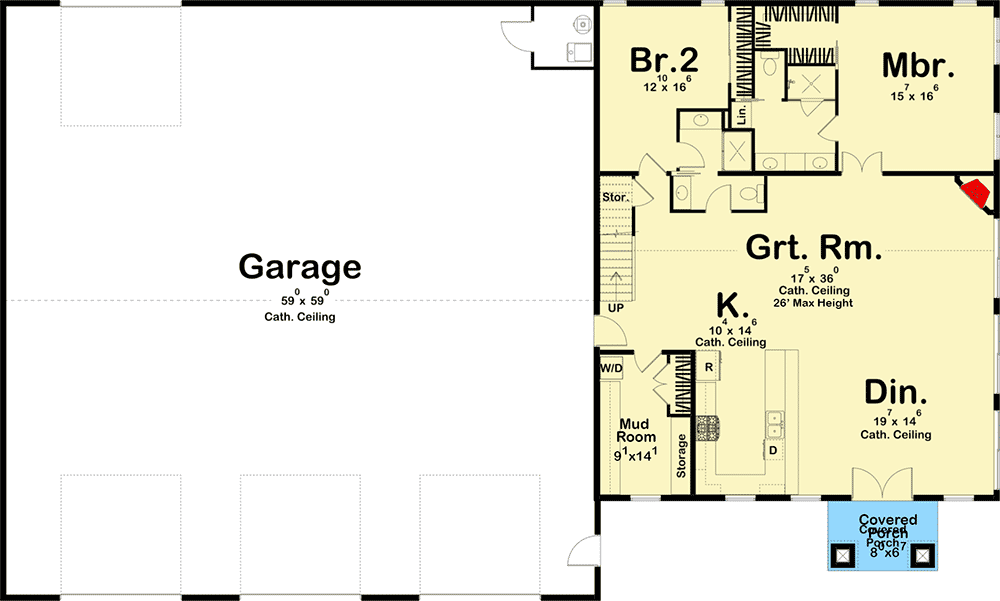

Barndominium with Massive Garage - 62868DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

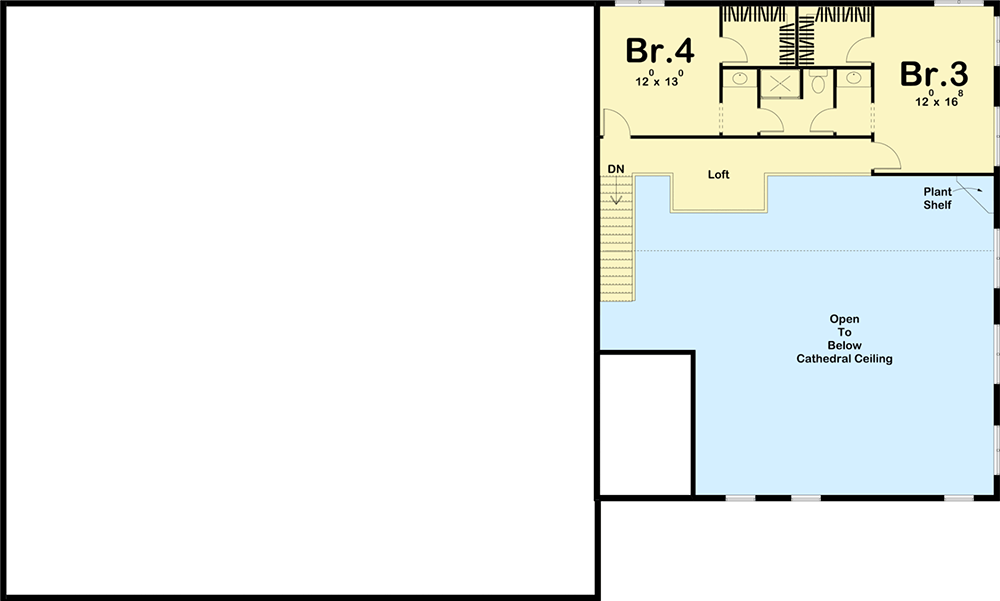

Barndominium with Massive Garage - 62868DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,776 sq. ft.
  • 1st Floor: 2,025 sq. ft.
  • 2nd Floor: 751 sq. ft.
  • Porch, Front: 66 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): Post Frame
  • Optional Type(s): 2x6

Dimensions

  • Width: 100' 0"
  • Depth: 60' 0"

Garage

  • Type: Attached
  • Area: 3570 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Barndominium with Massive Garage

  • 2,776

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,776 sq. ft.
  • 1st Floor: 2,025 sq. ft.
  • 2nd Floor: 751 sq. ft.

Dimensions

  • Width: 100' 0"
  • Depth: 60' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 3570 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): Post Frame
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
