Plan 135139GRA

Barndominium with Side-Entry Garage and 2-Story Great Room

Heated S.F.
3,569
Beds
4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 135139GRA

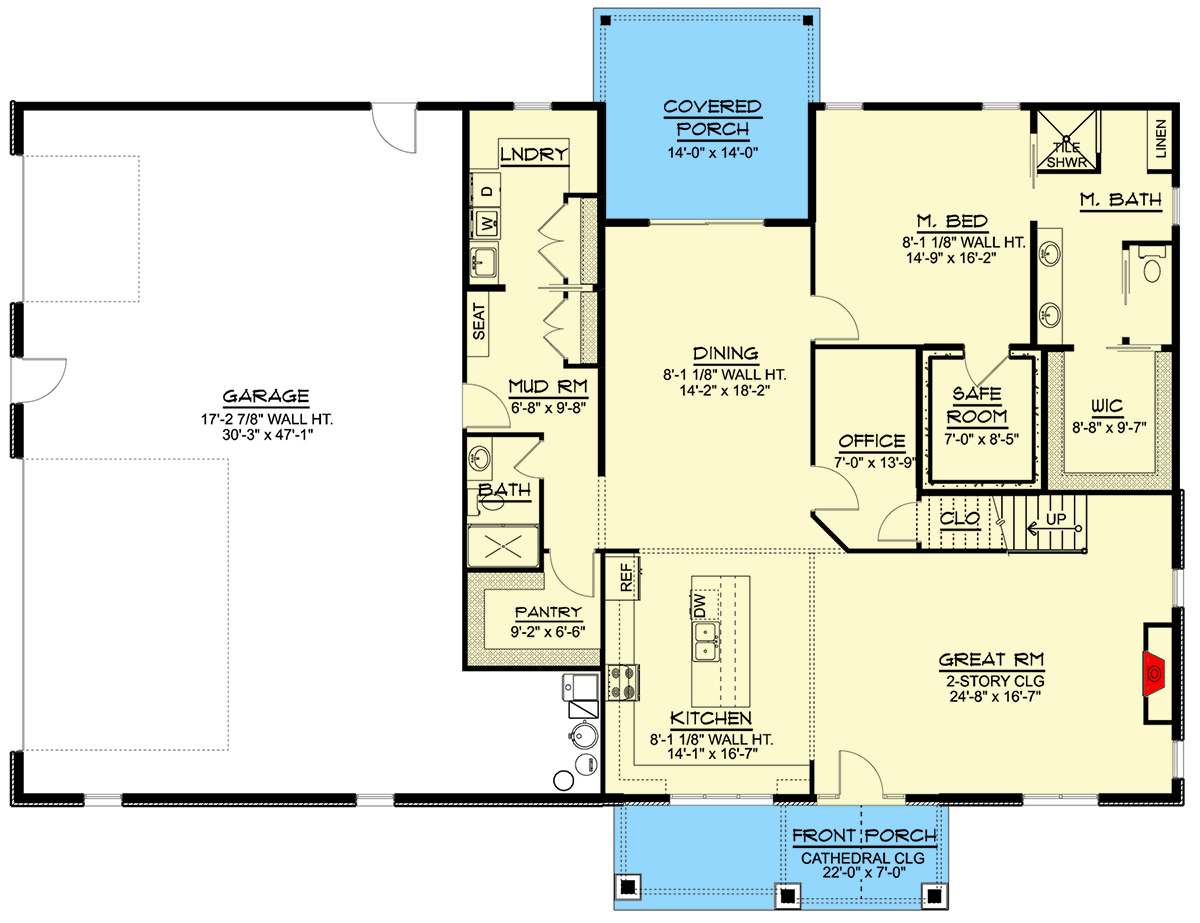

Main Level
Main Level

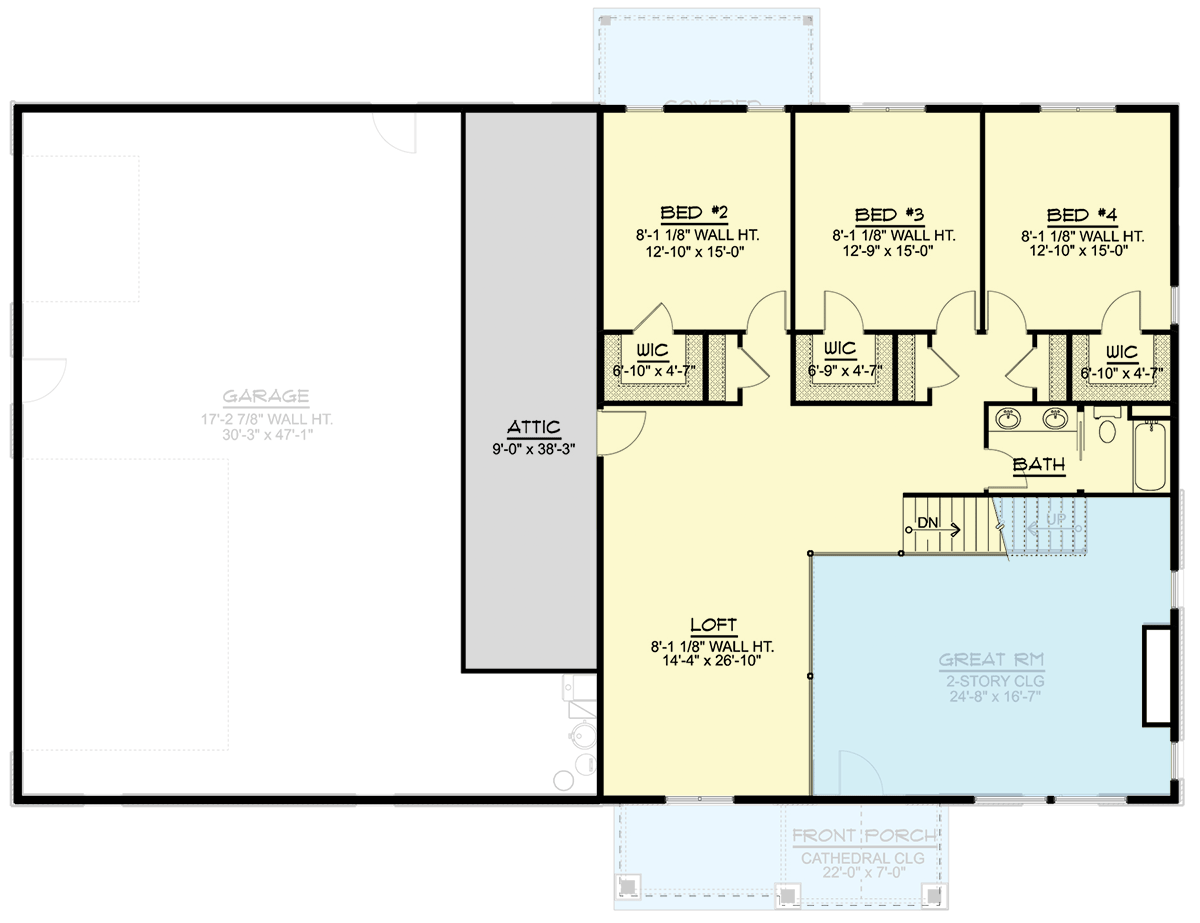

2nd Floor
2nd Floor

Plan 135139GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135139GRA: Barndominium with Side-Entry Garage and 2-Story Great Room - Floor Plan - Main Level - Barndominium, Country, Rustic, Southern, Vacation

2nd Floor

Plan 135139GRA: Barndominium with Side-Entry Garage and 2-Story Great Room - Floor Plan - 2nd Floor - Barndominium, Country, Rustic, Southern, Vacation

Plan Details

  • This Barndominium design offers an affordable, low-maintenance home with a perfect mix of living and garage spaces.

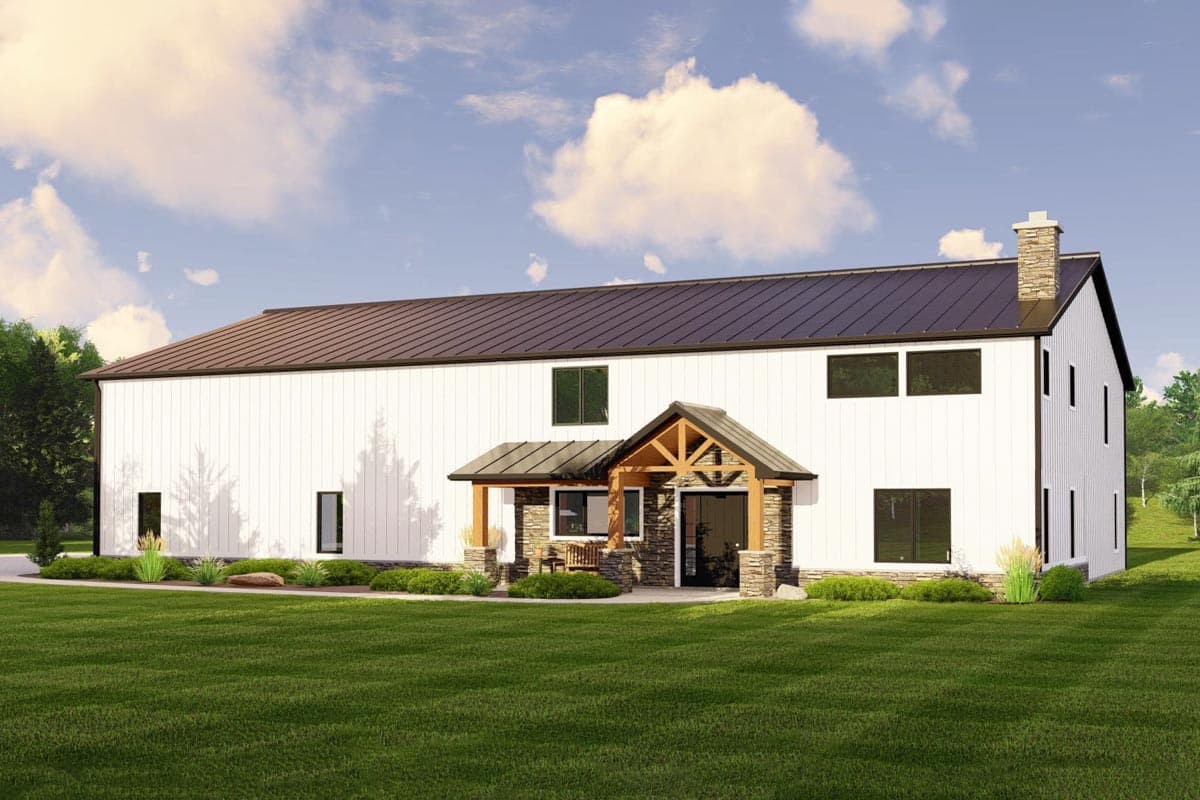

  • A 7'-deep porch welcomes you inside to find a great room with tall ceilings flowing into the island kitchen. Just off the dining room, you'll find a covered porch for a grill or dining outdoors.
  • The master bedroom is conveniently located on the main level and enjoys a 4-fixture bathroom, walk-in closet, and access to a 7' by 8'5" safe room.
  • Upstairs, a sizable loft provides a secondary gathering space or media room. Three nearly identical bedrooms sit side by side, across the hall from a compartmentalized bath.
  • Enter from the 1,559 square foot garage to find a mudroom framed by the laundry room and powder bath.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Move the garage from the side to the front with house plan 135192GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,569 sq. ft.

1st Floor

2,165 sq. ft.

2nd Floor

1,404 sq. ft.

Porch, Combined

383 sq. ft.

Attic

364 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

61' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached, RV Garage

Area

1559 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Architectural Style

Barndominium

Country

Rustic

Southern

Vacation

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Safe Room

Two Story Great Room

Walk-in Pantry
