Plan 68865VR

Barndominium with Vaulted Living Room and Loft

Heated S.F.
2,534
Beds
2 - 3
Baths
2
Stories
2

Floor Plan

Plan 68865VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 68865VR

M-F 9am-5pm EST |

1-203-761-8500

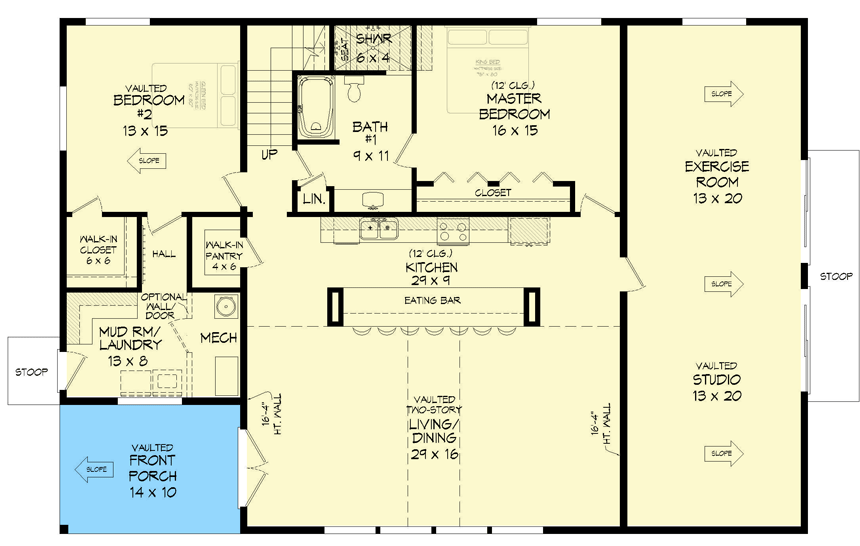

Main Level

Plan 68865VR: Barndominium with Vaulted Living Room and Loft - Floor Plan - Main Level - Barndominium, Country, Traditional

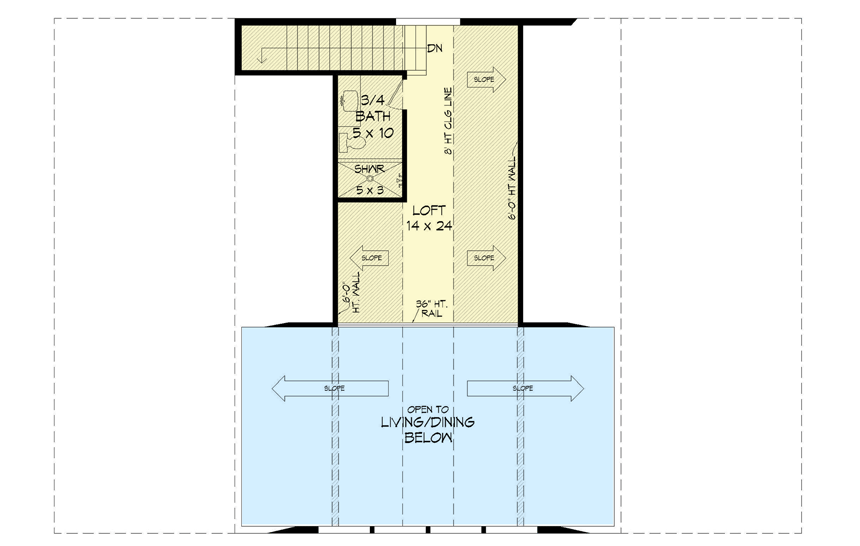

2nd Floor

Plan 68865VR: Barndominium with Vaulted Living Room and Loft - Floor Plan - 2nd Floor - Barndominium, Country, Traditional

Plan Details

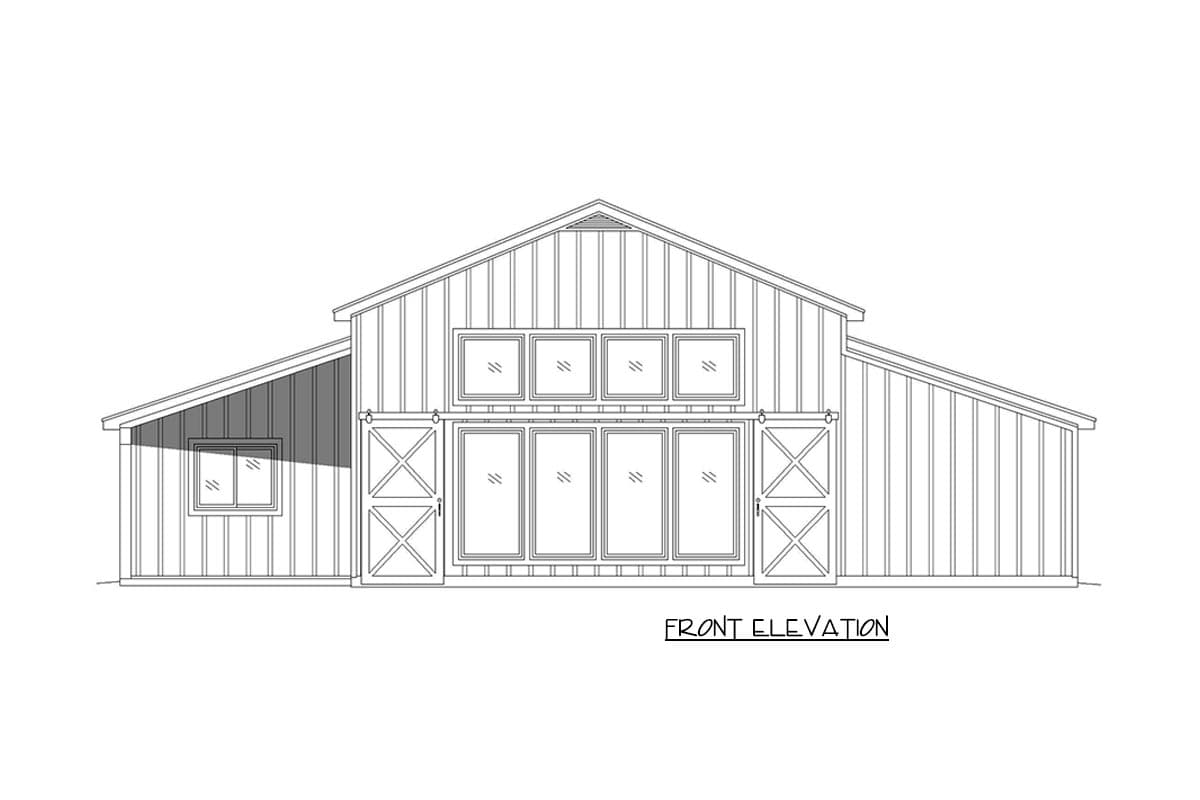

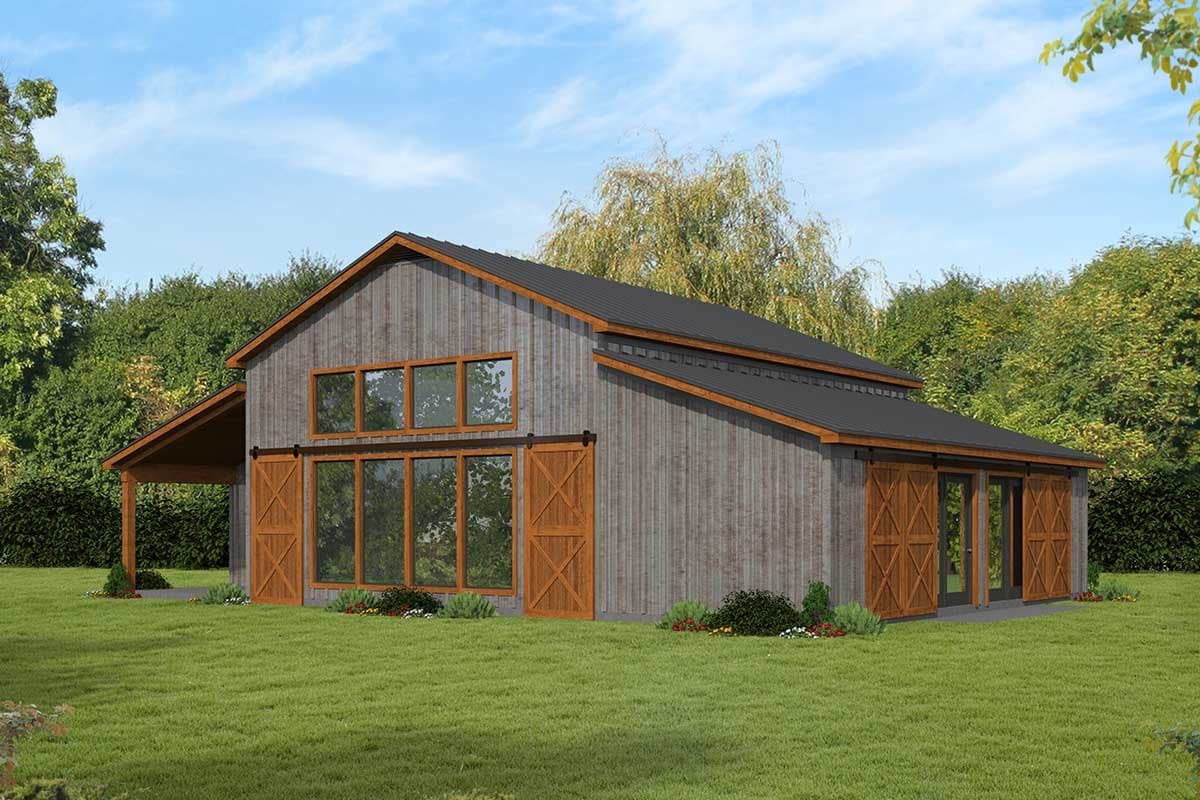

  • This Barndorminium offers a classic gable and shed-style roof with barn door shutters completing the country appeal.
  • Double doors take you inside to find a spacious and open living space, kitchen, and dining area. The kitchen island serves as an anchor and provides seating for seven, while tall, vaulted ceilings enlarge the space.
  • The master bedroom is located behind the kitchen and includes access to a 4-fixture bath with a separate tub and shower.
  • An exercise room / studio combo occupies the right side of the design and features two sets of sliding doors that lead to the side yard.
  • A second bedroom completes the main level, while upstairs, discover a loft with a 3/4 bath that overlooks the living space below.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,534 sq. ft.

1st Floor

2,180 sq. ft.

2nd Floor

354 sq. ft.

Porch, Front

140 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

40' 0"

Max Ridge Height

22' 10"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Country

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,534 sq. ft.

1st Floor

2,180 sq. ft.

2nd Floor

354 sq. ft.

Porch, Front

140 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

40' 0"

Max Ridge Height

22' 10"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Country

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
