Plan 39083ST

Beatiful Great Room Design

Heated S.F.
1,828
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39083ST

Main Level
Main Level
2nd Floor
2nd Floor

Plan 39083ST

M-F 9am-5pm EST |

1-203-761-8500

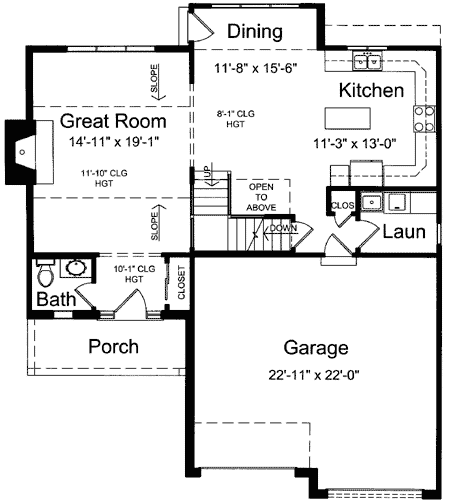

Main Level

Plan 39083ST: Beatiful Great Room Design - Floor Plan - Main Level - Traditional

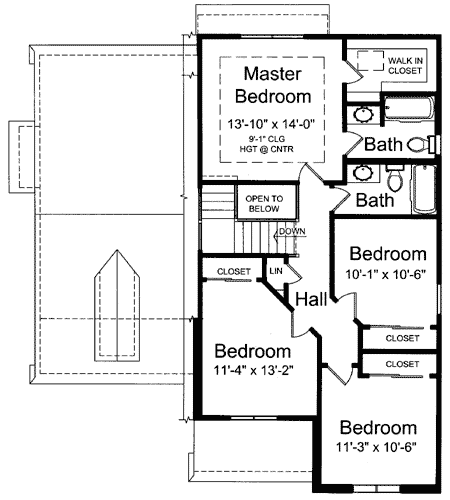

2nd Floor

Plan 39083ST: Beatiful Great Room Design - Floor Plan - 2nd Floor - Traditional

Plan Details

  • A beautiful great room with a high ceiling, a view to the rear yard and a warm gas fireplace are visible from the foyer as you enter this delightful home plan.
  • The kitchen with an island and the dining area with rear yard access form a large, open space dedicated to sharing family times.
  • The first floor laundry is convenient to the kitchen and garage. L-shaped stairs offer a view to the great room and lead to a four-bedroom second floor.
  • The master suite has a 9' center ceiling height, private bath and large walk-in closet.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,828 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

910 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,828 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

910 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs
