Beautiful 3-Bed Contemporary House Plan with First-Floor Master

Pageloader

Beautiful 3-Bed Contemporary House Plan with First-Floor Master

Plan 80922PM

  • 1,563

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • Oversized, angular windows on this 3-bedroom, modern house plan provide ample natural light throughout the open-concept floor plan.
  • The heart of this home features an open layout and sits near the front entry for added convenience. A fireplace can be enjoyed by all on the main level and sliding doors open to a patio.
  • Your first-floor, master suite provides a walk-in closet with access to the 4-fixture, main-level bathroom.
  • A second living room sits at the top of the stairs with a fireplace and access to a deck. Discover two additional bedrooms on the second level and a storage space.
  • NOTE: Please allow up to 20 business days for delivery.

Plan sets include the following:

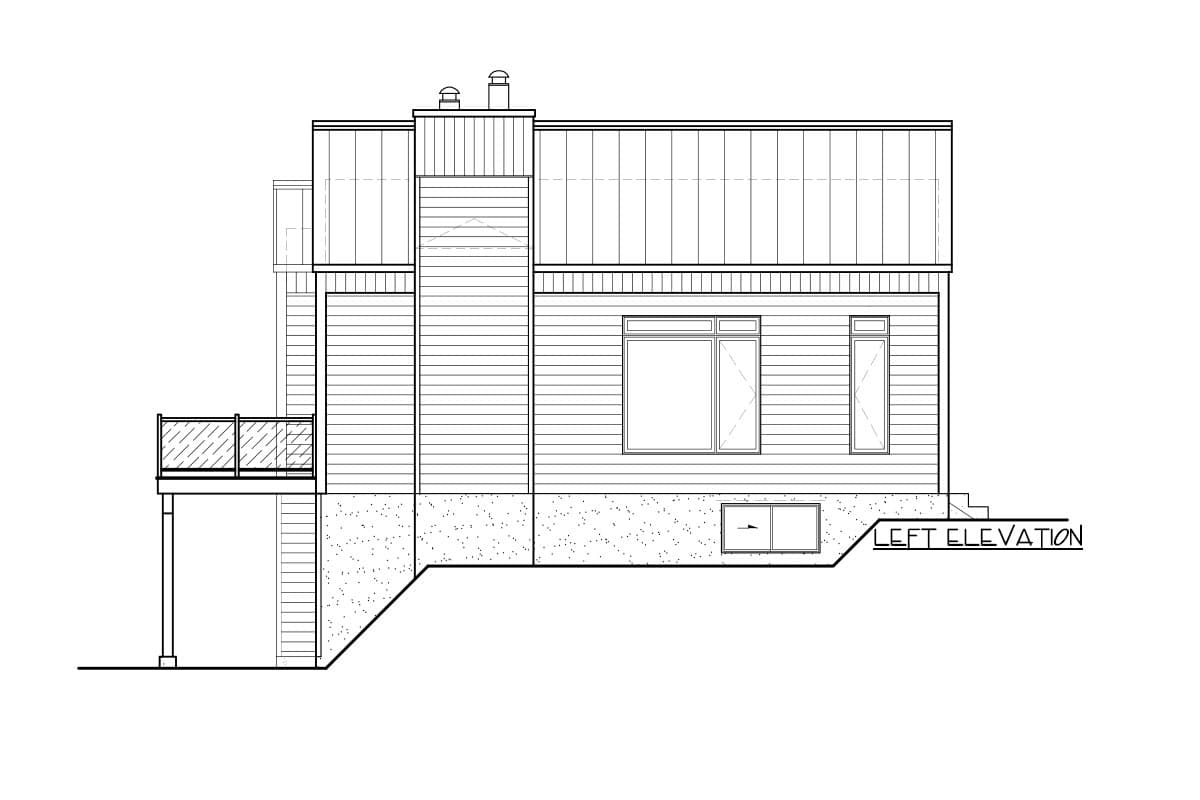

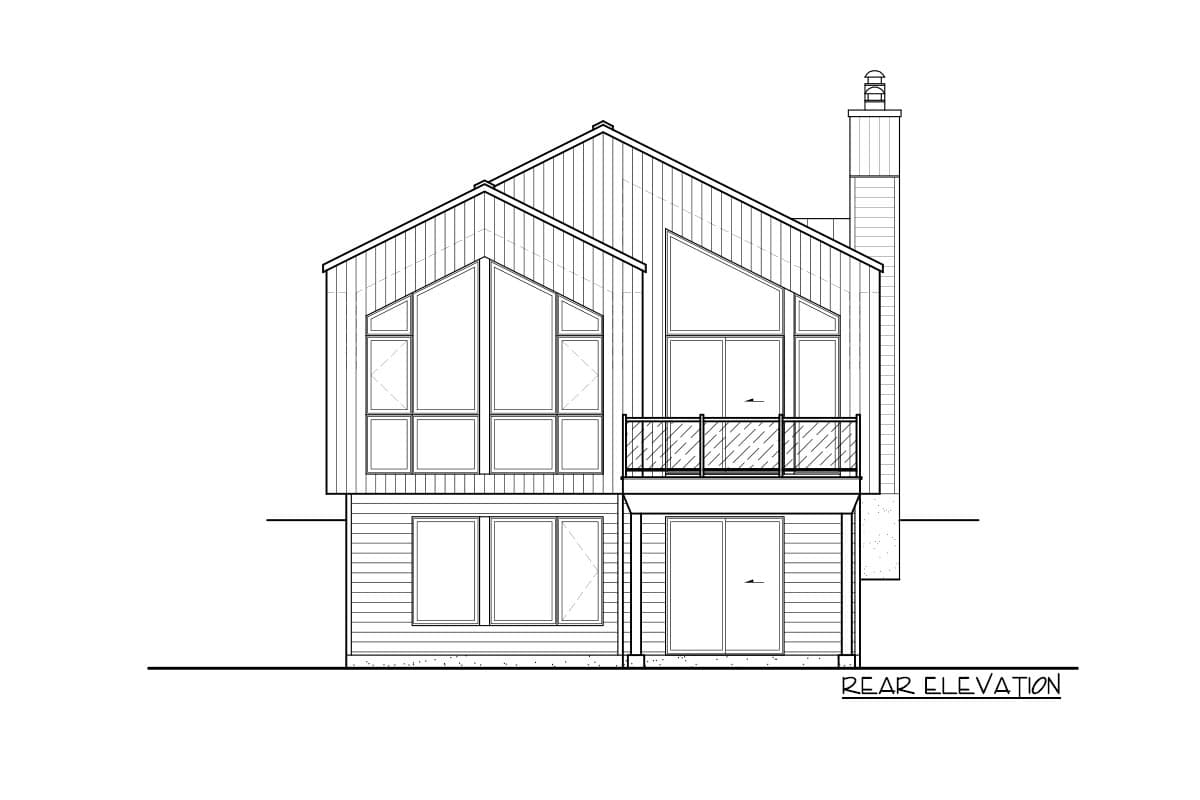

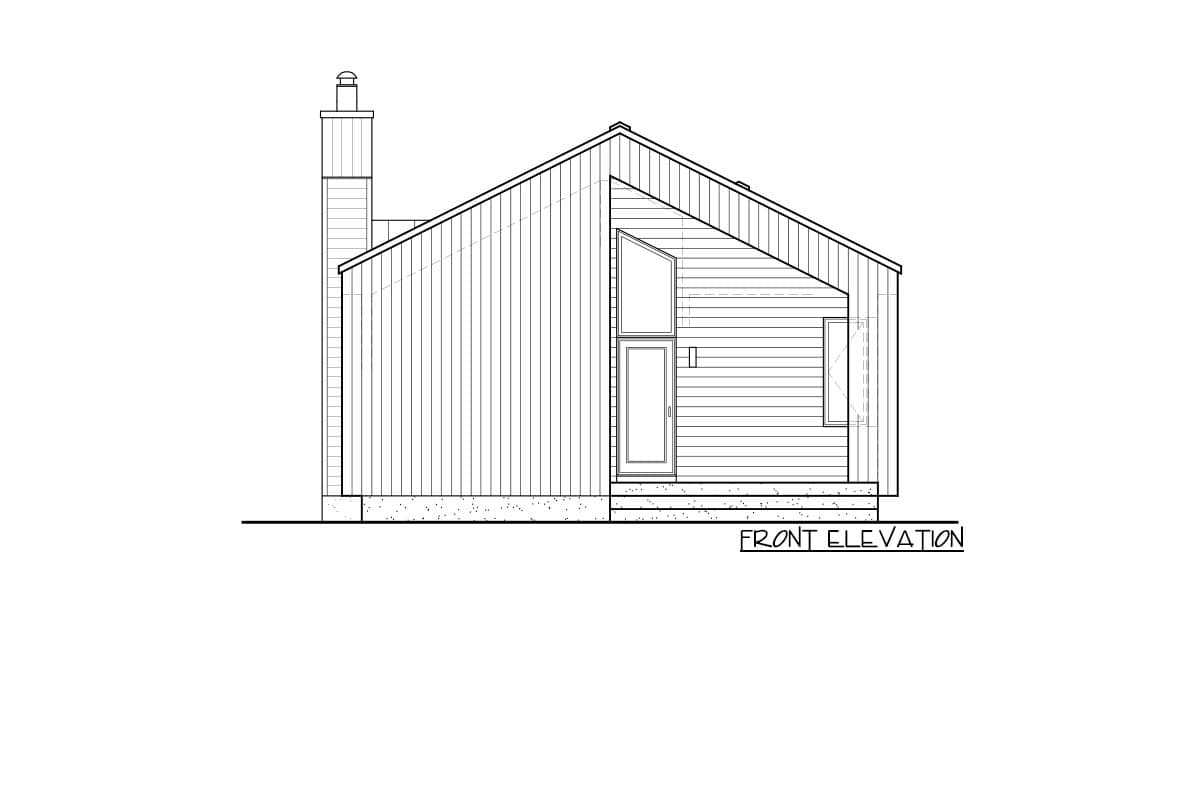

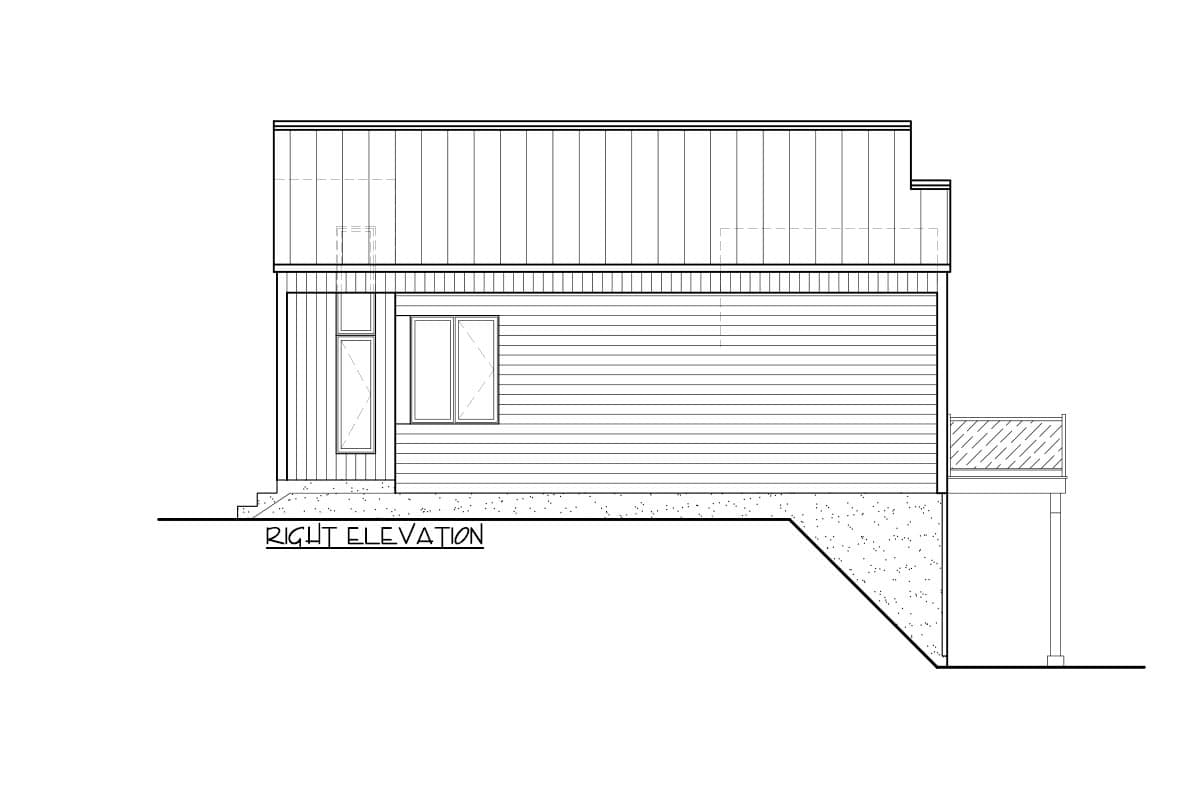

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**

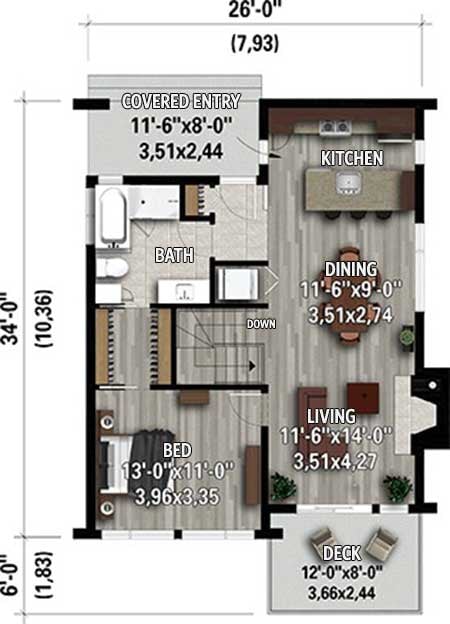

Floor Plan

Plan details



Beautiful 3-Bed Contemporary House Plan with First-Floor Master

  • 1,563

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $860
  • 8 Sets $905
  • Reproducible Set $1,125
  • PDF - single-use $1,125
  • CAD $1,710
  • View all purchase option online

About This Plan

  • Oversized, angular windows on this 3-bedroom, modern house plan provide ample natural light throughout the open-concept floor plan.
  • The heart of this home features an open layout and sits near the front entry for added convenience. A fireplace can be enjoyed by all on the main level and sliding doors open to a patio.
  • Your first-floor, master suite provides a walk-in closet with access to the 4-fixture, main-level bathroom.
  • A second living room sits at the top of the stairs with a fireplace and access to a deck. Discover two additional bedrooms on the second level and a storage space.
  • NOTE: Please allow up to 20 business days for delivery.

Floor Plans

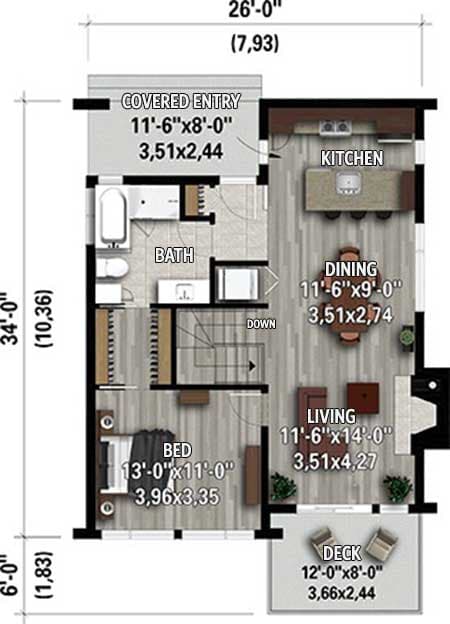

  • Main Level

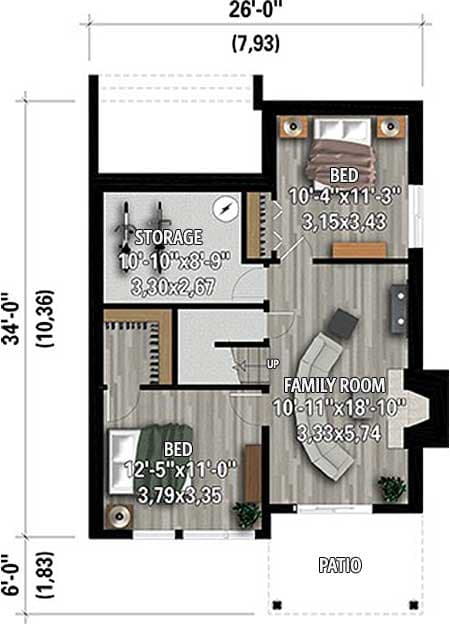

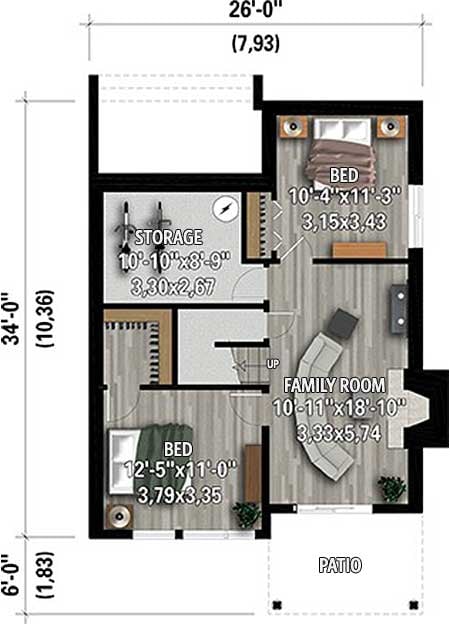

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,563 sq. ft.
  • Lower Level: 784 sq. ft.
  • 1st Floor: 779 sq. ft.
  • Porch, Rear: 108 sq. ft.
  • Porch, Front: 96 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 34' 0"
  • Max ridge height: 27' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 2" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
