Plan 8591MS

Exclusive

Beautiful and Afforable to Build

Heated S.F.
3,658
Units
2
Width
Depth

Floor Plan

Plan 8591MS

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8591MS

M-F 9am-5pm EST |

1-203-761-8500

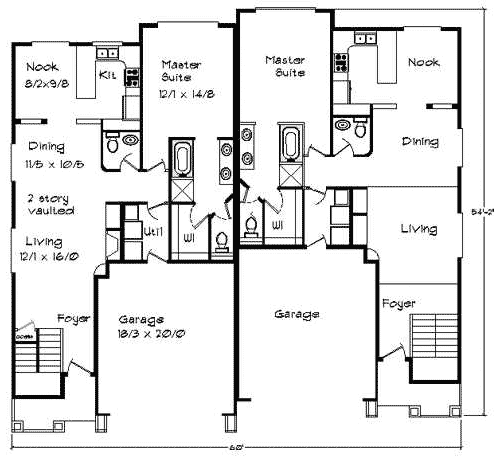

Main Level

Plan 8591MS: Beautiful and Afforable to Build - Floor Plan - Main Level

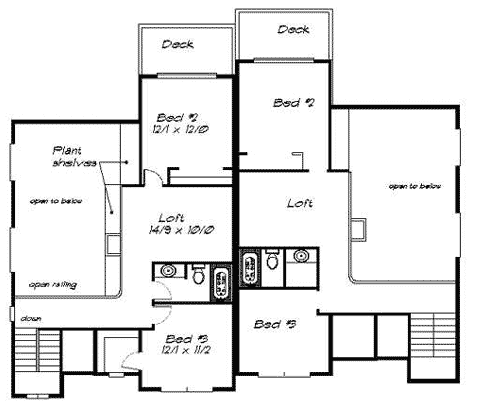

2nd Floor

Plan 8591MS: Beautiful and Afforable to Build - Floor Plan - 2nd Floor

Plan Details

  • At just over 1800 sq. ft. per side this stunning Shingle style house plan is not only beautiful but also affordable to build.
  • The master suite on the main floor is complimented by the two large bedrooms and loft on the upper floor. The master suite faces the rear along with the large upper bedroom with rear deck.
  • Notice the very large great room that's two stories tall with many built-in plant shelves.
  • This design while originally planned, as a townhouse would also work very well as a single family home. As a town home it is 60 feet wide which would fit nicely on most duplex lots. As a single family detached home it would only measure 30 feet.
Unit A
Heated Area
1,829Sq. Ft.
1115 Sq. Ft. 1st
714 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
365 Sq. Ft.
Dimensions
30'width
55'depth
30'height
Unfinished Areas
365 Sq. Ft. Garage
Unit B
Heated Area
1,829Sq. Ft.
1115 Sq. Ft. 1st
714 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
365 Sq. Ft.
Dimensions
30'width
55'depth
30'height
Unfinished Areas
365 Sq. Ft. Garage

What's Included

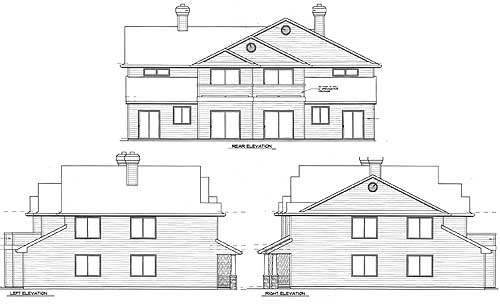

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,658 sq. ft.

1st Floor

2,230 sq. ft.

2nd Floor

1,428 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

730 sq. ft.

Count

4 Cars

Entry Location

Front

Special Features

Loft

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,658 sq. ft.

1st Floor

2,230 sq. ft.

2nd Floor

1,428 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

730 sq. ft.

Count

4 Cars

Entry Location

Front

Special Features

Loft

Master Suite - 1st Floor
