Plan 623148DJ

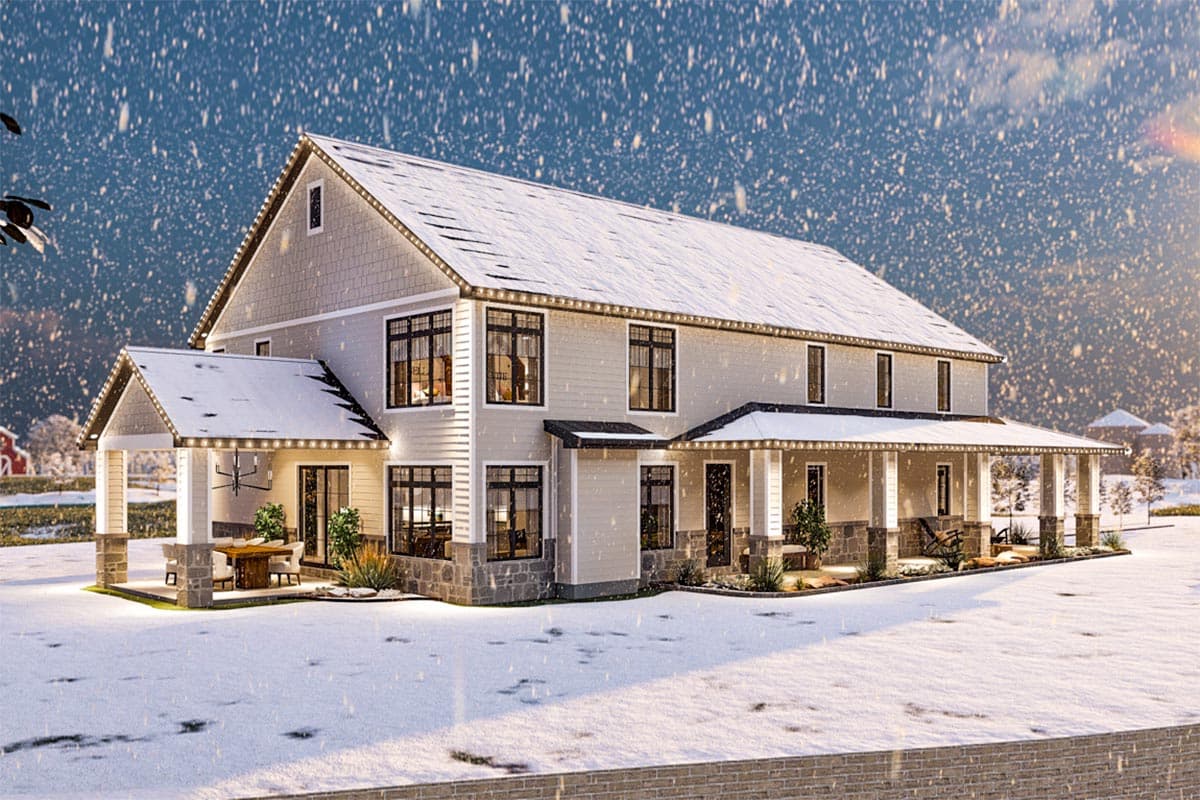

Beautiful Barndominium with Wraparound Porch and Outdoor Seating

Heated S.F.
2,096
Beds
2
Baths
2
Stories
2
Cars
2
Tour

Floor Plan

Plan 623148DJ

Main Level
Main Level

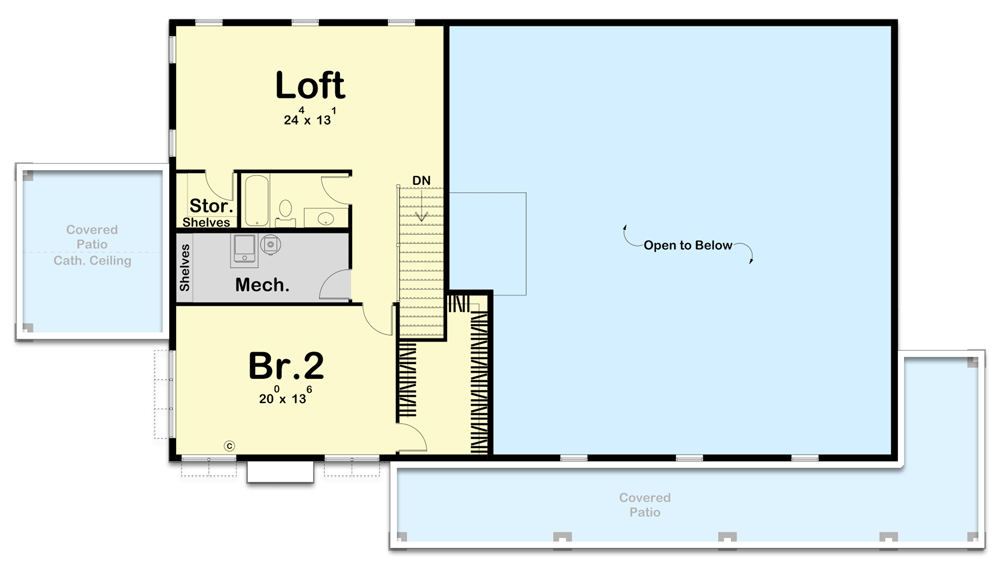

2nd Floor
2nd Floor

Plan 623148DJ

M-F 9am-5pm EST |

1-203-761-8500

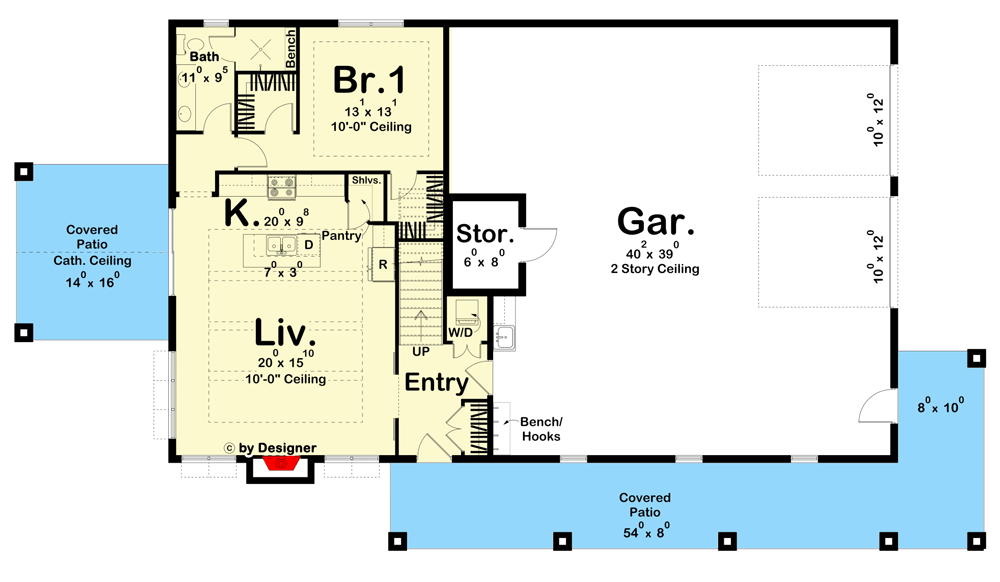

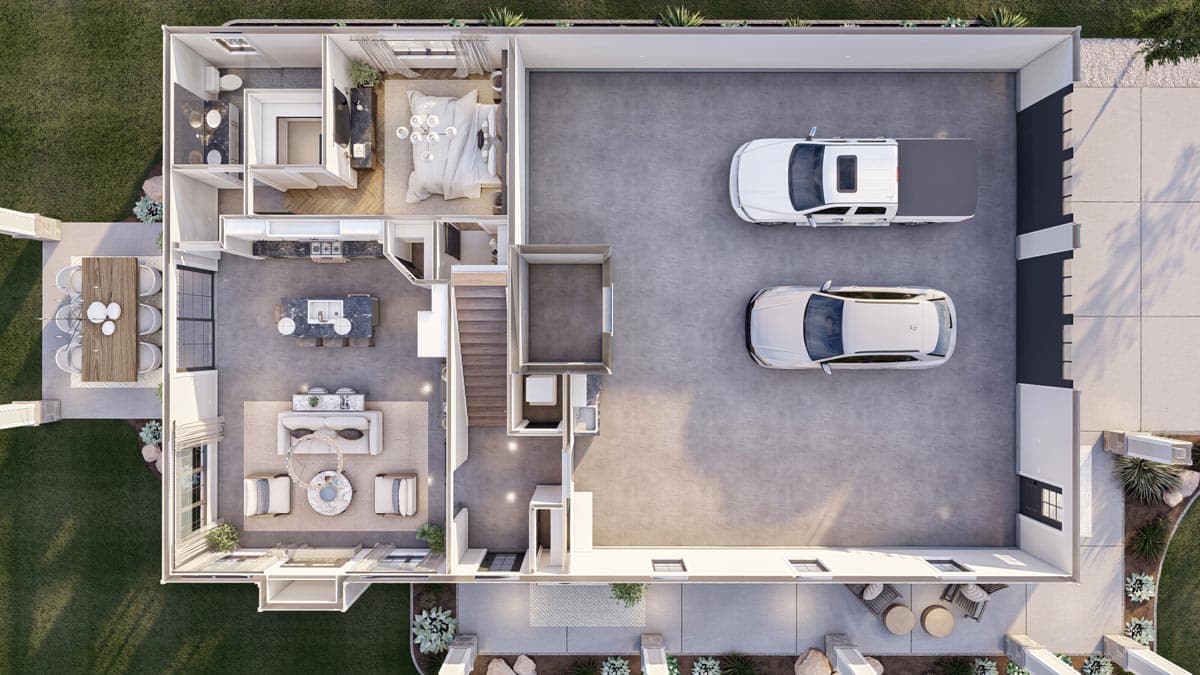

Main Level

Plan 623148DJ: Beautiful Barndominium with Wraparound Porch and Outdoor Seating - Floor Plan - Main Level - Barndominium, Country, Craftsman, Modern Farmhouse, New American

2nd Floor

Plan 623148DJ: Beautiful Barndominium with Wraparound Porch and Outdoor Seating - Floor Plan - 2nd Floor - Barndominium, Country, Craftsman, Modern Farmhouse, New American

Plan Details

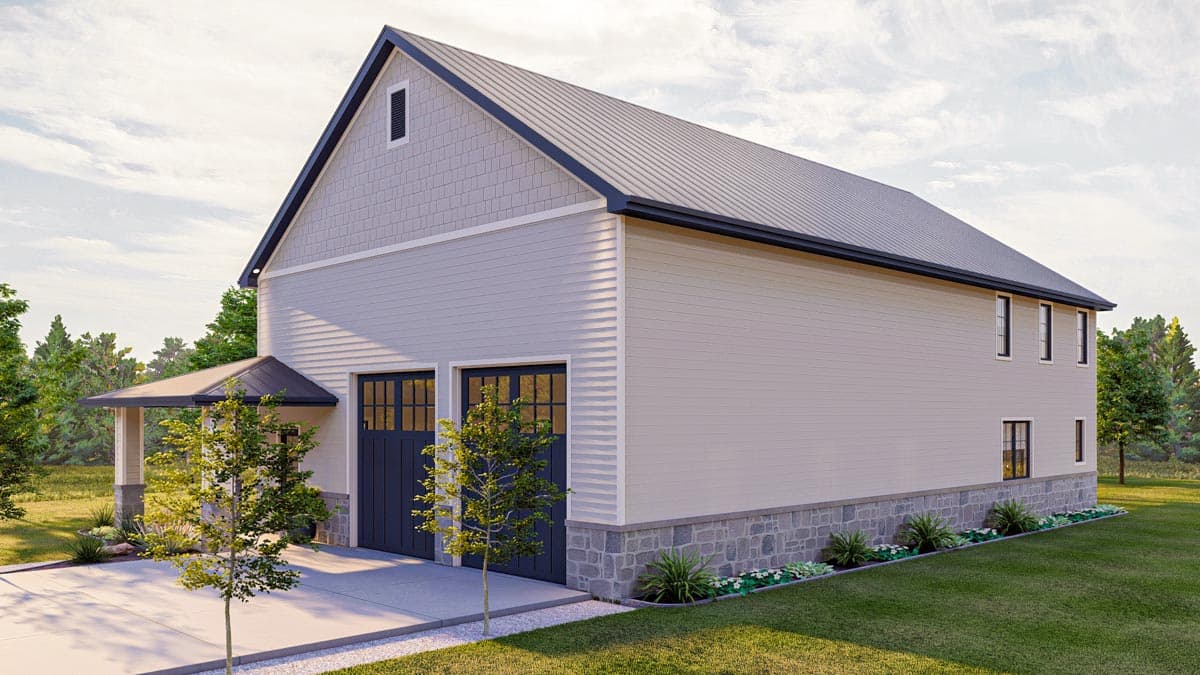

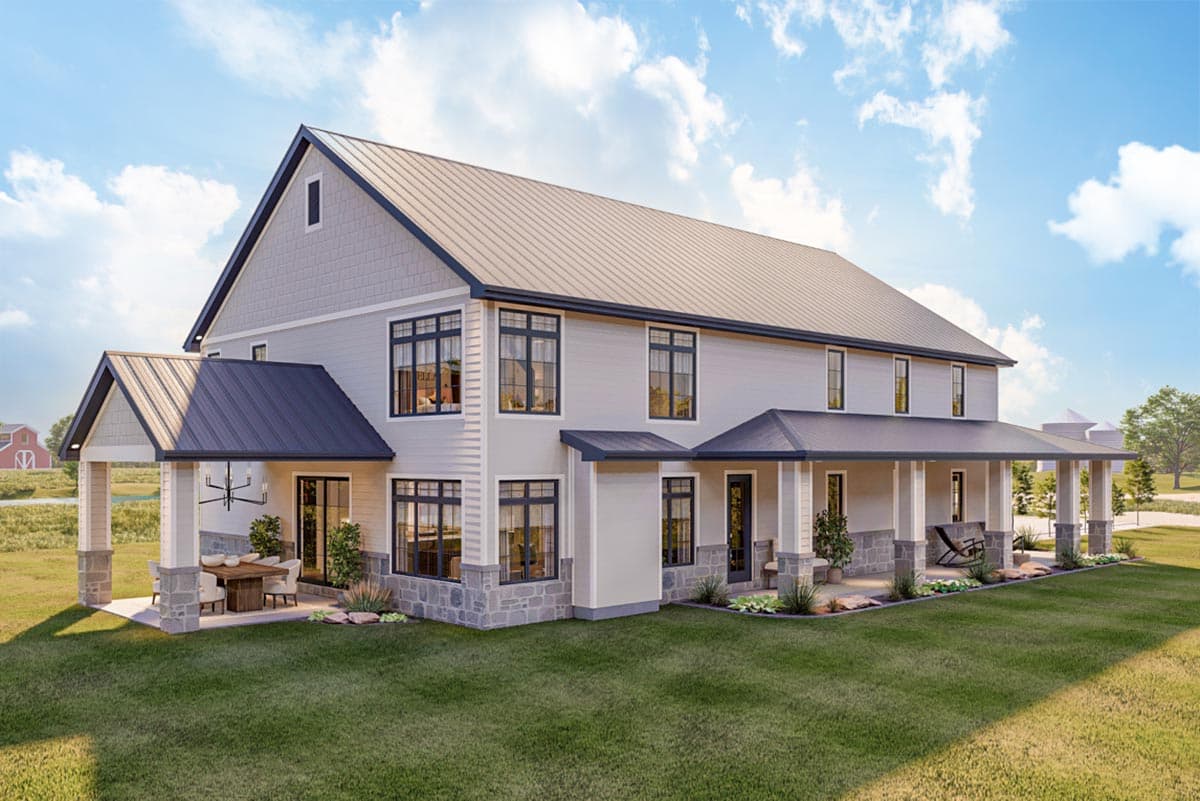

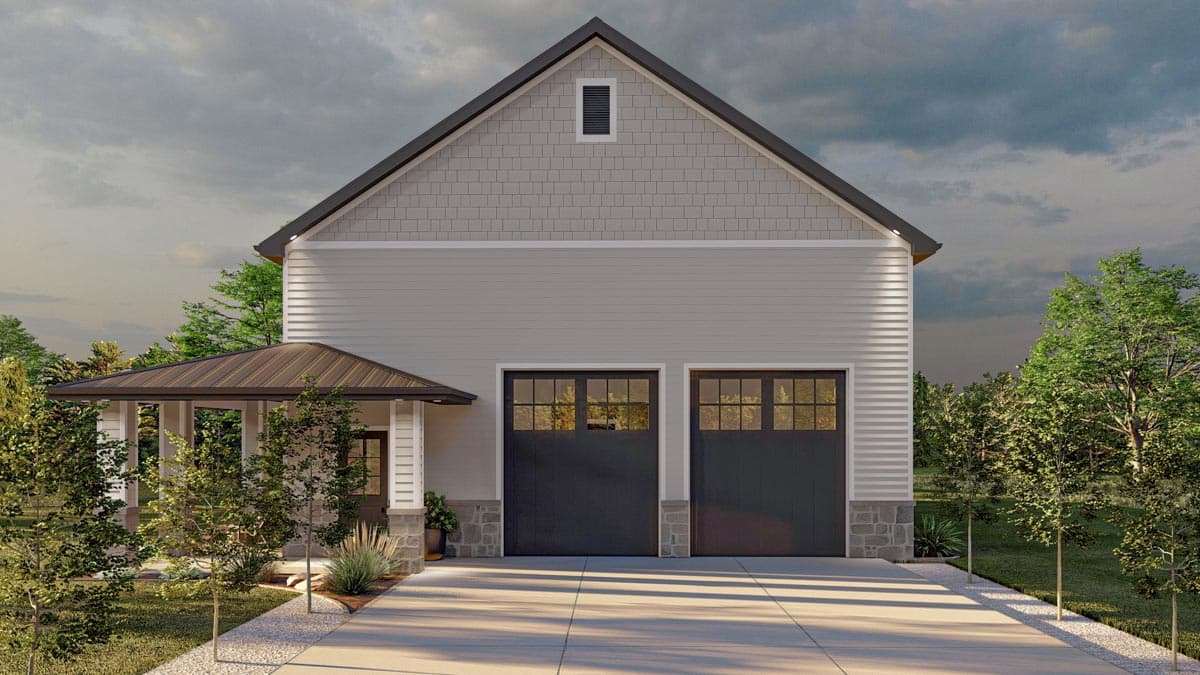

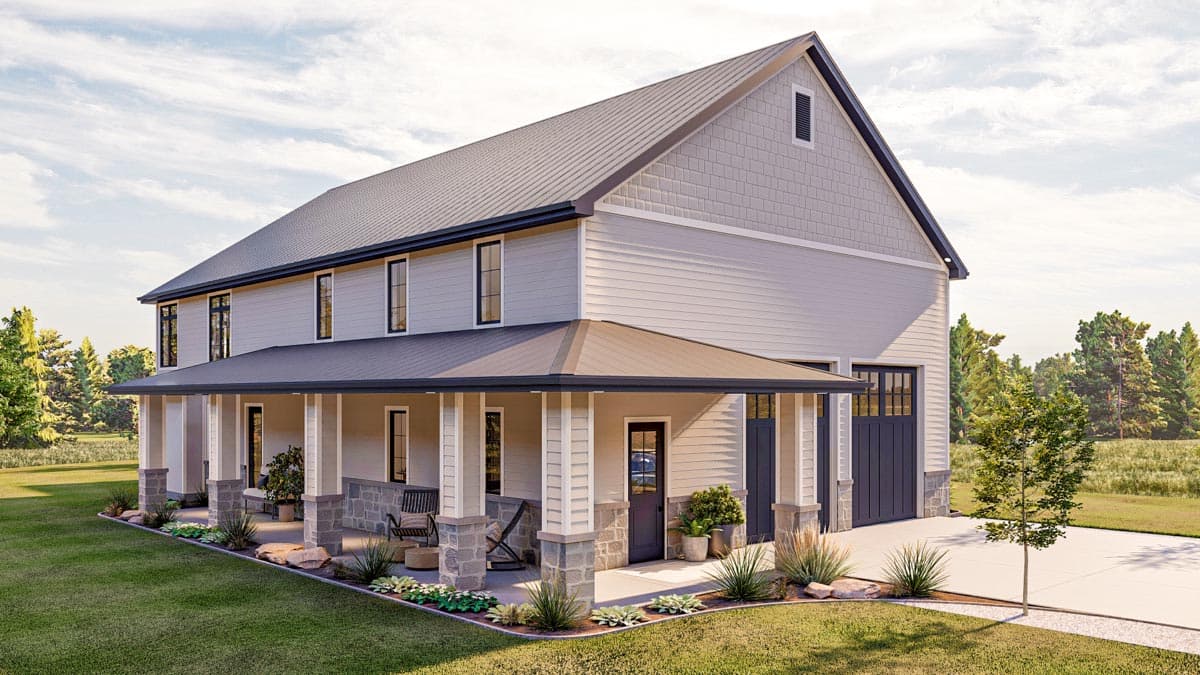

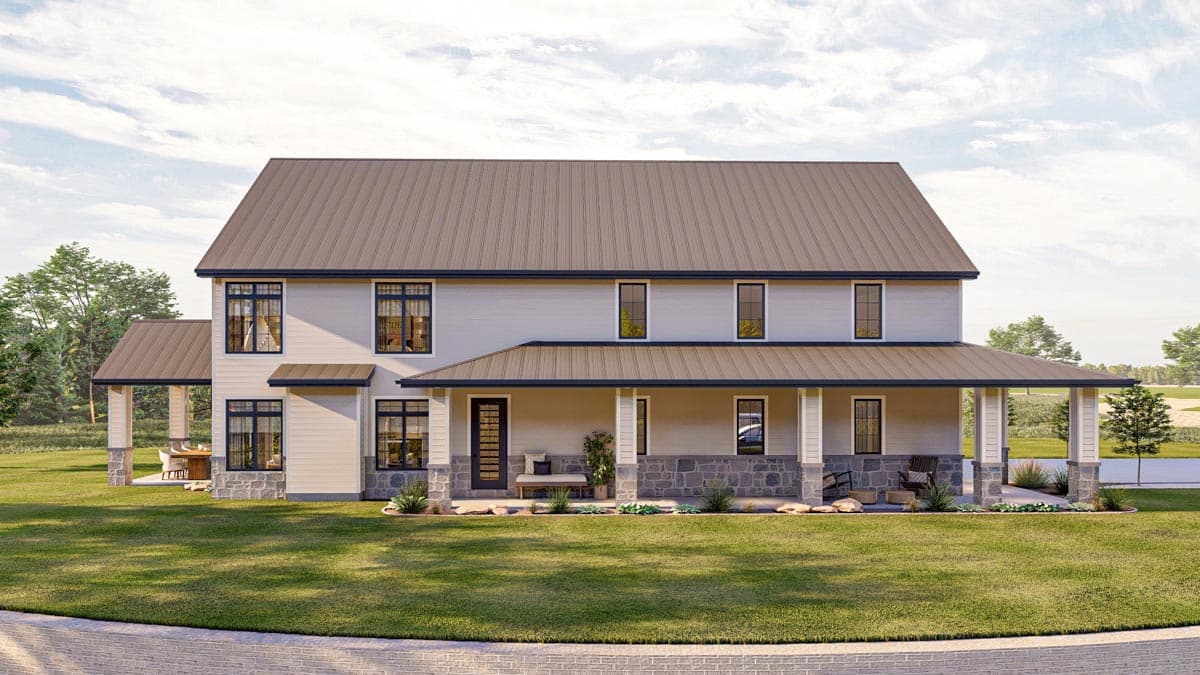

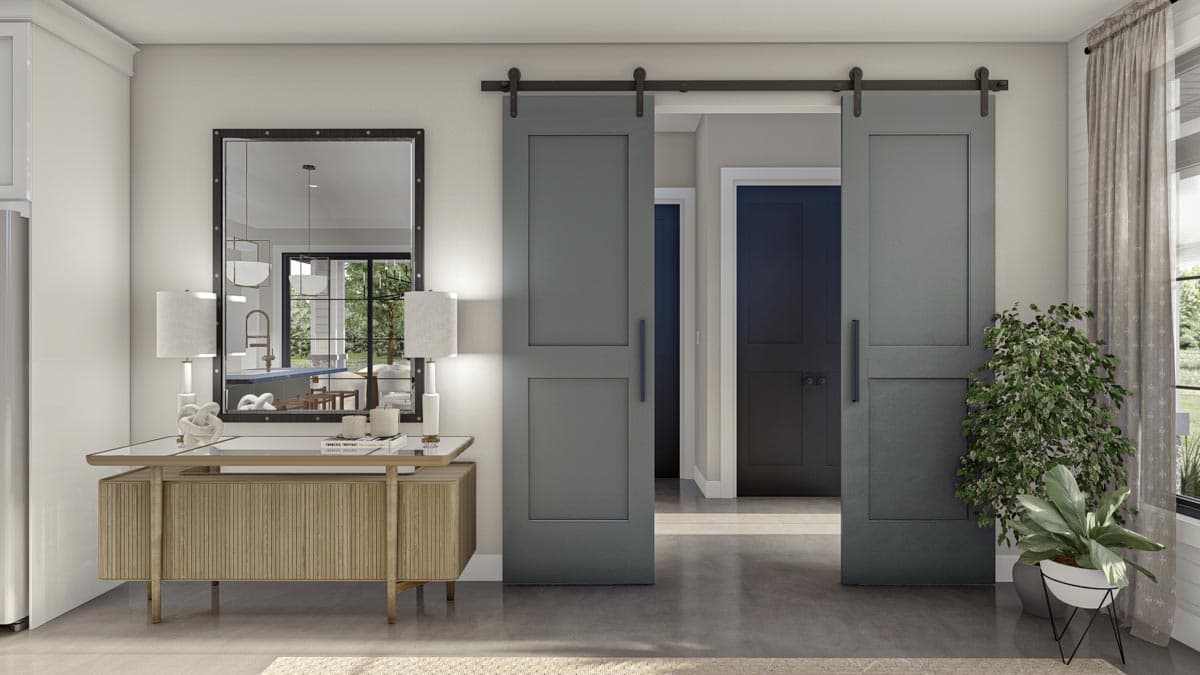

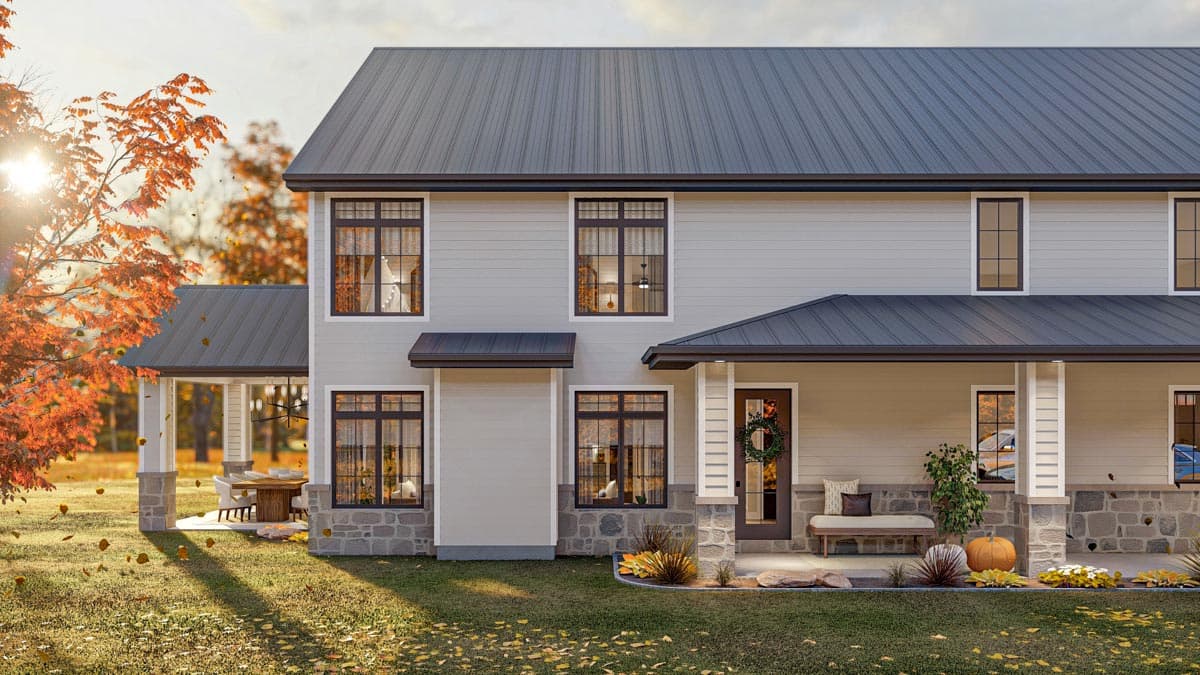

  • This is a unique take on a mix of traditional materials and large barndominium spacing. Enter the home through the two car garage, or head on in from the covered patio, either option greets you with a beautiful entryway and mudroom.

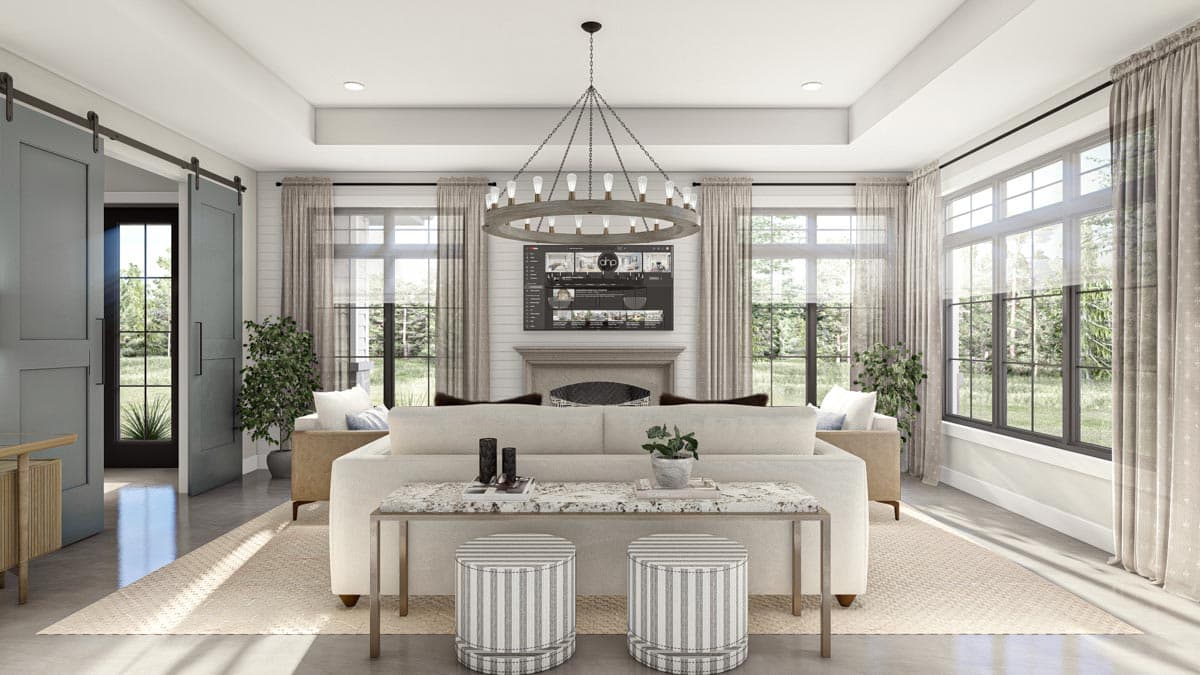

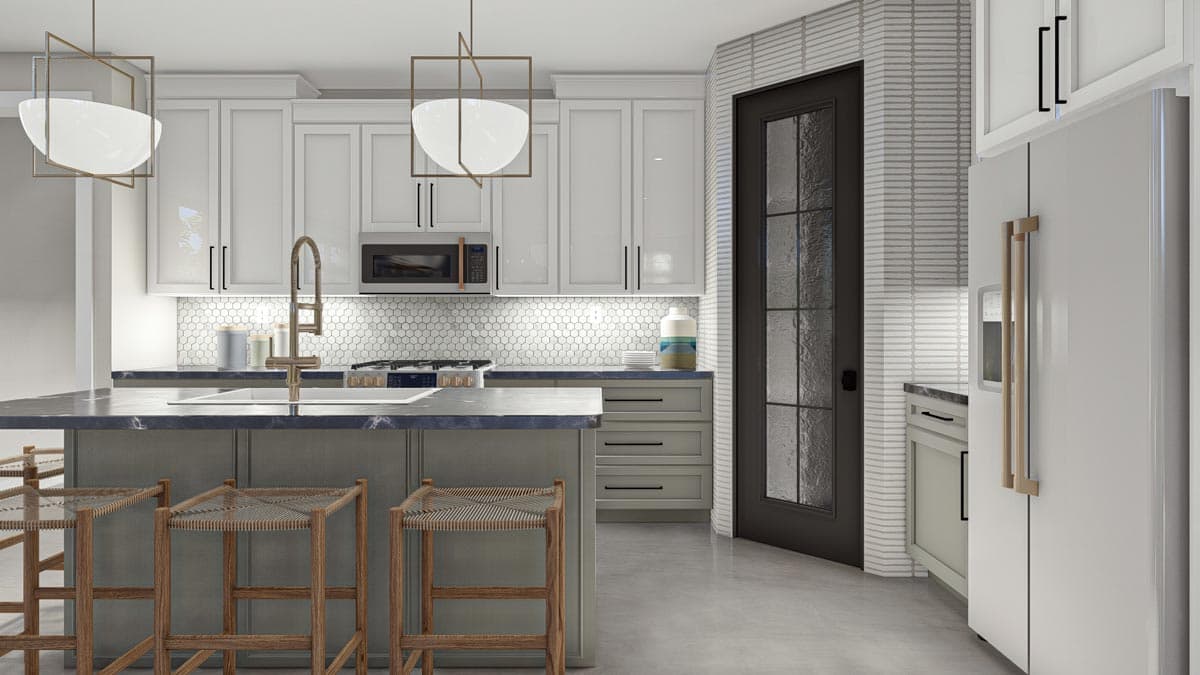

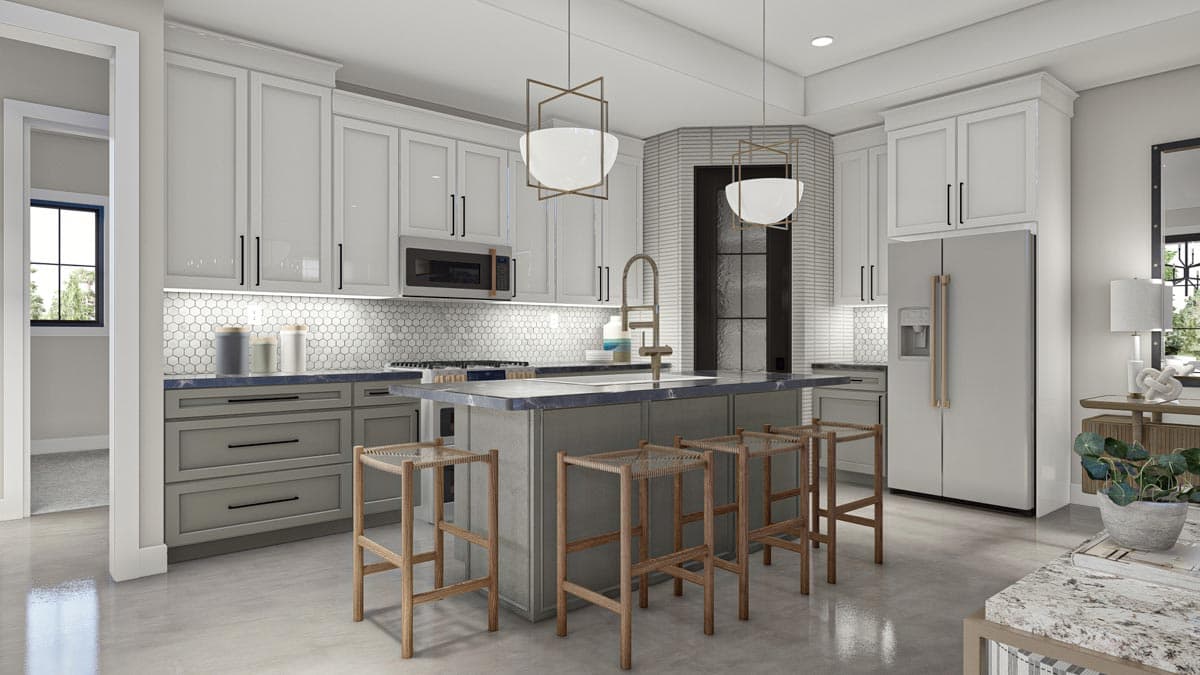

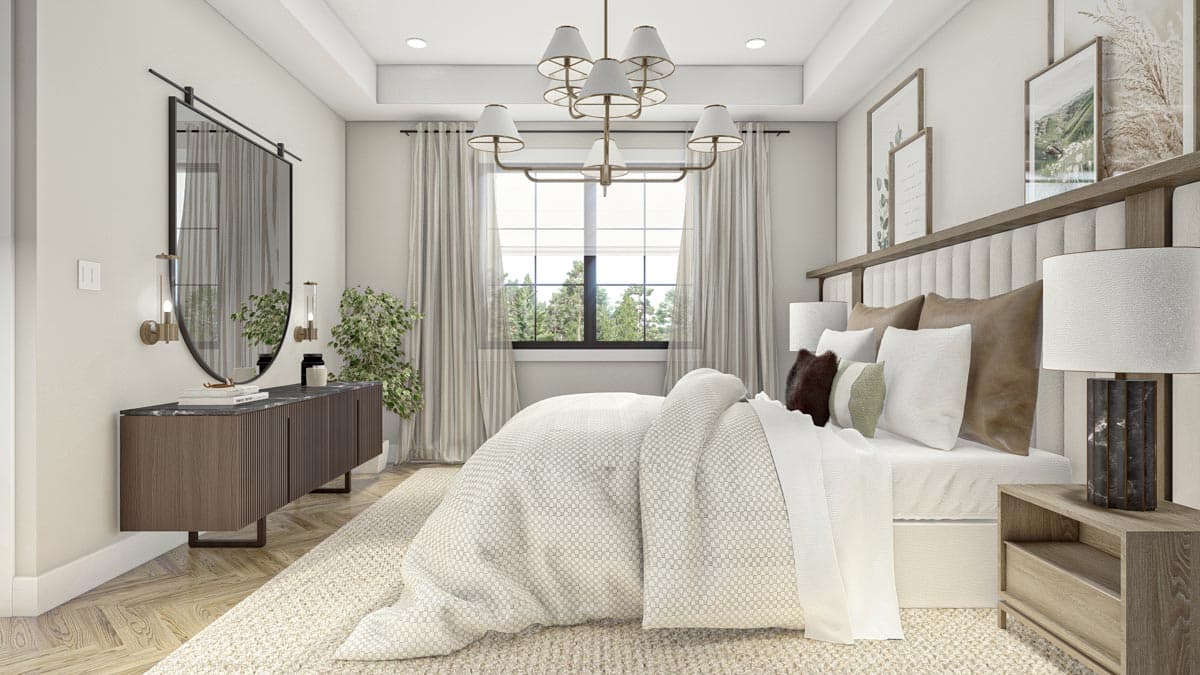

  • Upon entering the home, you can find a large living room with ten foot ceilings, as well as a large, open concept kitchen. The built-in fireplace or breakfast bar are two great spaces to connect with family or friends while entertaining. Just around the corner, you can find the first bedroom that has two walk-in closets, as well as a full sized bathroom.

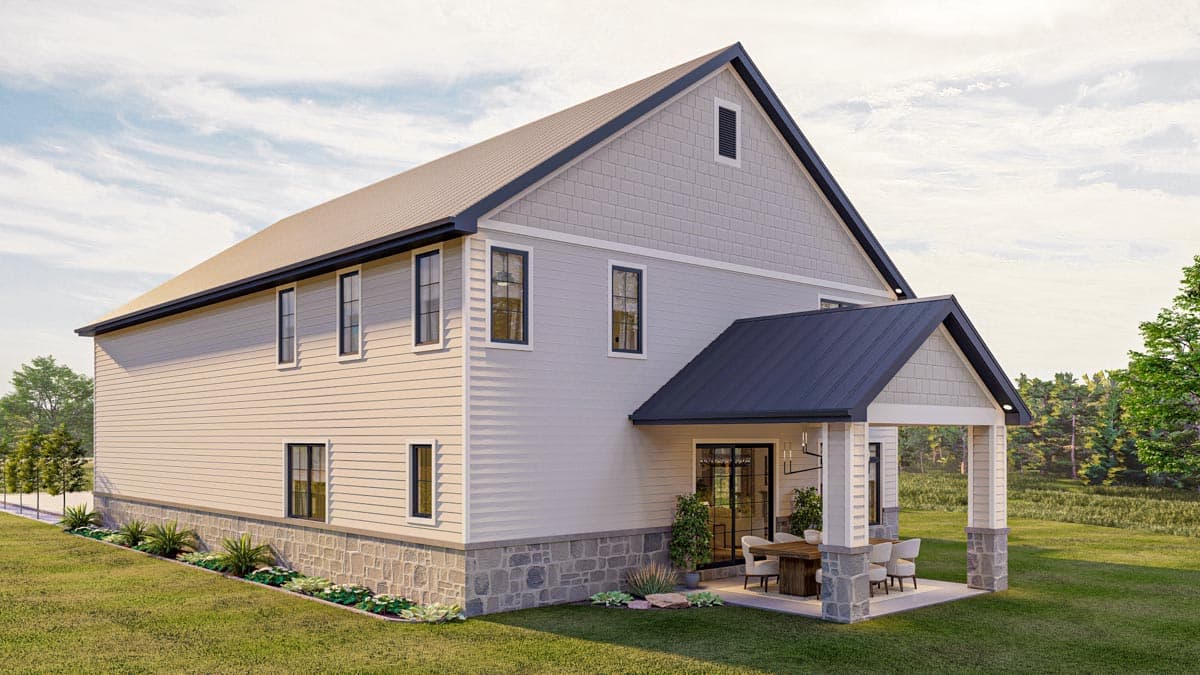

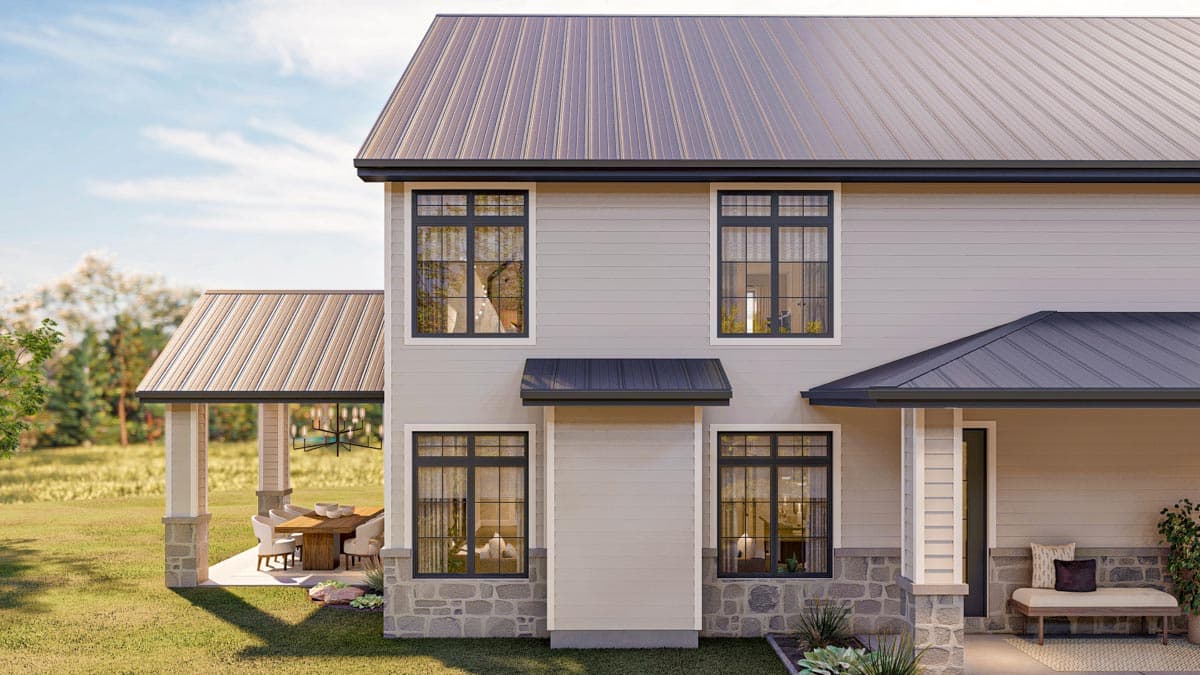

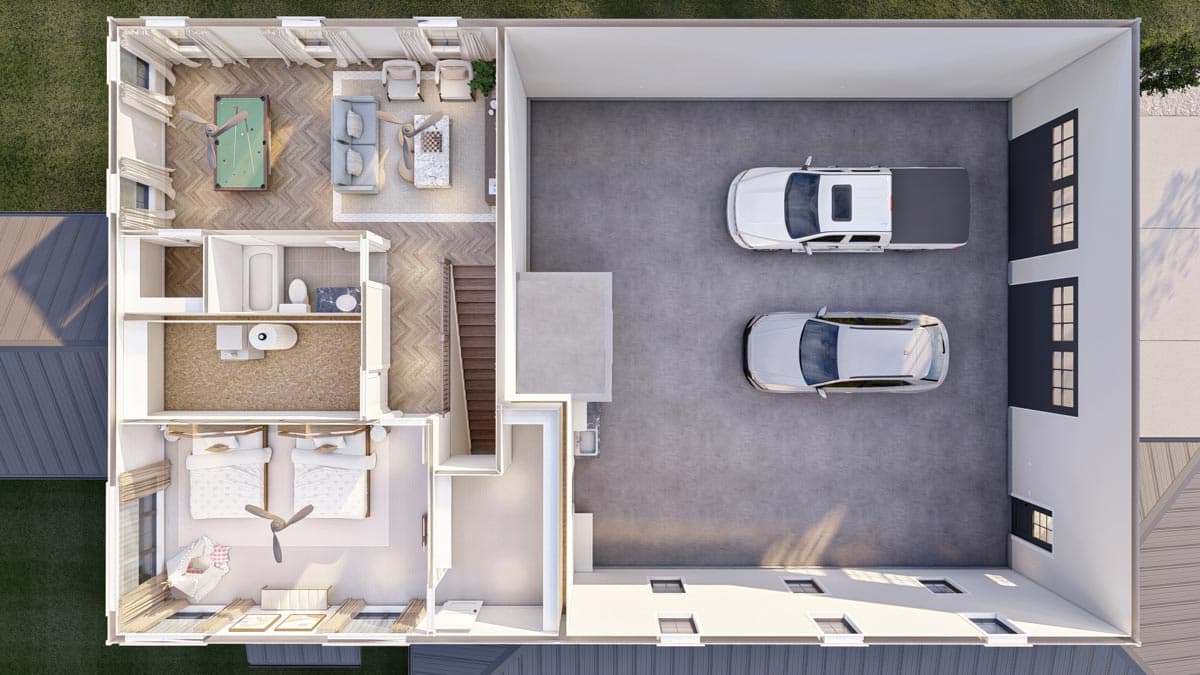

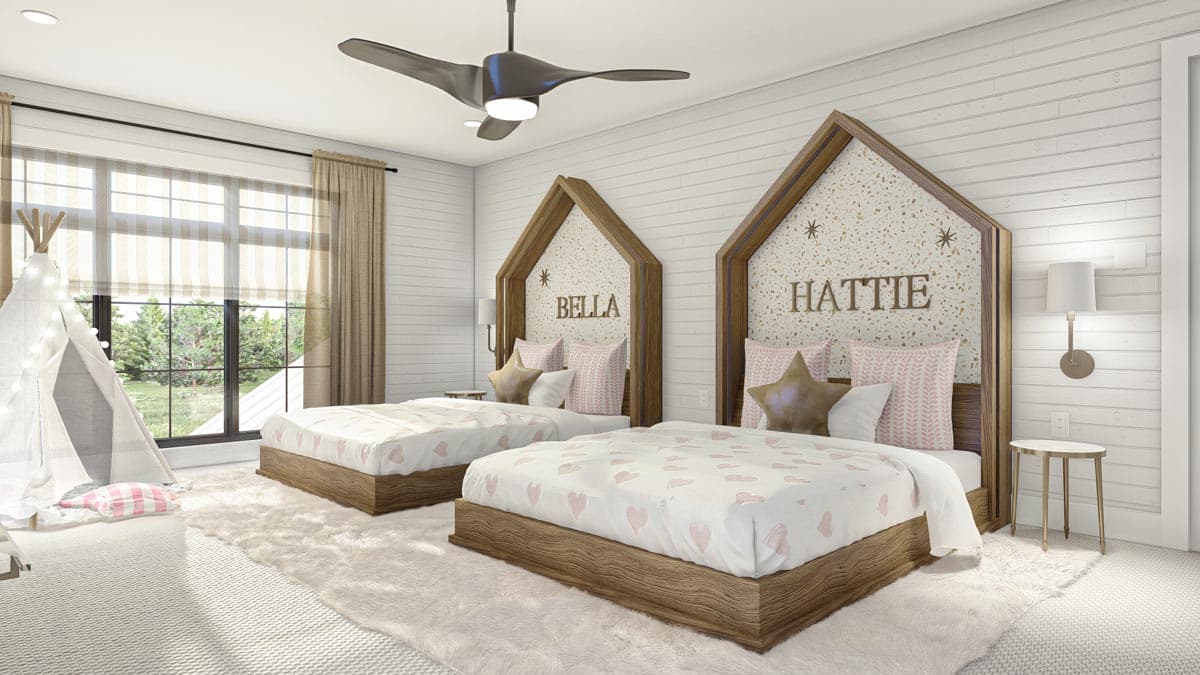

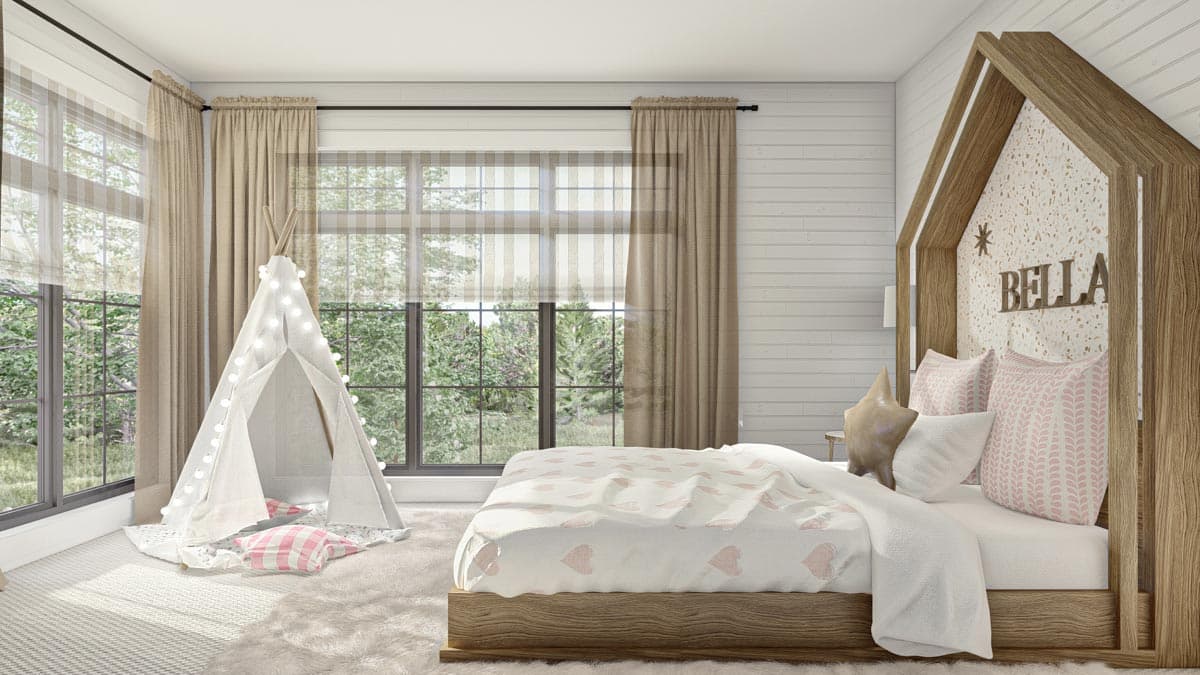

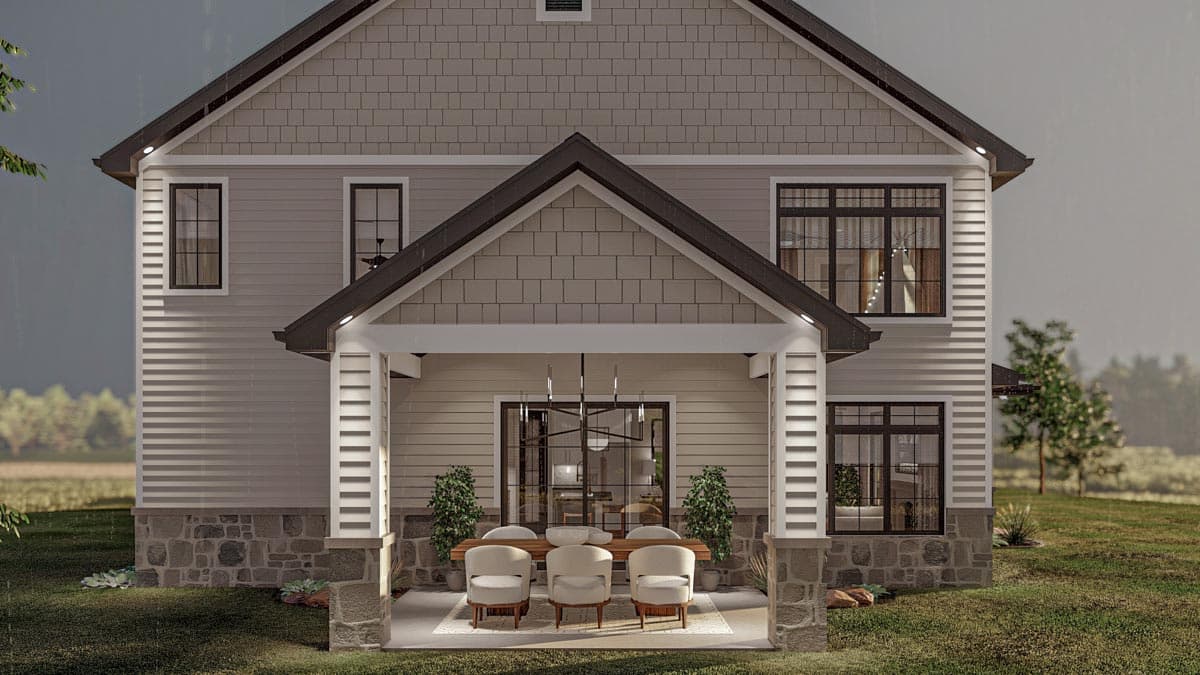

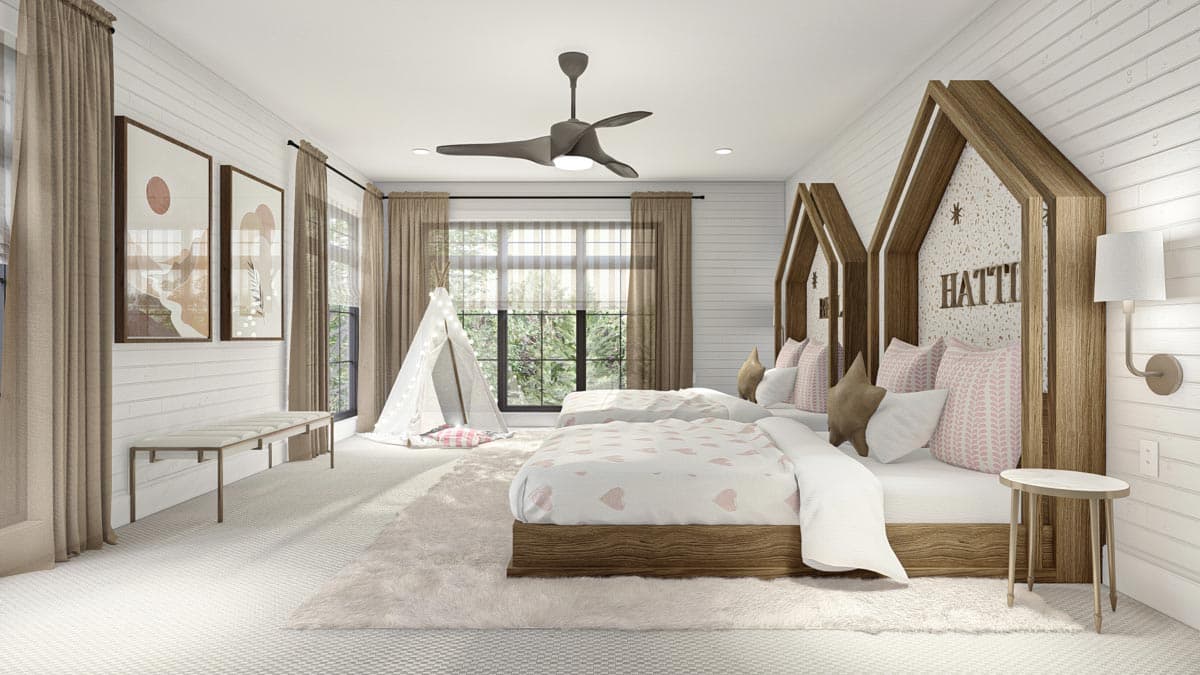

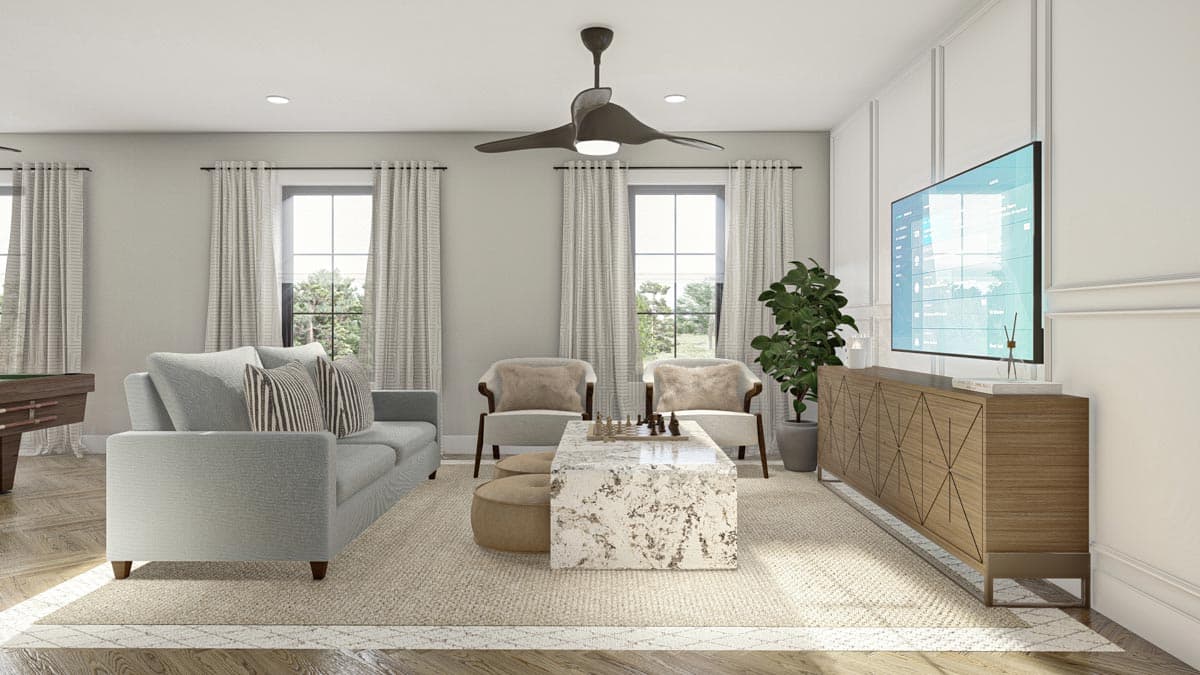

  • Upstairs, you can find an additional bedroom and bathroom, as well as a loft area that overlooks the living room below. Hangout here or head outside to the additional covered patio on the main floor and truly soak in those special moments and spectacular views.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,096 sq. ft.

1st Floor

1,076 sq. ft.

2nd Floor

1,020 sq. ft.

Porch, Combined

736 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

48' 0"

Max Ridge Height

33' 6"

Garage

Type

Attached

Area

1513 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Safe Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Unlimited Build License
