Beautiful Getaway Retreat with Carport

Plan 70503MK

  • 1,891

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This plan is a great get-away home or vacation home with 2 bedrooms, 2 baths, an open living space and lots of porch area.
  • The large front covered porch is ideal for a porch swing and enjoying the evenings.
  • The spacious kitchen has an angled eat-at island bar, perfect for entertaining and is open to a great room that features a fireplace and a vaulted ceiling.
  • The great room has access to the side and rear covered grilling porch, a popular gathering spot for sure.
  • Related Plan: Get an alternate version with house plan 70787MK.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

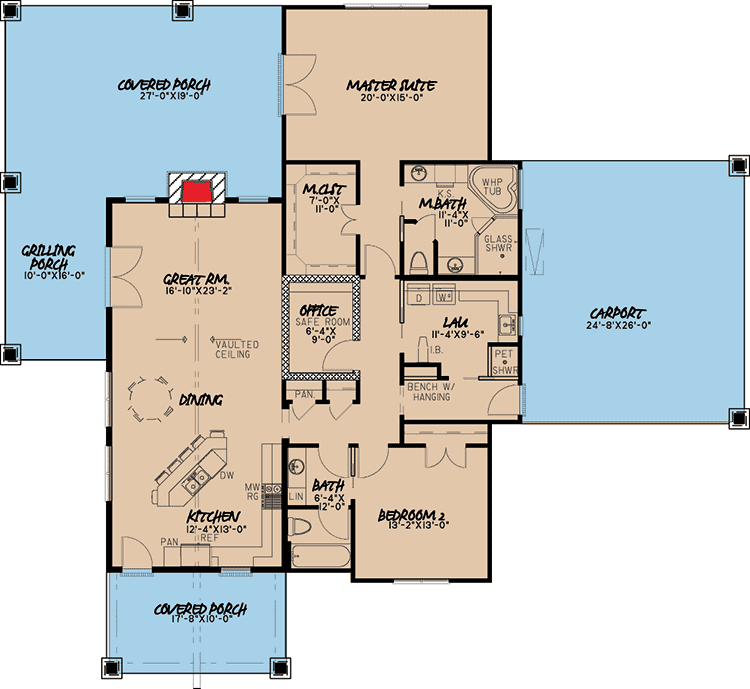

Beautiful Getaway Retreat with Carport - 70503MK floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,891 sq. ft.
  • 1st Floor: 1,891 sq. ft.
  • Porch, Combined: 856 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 0"
  • Depth: 66' 0"
  • Max ridge height: 25' 5"

Garage

  • Type: Attached, Carport
  • Area: 574 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Beautiful Getaway Retreat with Carport

  • 1,891

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,400
  • View all purchase option online

About This Plan

  • This plan is a great get-away home or vacation home with 2 bedrooms, 2 baths, an open living space and lots of porch area.
  • The large front covered porch is ideal for a porch swing and enjoying the evenings.
  • The spacious kitchen has an angled eat-at island bar, perfect for entertaining and is open to a great room that features a fireplace and a vaulted ceiling.
  • The great room has access to the side and rear covered grilling porch, a popular gathering spot for sure.
  • Related Plan: Get an alternate version with house plan 70787MK.
