Plan 59652ND

Beautiful Multifamily Design

Heated S.F.
4,488
Units
2
Width
Depth

Floor Plan

Plan 59652ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59652ND

M-F 9am-5pm EST |

1-203-761-8500

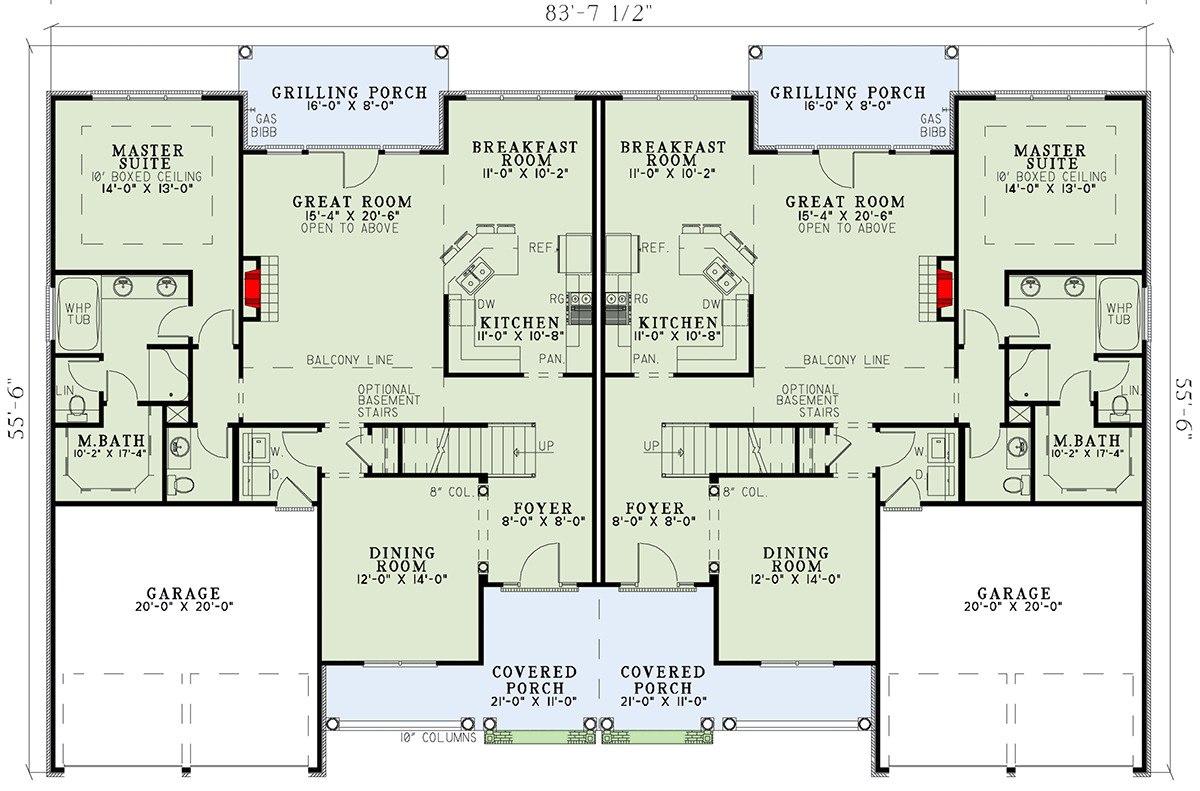

Main Level

Plan 59652ND: Beautiful Multifamily Design - Floor Plan - Main Level

2nd Floor

Plan 59652ND: Beautiful Multifamily Design - Floor Plan - 2nd Floor

Plan Details

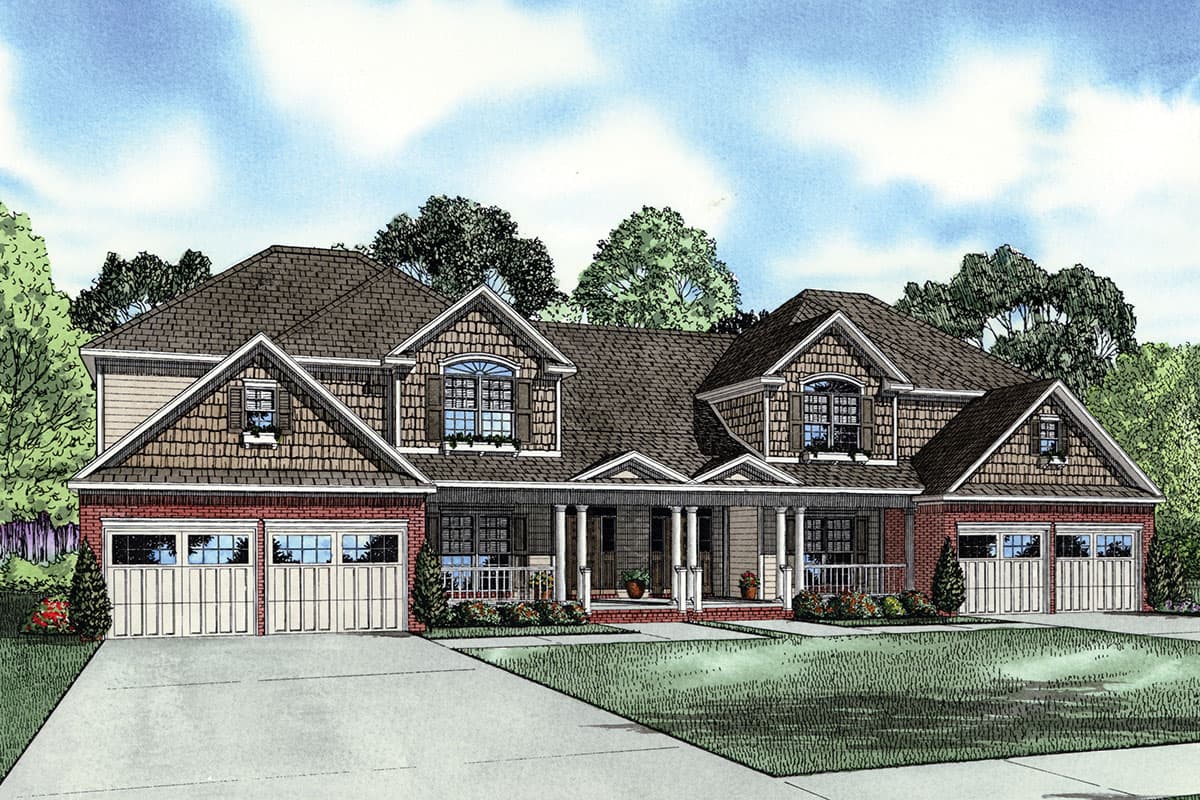

  • Neighbors will adore having this beautiful multifamily design on their street. The unique blend of different sidings, carriage-style garage doors and gabled roof lines make this investment property an eye catcher.
  • Each of the two units has four bedrooms, 2 ' bathrooms and plenty of storage space. The main-level master suite has an elegant 10-foot boxed ceiling and private bathroom with all of the amenities.
  • A centrally located great room fireplace and lovely view of the balcony above. A nearby grilling porch will serve a multitude of uses.
  • Upstairs you'll find three spacious bedrooms with large closets, a full bathroom with separated tub and vanity areas and a family-friendly loft/game room with computer-center.
Unit A
Heated Area
2,244Sq. Ft.
1449 Sq. Ft. 1st
795 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
416 Sq. Ft.
Dimensions
41' 9"width
55' 6"depth
29'height
Unfinished Areas
416 Sq. Ft. Garage
181 Sq. Ft. Bonus
Unit B
Heated Area
2,244Sq. Ft.
1449 Sq. Ft. 1st
795 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
416 Sq. Ft.
Dimensions
41' 9"width
55' 6"depth
29'height
Unfinished Areas
416 Sq. Ft. Garage
181 Sq. Ft. Bonus

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,488 sq. ft.

1st Floor

2,898 sq. ft.

2nd Floor

1,590 sq. ft.

Bonus

362 sq. ft.

Porch, Front

318 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

83' 7"

Depth

55' 6"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

832 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Game/Rec Room

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

4,488 sq. ft.

1st Floor

2,898 sq. ft.

2nd Floor

1,590 sq. ft.

Bonus

362 sq. ft.

Porch, Front

318 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

83' 7"

Depth

55' 6"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

832 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Game/Rec Room

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room
