Plan 42521DB

Beautifully Proportioned European House Plan

Pageloader

Beautifully Proportioned European House Plan

Plan 42521DB

  • 3,327

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Two large gables each with a bay window, flank the entry porch of this European house plan.
  • Inside, the two-story entry foyer makes an impressive statement.
  • Large, formal rooms flank the foyer, with a wet bar near the living room to aide in entertaining.
  • The informal area at the back of the house also has a two-story ceiling in the family room.
  • Upstairs, each of bedroomns has a walk-in closet (two for the master) and there's even a walk-in linen closet.
  • Across from bedroom 2, there's a built-in desk tucked into a dormer window.
  • Finish the bonus room to add an extra 527 square feet for a fourth bedroom or media room or man cave.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Beautifully Proportioned European House Plan

  • 3,327

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $730
  • PDF - single-use $1,115
  • 5 Sets $1,240
  • 5 Sets PLUS $1,285
  • 8 Sets $1,310
  • PDF - multi-use $1,615
  • CAD $1,951
  • CAD - multi-use $2,451
  • View all purchase option online

About This Plan

  • Two large gables each with a bay window, flank the entry porch of this European house plan.
  • Inside, the two-story entry foyer makes an impressive statement.
  • Large, formal rooms flank the foyer, with a wet bar near the living room to aide in entertaining.
  • The informal area at the back of the house also has a two-story ceiling in the family room.
  • Upstairs, each of bedroomns has a walk-in closet (two for the master) and there's even a walk-in linen closet.
  • Across from bedroom 2, there's a built-in desk tucked into a dormer window.
  • Finish the bonus room to add an extra 527 square feet for a fourth bedroom or media room or man cave.

Floor Plans

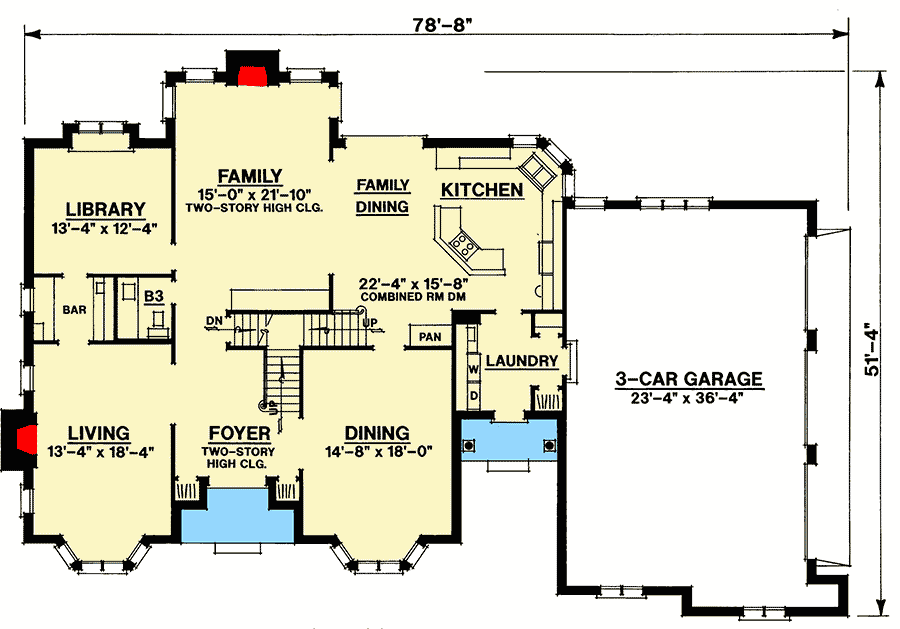

  • Main Level

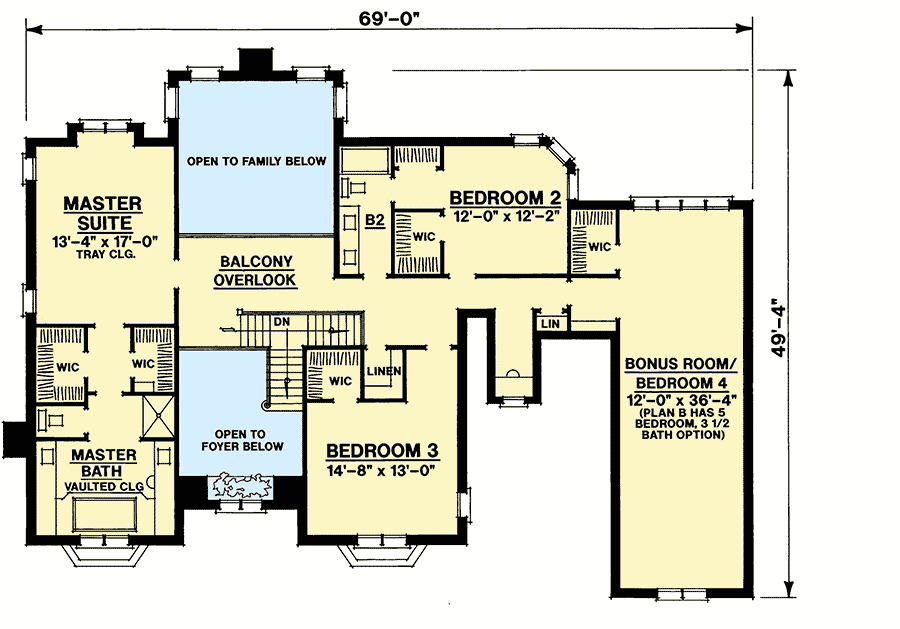

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,327 sq. ft.
  • 1st Floor: 1,927 sq. ft.
  • 2nd Floor: 1,400 sq. ft.
  • Bonus: 527 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 8"
  • Depth: 51' 4"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 915 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
