Plan 72659DA Blend of Charm and Function

2,026 3 3 2 2
Print
Compare
...

Blend of Charm and Function

Plan 72659DA

  • 2,026

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • The Craftsman-style front dormer, handrailed front porch, tapered columns and porte cochere all add to the nostalgic charm to this two-story Craftsman bungalow.
  • Soft light spills into the vaulted foyer through sidelights and glass near the top of the Craftsman door. The stairway that angles up the right wall leads to three bedrooms and two bathrooms. Straight ahead is a coat closet, which makes good use of the under-stair space.
  • Family living areas fill the main floor. A wide opening on the left side of the foyer feeds into a large living room with a wide triplex of windows facing the porch, and two standard-sized windows arrayed along the other outside wall. Slender wall segments mark the juncture of the living room and dining room.
  • The dining area is also naturally bright, due to matched windows that flank its gas fireplace. An opening on the opposite wall provides access to a convenient powder room, and a good-sized hobby room, or home office, windowed on two sides. A pocket door in the hobby room opens into a utility room, fully outfitted with a utility tub and a wide folding counter. Another door leads out to the porte cochere.
  • A second set of slender wall segments marks where the dining room segues into the C-shaped kitchen. A conversation bar rims one side of its central work island. The roomy and partially recessed walk-in pantry is next to a door leading out onto a cozy covered patio.
  • A detached 2-car garage comes with the plans.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

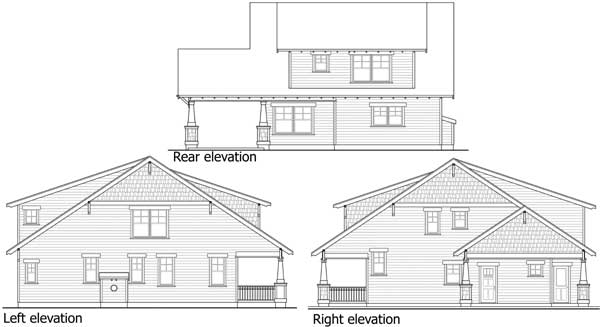

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

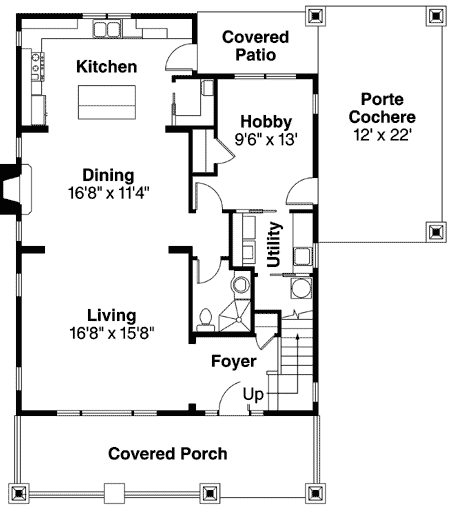

Main Level

Reverse Floor Plan
Blend of Charm and Function - 72659DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
Blend of Charm and Function - 72659DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,026 sq. ft.
  • 1st Floor: 1,138 sq. ft.
  • 2nd Floor: 888 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 48' 0"
  • Max ridge height: 27' 7"

Garage

  • Type: Detached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features



Blend of Charm and Function

  • 2,026

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Printed $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • The Craftsman-style front dormer, handrailed front porch, tapered columns and porte cochere all add to the nostalgic charm to this two-story Craftsman bungalow.
  • Soft light spills into the vaulted foyer through sidelights and glass near the top of the Craftsman door. The stairway that angles up the right wall leads to three bedrooms and two bathrooms. Straight ahead is a coat closet, which makes good use of the under-stair space.
  • Family living areas fill the main floor. A wide opening on the left side of the foyer feeds into a large living room with a wide triplex of windows facing the porch, and two standard-sized windows arrayed along the other outside wall. Slender wall segments mark the juncture of the living room and dining room.
  • The dining area is also naturally bright, due to matched windows that flank its gas fireplace. An opening on the opposite wall provides access to a convenient powder room, and a good-sized hobby room, or home office, windowed on two sides. A pocket door in the hobby room opens into a utility room, fully outfitted with a utility tub and a wide folding counter. Another door leads out to the porte cochere.
  • A second set of slender wall segments marks where the dining room segues into the C-shaped kitchen. A conversation bar rims one side of its central work island. The roomy and partially recessed walk-in pantry is next to a door leading out onto a cozy covered patio.
  • A detached 2-car garage comes with the plans.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,026 sq. ft.
  • 1st Floor: 1,138 sq. ft.
  • 2nd Floor: 888 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 48' 0"
  • Max ridge height: 27' 7"

Garage

  • Type: Detached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Plan 72659DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72659DA
|
