Box Built 3-Bed Modern Tiny Home Plan - 850 Sq Ft

Name: Plan 431007BOX: Box Built 3-Bed Modern Tiny Home Plan - 850 Sq Ft
Brand: Architectural Designs
SKU: 431007BOX
Price: 850.0 USD
Availability: InStock

Heated S.F.

850

Beds

Baths

2.5

Stories

Floor Plan

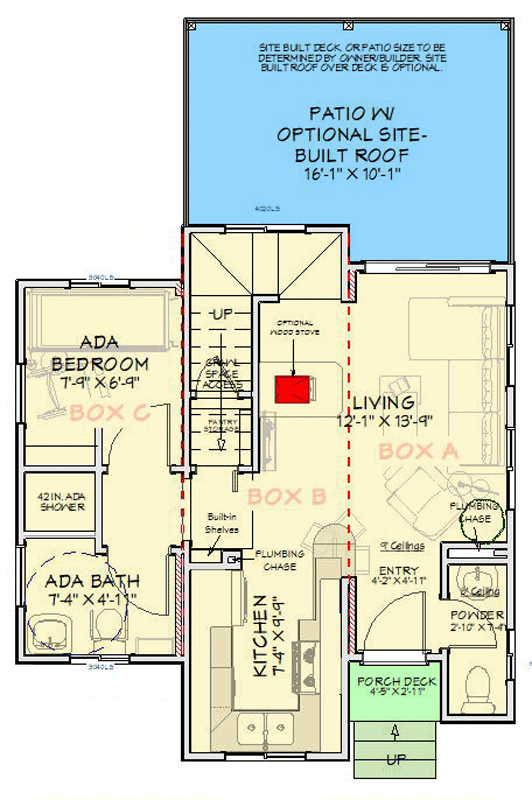

Main Level

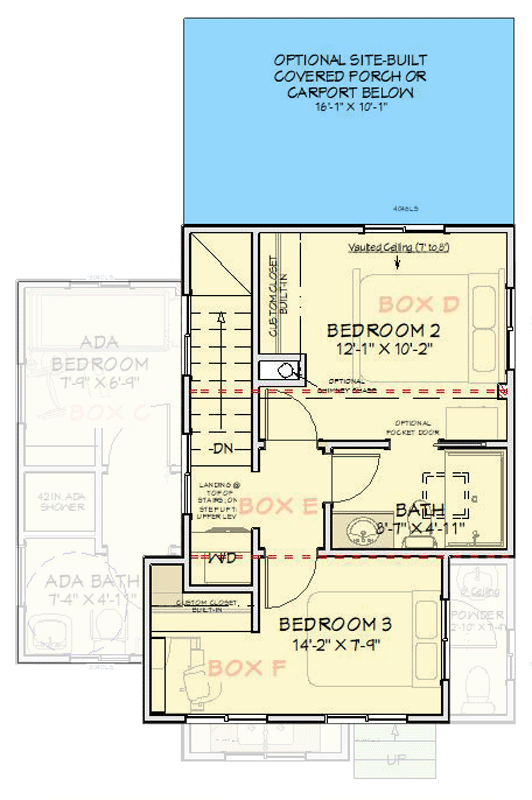

2nd Level

Plan Details

Boxes System Build OptionWith the Boxes System, the structural shell is framed off-site as transportable modules, each shipping on a standard hot shot trailer within DOT limits — no oversize permits required. Modules arrive with ZIP System sheathing, roof decking, windows, and exterior doors pre-installed. A small crane and three-person crew can set and seal the home in under a day, with local contractors ready to begin the very next morning. Standard permitting and inspections apply throughout.Spec'd for Net Zero Ready performance — built for low operating costs and comfortable living. Visit boxesbuilt.com to learn more.

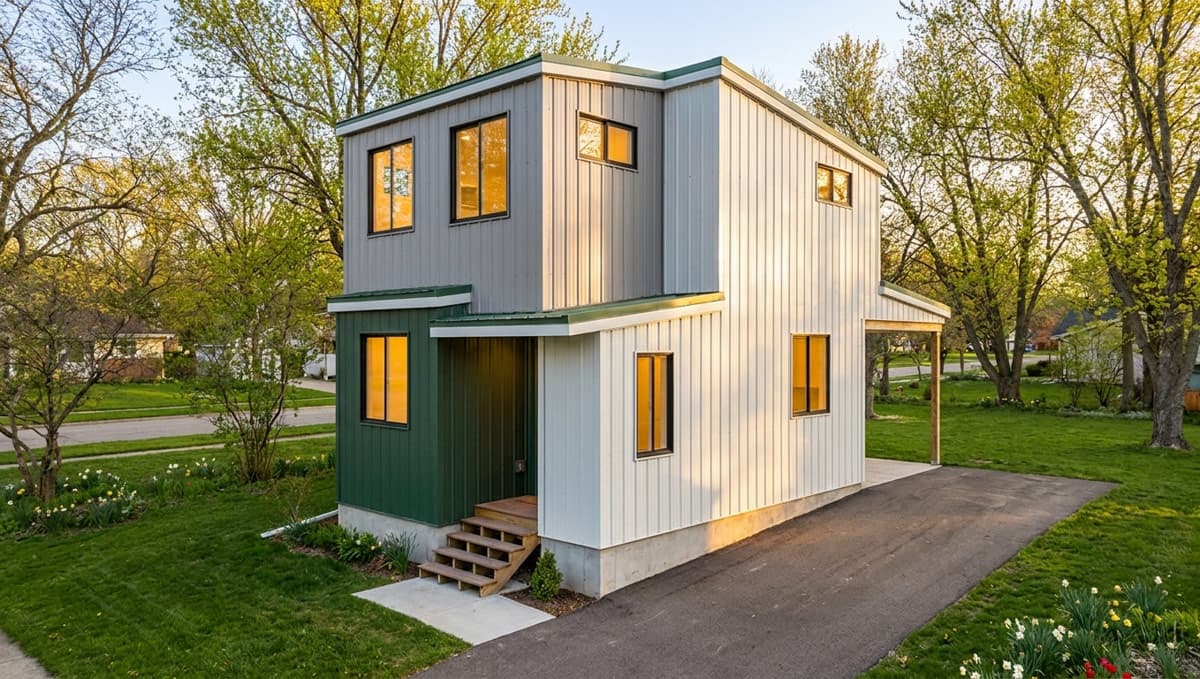

This 850 square foot contemporary vacation house plan features a sleek metal-clad exterior and three bedrooms with two and a half bathrooms.
The design maximizes every inch of space, beginning with a functional floor plan that flows naturally from the main living areas to the outdoor patio.

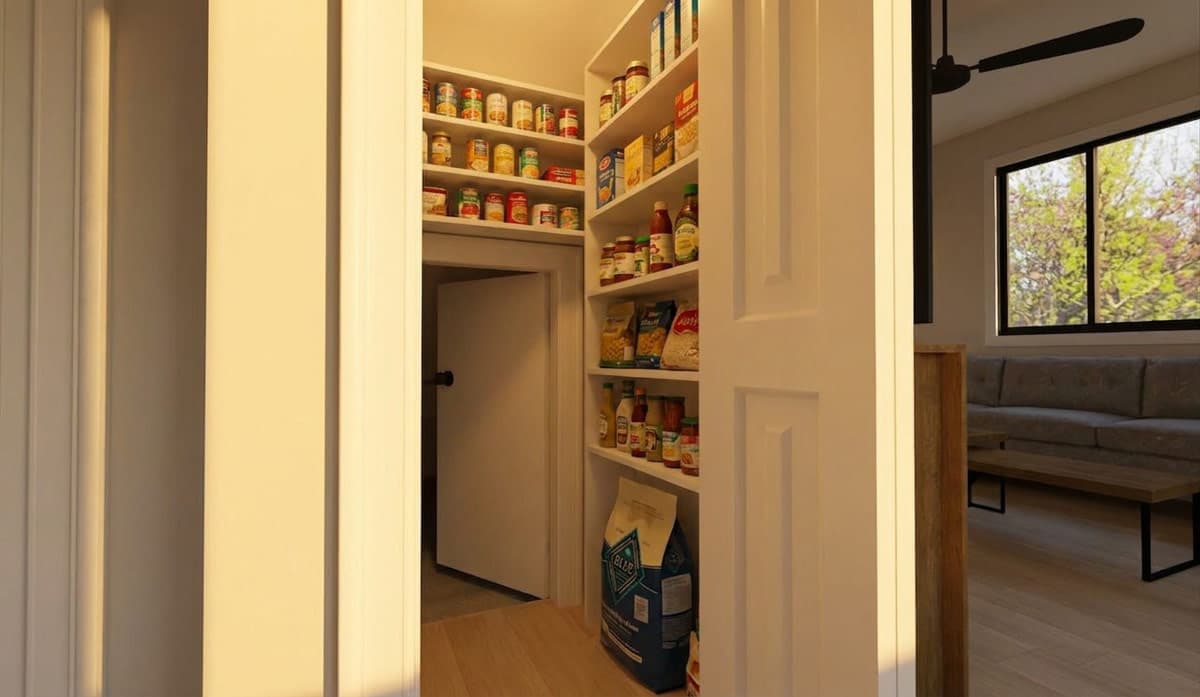

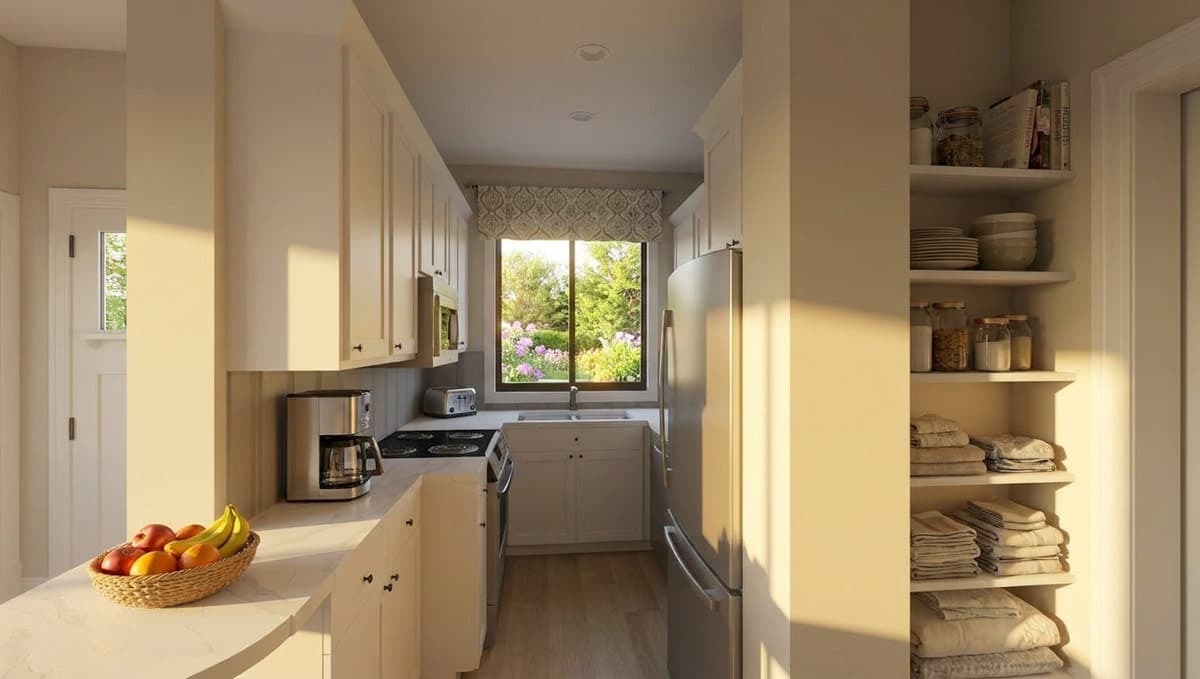

The kitchen is equipped with a walk-in pantry, providing essential storage for a small footprint home while keeping the living area uncluttered.

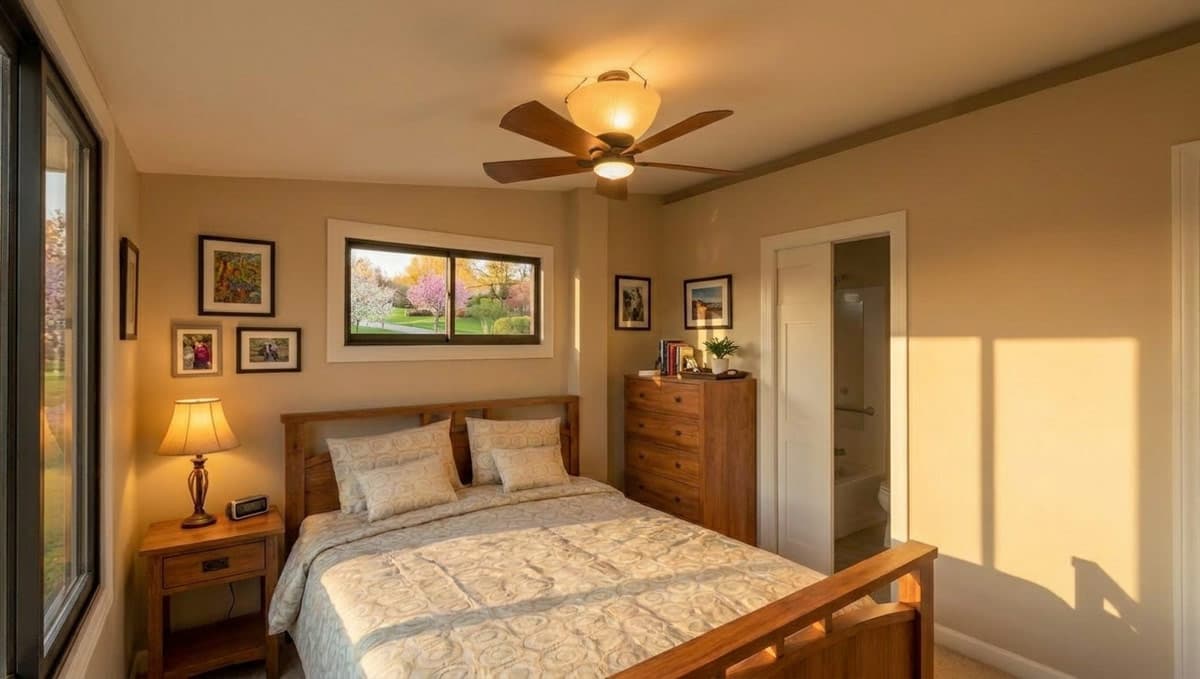

Upstairs, the bedrooms are thoughtfully arranged to provide privacy, including a unique bedroom with a sloped ceiling for added architectural character.
Convenience is prioritized with a dedicated laundry area located on the second floor, eliminating the need to carry baskets between levels.

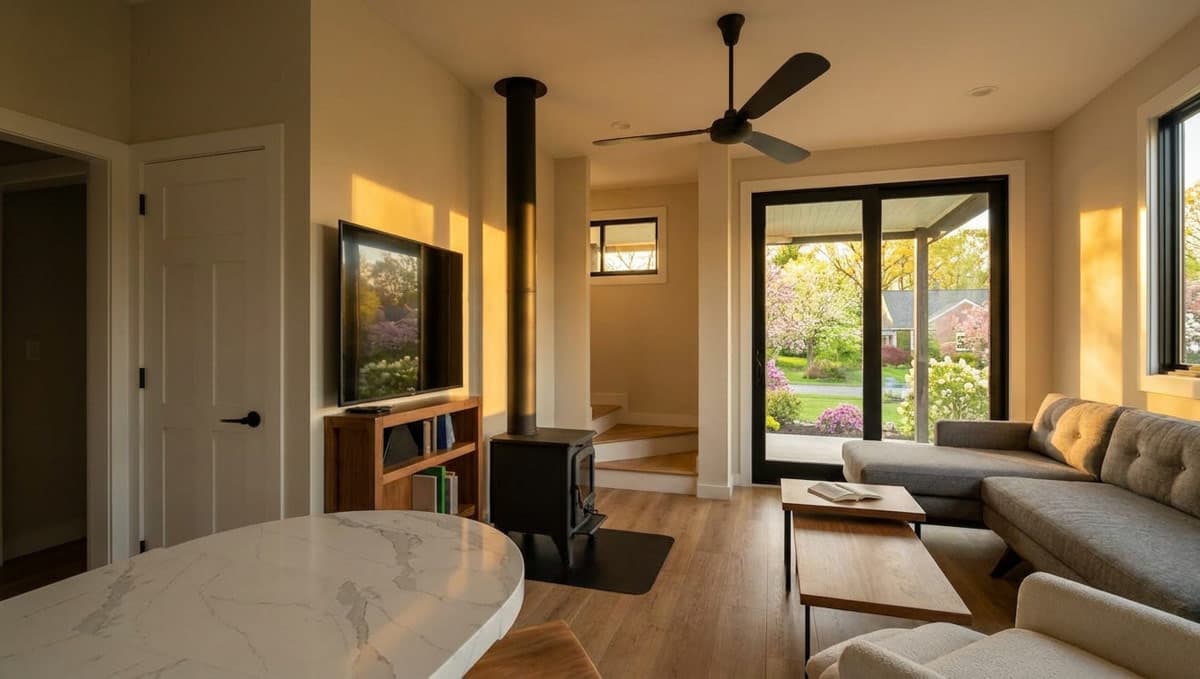

Large doors open directly onto a covered outdoor living space, seamlessly blending the interior living room with the surrounding landscape for a true retreat experience.

What's Included

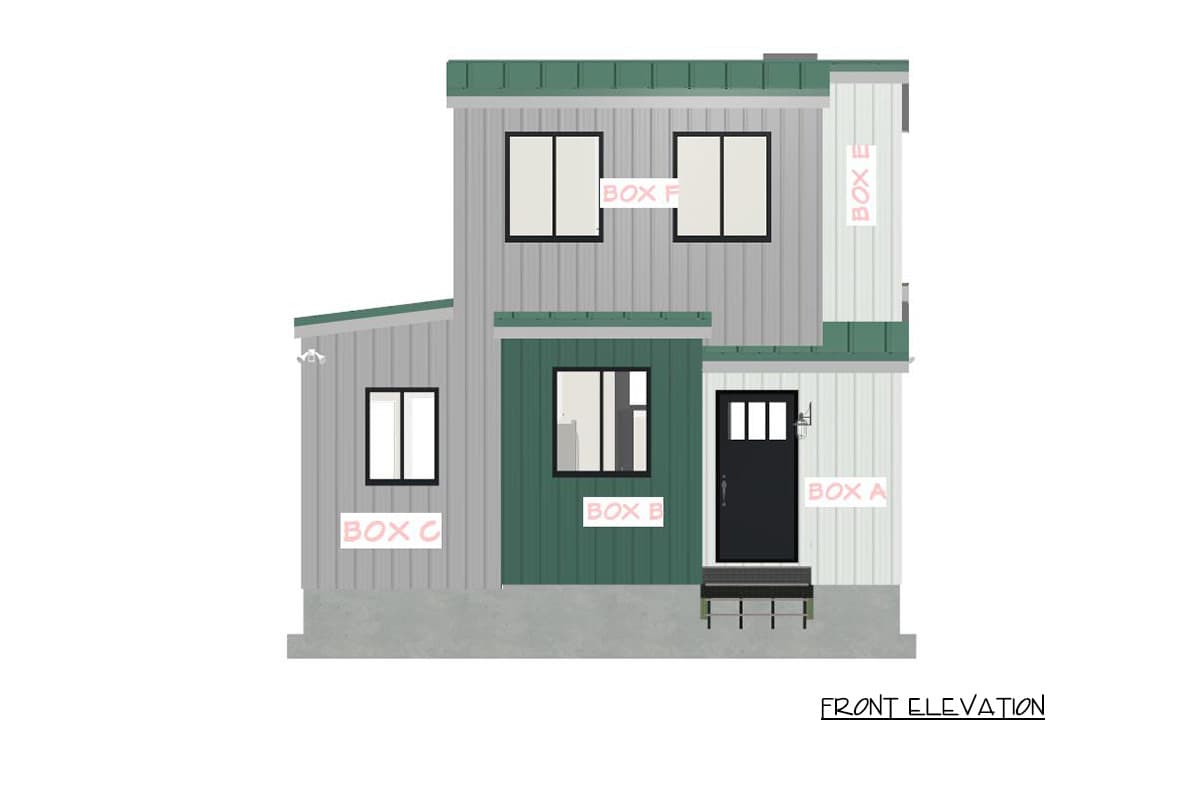

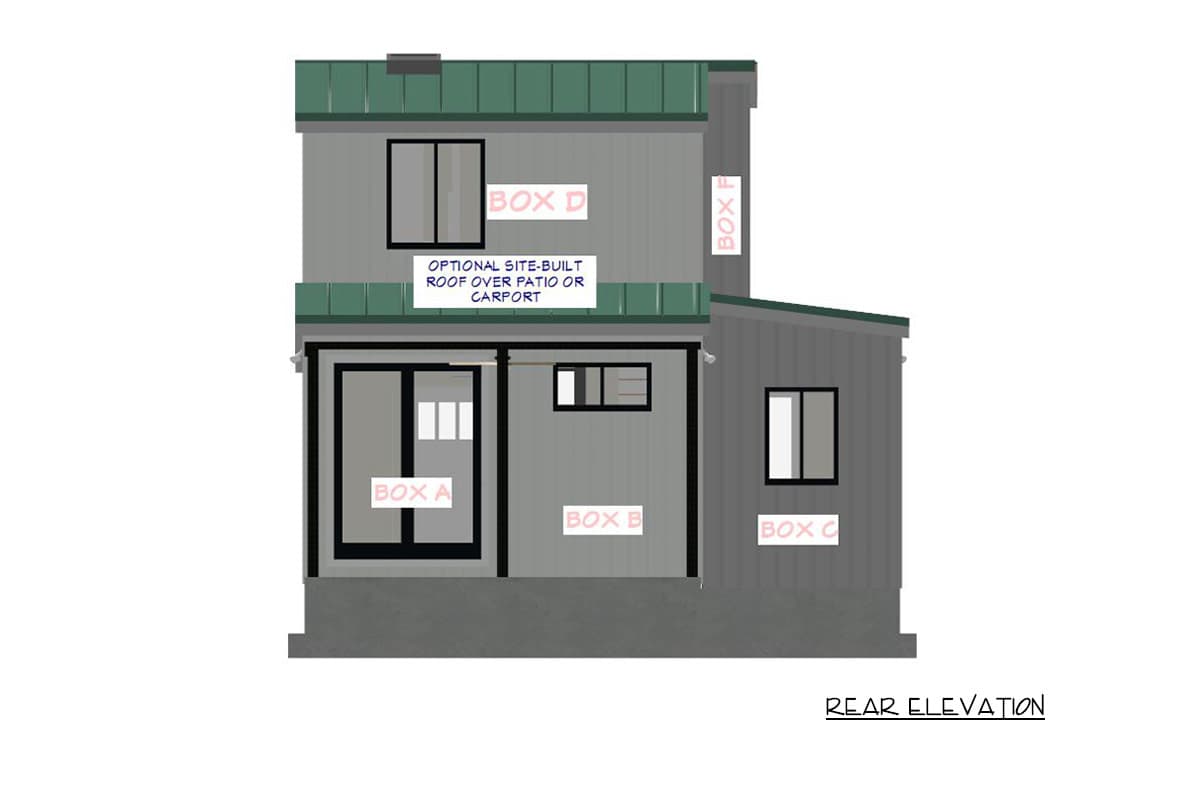

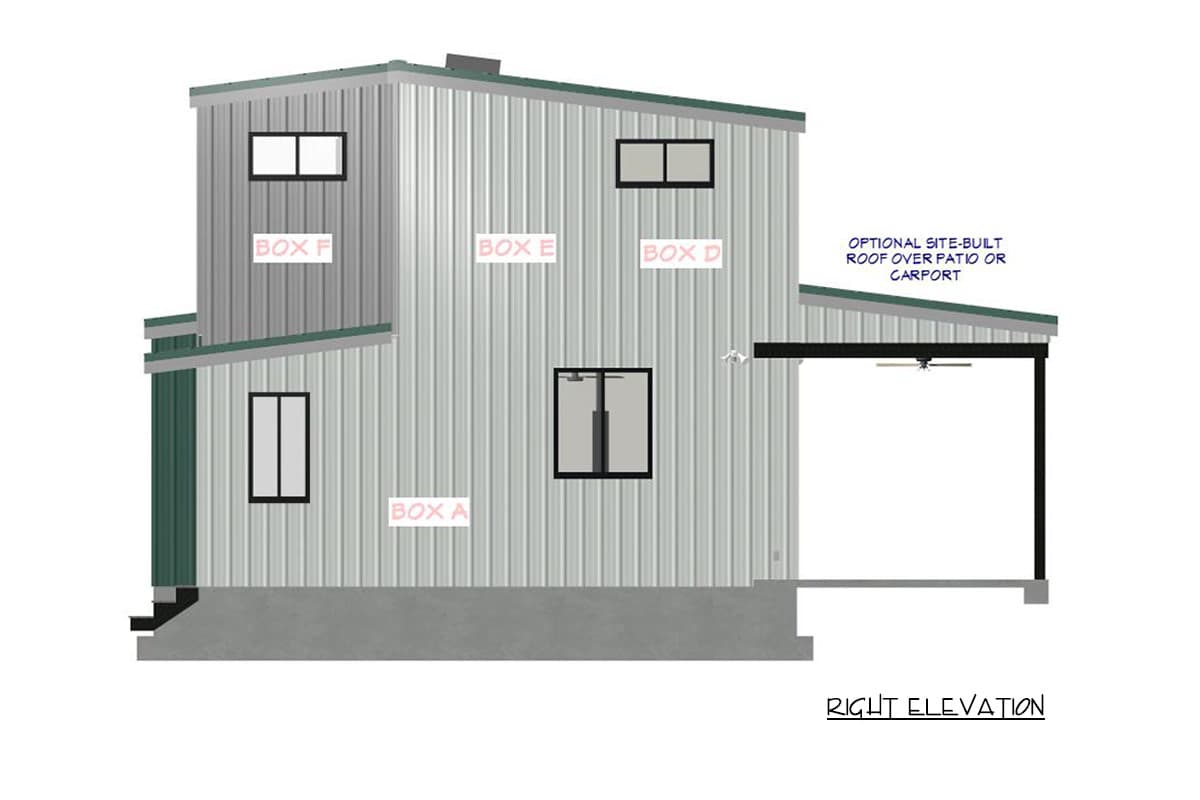

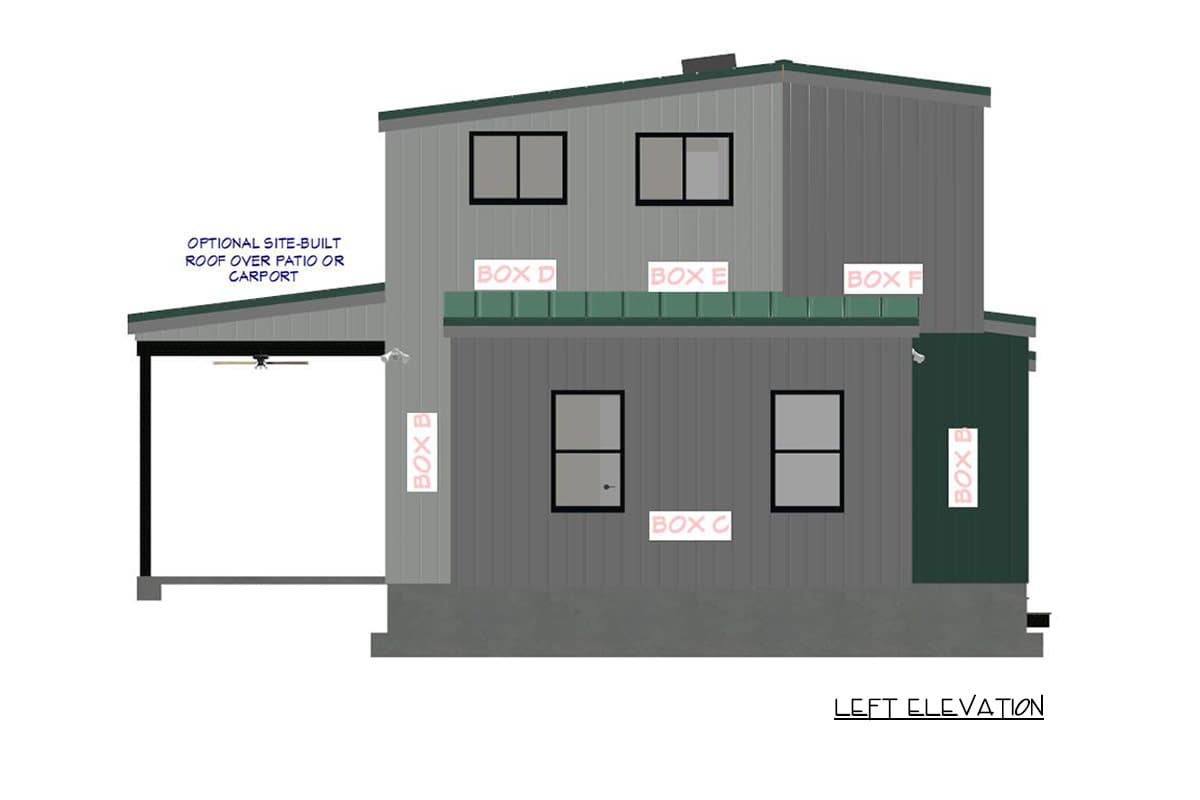

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls and piers/posts
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans.
Boxes System Build Details: ‘Marriage’ walls are highlighted on the plans. These walls are not necessary to build if using a fully on-site ‘stick build’ process.
Interior Details: These drawings show the specific details and design of special interior features such as cabinets.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
