Brick-clad Two-story House Plan with Future Media Expansion

Plan 510184WDY

  • 3,428

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This brick-clad, two-story house plan presents elegant window header details, hip and valley rooflines, and a parking courtyard in front of the 3-car garage.
  • Double doors welcome you inside, where a quiet study and formal dining room flank the foyer. Straight ahead, a fireplace anchors the rear wall of the living room, while an oversized opening leads to the keeping room and kitchen.
  • A large island hosts a deep-bowl sink in the kitchen, which also includes a large range and walk-in pantry beneath the stairs.
  • Retreat to the master suite, conveniently located on the main level, and find a standalone tub serving as an art piece in the center of the ensuite. A second bedroom suite can be found near the garage, which is perfect for guests.
  • Upstairs, you will find three bedrooms, along with a 365 sq ft potential media room for a future expansion option.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

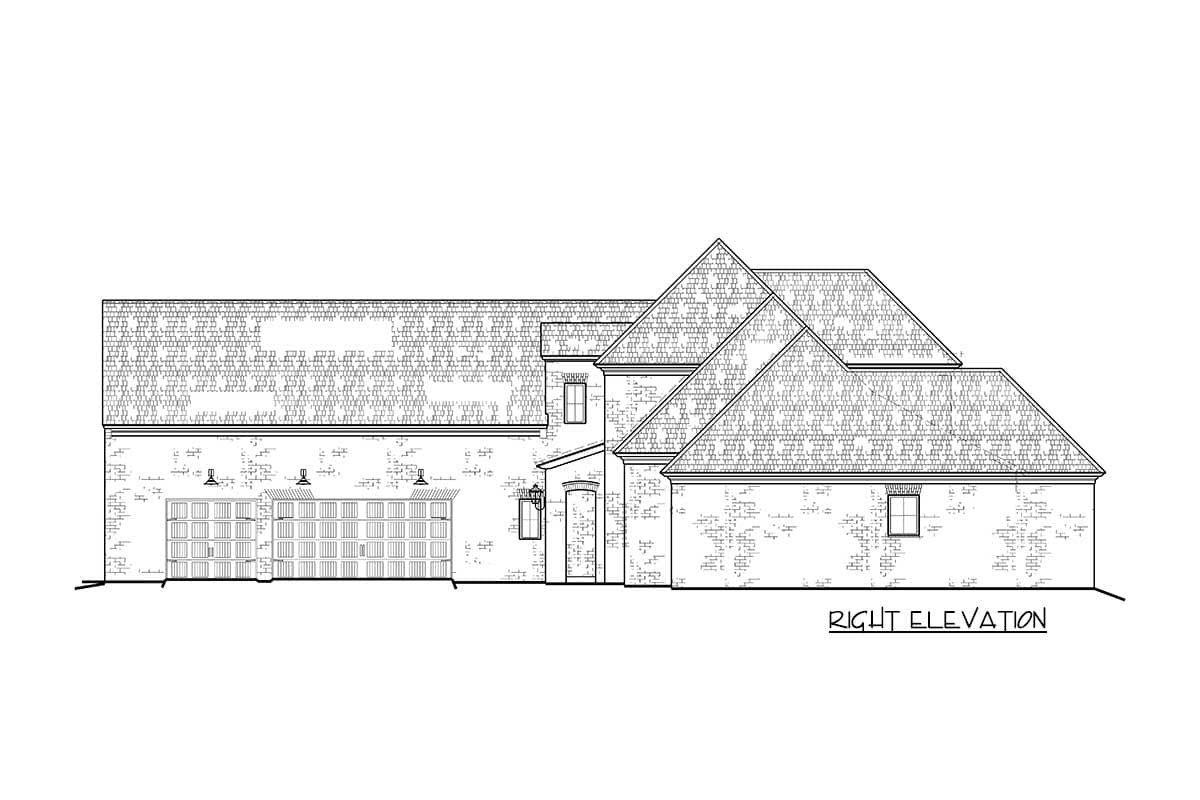

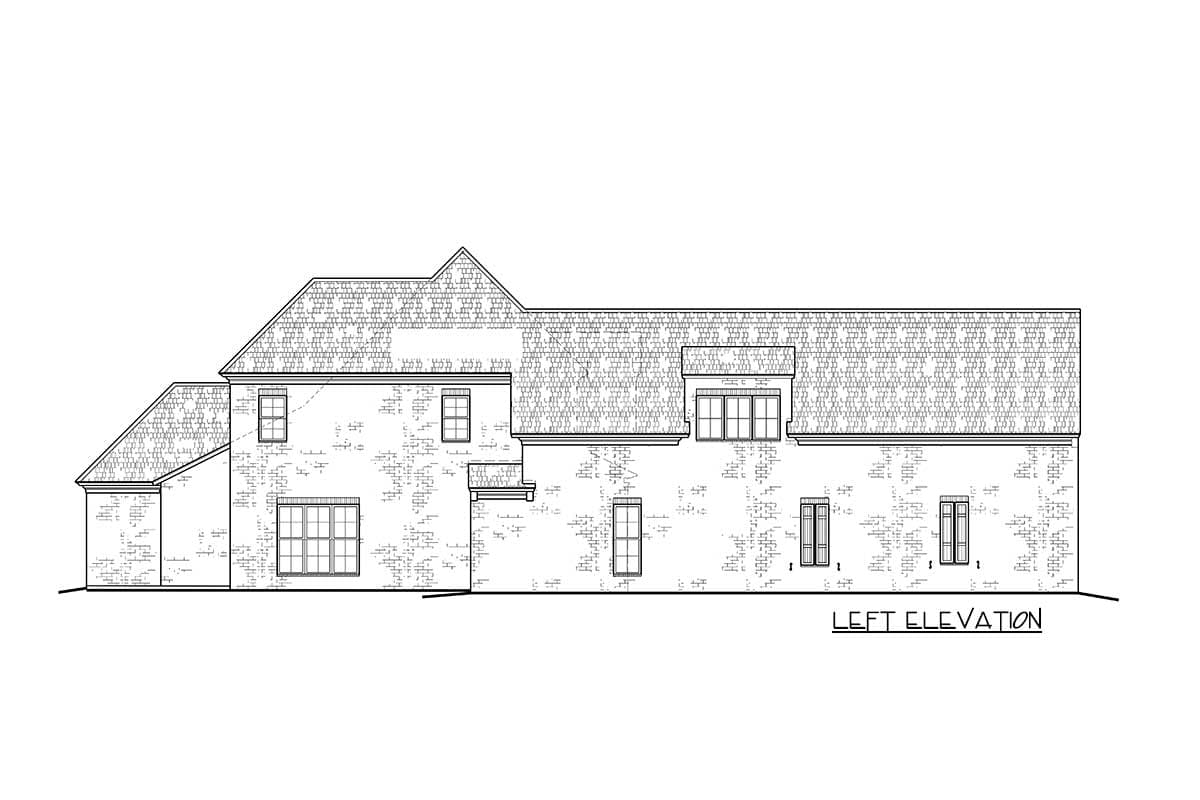

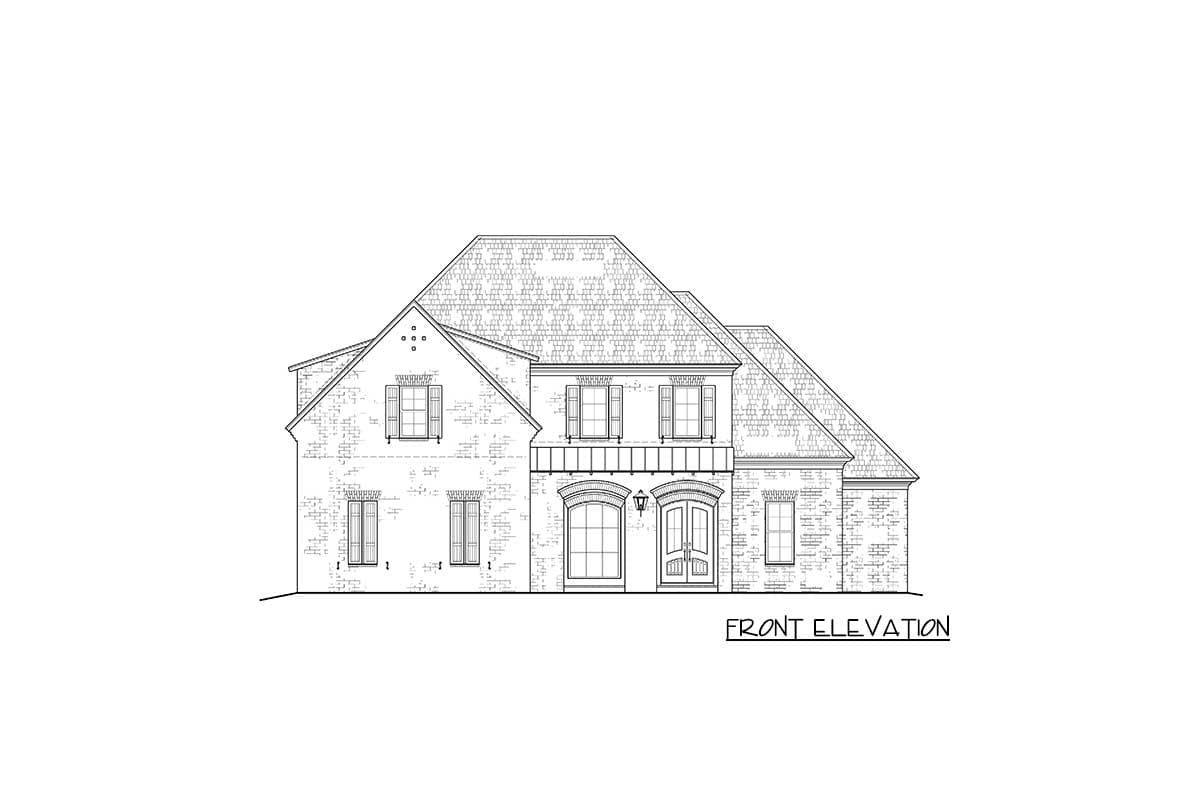

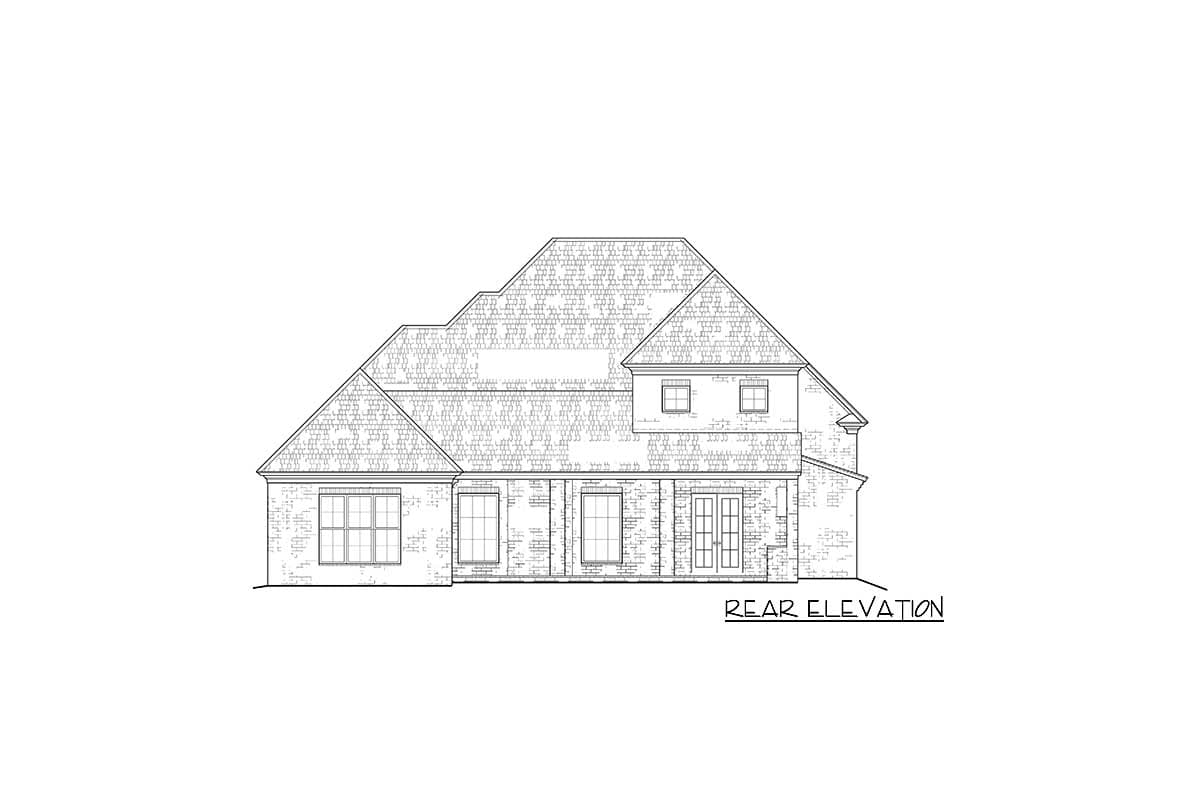

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

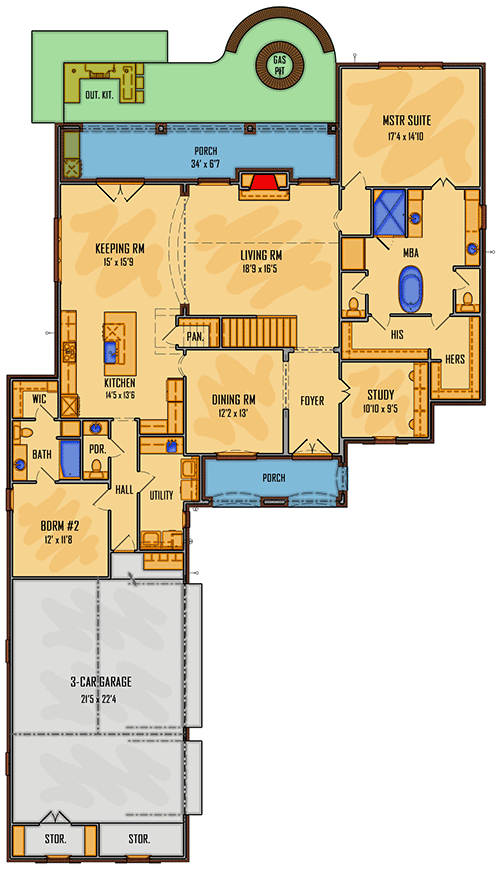

Brick-clad Two-story House Plan with Future Media Expansion - 510184WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

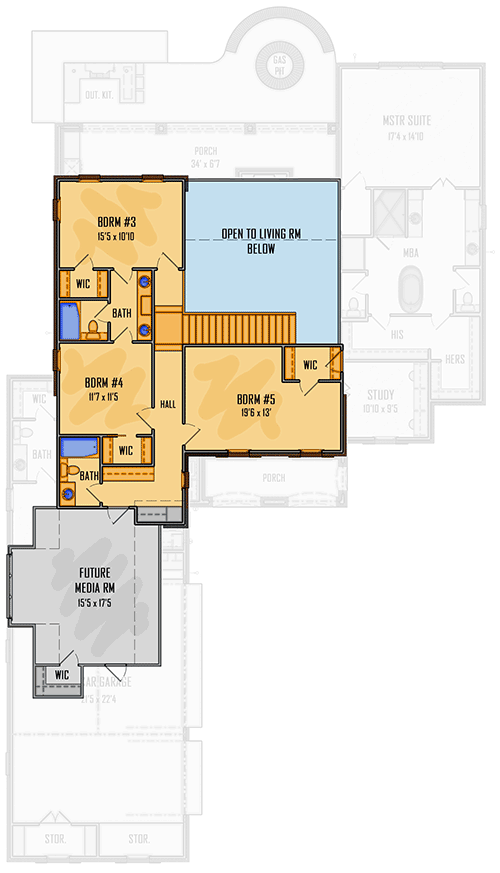

Brick-clad Two-story House Plan with Future Media Expansion - 510184WDY floor plan - 2nd Floor
