Plan 59427ND
Brick Split Bedroom House Plan
Heated S.F.
4,231
Beds
4-5
Baths
2.5 - 3.5
Stories
1
Cars
2
What's Included
Plan Details
  • Entering through the brick arched entry of this home plan, discover the split bedroom design that provides mom and dad their own privacy.
  • Magnificent columns define the entrance to the spacious dining room. A convenient built-in media center beside the fireplace will satisfy your guests needs.
  • The computer center of this home is tucked away perfectly between the kitchen and hearth rooms.
  • Striking 'his and her' walk-in closets in your expansive master suite provide ample storage and the wonderful corner whirlpool bath allows you to soak to your troubles away.
  • Related Plans: Don't need a finished basement? See 5954ND. Gain a bonus room in this plan shown in reverse layout: 5944ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Brick Split Bedroom House Plan

  • 4,231

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

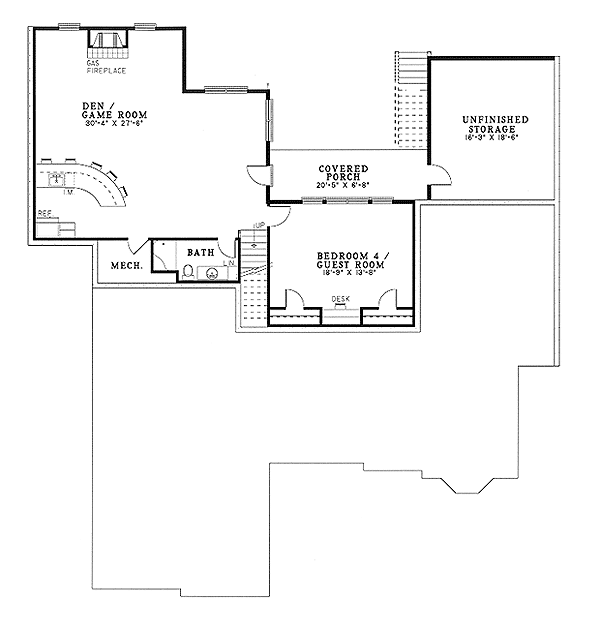

  • Basement

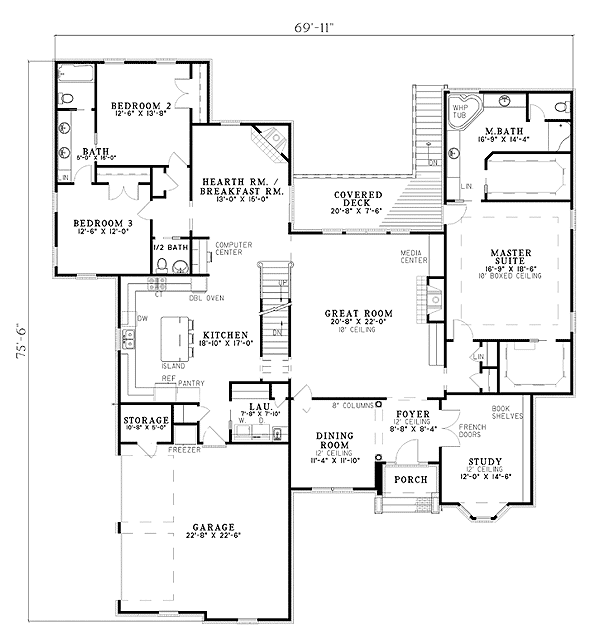

  • Main Level

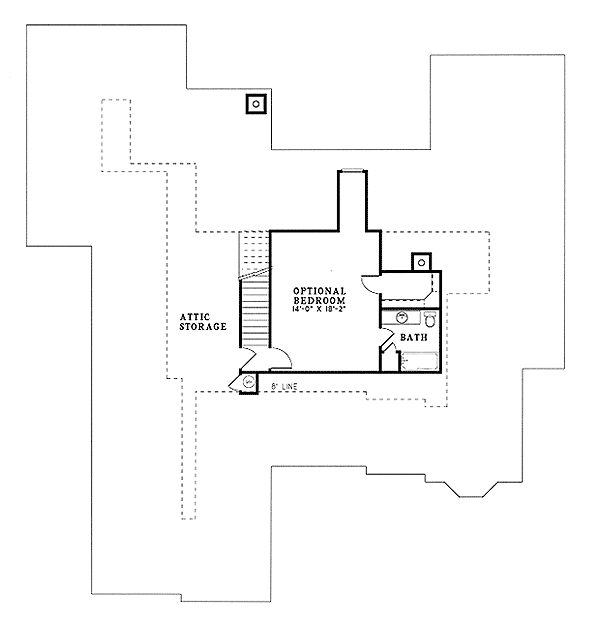

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,231 sq. ft.
  • Lower Level: 1,329 sq. ft.
  • 1st Floor: 2,902 sq. ft.

Dimensions

  • Width: 69' 11"
  • Depth: 75' 6"
  • Max ridge height: 32' 8"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 510 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
