Plan 36540TX
Bright and Airy Hill Country House Plan
Heated S.F.
4,284
Beds
4
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 36540TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36540TX

1-800-854-7852

1-262-521-4596

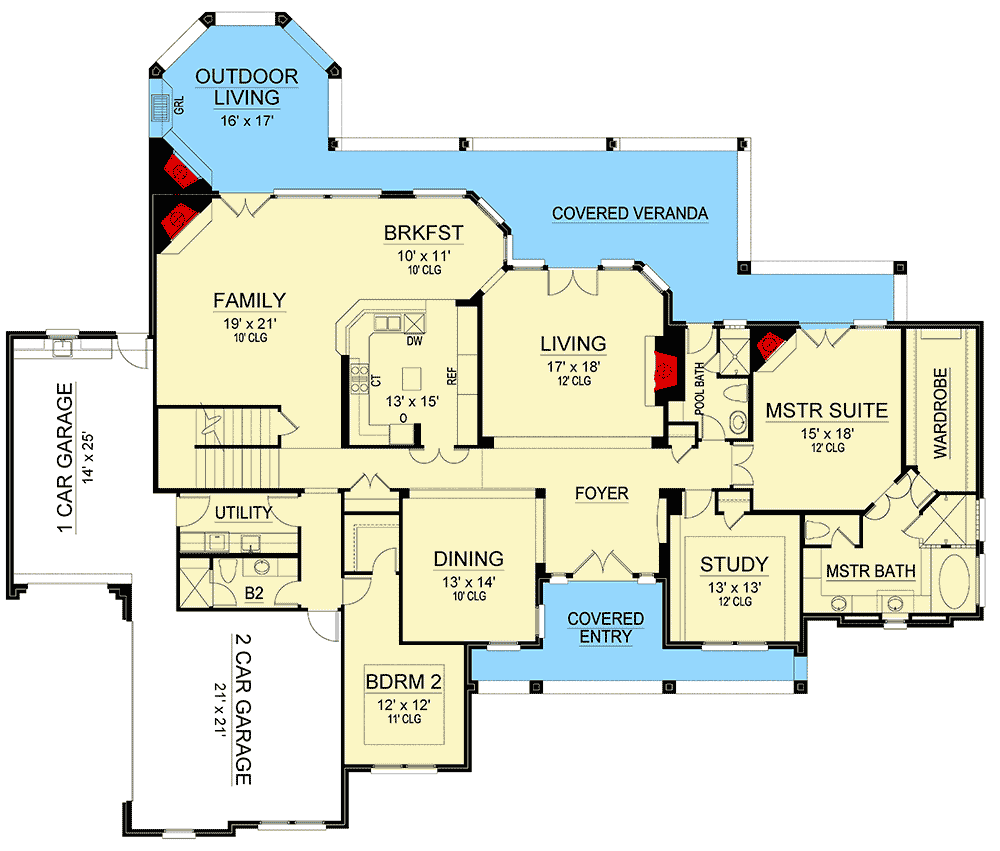

Main Level
floor plan image Main Level

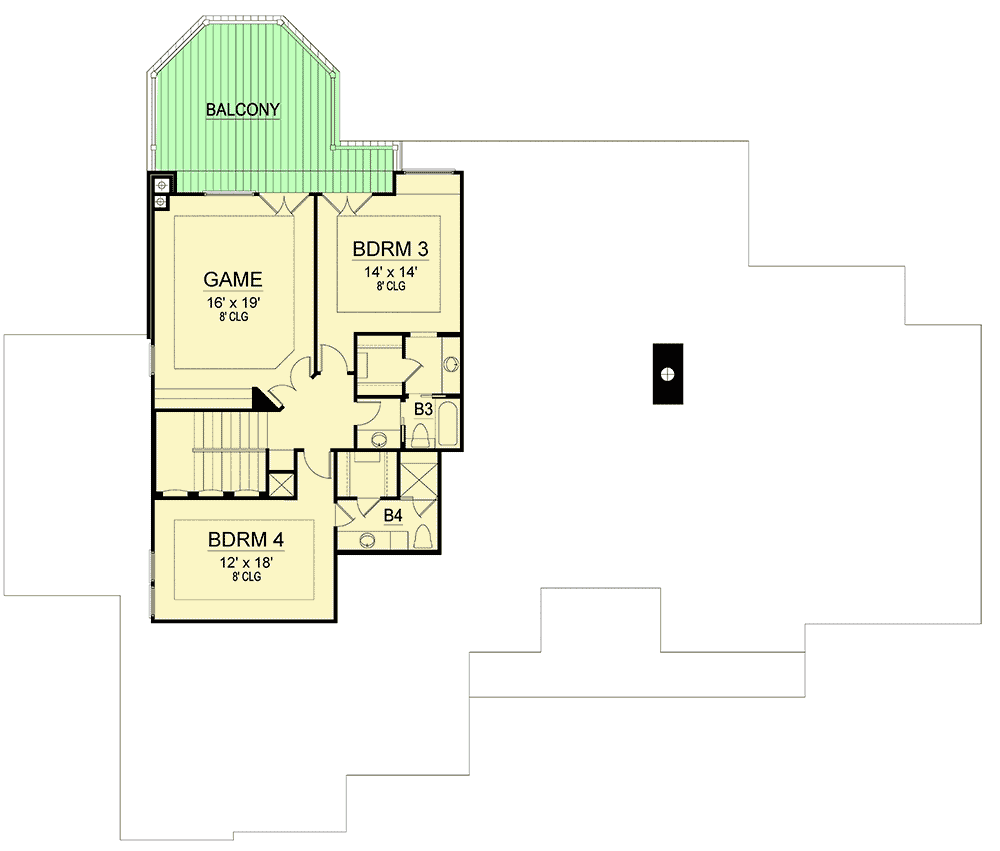

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Although this Hill Country house plan looks like a ranch home from the front, there's a big and beautiful second floor with a game room and spacious outdoor balcony.
  • Transom windows send light streaming into the home brightening the front and back.
  • With only one column between the foyer, dining room and living room, the views flow in all directions.
  • The informal family area is also open concept so you can enjoy the family room corner fireplace from the kitchen sink.
  • A first floor master suite welcomes homeowners with a cozy fireplace and super large walk-in clothes closet.
  • There are two bedrooms downstairs and two upstairs - each with a walk-in closet.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

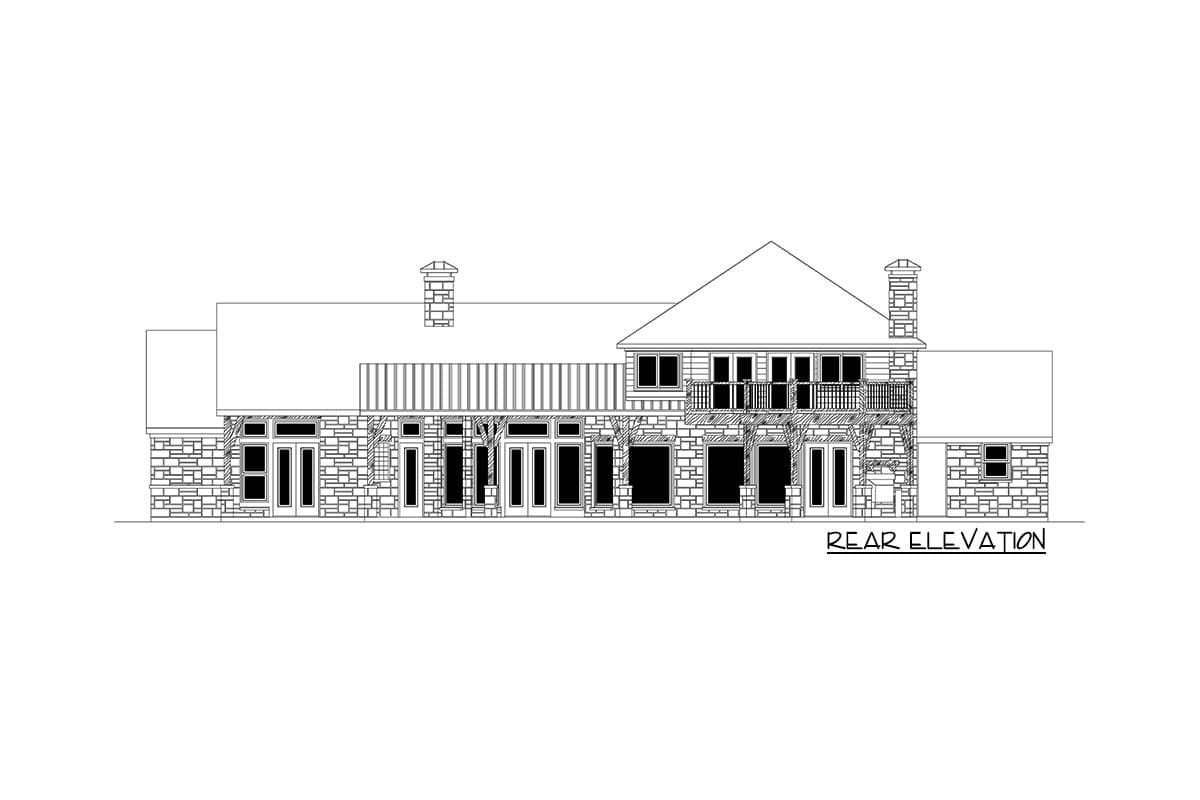

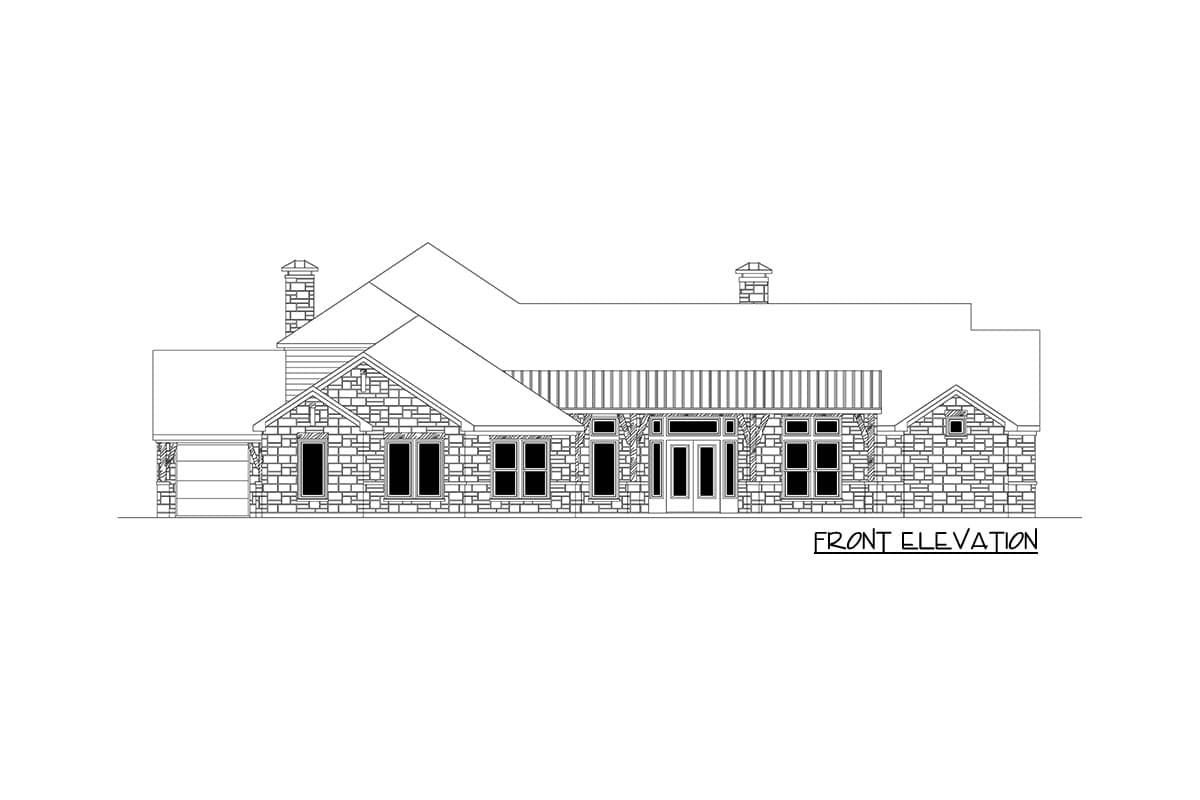

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

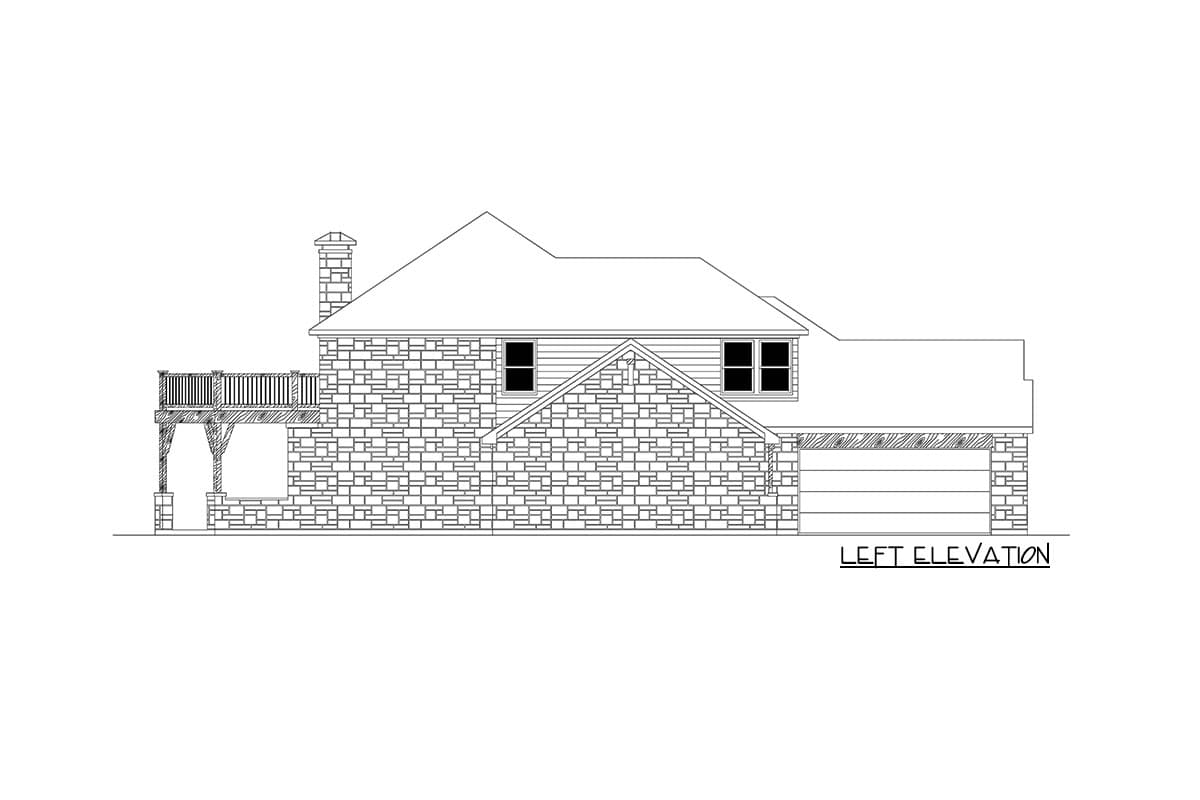

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,284 sq. ft.

1st Floor

3,134 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

98' 0"

Depth

83' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Architectural Style

Hill Country

Special Features

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,284 sq. ft.

1st Floor

3,134 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

98' 0"

Depth

83' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Architectural Style

Hill Country

Special Features

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
