Plan 72017DA

Brightly Illuminated House Plan

Heated S.F.
1,802
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 72017DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72017DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

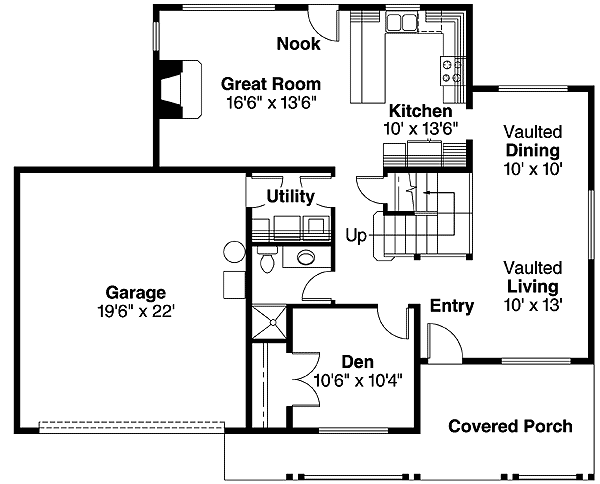

Plan 72017DA: Brightly Illuminated House Plan - Floor Plan - Main Level - Country, Traditional

2nd Floor

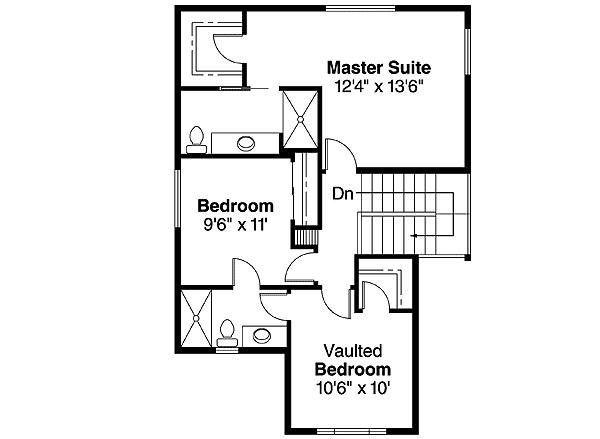

Plan 72017DA: Brightly Illuminated House Plan - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • Large front windows and a wide front porch give a welcoming look to the house plan, a compact three-bedroom home with a surprising sense of spaciousness. Four sets of slender posts add graceful charm to the front porch, while wooden handrails provide partial privacy.
  • This plan is traditional in having all of the bedrooms upstairs, yet the layout of the main floor is quite contemporary.
  • Dining room and living room flow together. A lofty vaulted ceiling peaks near the stairway and slopes down toward the front of the living room and the rear of the dining room.
  • Wide windows fill most of the front and back walls, and more light spills in through an equally large window on the side wall. A pocket door opens to link with the kitchen, or closes to provide separation.
  • The spacious great room that fills the back of the house has a fireplace at one end and a kitchen at the other. Only a raised eating bar marks the boundary, and the entire space is naturally illuminated by windows: over the sink, along the rear, and next to the fireplace.
  • Laundry appliances are nearby, in a passthrough space that links with the garage. Across the hallway from the laundry room is a coat closet, tucked under the stairway.
  • To the left of the entry is a room that could be used as a den, library, home office, or even another bedroom. A small bathroom is right across the hall.
  • Two more bathrooms are upstairs. One serves the master suite and the other is shared by the occupants of the secondary bedrooms, both of which have direct access.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,802 sq. ft.

1st Floor

1,061 sq. ft.

2nd Floor

741 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

41' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Den

Home Office

Library/Study

Master Suite - Upstairs

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,802 sq. ft.

1st Floor

1,061 sq. ft.

2nd Floor

741 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

41' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Den

Home Office

Library/Study

Master Suite - Upstairs

Plan Collections

Home Office
