Bungalow House Plan With Bonus Room With Balcony

Plan 18252BE

This plan plants 10 trees

3,039
Heated s.f.
3
Beds
2.5
Baths
1-2
Stories
3
Cars

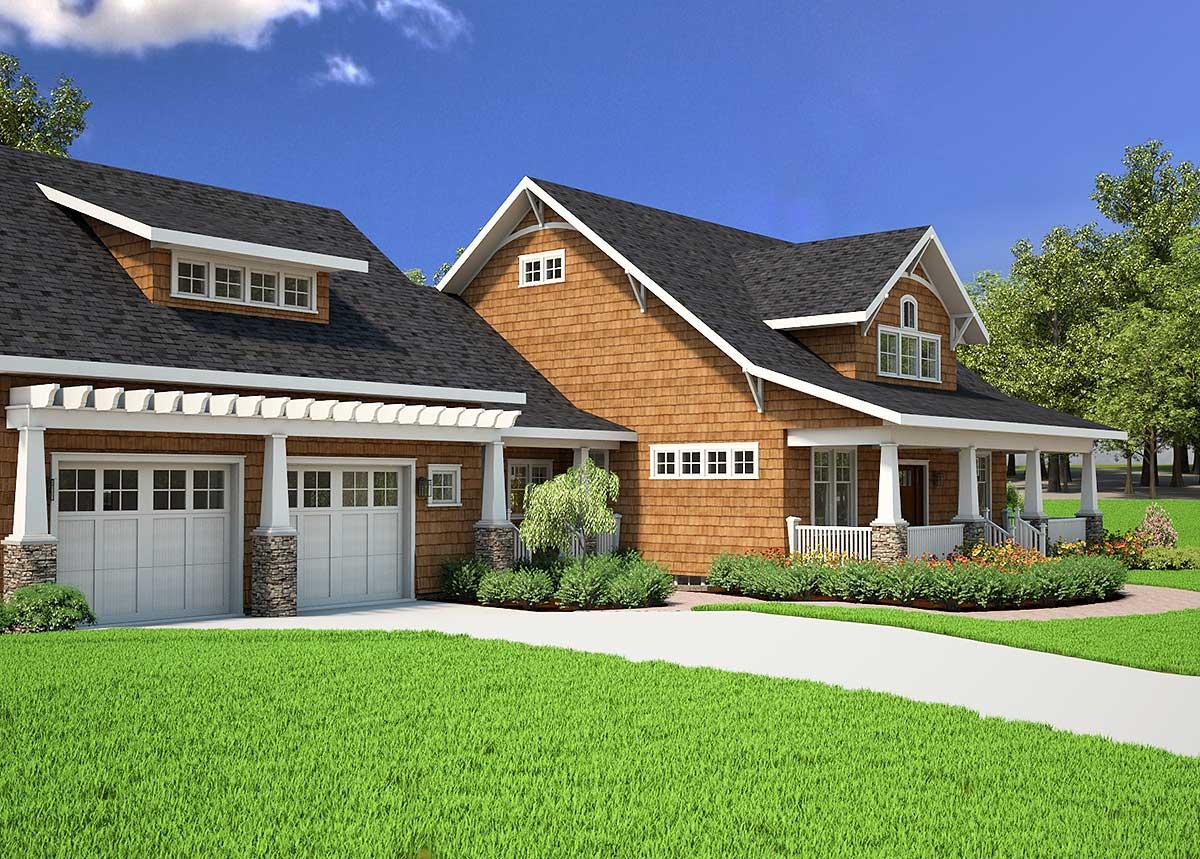

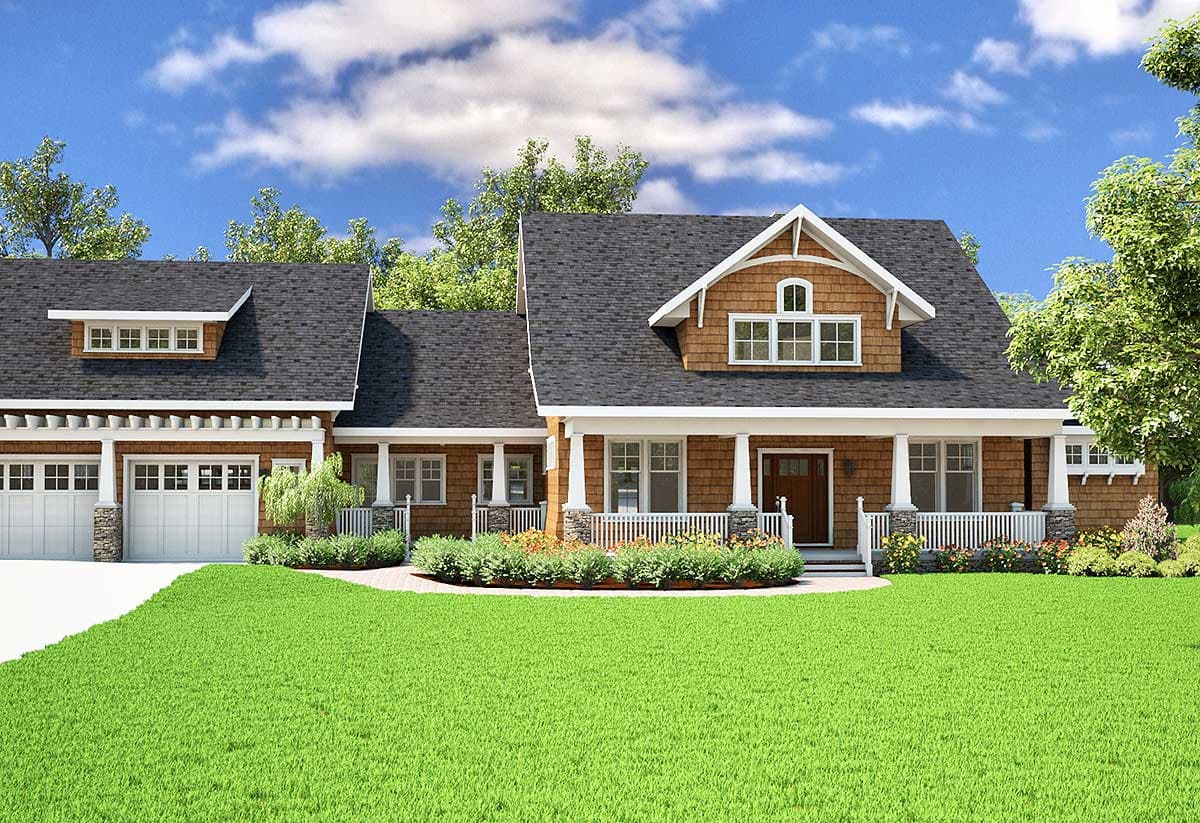

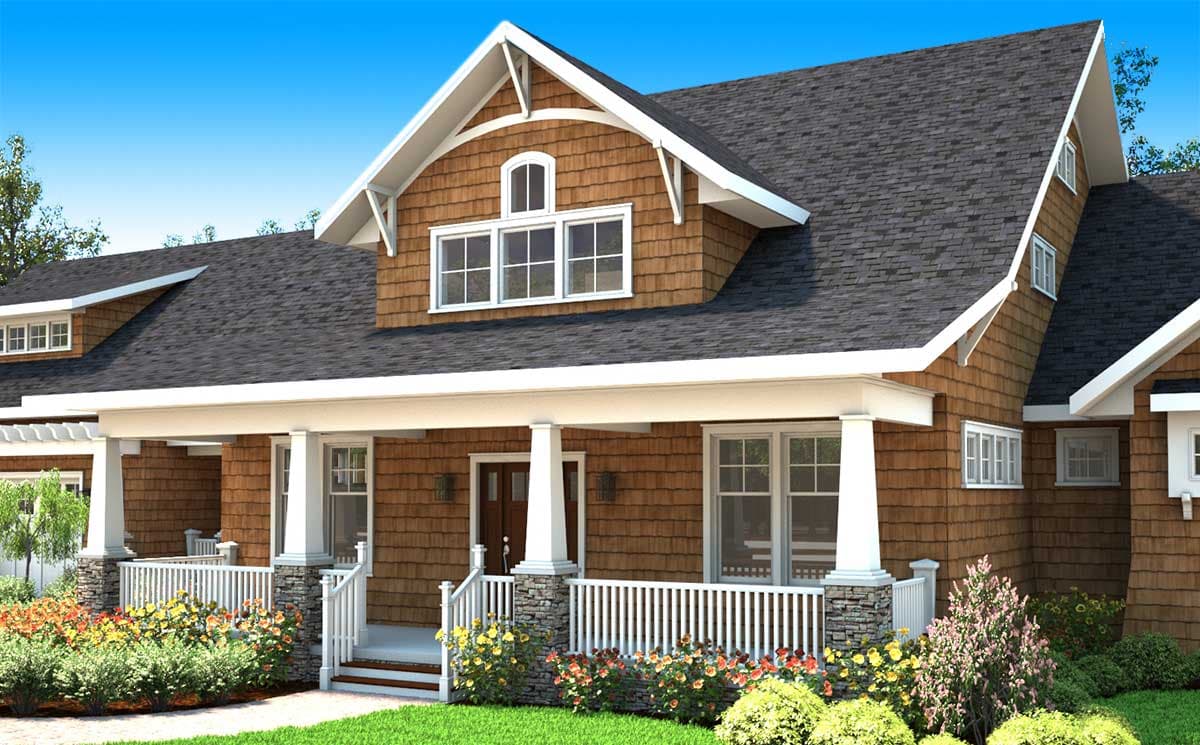

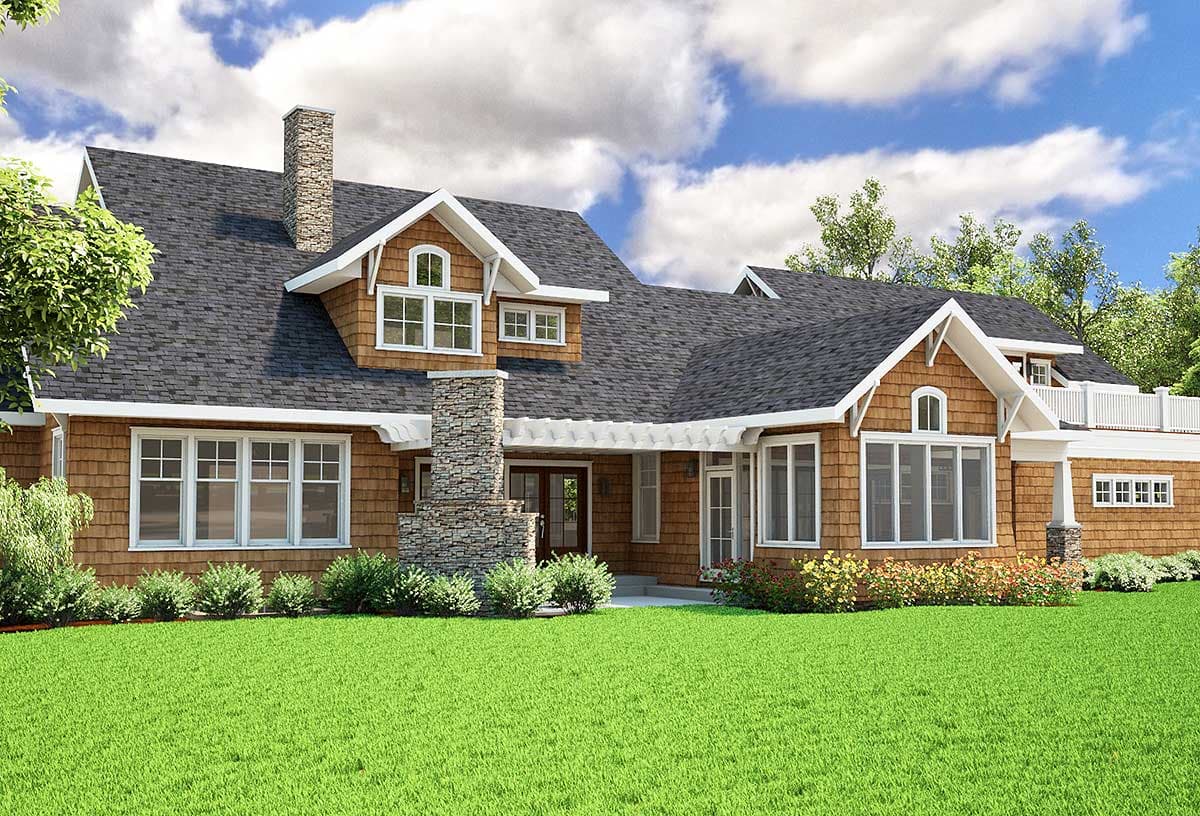

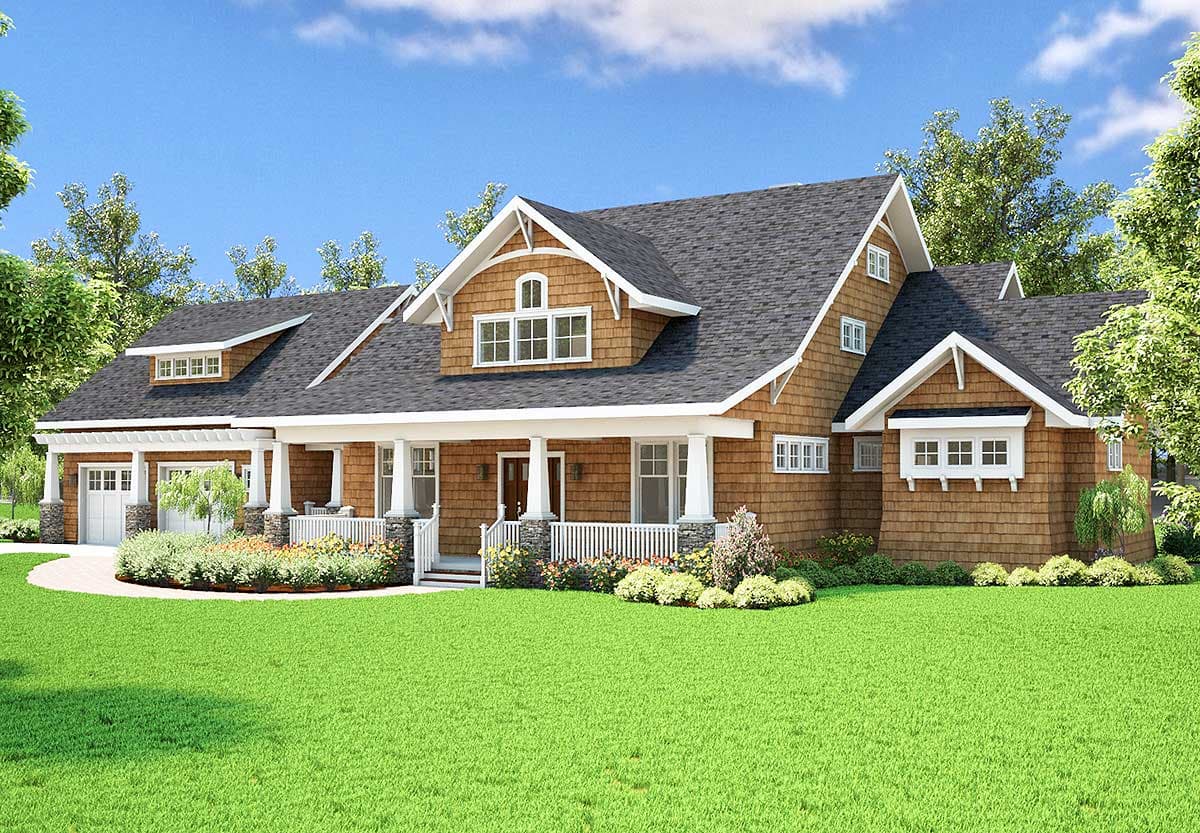

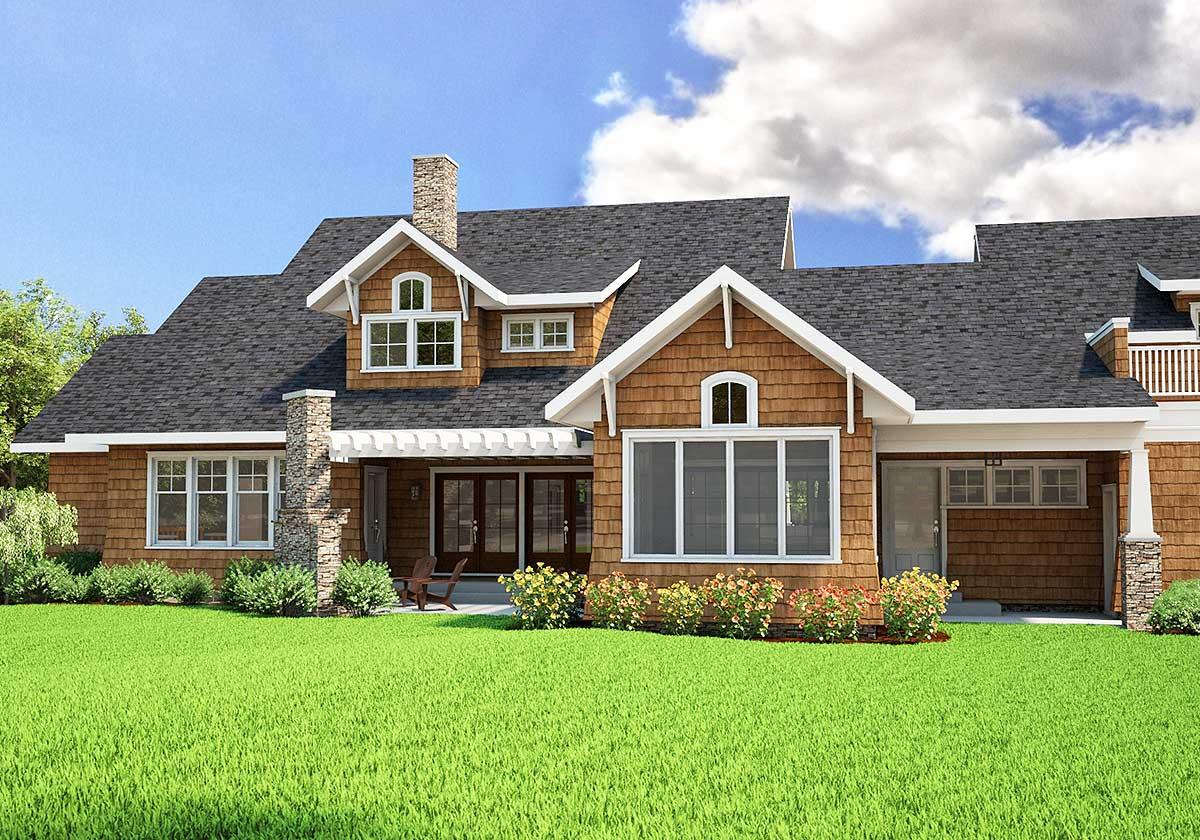

This stylish Northwest bungalow has a grand front porch measuring 35'x8' and a pergola in the back for your outdoor enjoyment. A smaller porch by the family foyer is 18'x6'8". The rear covered patio is 13'x9'8" rounding out your outdoor spaces.
The formal dining room has a handy butler's pantry and a walk-in pantry close by to aid in entertaining.
The great room, kitchen and morning room are all open to each other, sharing views of the fireplace.
In the master suite, the spacious spa-like bathroom has a cozy fireplace between the soaking tub and huge walk-in shower, for the ultimate in pampering.
Two bedrooms on the upper level share a tub but have their own sink and toilet. The botton one is vaulted with 11' ceilings.

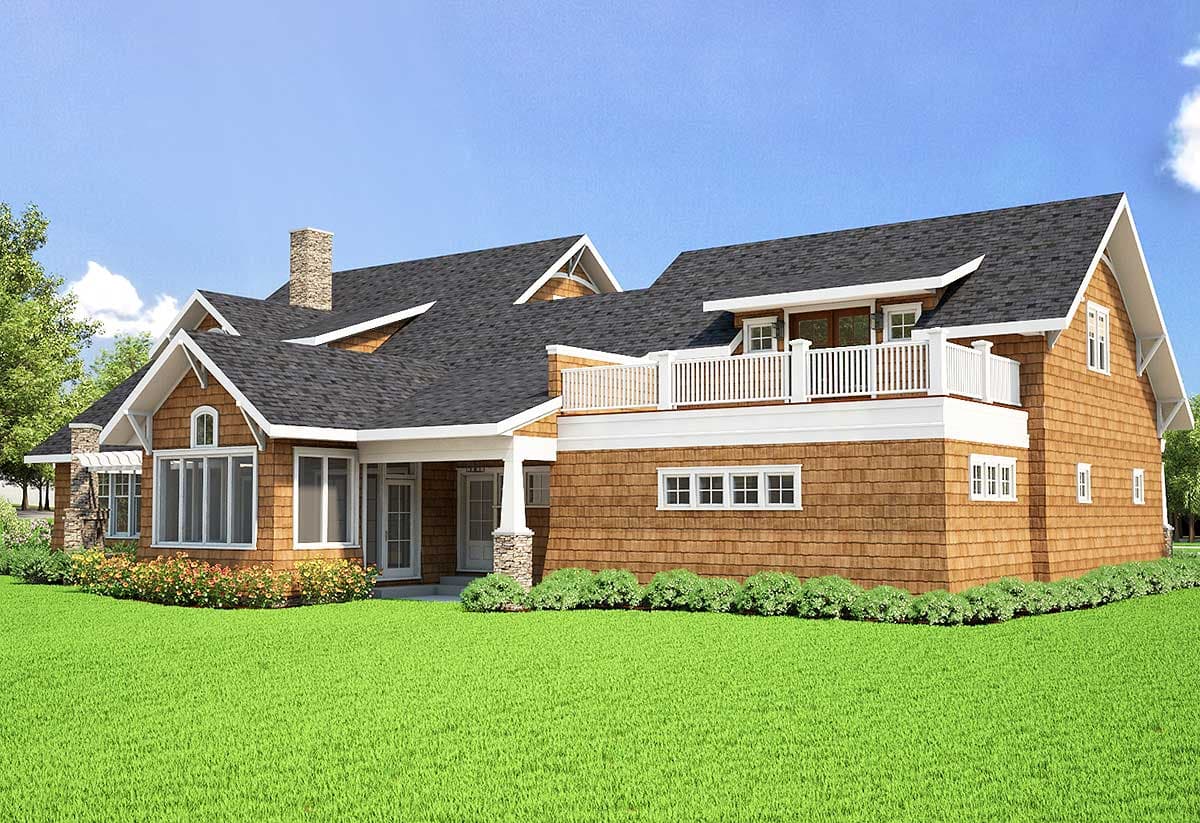

The bonus space over the 3-car garage also has 11' vaulted ceilings and a large balcony for working on your suntan in private.
Related Plans: Downsize with house plan 18240BE (2,597 sq. ft.) and house plan 18280BE (2,209 sq. ft.). Remove the garage with house plans 18255BE (2,113 sq. ft.) and 18298BE (2,133 sq. ft.).

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles. It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

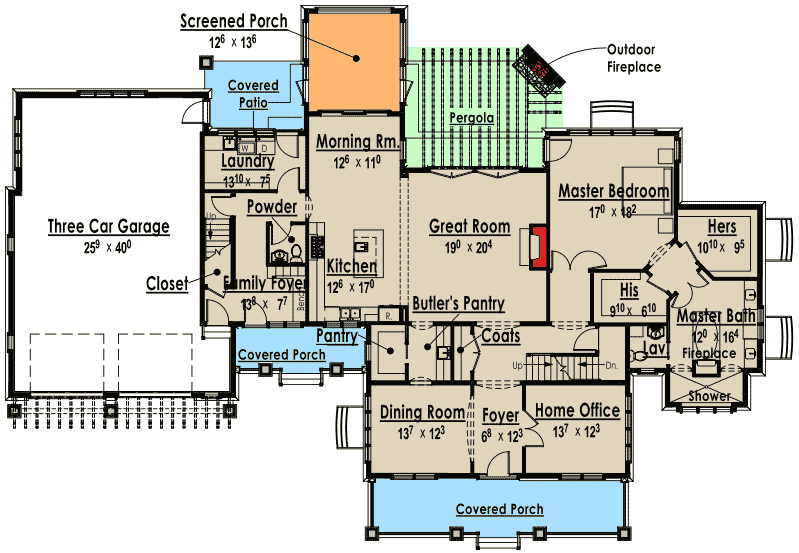

Bungalow House Plan With Bonus Room With Balcony - 18252BE floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

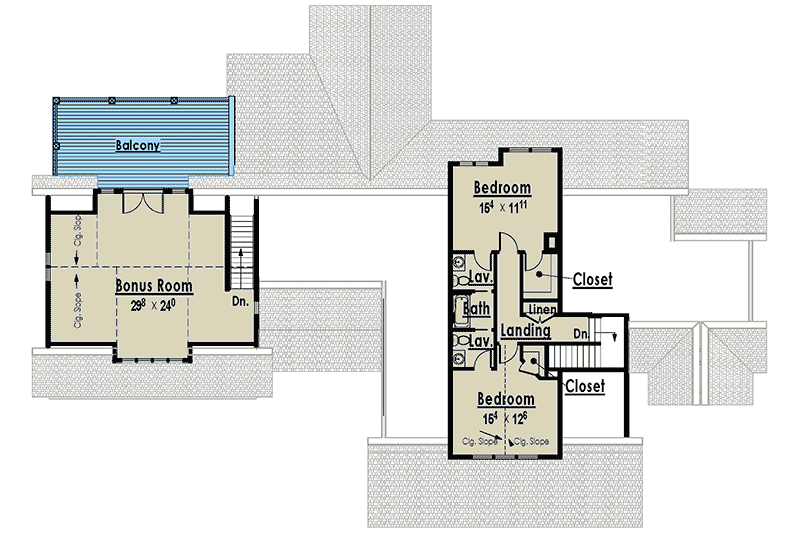

Bungalow House Plan With Bonus Room With Balcony - 18252BE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,039 sq. ft.
1st Floor: 2,409 sq. ft.
2nd Floor: 630 sq. ft.

Bonus: 599 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 102' 4"
Depth: 72' 2"
Max ridge height: 31' 3"

Garage

Type: Attached
Area: 1112 sq. ft.
Count: 3 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 4 on 12

Framing Type: Truss
